How to Connect an Ethernet Cable to a Security Camera

Connecting an Ethernet cable to a security camera is essential for establishing a reliable network connection, ensuring data transmission, and often providing power via Power over Ethernet (PoE). Here’s a step-by-step guide:

Step 1: Gather Necessary Equipment

  1. Ethernet Cable (Cat5e or Cat6): Ensure you have a sufficient length of Ethernet cable.
  2. RJ45 Connectors: You’ll need RJ45 connectors to terminate the Ethernet cable.
  3. Crimping Tool: A crimping tool is necessary for attaching the RJ45 connectors to the cable.
  4. Security Camera with Ethernet Port: Ensure your security camera has an Ethernet port.
  5. Network Switch or PoE Injector: For connecting the camera to your network. If using PoE, ensure the switch or injector supports it.

Step 2: Prepare the Ethernet Cable

  1. Measure and Cut: Measure the distance between your camera and the network switch or NVR. Cut the Ethernet cable to the desired length.
  2. Strip the Cable: Use a cable stripper to remove about 1 inch of the outer insulation from both ends of the cable, exposing the twisted pairs of wires inside.

Step 3: Arrange and Insert Wires

  1. Untwist and Arrange Wires: Untwist the pairs and arrange them in the correct order. The standard wiring configuration is T568B:
    • White/Orange
    • Orange
    • White/Green
    • Blue
    • White/Blue
    • Green
    • White/Brown
    • Brown
  2. Cut Wires Evenly: Ensure all wires are cut to an even length.

Step 4: Attach RJ45 Connectors

  1. Insert Wires into RJ45 Connector: Hold the RJ45 connector with the clip facing down. Carefully insert the wires into the connector, ensuring each wire goes into its corresponding slot.
  2. Crimp the Connector: Use a crimping tool to crimp the RJ45 connector onto the cable. This secures the connection and ensures good contact.

Step 5: Connect the Camera

  1. Plug the RJ45 Connector: Insert the crimped RJ45 connector into the Ethernet port on the security camera.

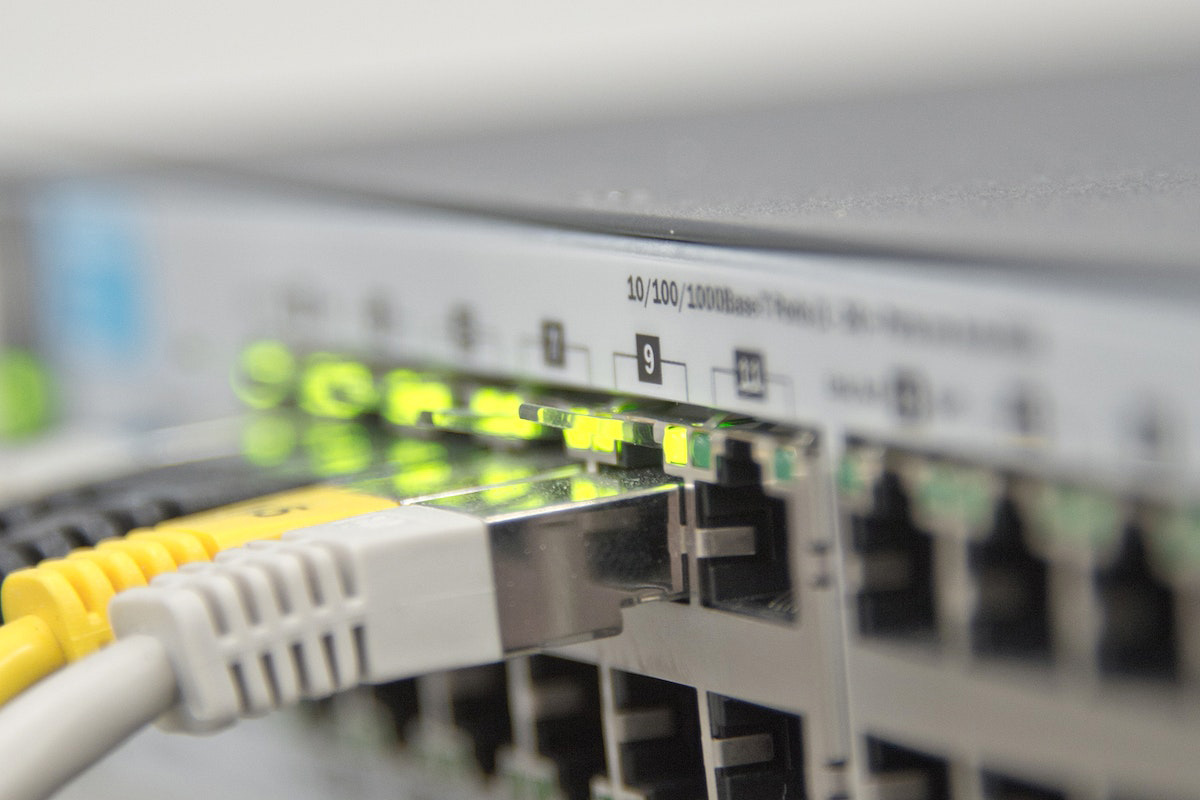

  2. Connect to Network Switch: Plug the other end of the Ethernet cable into the network switch or NVR.

Step 6: Power the Camera

  1. PoE (Power over Ethernet): If using PoE, the camera will receive power through the same Ethernet cable. Ensure your switch or injector supports PoE.
  2. Separate Power Supply: If not using PoE, connect the camera to a separate power source using its power adapter.

Step 7: Configure the Camera

  1. Network Settings: Access the camera’s settings via its web interface or software provided by the manufacturer. Ensure the camera is properly configured with the correct IP address and network settings.
  2. Test the Connection: Verify that the camera is working by viewing the live feed on your monitor or NVR.

Related Products

SKU: SC500-BLACK

500ft Siamese RG59/18-2 Black Cable In Box

$70.12
SKU: SC500-WHITE

500 FT Siamese RG59-18-2 White Cable in pull box

$70.12
SKU: SC500-95-BLACK

Siamese Cable 95% Braid-BLACK

$134.76

Frequently Asked Questions (FAQ)

1. What is an Ethernet cable used for in security camera systems?

  • Ethernet cables are used to transmit data and power (via PoE) between security cameras and network devices, such as NVRs or switches.

2. Do I need special tools to connect an Ethernet cable to a security camera?

  • Yes, you will need a cable stripper, RJ45 connectors, and a crimping tool.

3. What is the standard wiring configuration for Ethernet cables?

  • The standard wiring configuration is T568B: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown.

4. Can Ethernet cables provide power to security cameras?

  • Yes, if using Power over Ethernet (PoE), the Ethernet cable can transmit both data and power to the security camera.

5. How do I ensure a good connection?

  • Use high-quality tools, ensure wires are properly aligned in the RJ45 connector, and crimp securely.
