Description

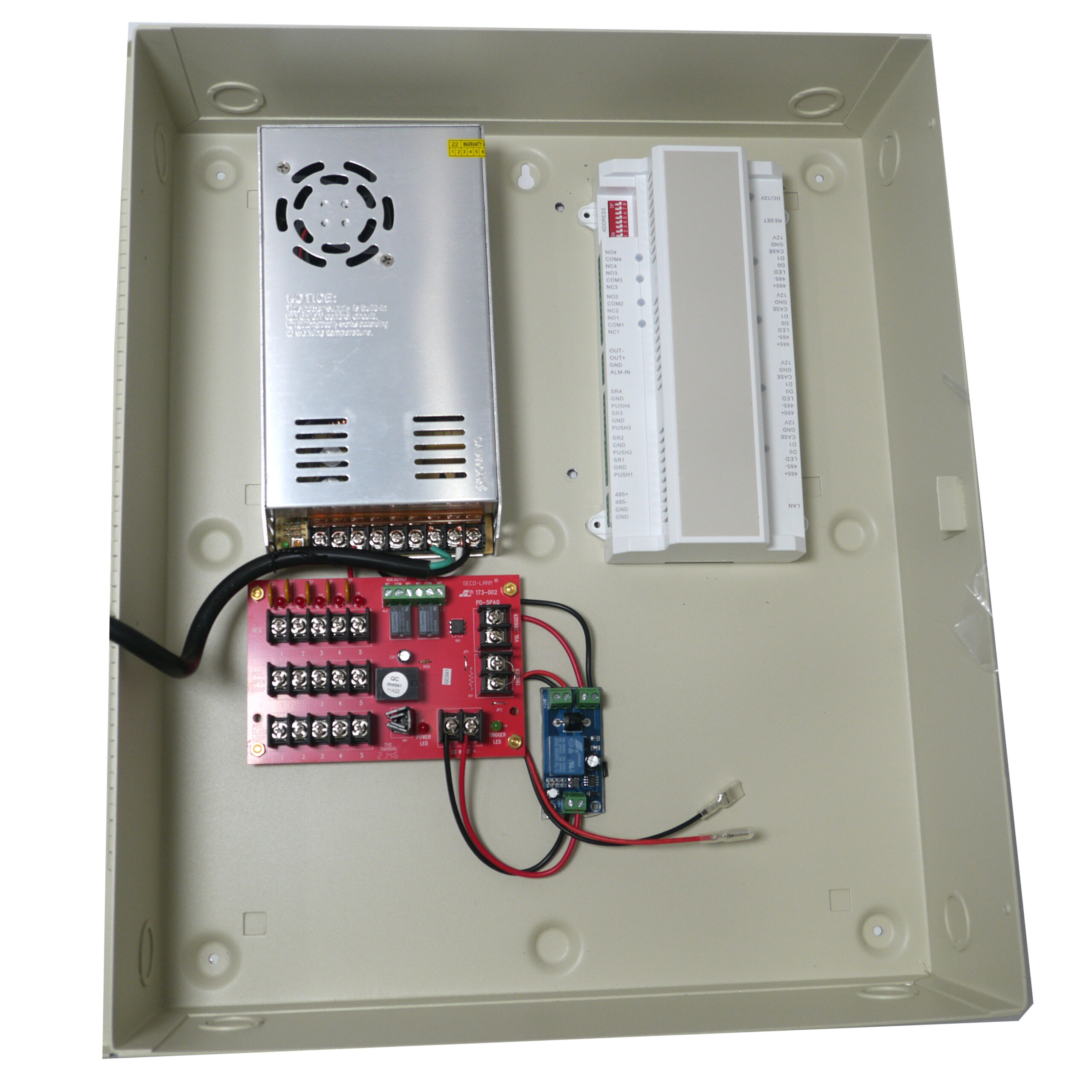

Here is our Elite 4-door access controller with our new 12/24v DC UL-rated power supply enclosure with 5 outputs and a fire alarm interface making it easy to integrate at your home or business. .

The ACP-EL4 provides the ability to set up an access control system and use a card, Fob, fingerprint, or pin code to allow access. There is 16MB of storage enabling you to store up to 150,000 event records and have up to 100,000 unique users.

You can have up to 128 groups of schedules which provides you with the flexibility to allow or restrict access during various hours of the day. You can also set up temporary access and holiday schedules as well.

The ACP-EL4 Elite 4-door controller has a 32-bit main processor and supports RS-485 connections to interface with readers or via the Wiegand protocol. The controller itself has 9 inputs of which 4 are used for door sensors, 4 are for push to exit and there is one input for an alarm. The power supply enclosure has an operating input voltage of 110-240 VAC

There are 5 outputs in total having 4 for door locks such as magnetic locks or door strikes and one final output for an alarm and the controller has support for up to 4 door readers. Should you need any assistance in the programming of this ACP-EL4 controller, please contact our Technical Support department Monday through Friday from 9 am- 6 pm eastern time. For warranty information, please click here.

This standard 4 Door Access Control Package Includes:

1 x 24V/12V DC Power Supply, UL, 5 Outputs, w/Fire Alarm Interface

– (AC-PWDIST-UL)

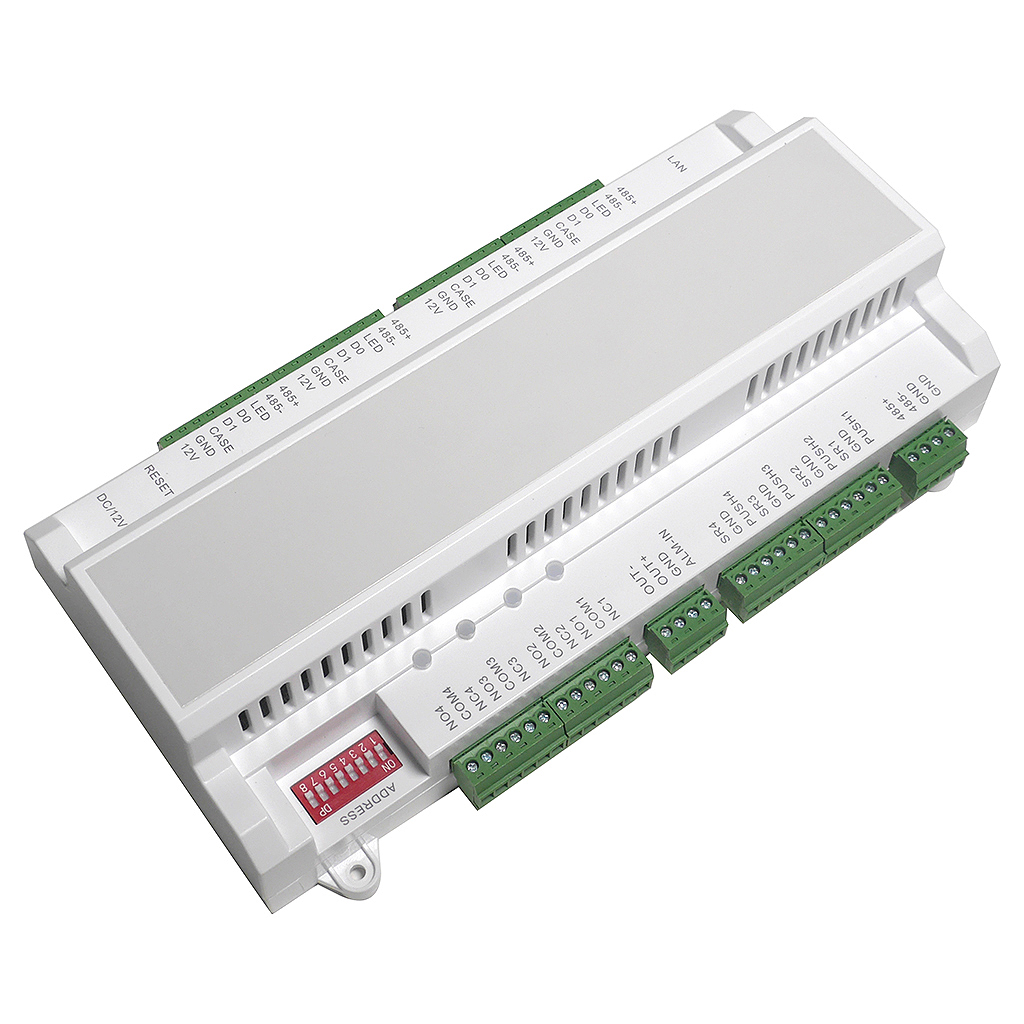

1 x Elite Four Door TCP-IP Webserver Controller

– (ACP-EL4)

1 x 2.1mm Female DC Plug With 8 Inch Flying Leads CABLE

– (PT-3)

Optional Equipment:

Battery Backups 7 AH @ 12 Volt

– (ACPWR-BBU 1-7)
