Complete Security System: 16-Channel Network Video Recorder (4TB) with 12 Eyeball Network Cameras (4MP)


In stock

SKU: IPKIT-ELME16P-12OD Categories: , ,


Distance up to 30.0 m
Night Vision

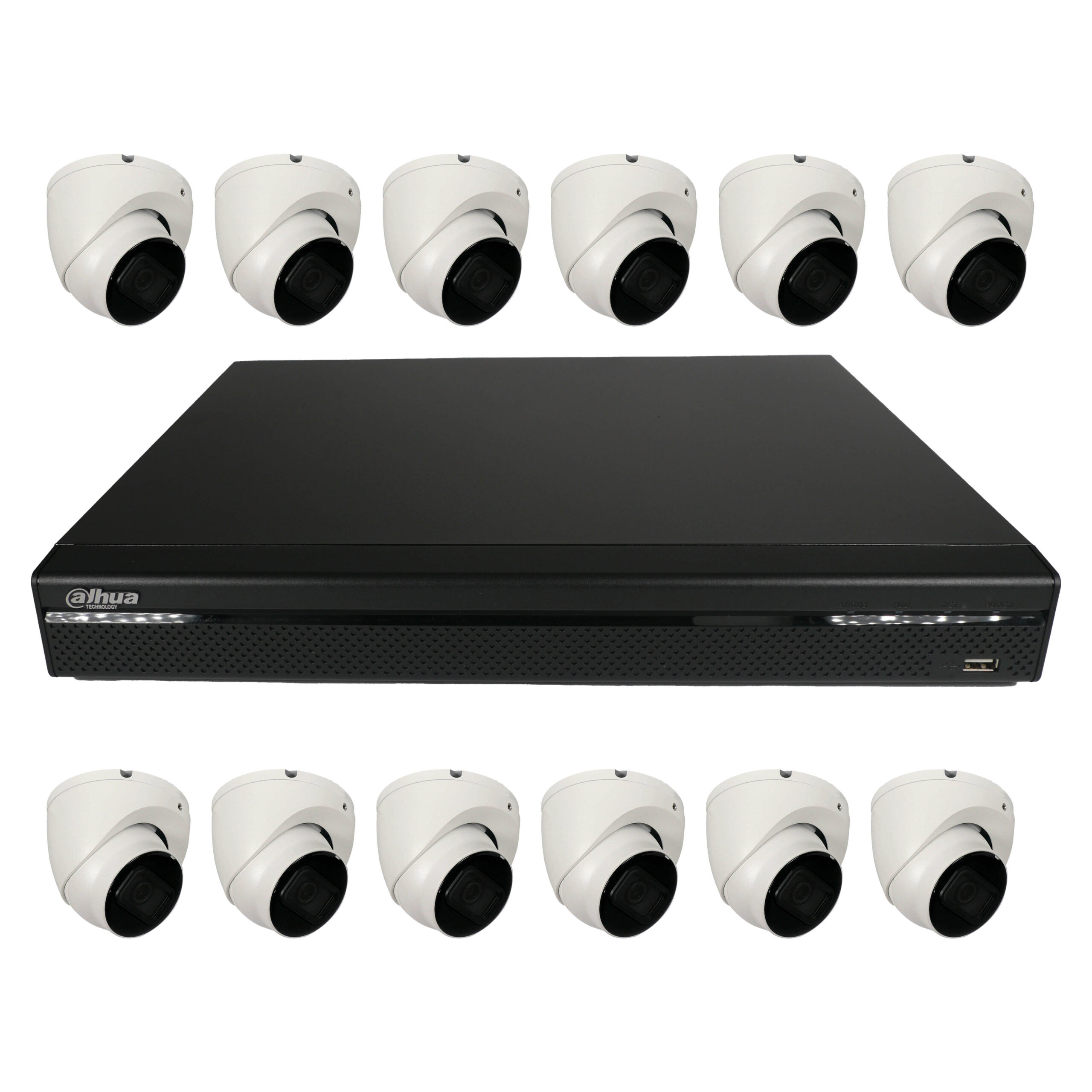

The IPKIT-ELME16P-12OD is a 12 IP camera kit from our Elite series of security camera equipment. This kit includes twelve turret dome style 4 MP (2560 × 1440) IP cameras and one sixteen channel 4K Network Video Recorder (NVR). We are offering this package to simplify the decision process.

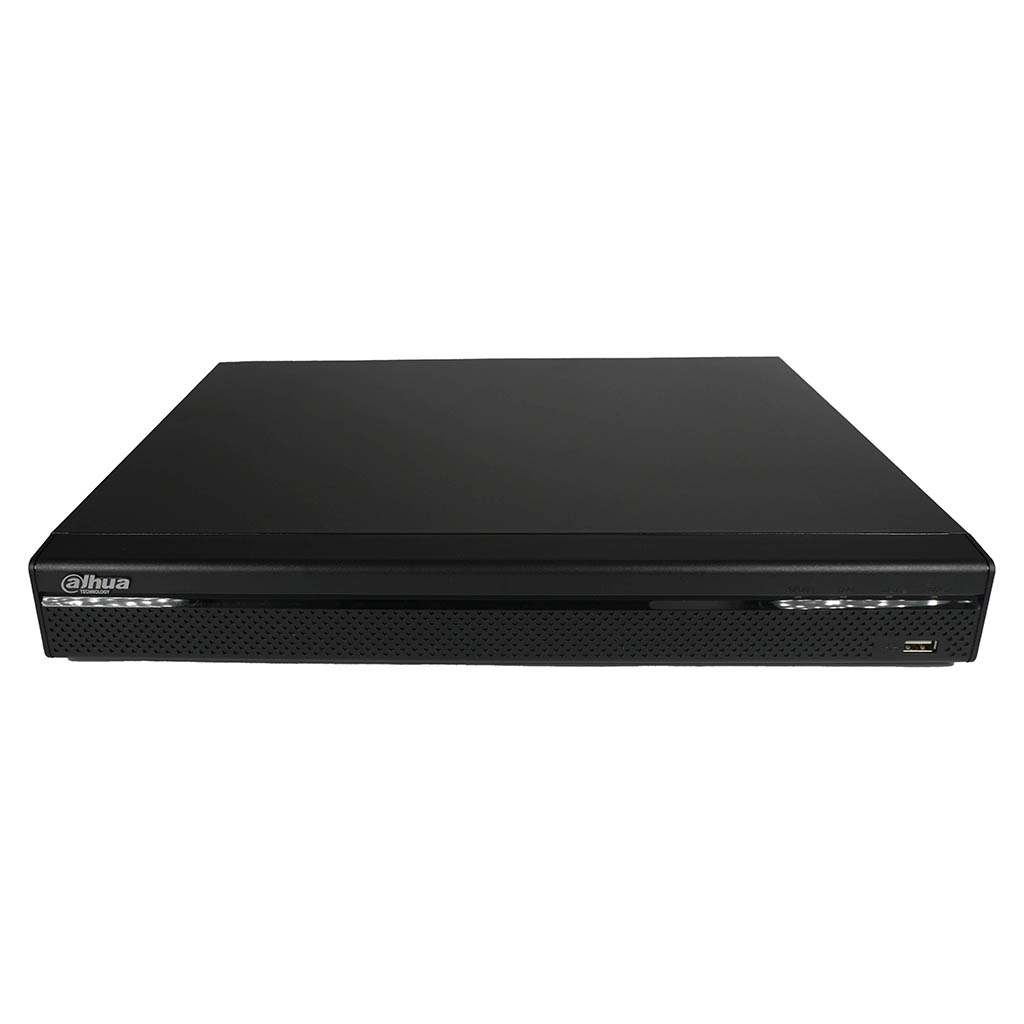

The NVR comes with a 4 TB hard drive pre-installed in it. It offers customizable recording options and schedules. It has the ability to do constant and/or motion based recording based on schedule. This maximizes the storage space and reduces the amount time it takes to review recorded footage.

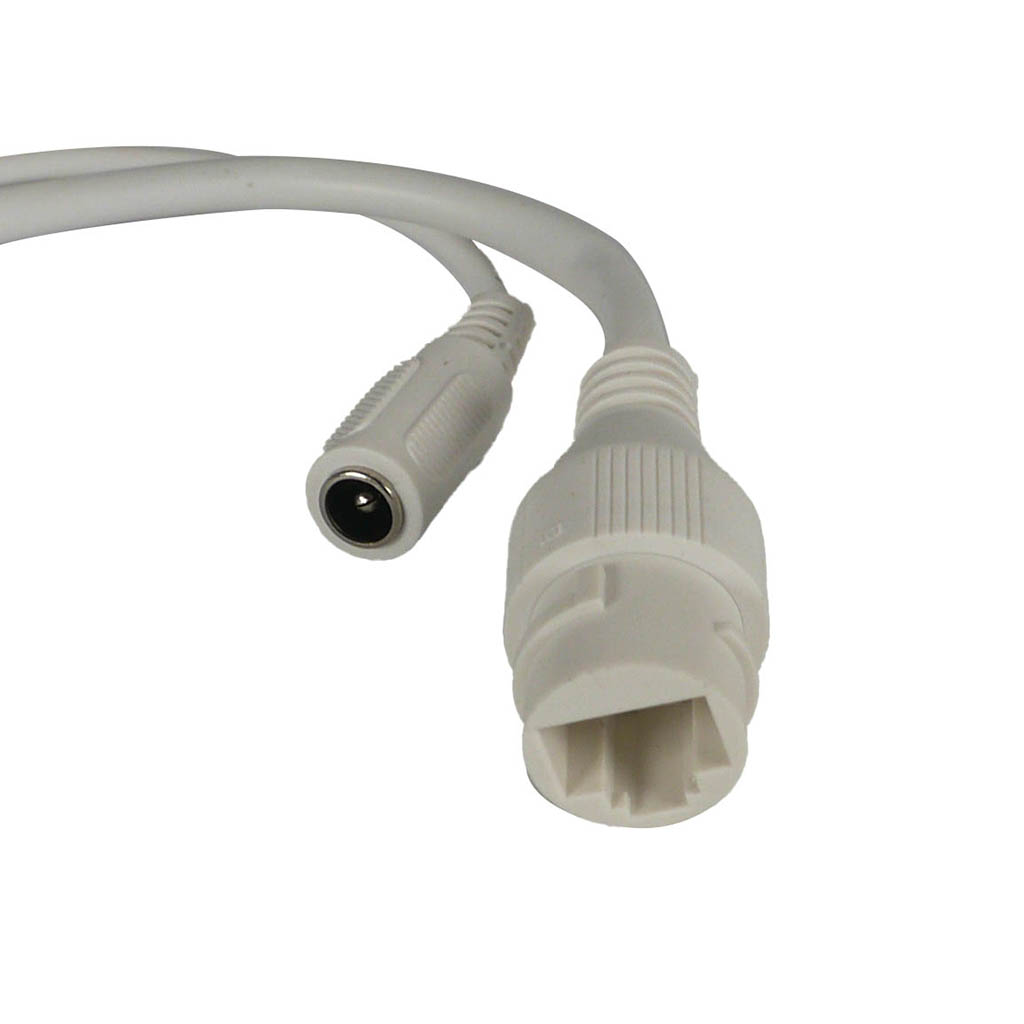

The cameras will provide 4MP at a maximum of 10 frames per second. They provide up to 98 ft of Infrared Red. This Smart IR will adjust to illuminate the area just right. They are designed for use indoors and out although you will need to protect the connectors from the elements. The junction box and wall mount in the recommended accessories section of this page can help with this.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Weather Resistant

131°F | 55°C
Heat Rating
40°F | 4°C
Cold Rating
Weather Rating

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

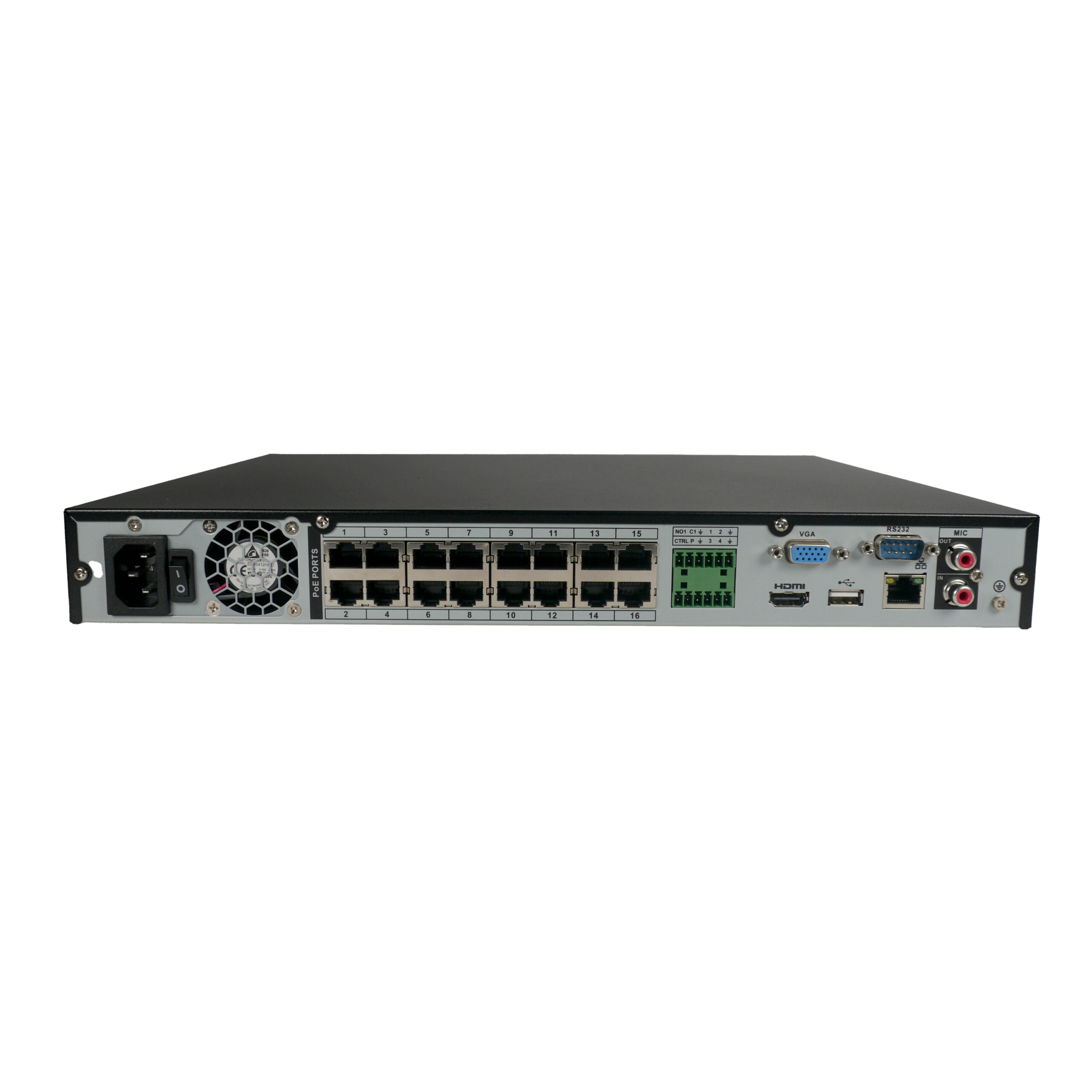

Recorder N42C3P4
Number Of Cameras 16
Number Of Hard Drives 2
Number Of SATA Connections 2
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: HDMI 1: 3840×2160, 1920×1080, 1280×1024, 1280×720 | HDMI 2 & VGA: 1920×1080, 1280×1024, 1280×720
Size 1U
Resolutions Capable 8MP,6MP,5MP,4MP,2MP,1080P,720P, D1
Max Bandwidth 160 Mbps
Display Screen Split 1/4/8/9/16
Compression of Video H.265+

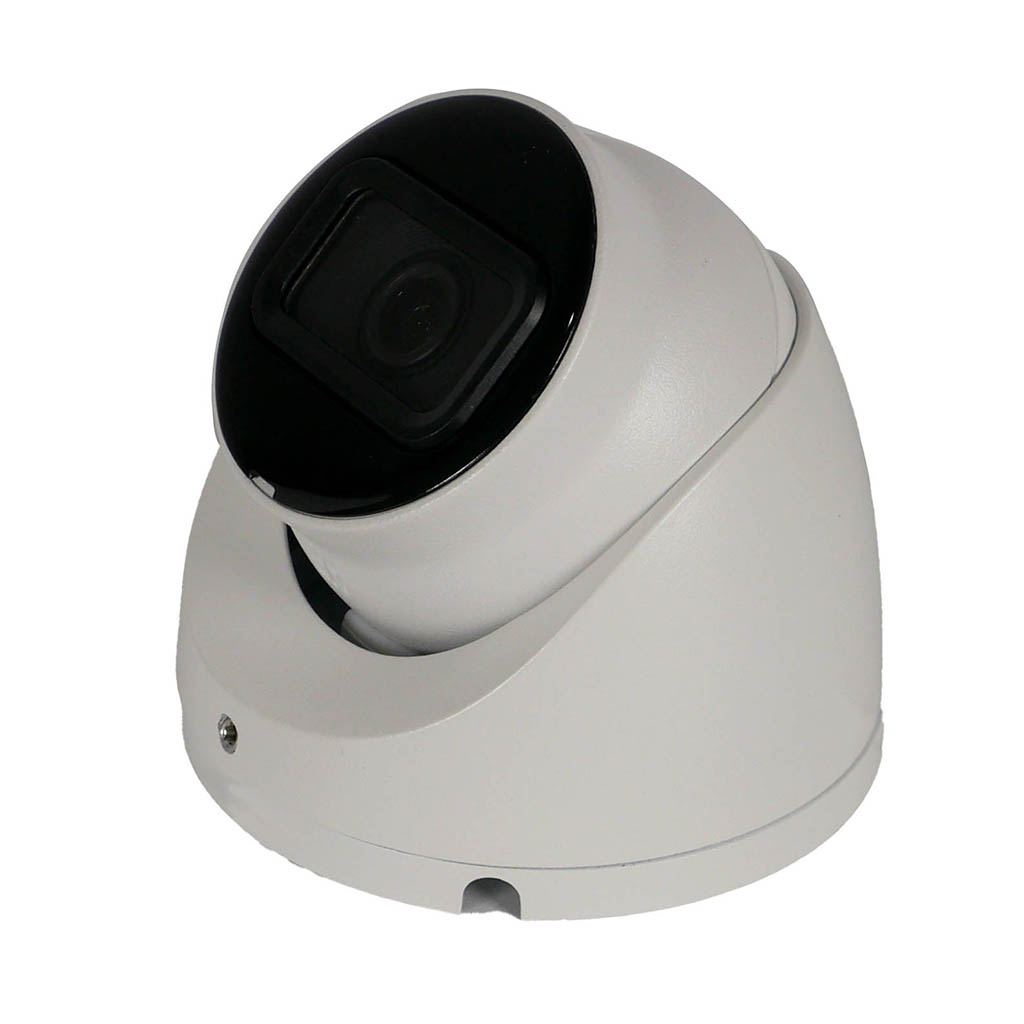

Camera N41CJ02
Features 4MP at 30 fps Maximum Resolution, 2.8 mm fixed lens, Motion Detection, IP67 Ingress Protection
Lens 2.8mm
Megapixel 4MP
Image Resolutions 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Sensor Size 1/3-in. 4MP Progressive-scan CMOS
IR Distance Distance up to 30.0 m
Weather Protection IP67
Voltage 12 VDC or PoE
Temp Range (–40°F to +131°F), Less than or equal to 95% RH
Dimensions 3.4 in. x 3.7 in.
Weight 0.71 lb
Audio None
SD Card Compatible No
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
