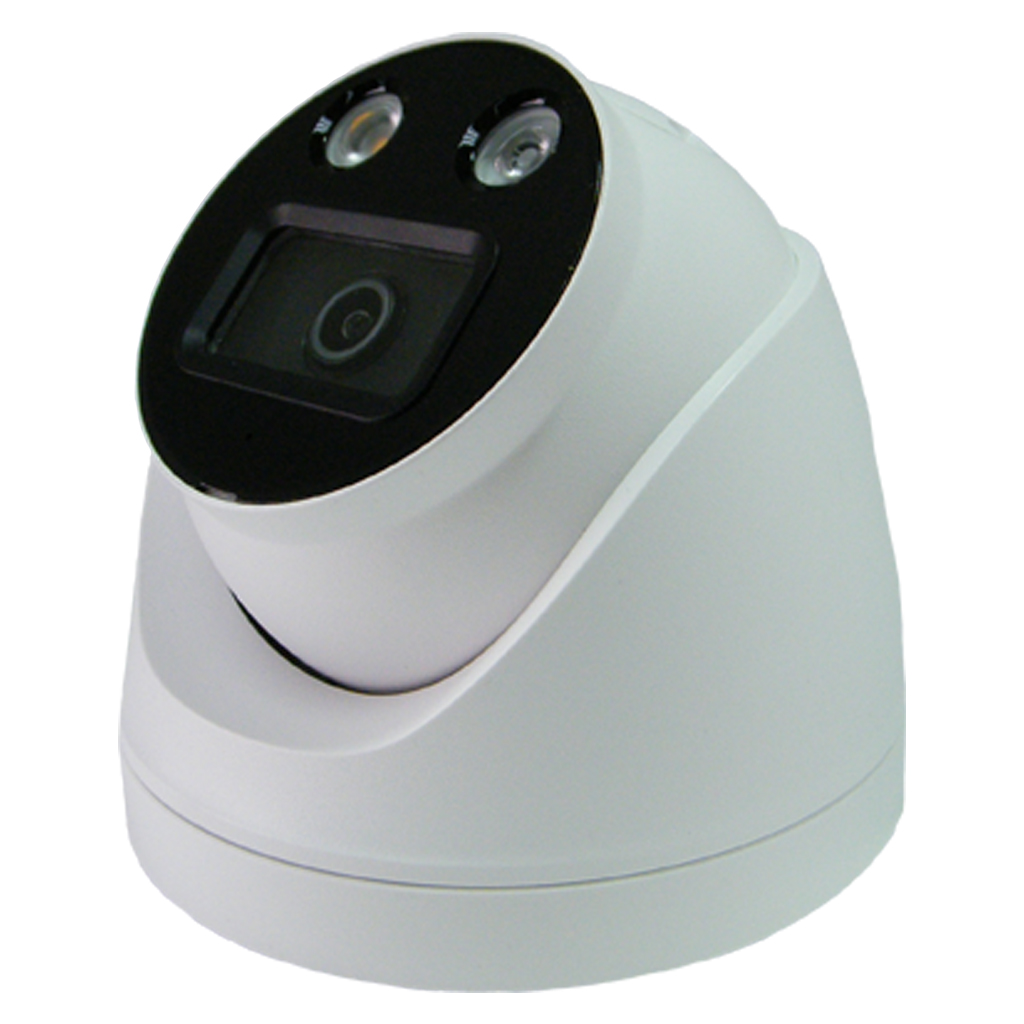

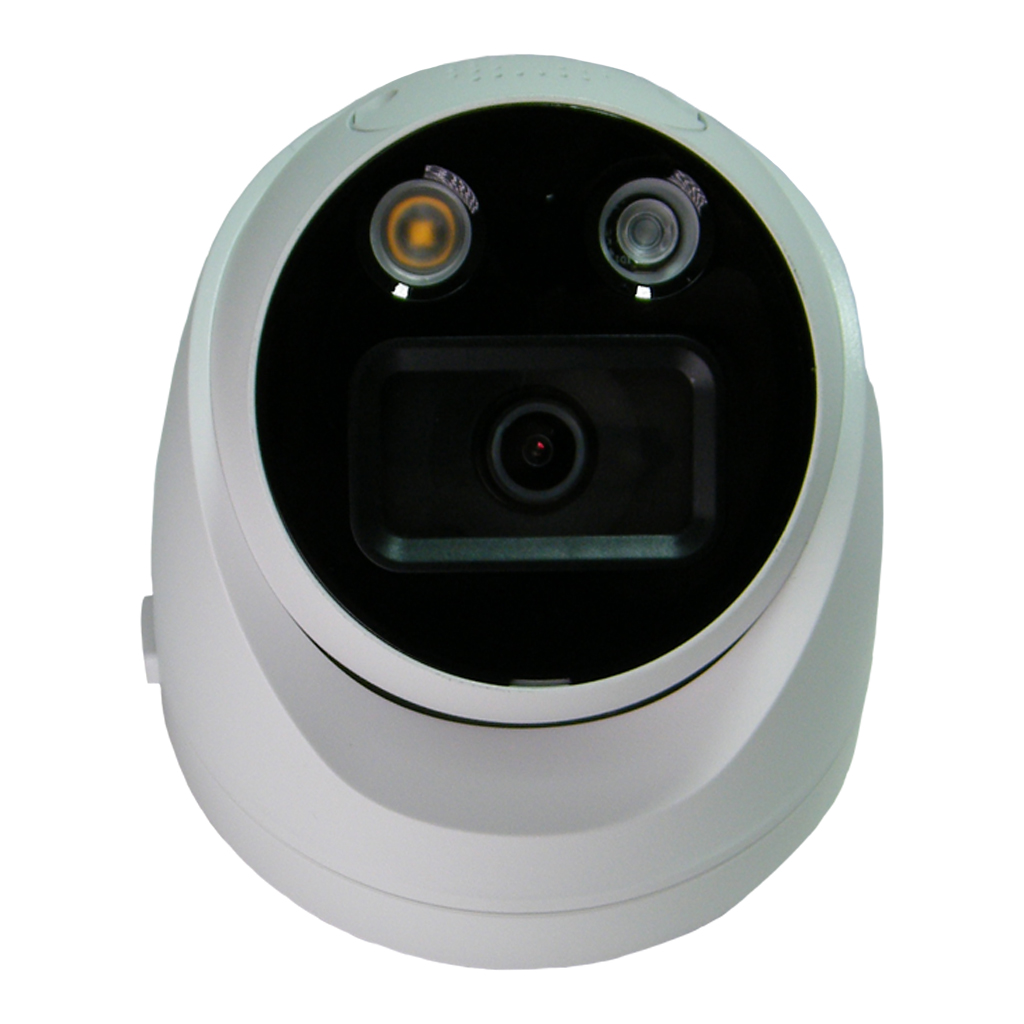

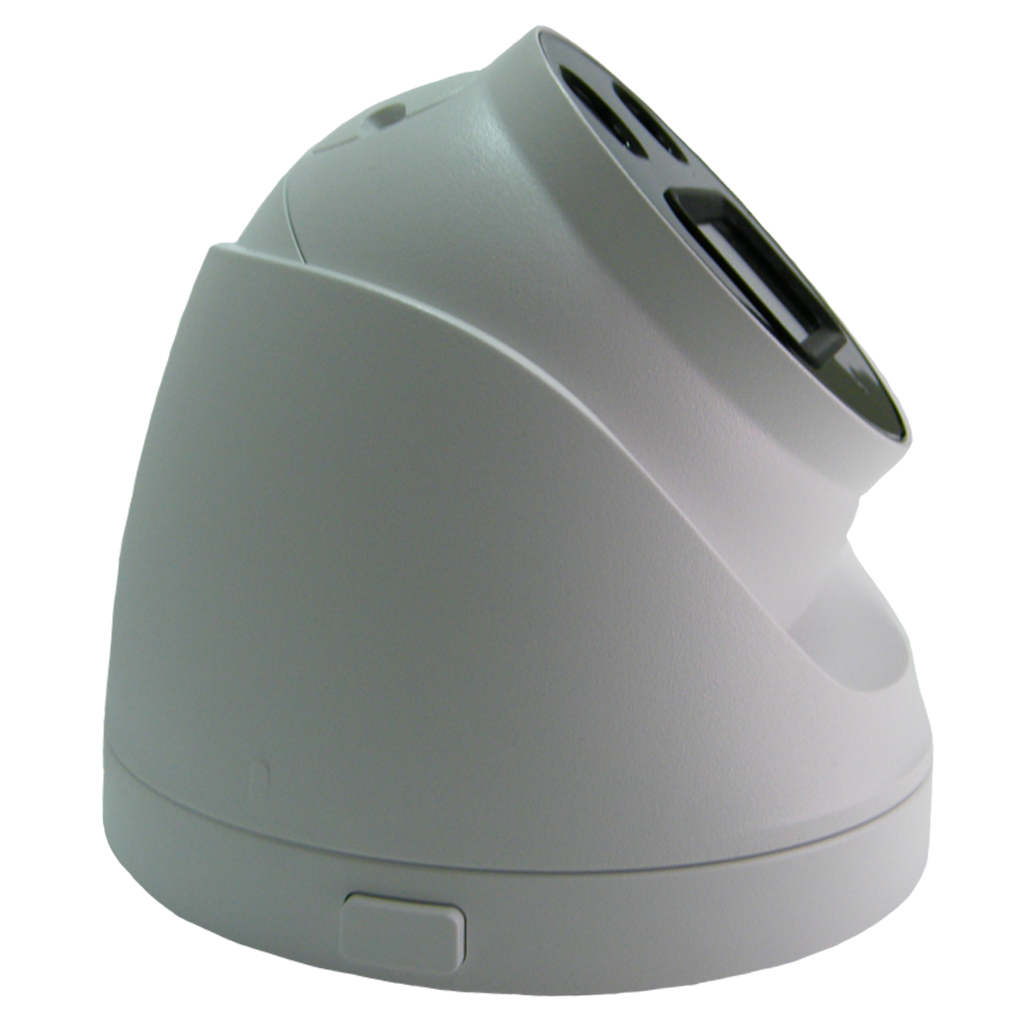

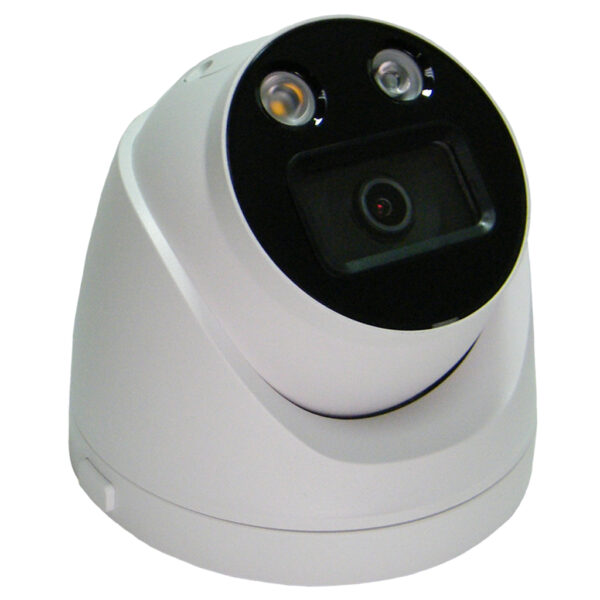

Introducing our latest and greatest addition to our Elite series of professional network IP products is this smart 5MP AI IP dome camera that has some features which will truly set it apart from the majority of other cameras that are available.
The camera features H.265 compression which helps to reduce bitrate and storage requirements and has a 1/2.7” 5MP progressive scan CMOS image sensor providing up to 2592 (H) x 1944 (V) pixels capable of delivering super crisp images even in difficult lighting environments thanks to the built-in smart IR and Starlight technology. This camera provides 5MP up to 20fps and can go higher FPS if you lower the resolution.
Having 1 built-in IR LED light will provide up to 164 feet of infrared distance for night time viewing. With a 2.8mm wide-angle fixed lens, you can expect a horizontal viewing angle of approximately 102° making this camera a great choice when you are wanting to cover a large area.
This 5MP AI camera has smart features that are powered by deep-learning artificial intelligence algorithms such features as Face Detection, Perimeter Protection, and People Counting. Perimeter Protection functions aim to greatly reduce false alarms for object detection providing greater efficiency with real-time alerts.
A favorite feature is the Active Deterrence system that is made up of white light and a built-in siren to help scare off intruders. This white light will turn on when an intrusion is detected and the siren will buzz to alert the intruder that their presence is now well known. The light can be set to normally on or to flash and you can customize the siren as well.
This camera has an IP 67 ingress protection rating and a 6KV lightning protection rating making it a great choice for various outdoor applications. It has a built-in microphone and speaker, microSD memory available up to 256GB which is sold separately. There are plenty of features available which you can view more of by scrolling down and viewing the specification sheet in PDF format and the many mounting options which you can view below also.
We provide Free remote viewing Apps for Android and Apple devices along with Free U.S. based technical support. Warranty information can be found here.
|Features||Active Deterrence, ePoE, True WDR, Starlight™, IVS|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||(2592 × 1944)/(2688 × 1520)/(2560 × 1440)/(2304 × 1296)/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)|
|Sensor Size||1/2.7 inch 5MP progressive scan CMOS|
|IR Distance||164 feet|
|Voltage||DC 12V (±30%), PoE (802.3af) (Class 0)|
|Temp Range||-22° F ~ +140° F, Less than 95% RH|
|Dimensions||4.80in x 4.80in x 4.47in|
IPOD-ELS5IR28A-AI-AD Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
