16CH Sibell Series 1U H.265 4K NVR W/ 16 Ports POE

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: NVR-SB16M-P4K Categories: ,

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

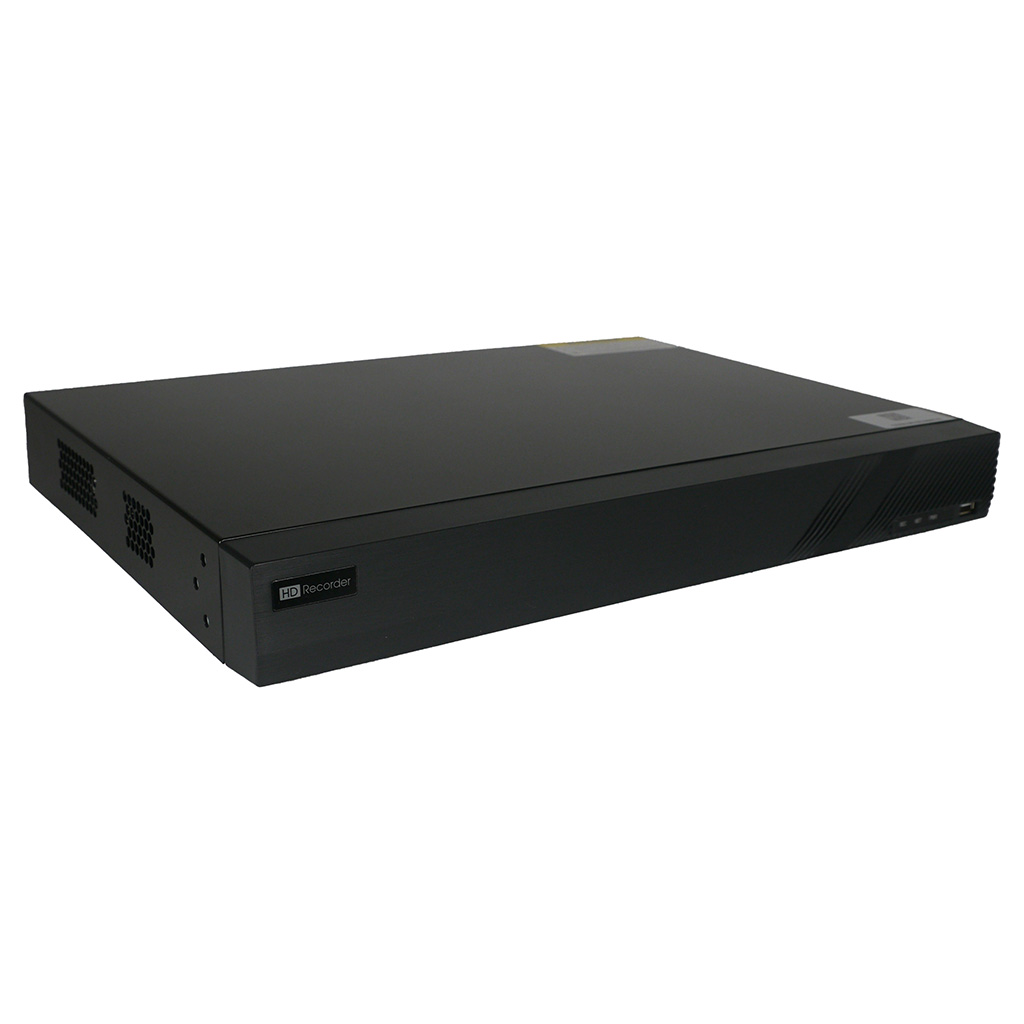

The NVR-SB16M-P4K is our NDAA-approved 16-channel NVR from our Sibell series. This unit comes with a 16 port built-in POE & can have up to sixteen 8-megapixel or 4K cameras connected.

Although the NVR-SB16M-P4K is 1U, it is able to house two surveillance hard drives of up to 10 terabytes in capacity each. Working in conjunction with H.265 encoding, which is able to get a higher quality stream with a lower bit rate and increased storage capability.

The NVR-SB16M-P4K’s bandwidth is both 96Mbps incoming & outgoing. This system supports VCA or Video Content Analytics features, like tripwire, region intrusion, and missing or abandoned objects. When paired with the phone app Sibell mobile, you can set up alerts so when these VCA rules are triggered an alert will be sent from the NVR-SB16M-P4K.

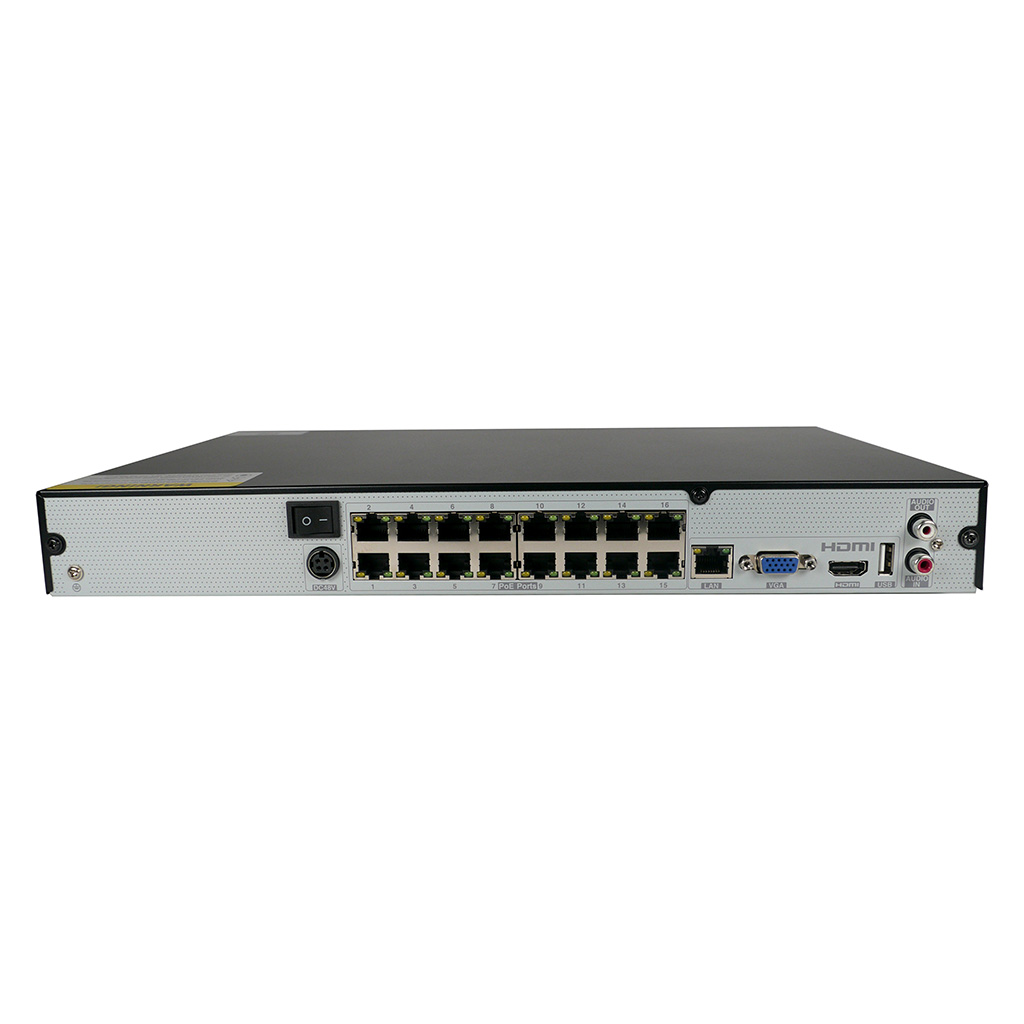

This model has a single 4K HDMI output and a VGA output to connect a monitor or TV.

Using the NVR-SB16M-P4K‘s built-in POE will save you a lot of time and hassle when it comes to networking as, out of the box Sibell cameras will be plug-and-play with the unit when connected to the built-in POE, so you will not have to worry about assigning IP addresses to the cameras.

Like all of our Sibell NVRs the NVR-SB16M-P4K can be remotely monitored from anywhere on your Smartphone using the free Sibell Mobile application available on both IOS and Android, or using the NVMS PC program which is available on our site for free.

This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

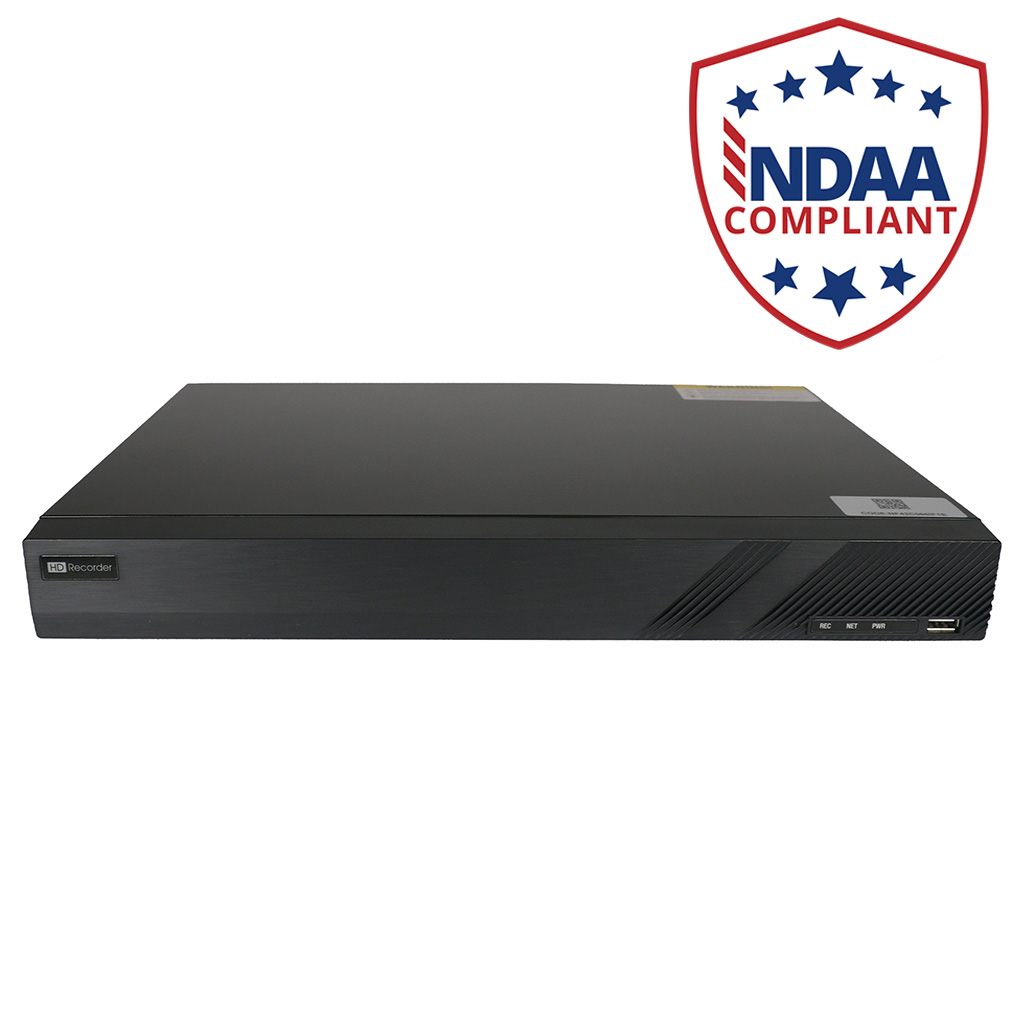

NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.


PoE, or Power-over-Ethernet makes it possible to install security cameras and video surveillance equipment without traditional AC power. It permits devices to have electrical power to more places without having to install an additional electrical infrastructure or outlet at every point they are placed. The main benefit is that surveillance devices can be installed without needing a professional electrician, saving people money and simplifying the process, making security cameras more cost-effective.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 2
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: HDMI : 3840 x 2160 / 1920 x 1080 / 1280 x 1024/ 1024 x 768 | VGA: 1920 x 1080 / 1280 1024/ 1024 x 768
Size 1U
Resolutions Capable 8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/ 960H/D1/CIF
Max Bandwidth 96 Mbps
Display Screen Split 1/4/8/16
Compression of Video H.265+
Connection Apps NVMS Lite, Sibell Mobile , Super Live Plus
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
