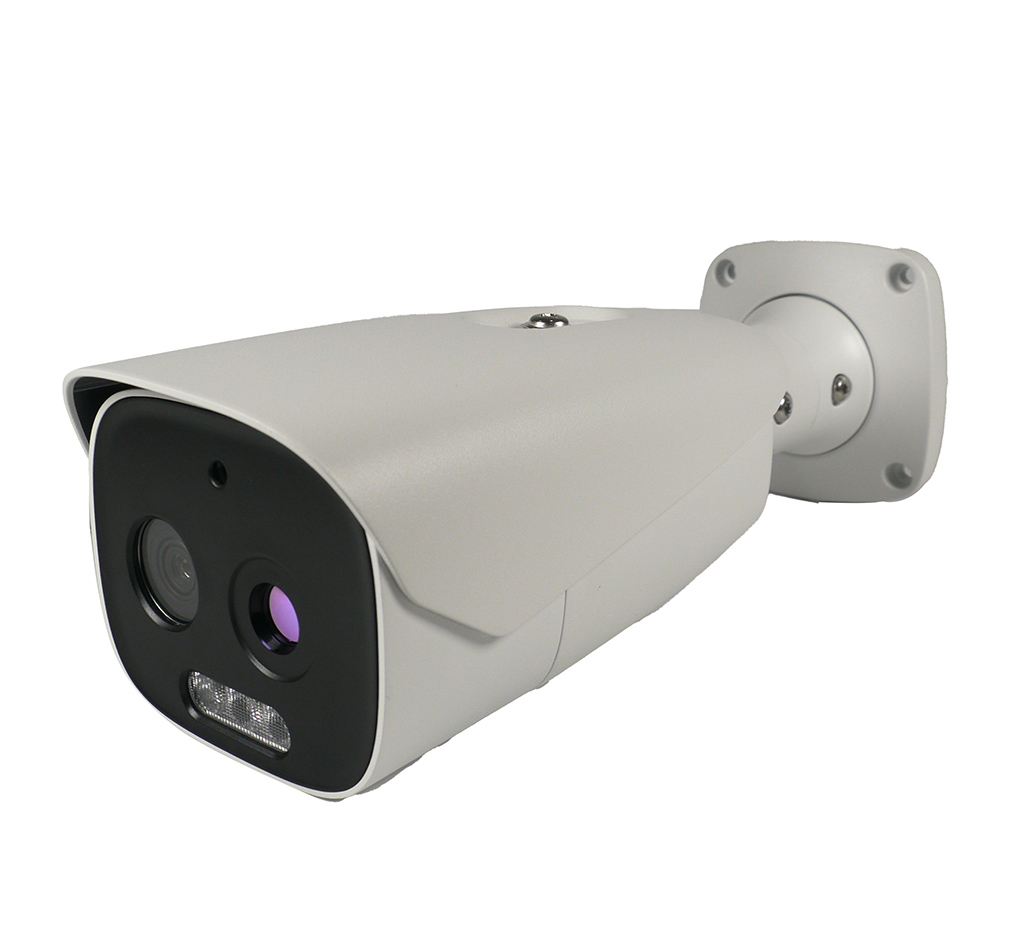

IPOB-SBTD5IR12, the newest thermal ONVIF IP camera in our Sibell series, is now available. The optical camera view and the thermal view are both provided by the two lenses on this 5 Megapixel IP camera. The optical view uses H.265 encoding to maximize image quality on a lower bit rate, saving you hard disk space and prolonging maximum recording duration. The optical view records 5 MP @30FPS with its 8mm lens and has an IR distance of 98ft.
In order to achieve the best image quality, the optical lens uses 3D NR, True WDR @120dB, HLC & BLC, as well as Smart IR distortion correction. It also supports Intelligent analytics features like line crossing, scene change, and intrusion zone detection to alert you when necessary or for various recording modes.
The built-in speaker can be programmed to play an audio warning while the light on the camera is active as well. The 12.3mm thermal lens has a temperature range of -4 to 302 degrees Fahrenheit. It uses a multi-palette of colors from white hot, black hot, and iron oxide red to differentiate temperatures seen by the lens. The thermal lens can also detect intrusion zones and line crossings using intelligent analytics.
The IPOB-SBTD5IR12 uses regular POE or 12V DC and is IP66 rated, making it perfect for outdoor use. This camera offers a line-in for an optional external microphone and can accommodate an SD card up to 256GB.
This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
Features | True WDR, HLC, 3D DNR, BLC, Built-in white light and loudspeaker |
Lens | 12.3mm Thermal Lens / 8mm Optical Lens |
Megapixel | 5MP |
Image Resolutions | 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240 |
Sensor Size | 1/2.7 inch BSI + NIR progressive CMOS |
IR Distance | 98 Feet |
Weather Protection | IP66 |
Voltage | DC 12V / PoE |
Temp Range | ‐22° F to 140° F, Less than 95% RH |
Dimensions | 10.9in x 4in x 3.4in |
Weight | 3.96 lbs |
Audio | Built In Mic |
SD Card Compatible | Yes |
Perimeter Protection | Yes |
Object Detection | No |
Face Detection | Yes |
Face Recognition | No |
Smart Motion Detection | No |
LPR | No |
Video
Downloads
Document Downloads
Product Specifications | Detailed Feature List and Product Specifications | |
Product Manual | Original Product Manuals |
