5MP Sibell IP Bullet Fixed 7mm Dual Lens Thermal Camera


In stock


SD Storage Options

Recommended Accessories

SKU: CM-SB0601
Corner Mount for Sibell Series PTZ
Junction Box for Sibell Bullets and Fixed Turret


7 mm Thermal Lens / 8mm
Optical Lens
98 Feet
Night Vision

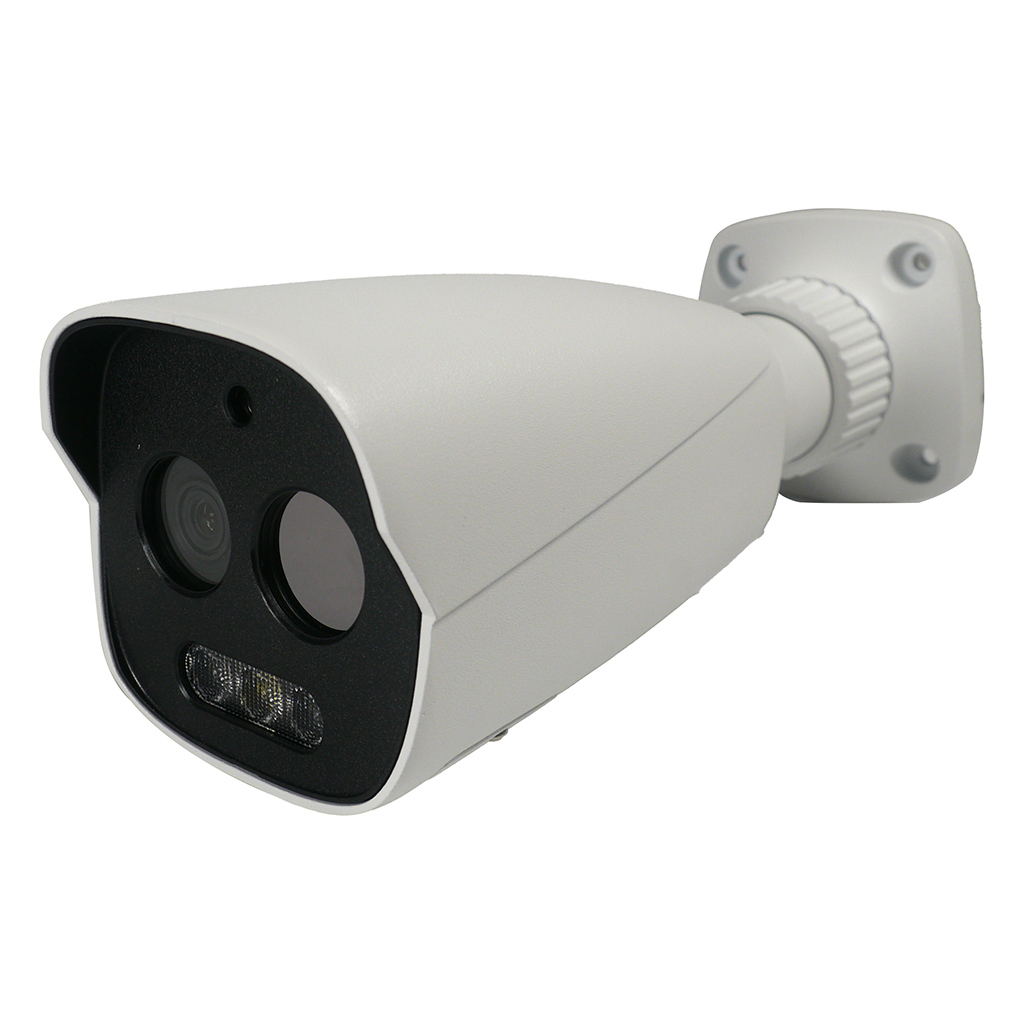

The IPOB-SBETD5IR7 is a dual lens camera from our Sibell series of security camera equipment. This is effectively two cameras combined into the same bullet style housing. One of the cameras is a thermal camera and it detects heat. The other camera is a standard optical camera. These cameras can be separated and use two separate channels or an NVR or they can be overlaid in the same channel.

The thermal camera has a 7mm lens which will give you about a 25 degree horizontal view at 256 x 192 resolution. With the built in speaker and LEDs this camera can notify by sound and light when fire is detected, temperature exceeds a certain amount, an intrusion is detected and or a virtual line is crossed. The intelligent analytics in this camera means that the intrusion detection and line crossing detection will focus on humans and motor vehicles.

The optical camera has a 8mm lens which will give you about a 25 degree horizontal view at 5MP (2592 X 1944) resolution. It also has intrusion detection and line crossing detection plus several other features to deal with challenges that can happen with visual lighting. These features include true WDR(120dB), HLC, BLC, Smart IR and distortion image correction.

This product complies with the National Defense Authorization Act (NDAA).

This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

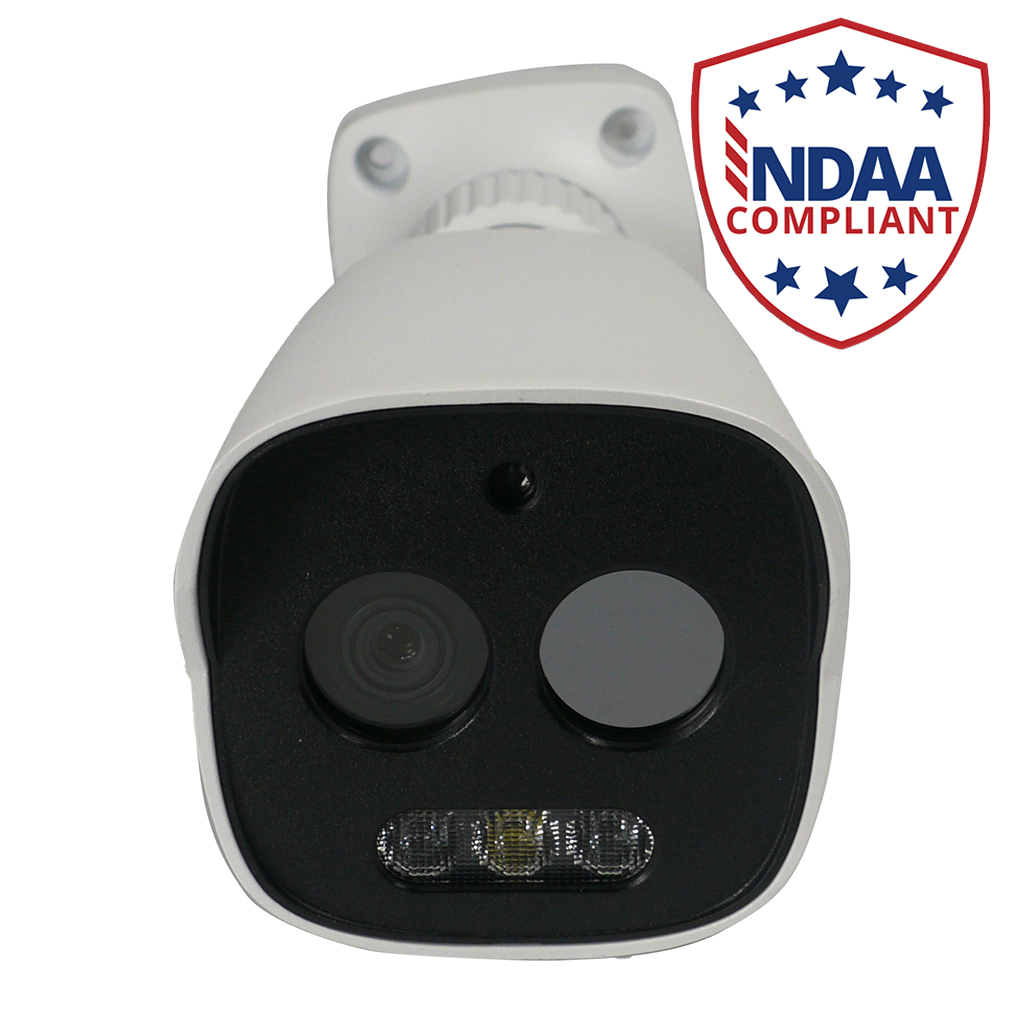

NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.

Weather Resistant

140°F | 60°C
Heat Rating
22°F | -5°C
Cold Rating
Weather Rating

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Features True WDR, HLC, 3D DNR, BLC,
Lens 7 mm Thermal Lens / 8mm Optical Lens
Megapixel 5MP
Image Resolutions 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Sensor Size 1/2.7 inch BSI + NIR progressive CMOS
IR Distance 98 Feet
Weather Protection IP66
Voltage DC 12V / PoE
Temp Range ‐22° F to 140° F, Less than 95% RH
Dimensions 8.5in x 3.1in x 3.1in
Weight 1.54 lbs
Audio Capable With External Mic
SD Card Compatible Yes
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition No
Smart Motion Detection No
