DX Series 1200lb Weatherproof Stainless Steel Magnetic Lock

(1 customer review)


In stock

SKU: ACML-DX1200WP Categories: ,



The ACML-DX1200WP is a 1200 Pound of Holding Force Stainless Steel Magnetic Lock. This is a perfect solution when you need a powerful lock on a door that needs to be Fail-Safe. Fail-Safe means that when the power is off or when the fire alarm is on, the door will automatically open. This is because the Electromagnetic Lock needs power to work. Doors that fireman need to get into such as an entrance door, for example, needs to be fail-safe in most cases. This lock needs to be connected to an access control panel ore stand-alone reader and will signal the system when the door opens and closes. This is a dual voltage lock as it will accept 12v DC or 24v AC.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model ACML-DX1200WP
Lock Size (LxWxH) 220 x 63 x 36 (mm)

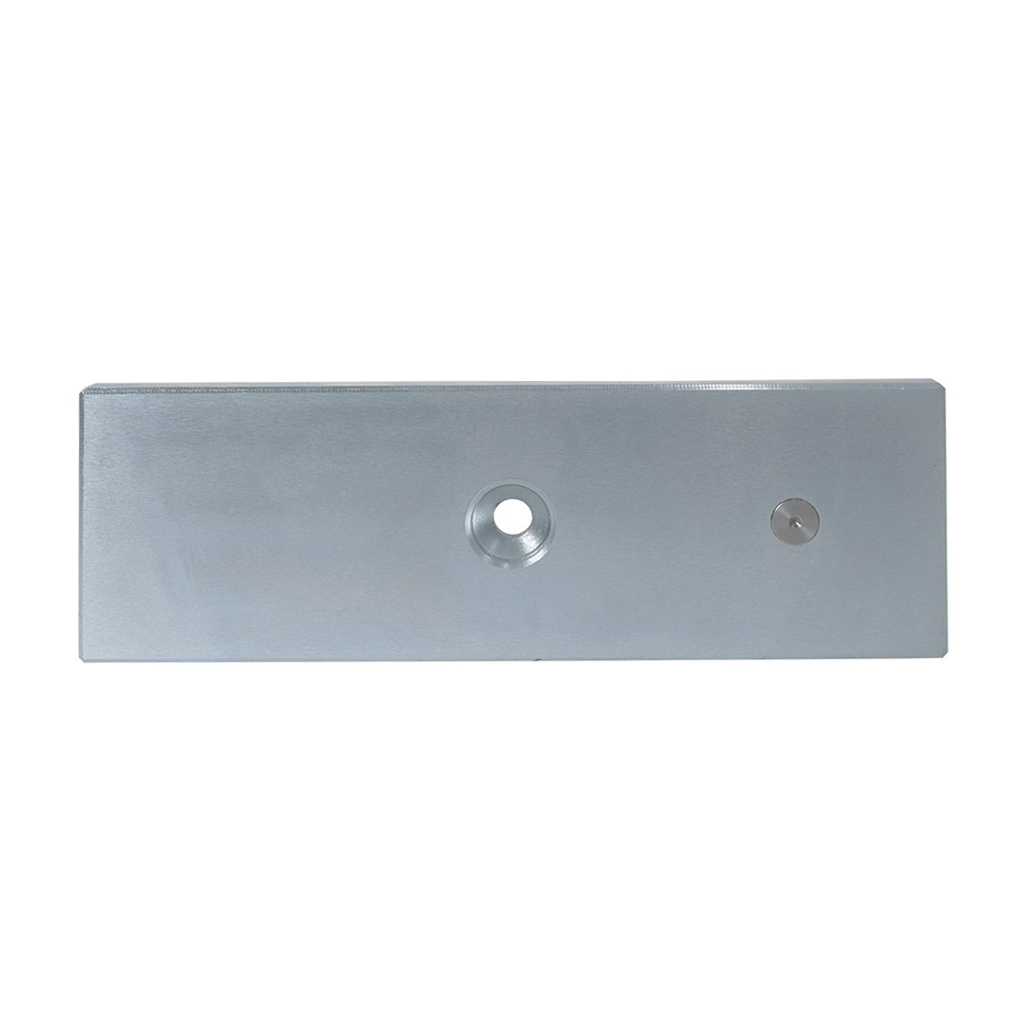

Armature Plate (LxWxH) 185 x 60 x 13 (mm)
Holding Force 500kg (1200Lbs)
Material Stainless Steel
Voltage 12/24VDC (adjustable)
Current Drawn 12V/420mA or 24V/210mA
Suitable For Wooden, Glass, Metal and Fireproof Doors
Fail Safe Power to Lock

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
