DX Series 600lb Embedded Magnetic Lock with Door Sensor

(1 customer review)

Original price was: $62.37.Current price is: $49.90.

Save 20%

In stock

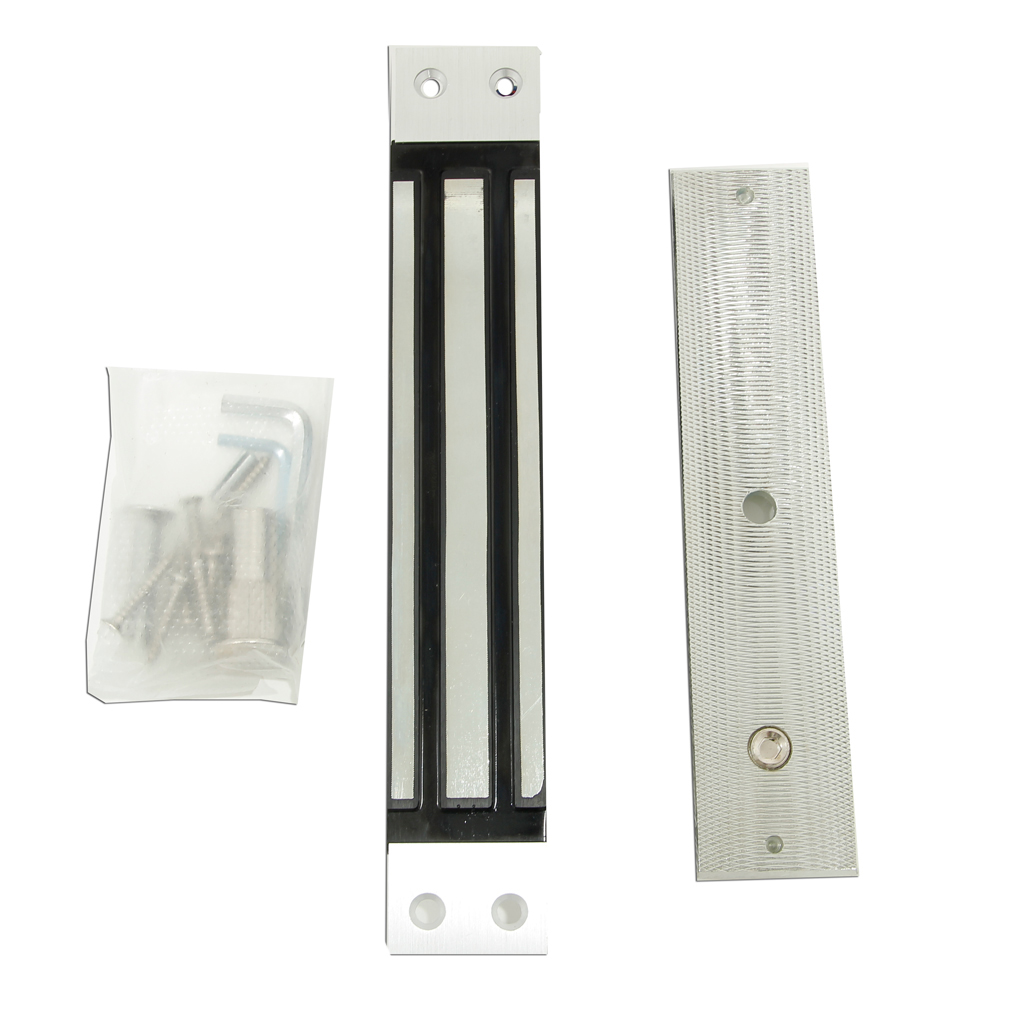

The ACML-DX600EM is an Embedded Magnetic lock that can withstand 600 pounds of force. This MagLock is installed inside the door frame so the result will be flush instead of sticking out from the door frame. This Electromagnetic Lock is a great choice for a fire exit door as it will open when the alarm goes off or when the power is shut off. This is called Fail-Safe. Magnetic locks need power to stay locked. You can hook this Magnetic Lock to an access control panel and the system will be alerted when the door is opened and also when it is closed. Power can be supplied with 12vDC/24vDC

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!
Model ACML-DX600EM
Lock Size (LxWxH) 250 x 48 x 25 (mm)
Armature plate (LxWxH) 180 x 38 x 11 (mm)
Holding Force 280kg (600Lbs)
Voltage 12V DC/24V DC
Current Draw 12V/500mA 24V/250mA
Suitable for Wooden Door, Glass Door, Metal Door, Fireproof Door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~90%(non-comdensing)
Finishes for Shell Anodized Aluminum & Surface Texture Processing
Finishes for Magnetic Zinc
Improved lock surface Electrophoresis, Wiredrawing
Weight 2kg

Reviews (1)

1 review for DX Series 600lb Embedded Magnetic Lock with Door Sensor

  1. don McCracken

    Happy with the order process although the magnet did not work when it arrived. Since I needed it right away, I did some troubleshooting and found the power wire solder joint was defective and had to be reattached. It is working now but you might want to check your QA process.
