DX Two Door Access Control & 12V DC UL Power Supply

(1 customer review)

$407.81

Out of stock

CompareCompare

Join the waitlist to be emailed when this product becomes available

SKU: ACPWR-DX2-ULF Category:
Description

Description

Description

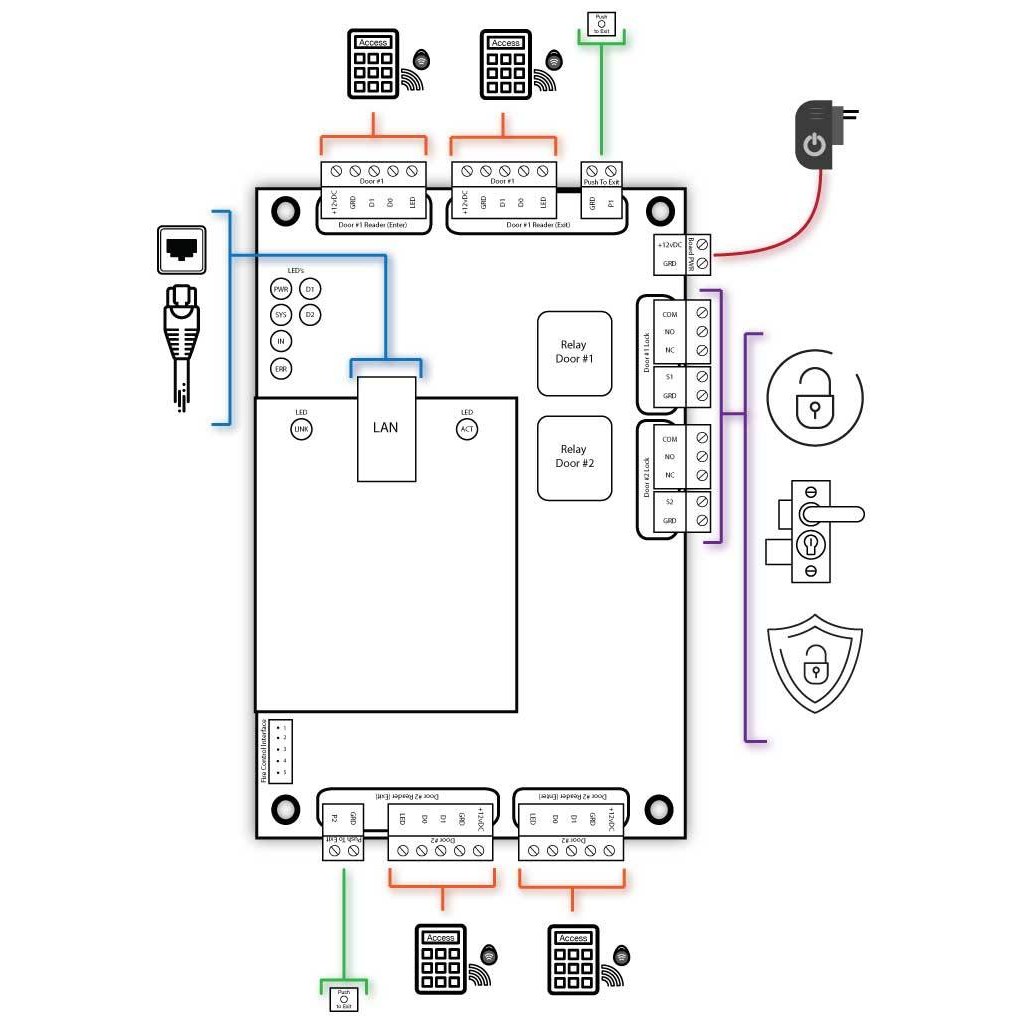

The ACPWR-DX2-ULF is Access control for Two Doors and comes in a UL rated 4 channel power supply Nema enclosure. The Access Control Board inside this unit is able to be used for two doors. The two door access control board can use up to four readers (two for each entrance side and two for each exiting side). With this system you are able to hook up exit buttons and door locking mechanisms such as magnetic locks, as well as devices such as sirens or alarms. Combined with the UL rated 12v DC 4 channel power supply you able to power external security devices such as magnetic locks or other surveillance products. ACPWR-DX2-ULF also provides you with a fire alarm interface for easy integration with fire alarm systems.

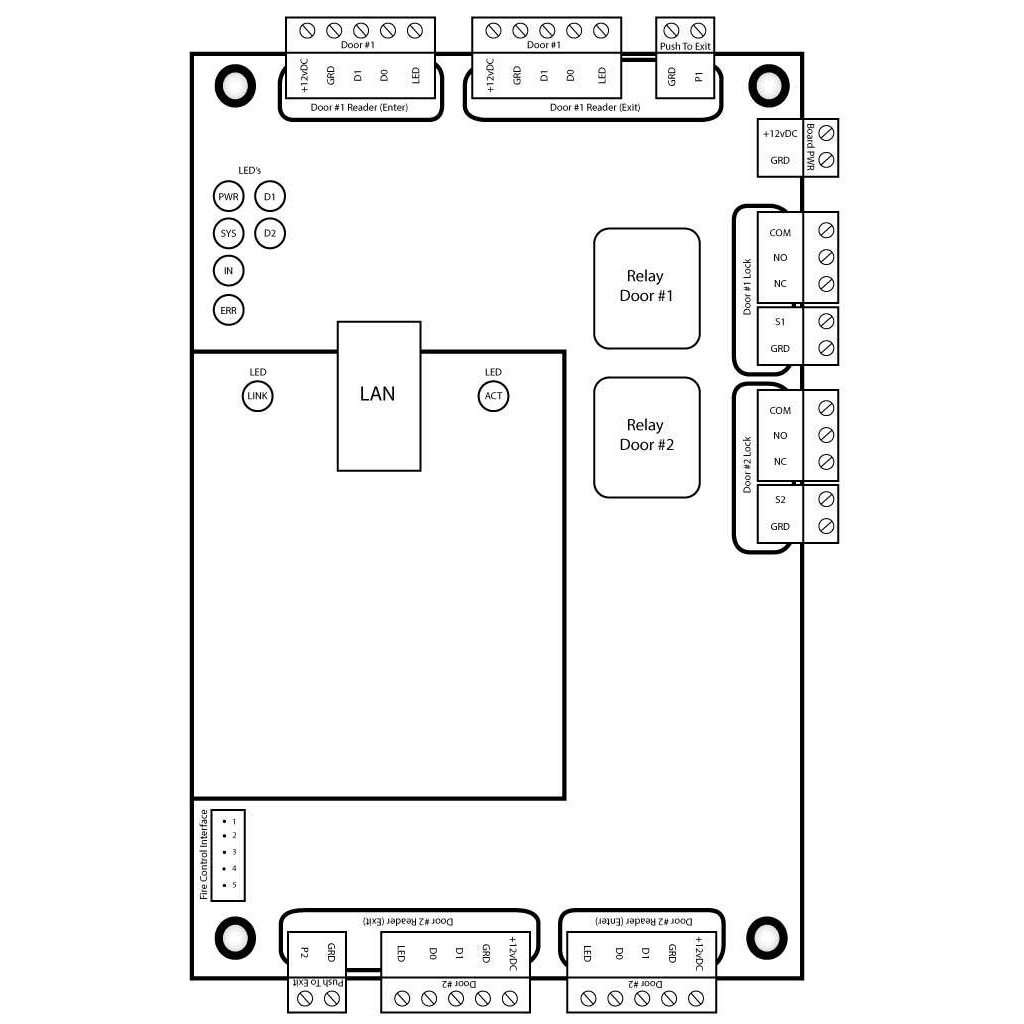

The DX series access control board in the ACPWR-DX2-ULF is easy to work with; simply connect a Cat5 cable from the RJ45 Port on the board to the network. Once the board is connected to the network any computer on the network with our Free DX Access Control Software can access the board it’s functions.

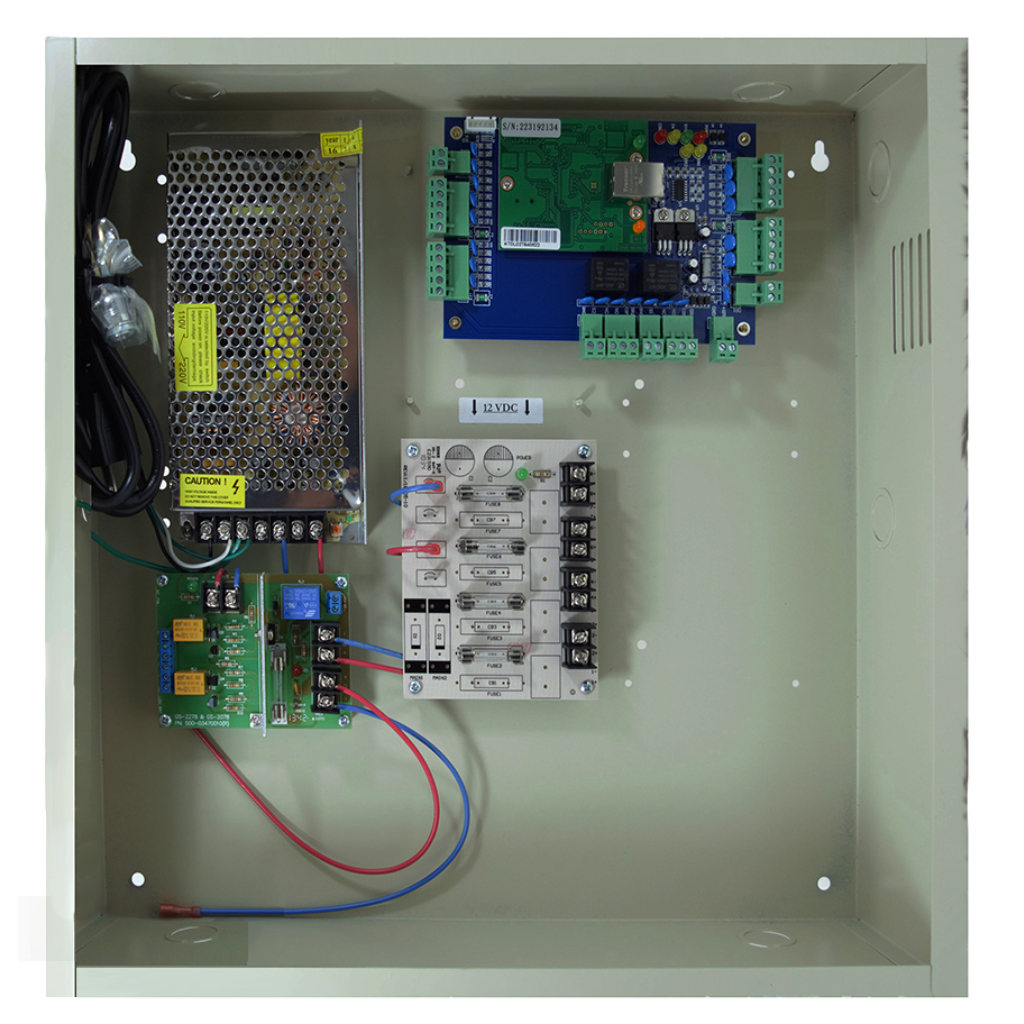

This product features four fuse protected electronically regulated outputs at 3 amps to supply 12v DC power for your devices, along with the added benefit of providing surge suppression.

The great thing about our DX Series of access control boards is that they can be expanded and added too in case you need to add more doors to the system. Access Control DX Software CD is included for Free with the purchase.

This measures 16in (H) x 16in (W) x 4.5in (D) and has both 1/2in and 3/4in knockouts.

The ACPWR-4P-12A-UL-F can has the option to be used with our 7 AH @ 12 Volt Battery Backup Supply.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!



Model ACPWR-DX2-ULF
Unit Size 16in (H) x 16in (W) x 4.5in (D)
Unit Packing Standard
Unit Packing Size 21 x 13.8 x 137.5 px
Accessories User Manual, Warranty card
Conventional Function Off-line operation; Real time supervision; Photo display; Mass storage; Flexible user privilege setup; Remote unlocking; Multi-user supervision; Quick setting; Convenient checking and query; Revisable and printable report form; Report form; Report can be exported to excel file; Card + password unlocking; Alarm for long time unclosing; Alarm for invalid card swiping; First card unlocking; Alarm for illegal break in; Unlocking at definite time; E-map etc.
Professional Function For professional users such as banks, cash houses, telecom stations, power supply stations, prisons and police stations: Interface locking; Intimidation alarm; Integrated fire control; Anti-pass-back and anti-tail; Interlocking; Multi-card unlocking; Emergency double locking; In door population checking; Unlocking based on internal and external validation.
All-in-one-card Management System Normal shift and multi-shifts time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software Supportable Database Access and SQL
Description Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 2
Door Opening Time Extending Setting 1-600 seconds (adjustable)
Max Quantity of Controller No limit
Remark N denotes quantity of computer serial Port or quantity of 485hub port, support 256pcs ports
Operation Temperature -40°C ~ 70°C
Operation Humidity 10-90 % RH , No Condensation
Quantity of Users 20,000 Users
Quantity of Event Buffers (off-line) 100,000 event buffers
Power Interruption Protection Measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance Between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

Collocations PCB board, Case, Power, Power line, Serial port communication line, Software, Manual, Certificate, Key(2pcs), Carton
Alarm for Long Time Door Open, Illegal Break In, Intimidate Yes
Open and Close Door at Long time Yes
Open Door in Remote Distance Yes
Inter Block Yes
Anti Pass Back and Tail Yes
Multi-card Open Door Yes
Open Long Time at Specified Time Yes
Electronic Map Yes
Urgency Locking Yes
First Card Unlocking Yes
Unlock Based on Internal and External Validation Yes
Remote Administration No
