DX Series Weather Resistant 125MHz Keypad Access Control Reader

(1 customer review)


In stock

SKU: ACR-DXRF18 Categories: ,



**Please note that this reader is not compatible with others available in our stock.**

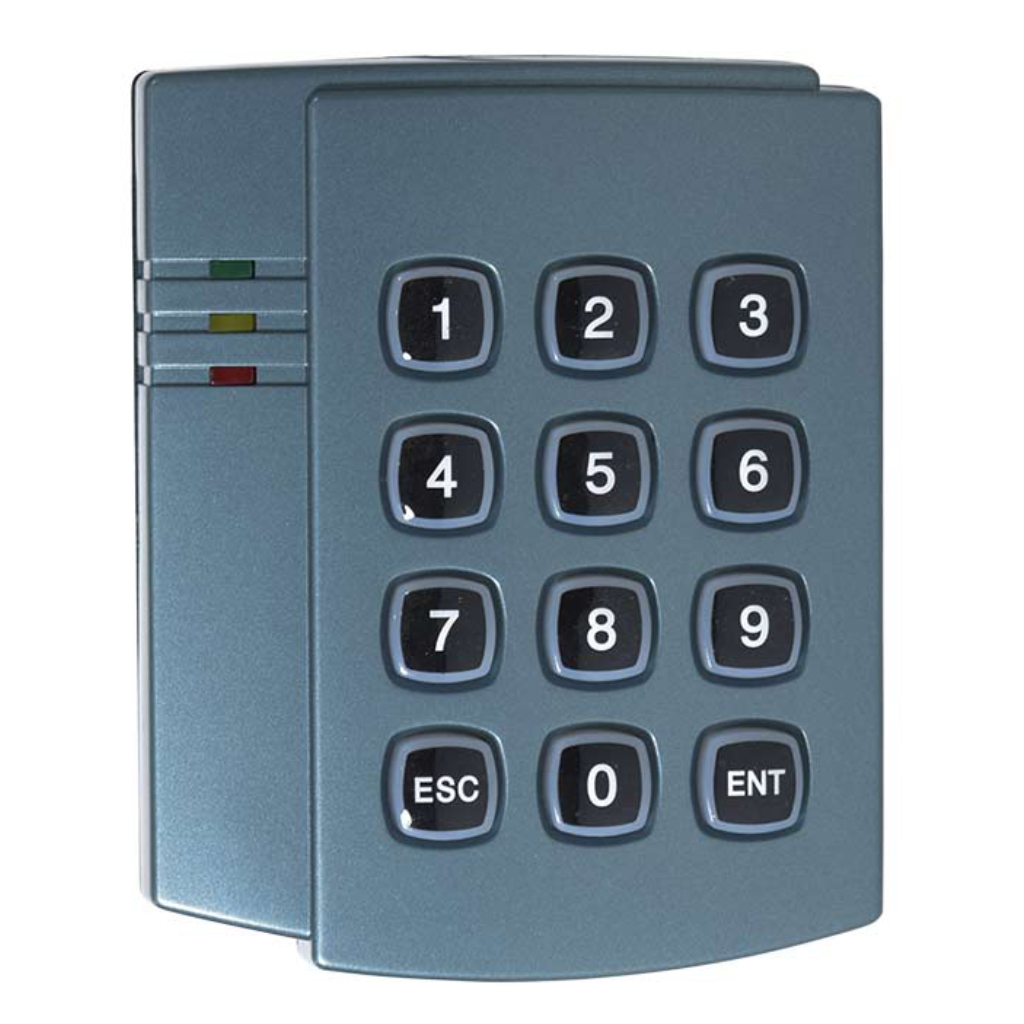

The ACR-DXRF18 is our latest DX Proximity Card and Keypad Combination Access Control Reader and it replaces the ACR-DXRF03. Use this reader in a number of different ways to keep control over who comes and goes. If you want users to enter a keycode and swipe their proximity card, you can require both or you can set it to use a proximity card only. This will need to be connected to an Access Control panel and once that’s done, you can configure requirements and settings though the Access Control panel software.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!


Model ACR-DXRF18

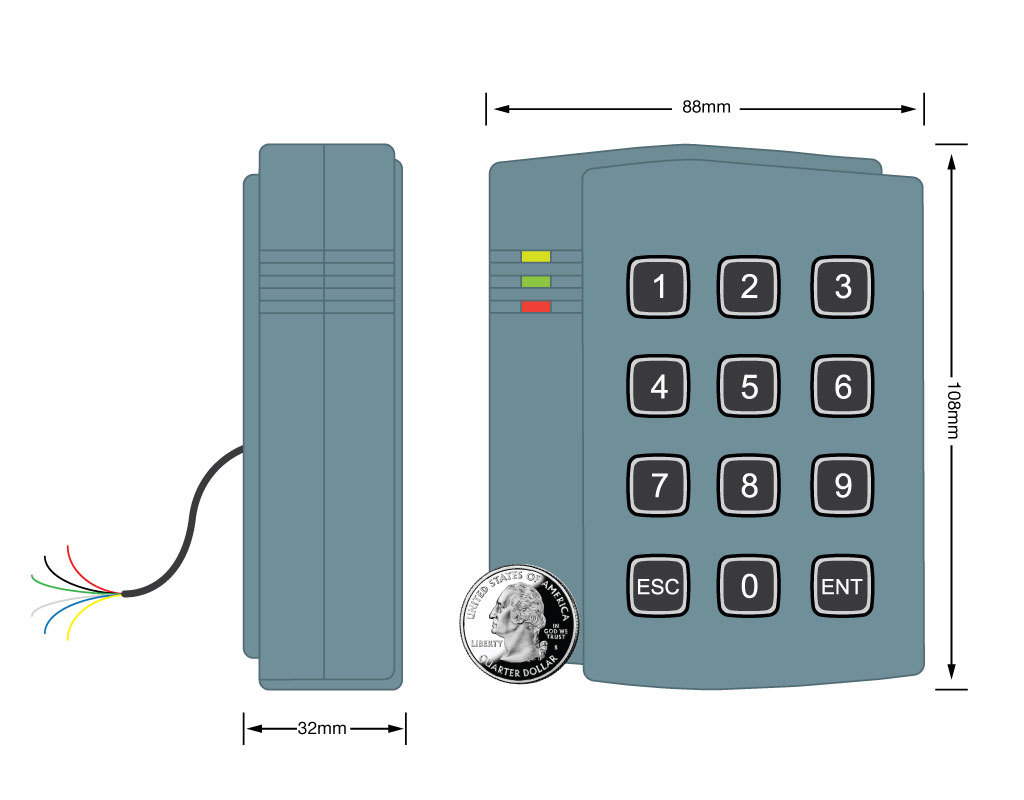

Size 108 x 88x 32mm
Color Dark Grey
Voltage DC5~16V
Current ≤100mA
Ambient Temperature -25℃~75℃
Reading Range 5~15CM
Output Format Wiegand 26,RS485/232
Card Type EM-ID
Communication Distance WG≤100M,RS485≤1200M
