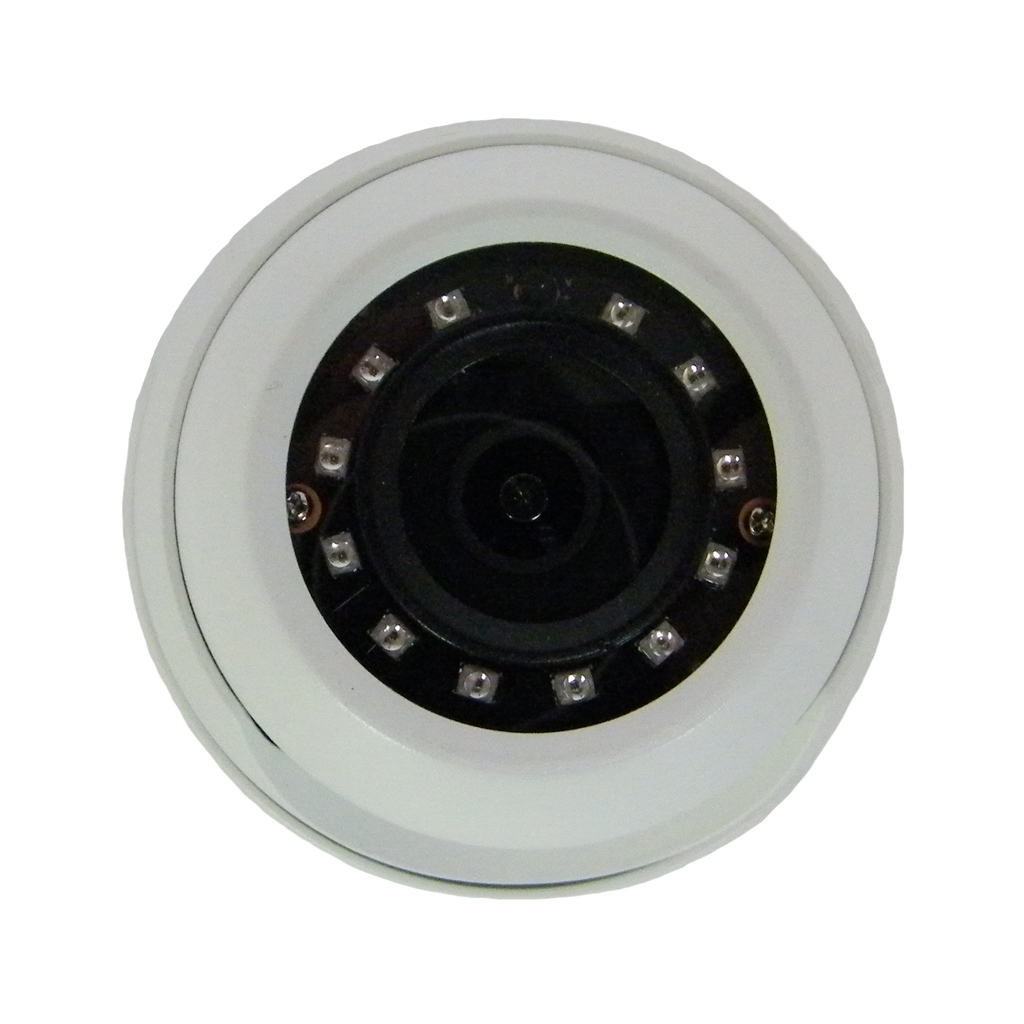

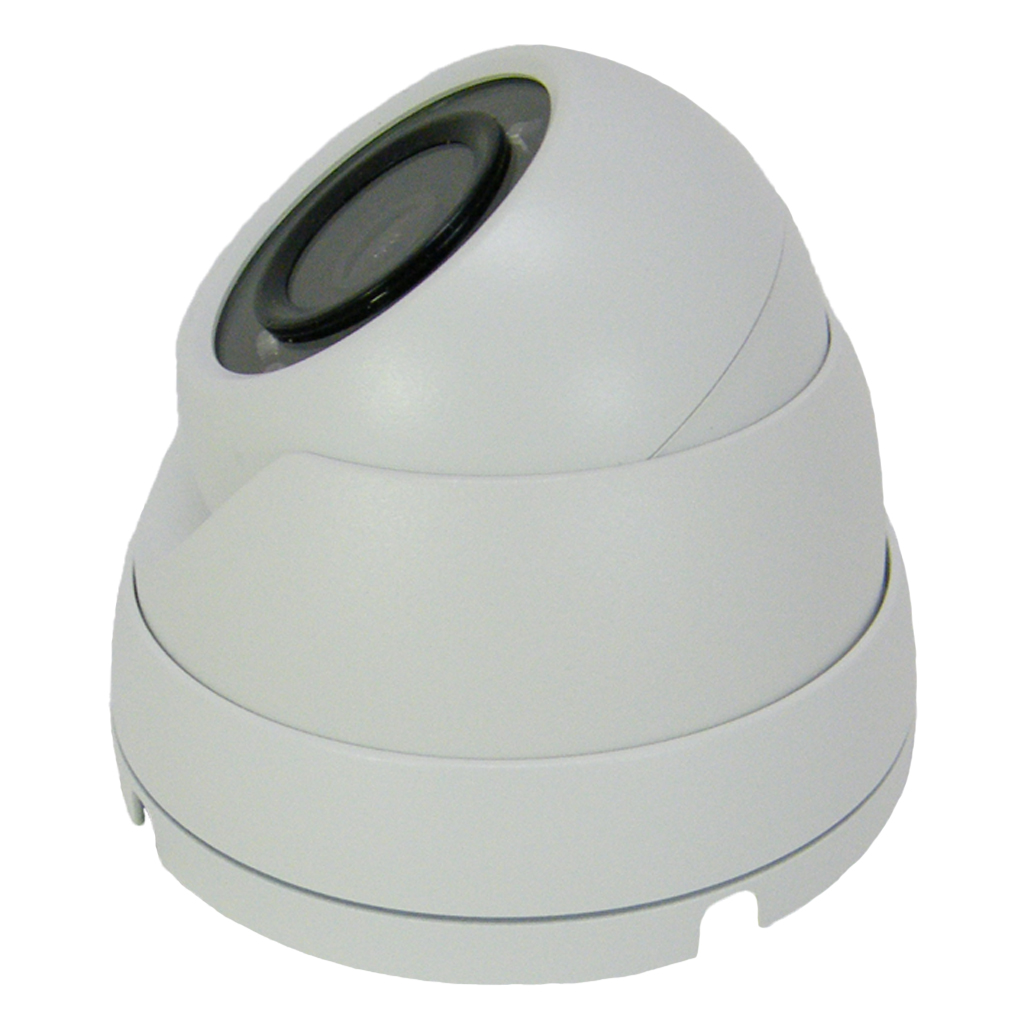

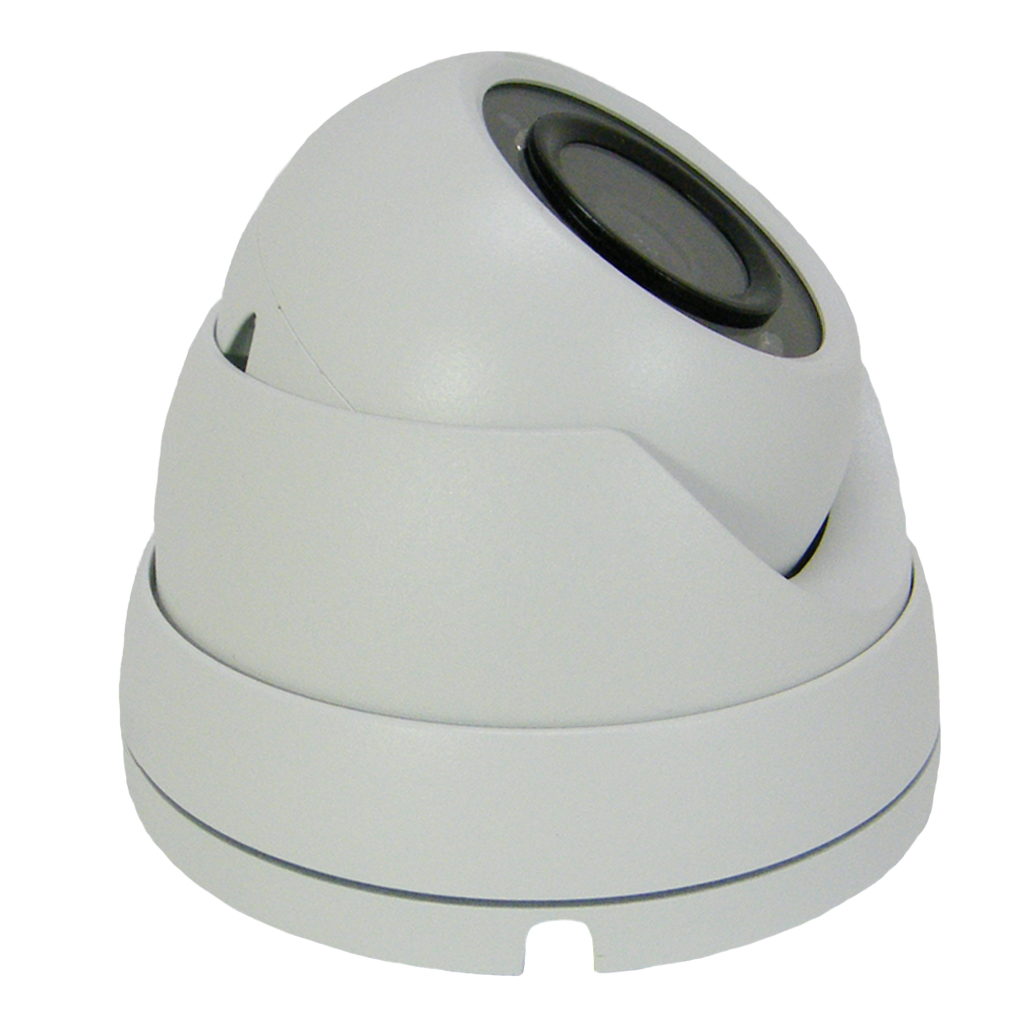

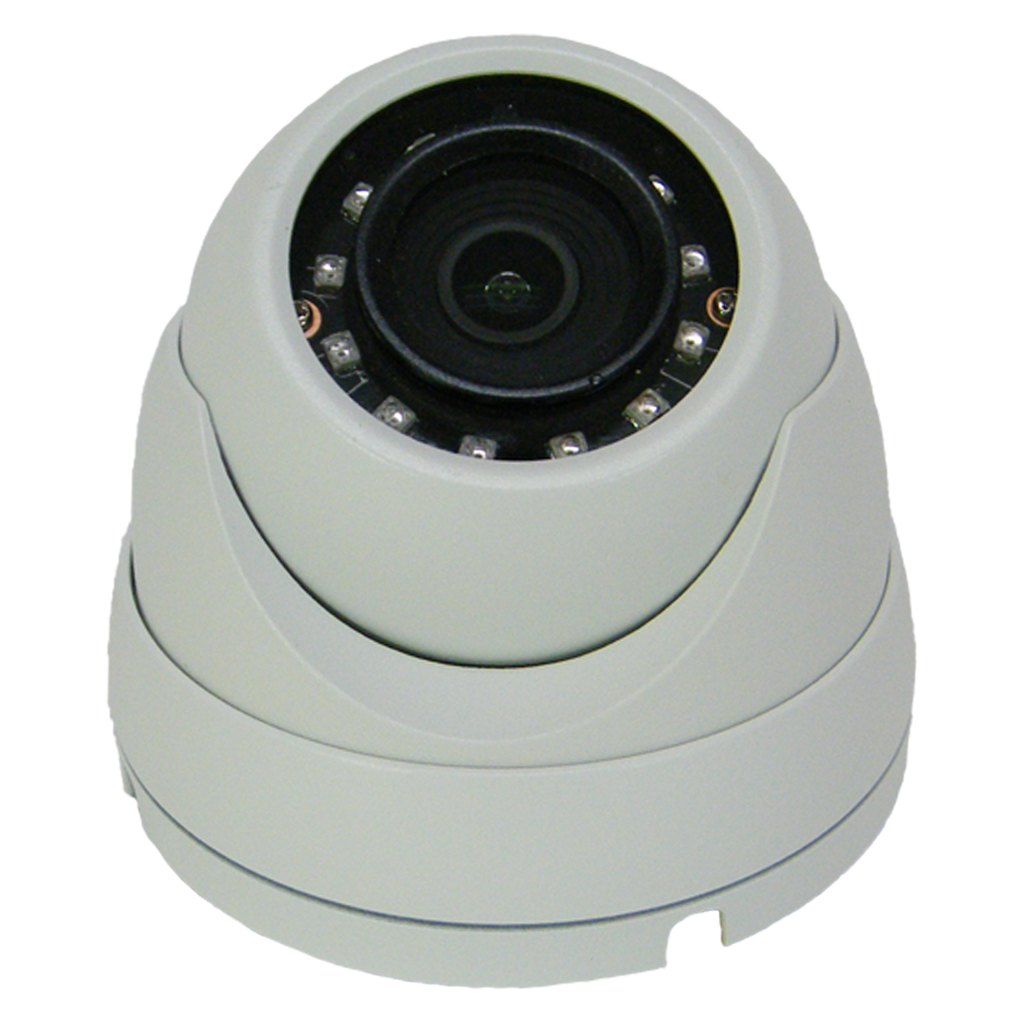

We are pleased to welcome our latest 2.8mm Fixed turret dome to our elite series this turret dome provides a crisp cutting edge resolution using its 2.7” 2Megapixel Progressive CMOS Imaging Sensor. The wide-angle 2.8 mm lens that this camera uses will allow you detect objects at approximately 135 feet, observe objects at approximately 60 feet, recognize people at approximately 40 feet, and identify people at approximately 15-20 feet. Adjustable from 25/30 FPS (frames per second) @1080P(1920×1080).
The camera’s elegant blend and design combined with superior range, visibility and ease of mounting solutions provides an excellent choice for a variety of small to midsize applications at an affordable price.
The Camera is equipped with a built-in intelligent analytic algorithm based on video, also known as IVS with this enabled, can activate intelligent functions like Tripwire and Intrusion detection to quickly and accurately respond to monitoring events in specific areas. Leading to overall enhanced monitoring efficiency.
In addition, the camera supports intelligent tamper detection, which is to generate warning messages via detecting dramatic scene change and to guarantee effective video surveillance combine that with its smart Codec (H265+) Compression reducing bit rate by up to 70% when compared to the standard video compression.

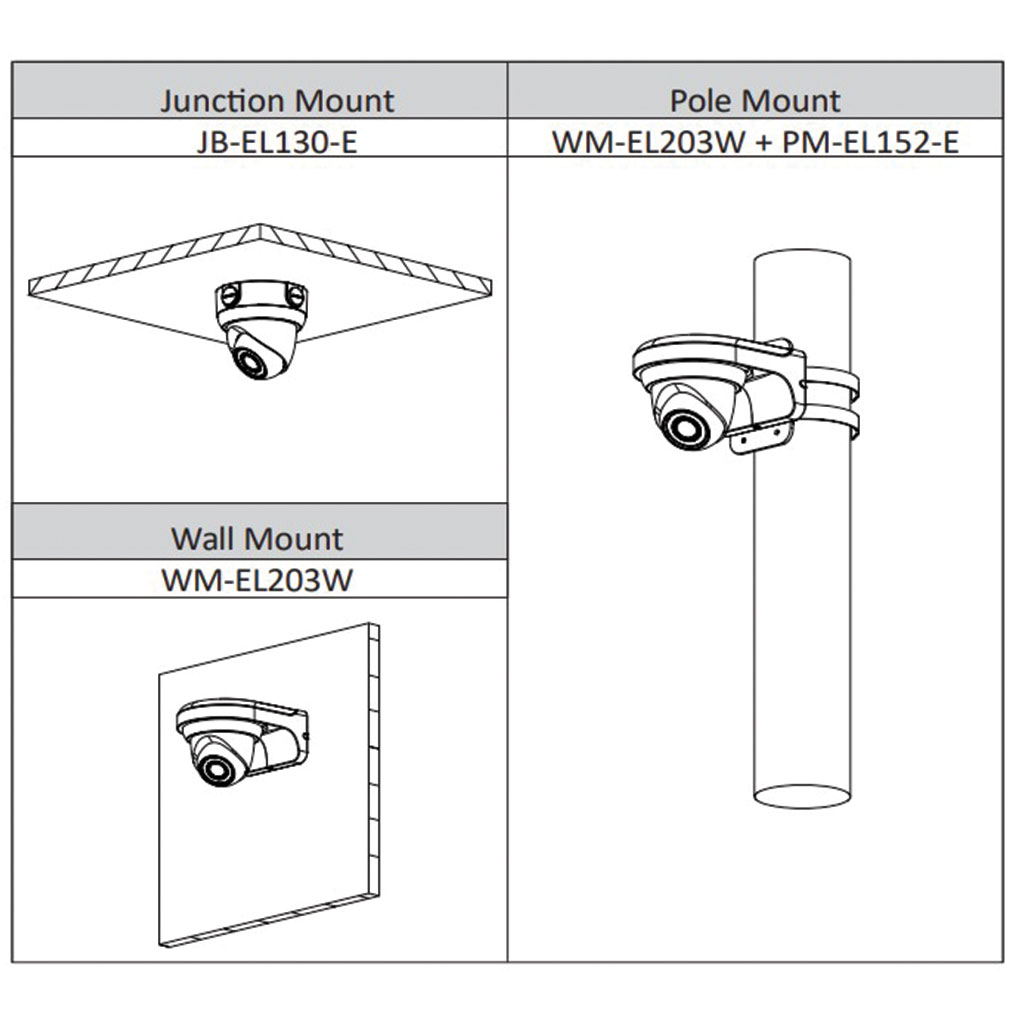

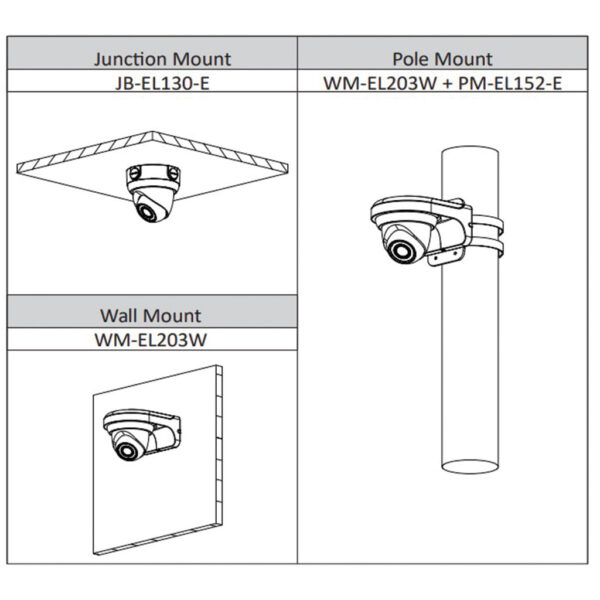

Thanks to the IP67 ingress protection rating, this camera is suitable for the most unstable conditions of outdoors applications. Its 6KV Lightning rating provides effective protection for both the camera and its structure against lightning, for the best coverage we offer multiple mounting options sold separately.
This camera can operate in conditions of -22.F and up to +140.F Providing power to this camera can be done in one of two ways, either by using the cameras 12v DC standard power supply or using POE (Power Over Ethernet) providing the ability to drive power and video over Cat5 or Cat6 For easy setup and plug and play performance with an NVR (Network Video Recorder)
INCLUDED AT NO CHARGE TO YOU: Free U.S. Based Tech Support, Free Remote Viewing Software, and Apps
|Features||Smart IR, H.265, DWDR, IVS, Smart IR|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||1080P (1920×1080)/1.3M (1280×960)/ 720P (1280×720)/D1 (704×576/704×480)/ VGA (640×480)/CIF (352×288/352×240)|
|Sensor Size||1/2.9 inch 2MP Progressive Scan CMOS|
|Voltage||DC12V PoE (802.3af)(Class 0)|
|Temp Range||-22°F ~ +140°F / Less than 95% RH|
|Dimensions||4.25in x 4.25in x 3.15in|
IPOD-ELE2IR28S Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Configuration Tool Downloads: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
