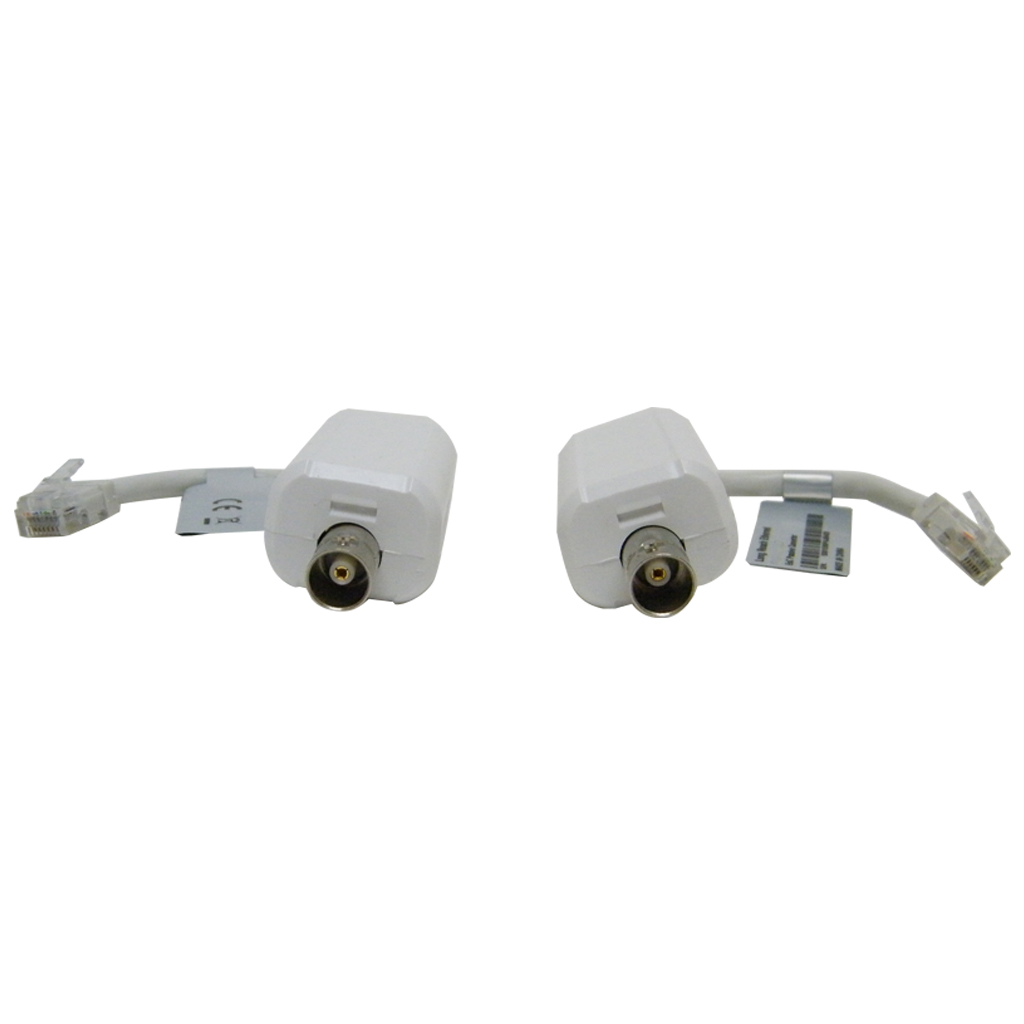

EoC Passive Converter for EPOE cameras

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: EPOE-COAX Category:


Function Port: 1*10/100 Mbps Base-TX


Power Consumption: <1W
Transmission Bandwidth: RG59 Coaxial Cable:
400m/100Mbps, 1000m/10Mbps
PoE Protocol (Based on the power input from the ePoE switch)
Network Standard IEEE802.3, IEEE802.3u
Electrostatic Discharge Anti-interface: Contact Discharge ±6kV

Air Discharge ±8kV

Surge (impact) Anti-interface: Signal Port

CM ±6kV DM ±2kV

Enclosure Material: ABS
Color: White
Weight: 28.3g
Dimensions (LxWxH): 56mm x 27mm x 21mm
Operating Temperature -40°C ~ 60° C (-40° F ~ 140° F)
Storage Temperature: -50°C ~ 70°C (-58° F ~ 158° F)
Humidity: 0% ~ 95%


ePoE, or enhanced Power over Ethernet, is an innovative solution that utilizes specialized algorithms capable of extending how far both IP and analog security cameras can reach. ePoE devices are now standard on ONVIF devices and can even be incorporated into traditional PoE systems. What makes ePoE devices different is that they have the capability of converting coaxial infrastructures with the latest IP devices. This capability makes it possible to increase transmission distances through both coaxial and ethernet cables.

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
