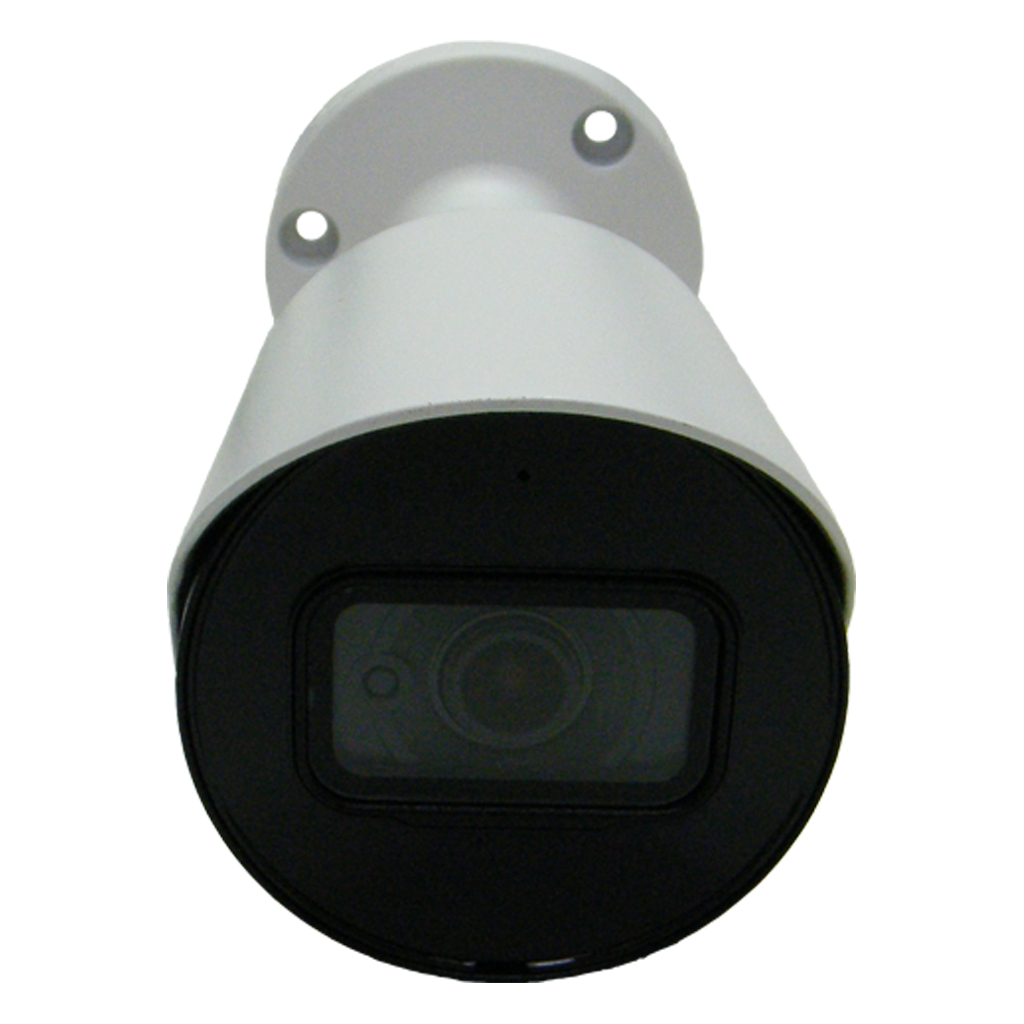

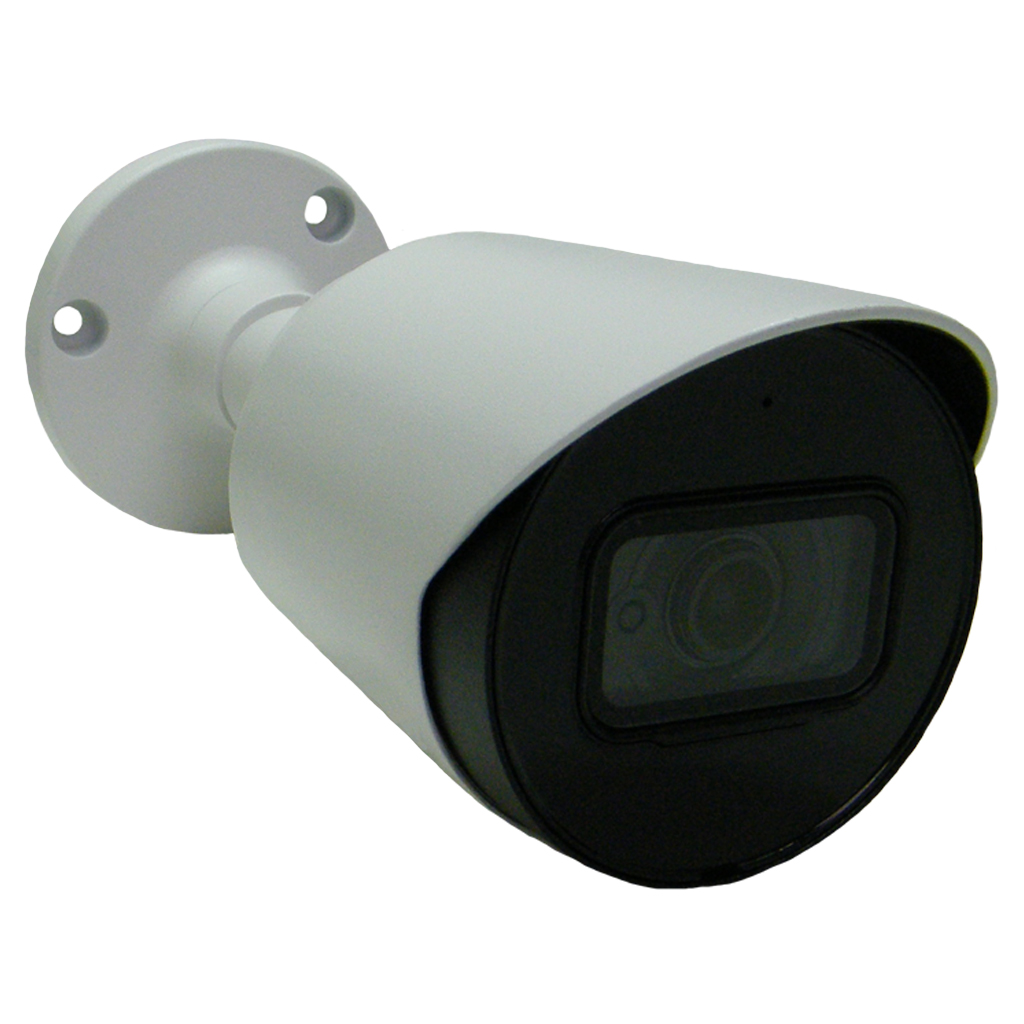

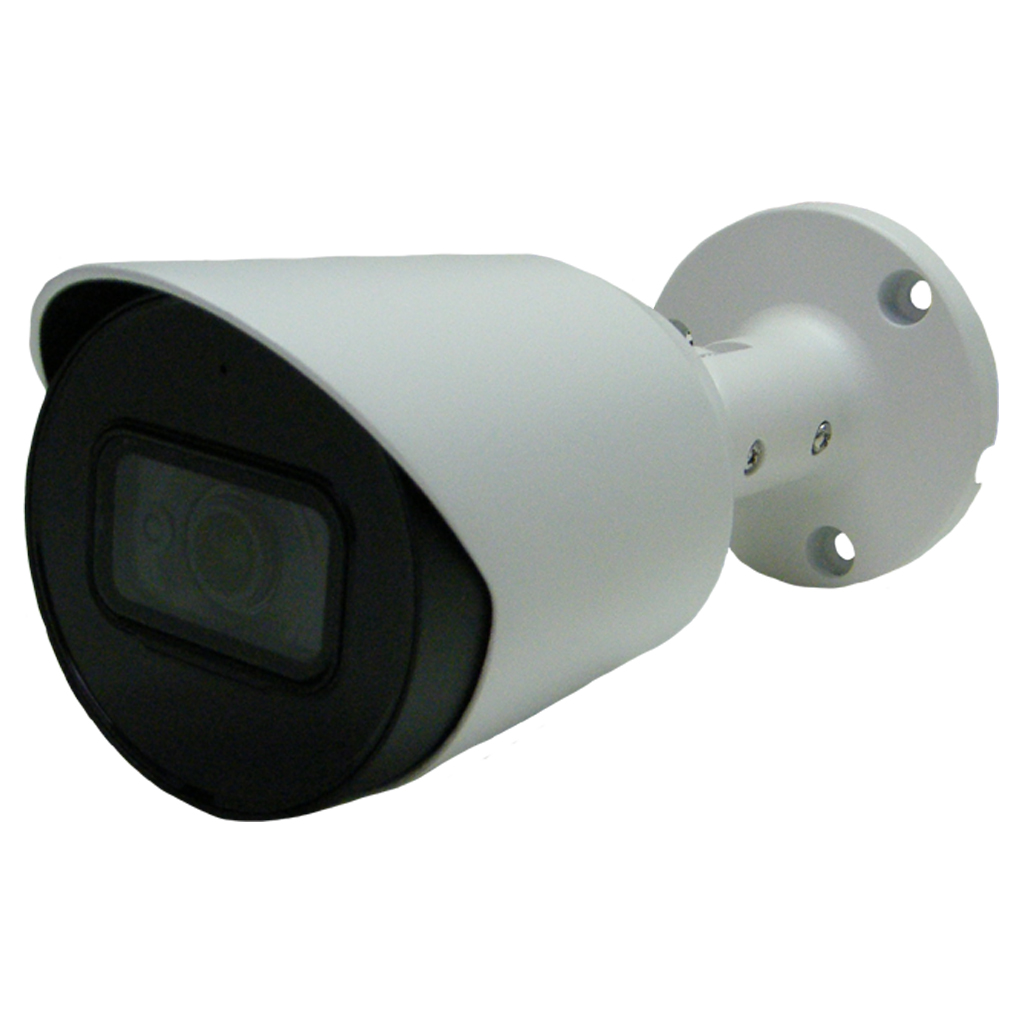

Introducing the Elite series HDOB-ELE8IR28A 4K (8 megapixel) camera that utilizes a top of the line ½.7” Cmos sensor, paired with state of the art wide dynamic range (WDR). Thus providing pristine 4K video quality through the 2.8mm fixed lens at 15 frames per second (FPS) with advanced 3D DNR noise reduction technology built into the microphone. 3D DNR is able to negate random noises by comparison of two sequential frames without compromising audio quality. This camera also comes with IVS, meaning that you have access to features like line crossing detection and object removal detection. Alternatively, you can run the camera at 5 megapixels at 20 FPS or 4 megapixels at 25 FPS.
When it comes to capturing video at night or in the dark worry not for the HDOB-ELE8IR28A is equipped with Infrared capabilities allowing it to see up to 30 meters (98.43 FT) with the use of 960nm light emitting diodes.

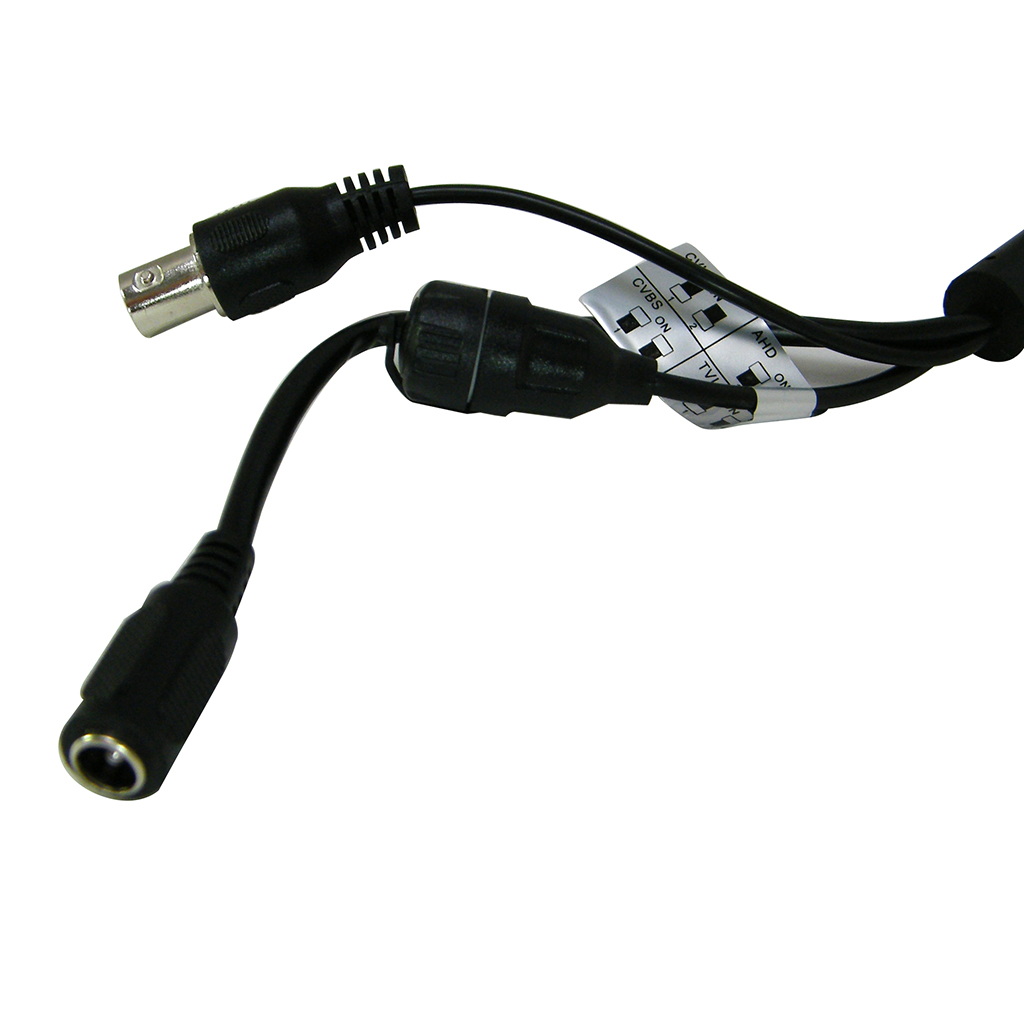

This camera is able to handle four different types of signals over one cable (CVI, CVBS, AHD and TVI) meaning that this camera is compatible with XVRs and most HD/SD DVRs. HDCVI ensures real-time data Transmission up to an astounding 700 meters without any loss for 4K and 4MP HD video on a coaxial cable and up to 300m using a UTP cable. You may be thinking “sure 4K sounds great, but I’m going to have to rewire my setup” Wrong! This camera is able to work off your existing cables for easy installation.
Solid construction, with an IP67 rating and an unyielding design, this bullet is shielded from water up to one-meter submersion and dust, as well as lightning thanks to the 4KV lightning rating. When it comes to power this camera runs off a 12V ±30% DC and is able to handle ±30% input voltage making it extremely reliable in most questionable power situations. It is able to operate in temperatures ranging from -40° C To 60° C (-40°F To 140°F).
This camera comes with complimentary U.S. based technical support for the life of the product. Interested in mobile viewing? Download free remote viewing apps available for Android and Apple products.
|Features||Works with CVI, TVI, AHD ,Analog, True WDR, Built-in Microphone|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||3840 × 2160, 4K|
|Sensor Size||1/2.7inch Progressive Scan CMOS|
|IR Distance||98 feet|
|Voltage||12V DC ±30%|
|Temp Range||-40° F to +140° F, Less than 95% RH|
|Dimensions||6.87in × 2.78in × 2.85in|
HDOB-EL8IR28A Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
