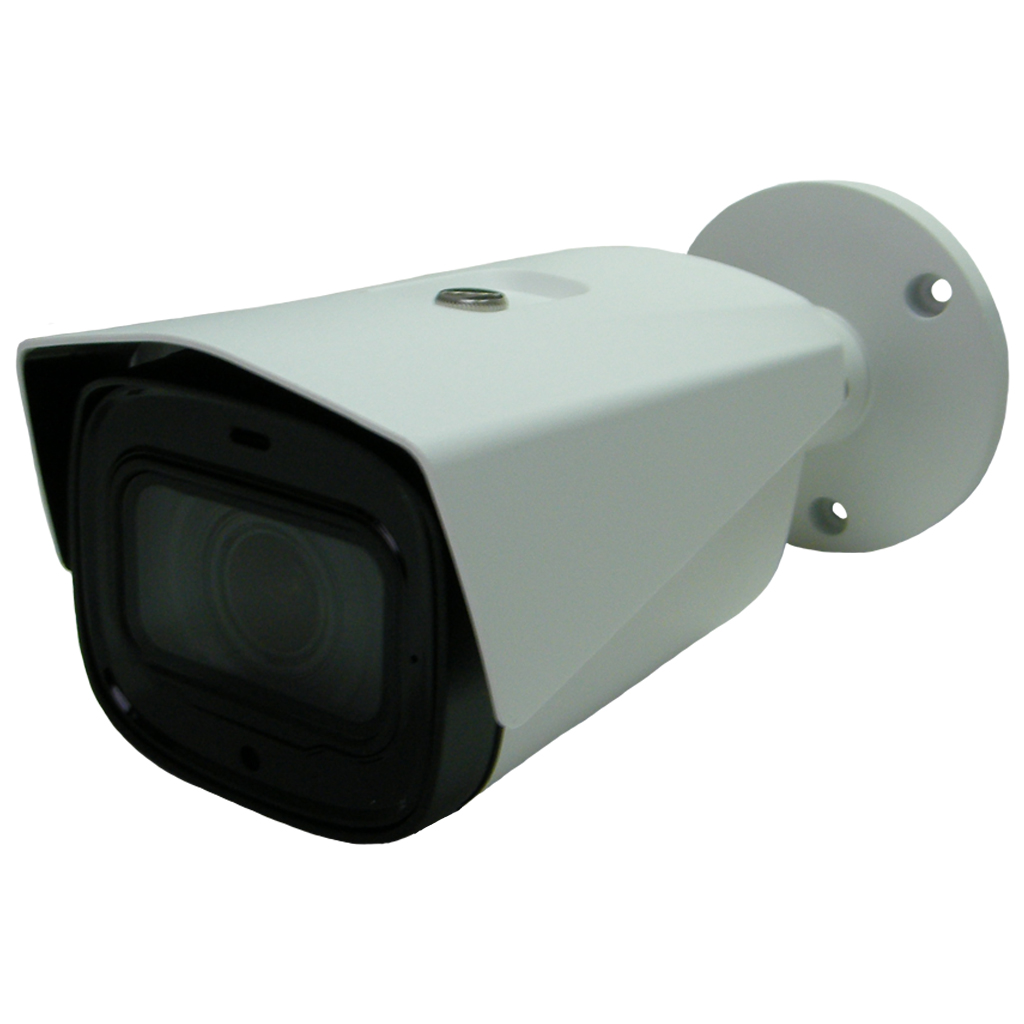

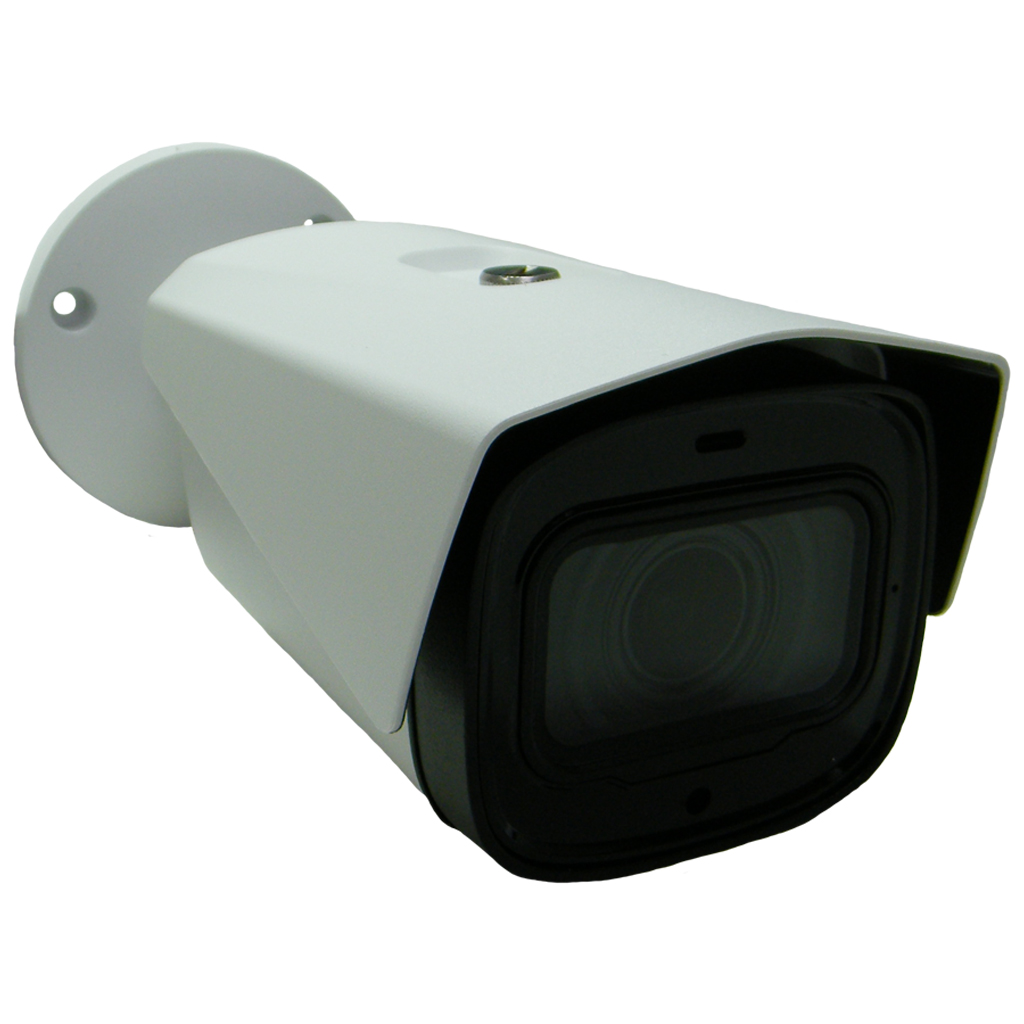

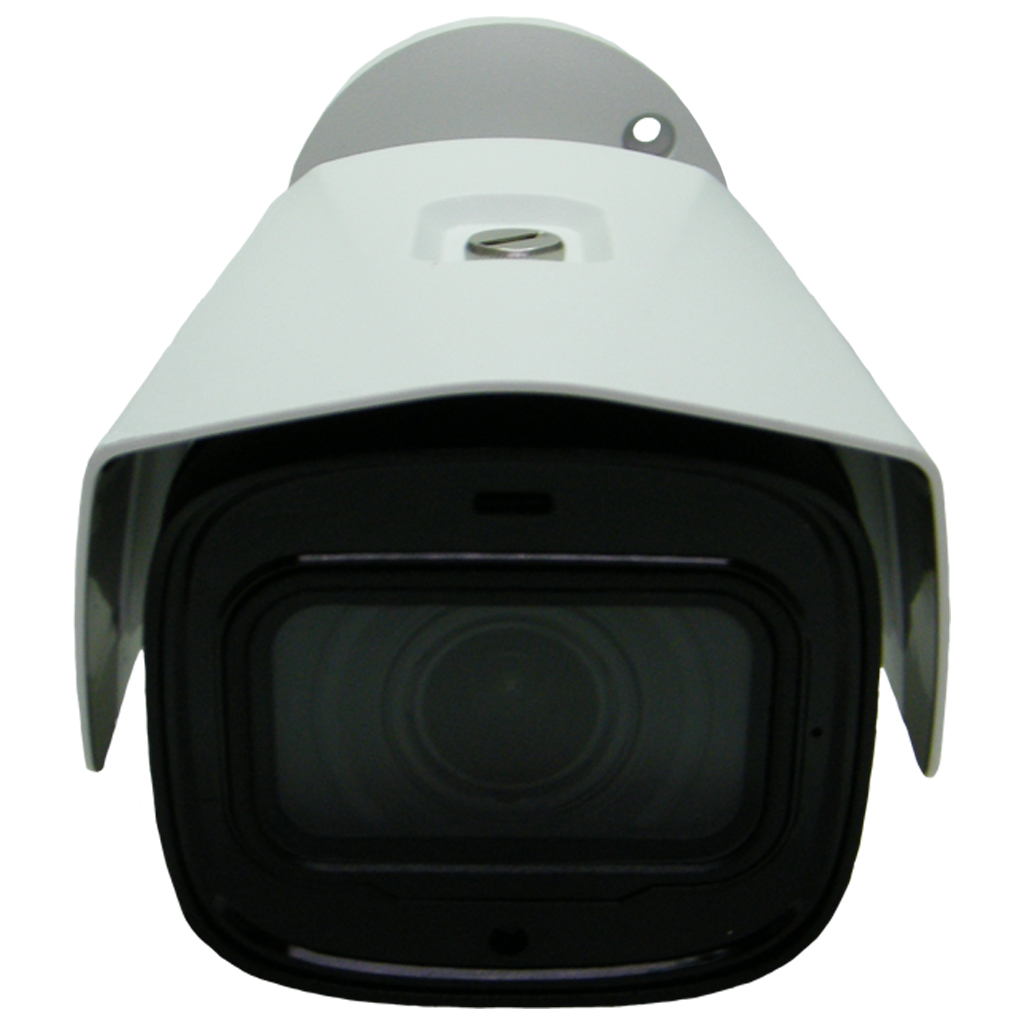

The HDOB-EL8IRZA is a coaxial based Elite series camera that can work with HD-TVI, HD-CVI, AHD and analog surveillance camera systems. If you already have an established analog system, this type of camera can utilize pre-existing cabling making upgrading a breeze! This bullet style camera can provide 8 megapixel (3840 x 2160) video at 15 frames per second.
The camera’s 2.7-13.5mm motorized lens allows you to customize the zoom level of this camera from the DVR, a computer or mobile device. When this camera is set to 2.7 mm, you can detect objects at approximately 295 feet, observe objects at approximately 118 feet, recognize people at approximately 59 feet, and identify people at approximately 30 feet. When this camera is set to 13.5 mm you can detect objects at approximately 866 feet, observe objects at approximately 348 feet, recognize people at approximately 174 feet, and identify people at approximately 85 feet.
This camera also has a wide range of features that help adjust for most difficult lighting situations. With Advanced 3 Digital Noise Reduction (3DNR), the camera finds and gets rid of noise by comparing consecutive video frames. This is accomplished with almost no loss of video detail, all while reducing bandwidth and storage requirements. A few other helpful features that compensate for an over/under exposed image are Backlight Compensation, Headlight Compensation and 120dB true WDR.
This camera produces broadcast-quality audio with it’s built-in microphone that transmits through coaxial cable, requiring no extra cabling. Having sound recorded to go along with the recorded video can make all the difference in the value of evidence.
This sturdy and reliable camera can be used for a large range of applications. Its IP67 intrusion rating means that it excels at indoor or outdoor applications, although you will always need to protect the connections from the elements. It also has a 4KV lightning rating to provide protection from the effects of lightning for the camera and its housing.
We provide FREE US based tech support and FREE remote viewing software for both desktop and mobile platforms. Available for Apple, Windows and Android devices! You can easily contact us through chat, by phone or by email!
|Features||Works with TVI, CVI, Analog, AHD, True WDR, Built-in Microphone|
|Lens||2.7mm~13.5mm Motorized Zoom Lens|
|Image Resolutions||3840 × 2160, 4K|
|Sensor Size||1/2.7 inch Progressive Scan CMOS|
|IR Distance||196 feet|
|Voltage||12V DC ±30%|
|Temp Range||-22° F to +140° F, Less than 95% RH|
|Dimensions||8.26in × 3.56in x 3.56in|
HDOB-EL8IRZA Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Configuration Tool Downloads: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
