Elite 32 Channel 1.5U Enhanced AI 4K NVR W/ 16 POE


In stock

Hard Drive – Optional

Hard Drive 2

Hard Drive 3

Hard Drive 4

Hard Drive 5

Hard Drive 6

Hard Drive 7

Hard Drive 8

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
32 MP
Max Recorder Resolution

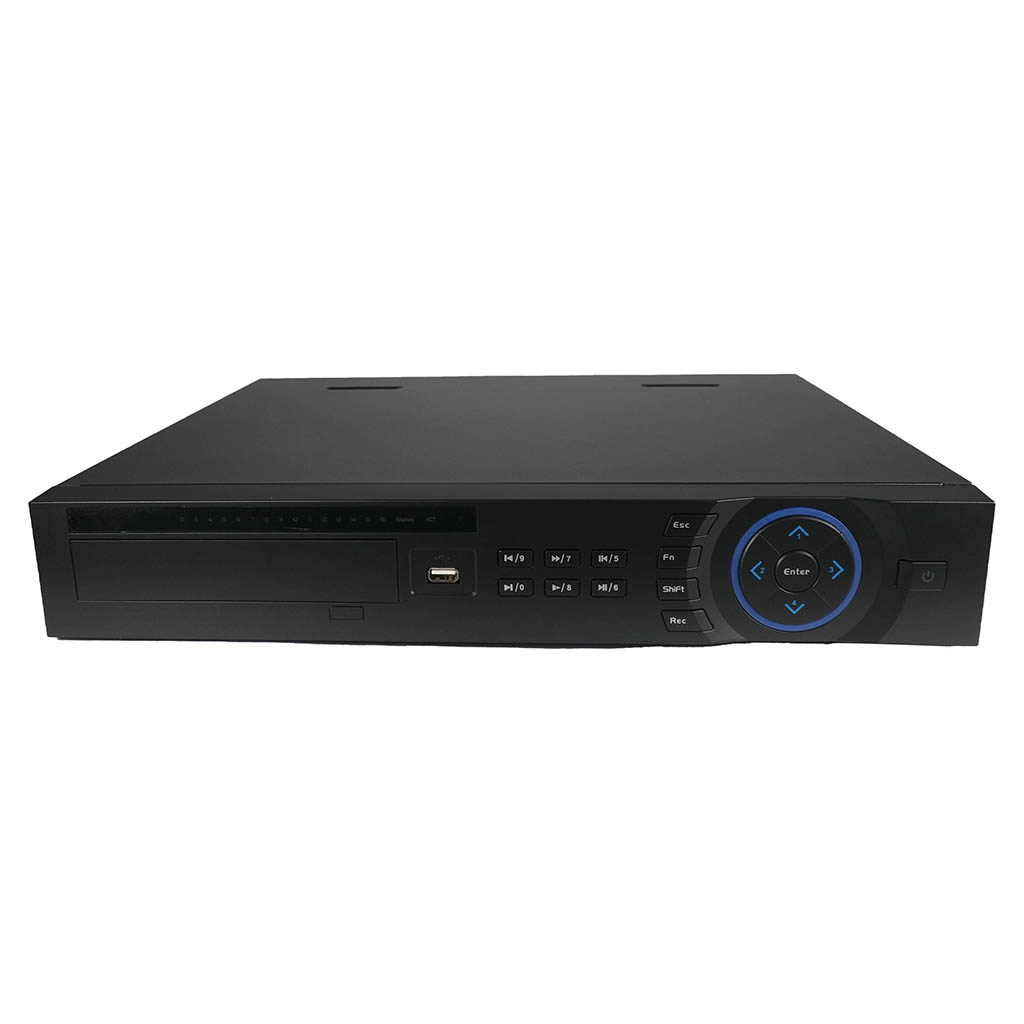

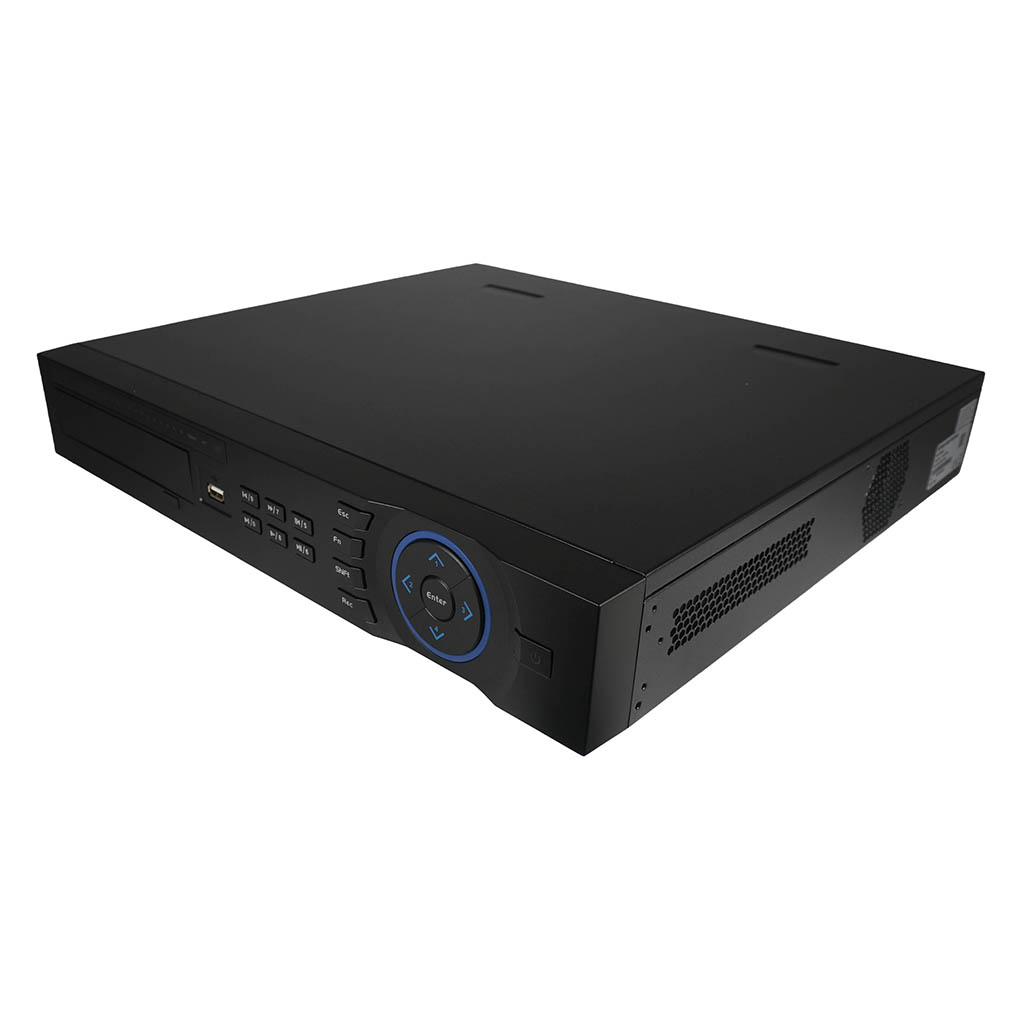

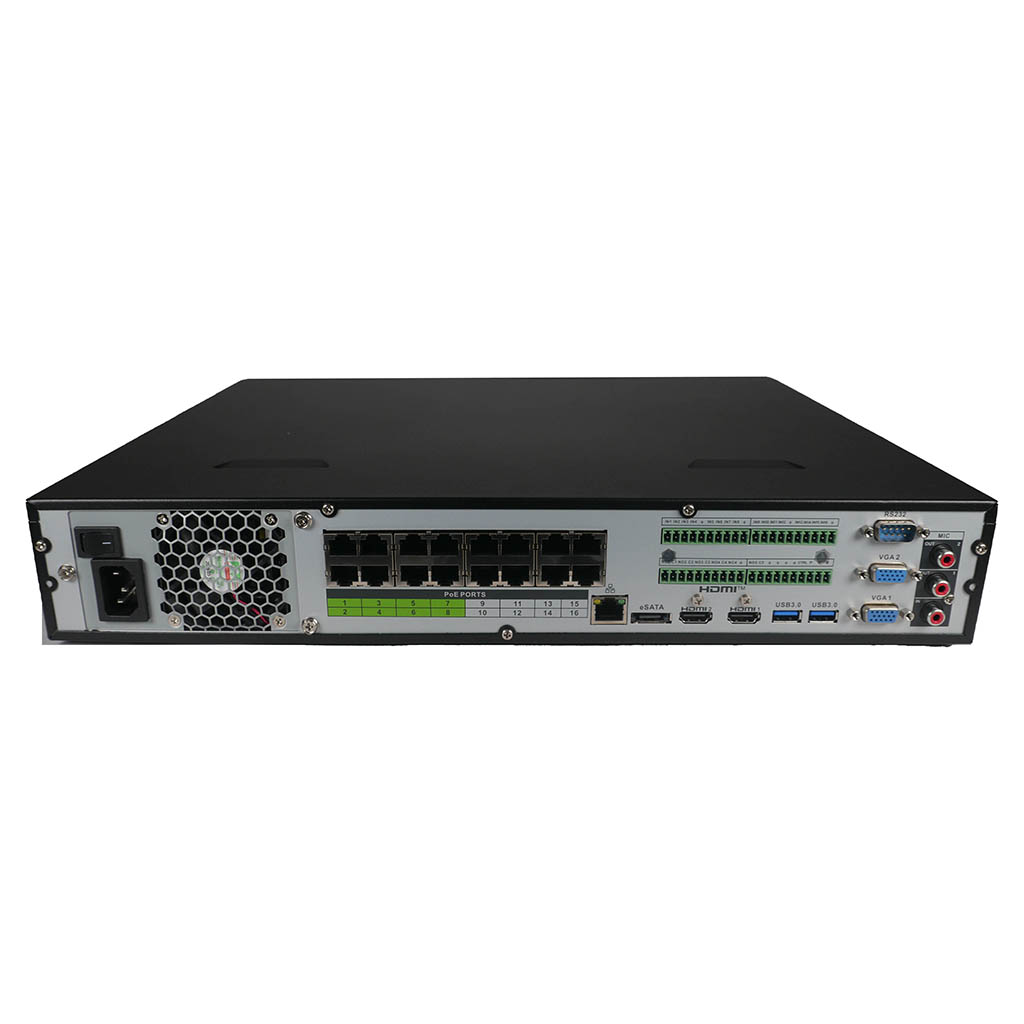

The NVR-EL32C-16PEI is a 32 channel Network Video Recorder from our Elite series of surveillance equipment. This NVR handles up to 32 cameras and has 16 ports POE built into the back of it. Its powerful processor and strong decoding capabilities mean that you can use 4k cameras with it.

This advanced recorder can use ANPR (Automatic number-plate recognition) to get maximum effect from License Plate Recognition (LPR) cameras. This combination of deep learning intelligent algorithm LPR cameras means that you will be far more likely to see readable plate numbers but it will also make the plate number a searchable field when reviewing your recorded footage.

You will be able to record continuously or based on motion detection. Two features that will drastically help improve the accuracy of the motion detection. SMD Plus (Smart Motion Detection technology) categorizes the targets that trigger motion detection to focus on people and vehicles. Perimeter Protection automatically reduces false alarms caused by things like animals, leaves in the wind, moving lights to improve alarm precision.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.



PoE, or Power-over-Ethernet makes it possible to install security cameras and video surveillance equipment without traditional AC power. It permits devices to have electrical power to more places without having to install an additional electrical infrastructure or outlet at every point they are placed. The main benefit is that surveillance devices can be installed without needing a professional electrician, saving people money and simplifying the process, making security cameras more cost-effective.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 32
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size 1.5U
Resolutions Capable 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1
Max Bandwidth 384 Mbps W/O AI | 200Mbps With AI
Display Screen Split Main screen: 1/4/8/9/16/25/36 | Sub screen: 1/4/8/9/16
Compression of Video H.265+
Connection Apps DSS, Smart PSS Lite,Smart PSS, Elite Viewer Pro,DMSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
