Sold out

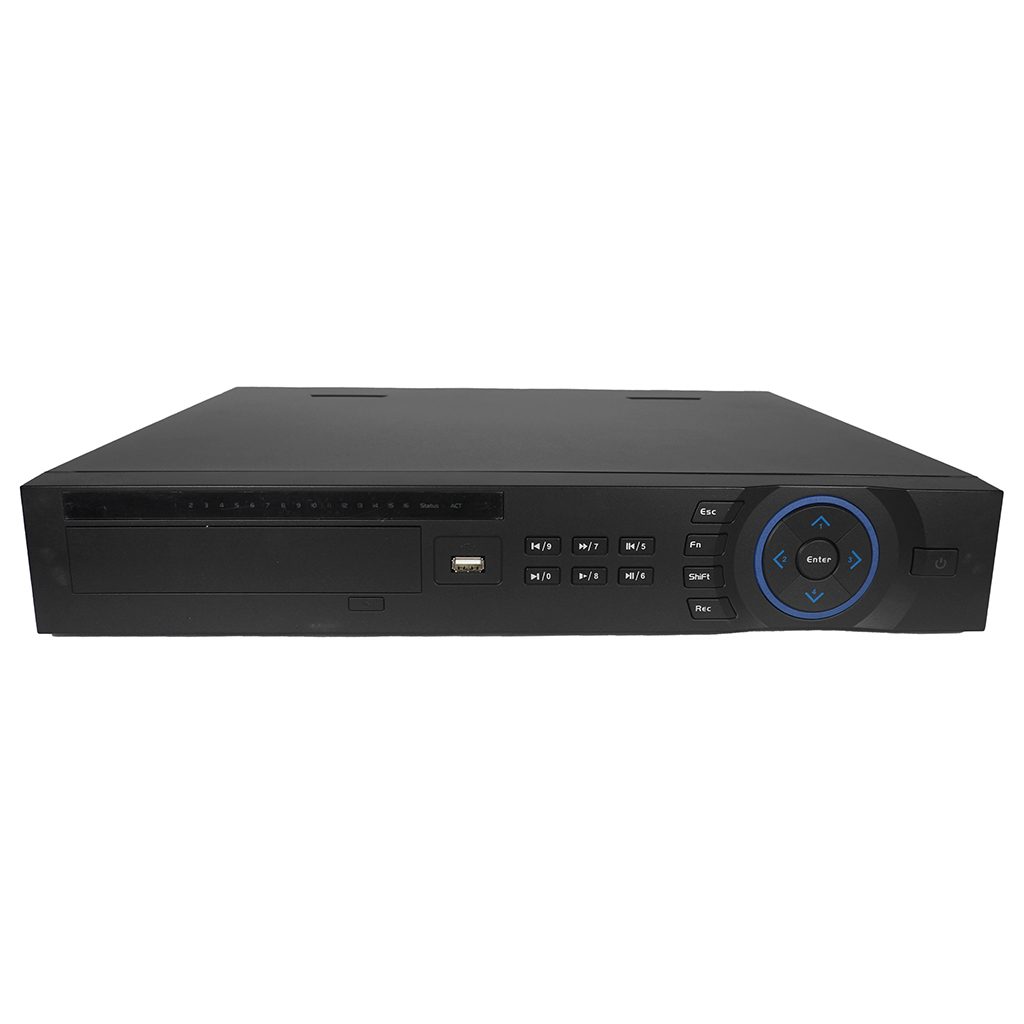

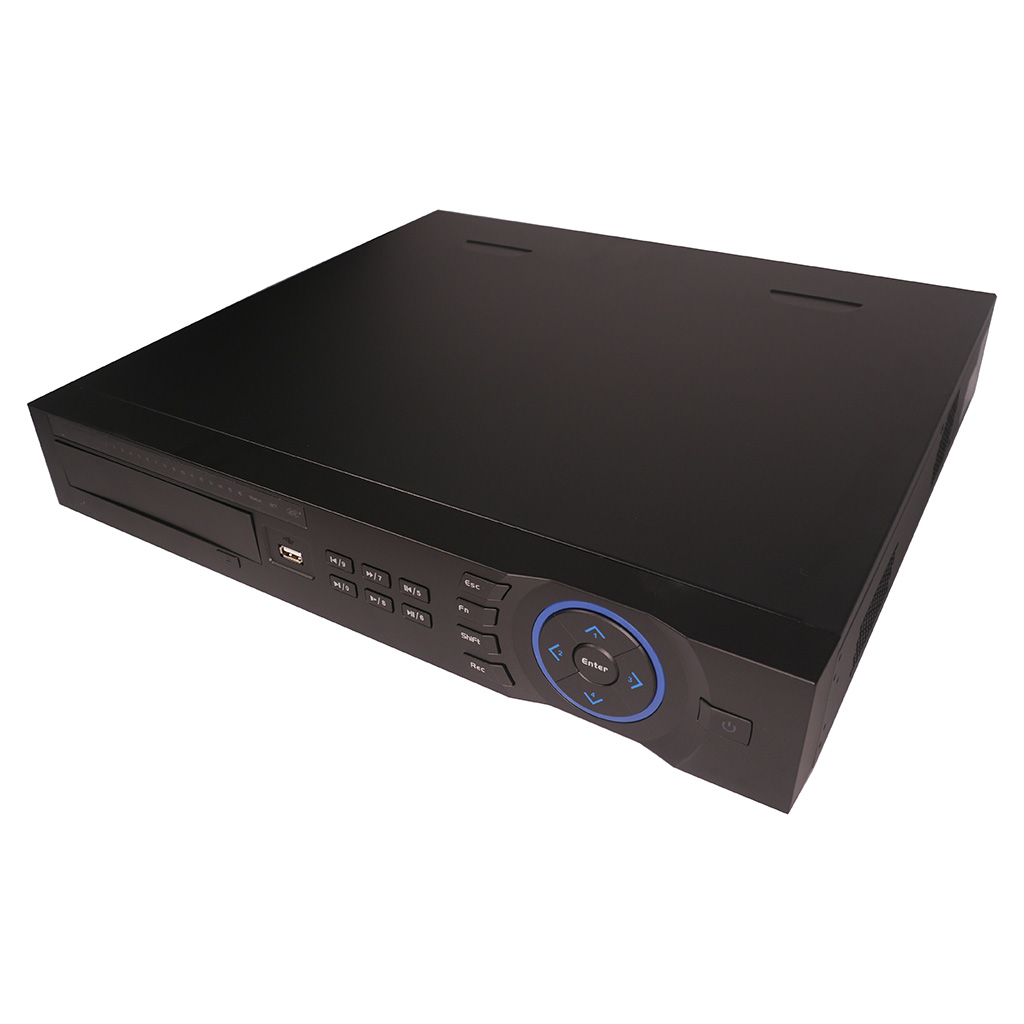

ELITE Series 16 Channel 1.5U 4K DVR

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: PENDVR-EL16C4K-AI Categories: ,

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


16 BNC+16 IP
Number of Cameras
Number Of HDD
Max Recorder Resolution

In today’s market with the technology changing ever so rapidly, comes the desire for greater performing digital video recorders for the surveillance industry. Here is the latest and greatest addition to our Elite series of recorders, our 16 channel Pentabrid DVR that supports up to 16 BNC connected cameras ranging from CVBS analog, up to 5MP resolution when using AHD or HD-TVI and up to a whopping 4K resolution (8MP) when using HD-CVI and used with good quality siamese or RG-59 cable.

This DVR supports H.265+ and H.265 dual stream compression which can greatly reduce the bit rate and storage requirements up to 90% over standard H.264 video compression. What this means for you is that it will significantly extend the data retention time on hard drives and reduce the bandwidth use.

Speaking of hard drives . . . this unit has 4 SATA ports accepting up to 10TB drives in each and even has one eSATA port enabling you to have an external recording device to backup your data to. This DVR comes packed with many features such as integrated POS functionality, IVS (Intelligent Video System) including tripwire analytics, missing or abandoned objects, and facial detection to name just a few. There is also a new fan with a smart design which will turn on or off automatically depending on the temperature of the CPU.

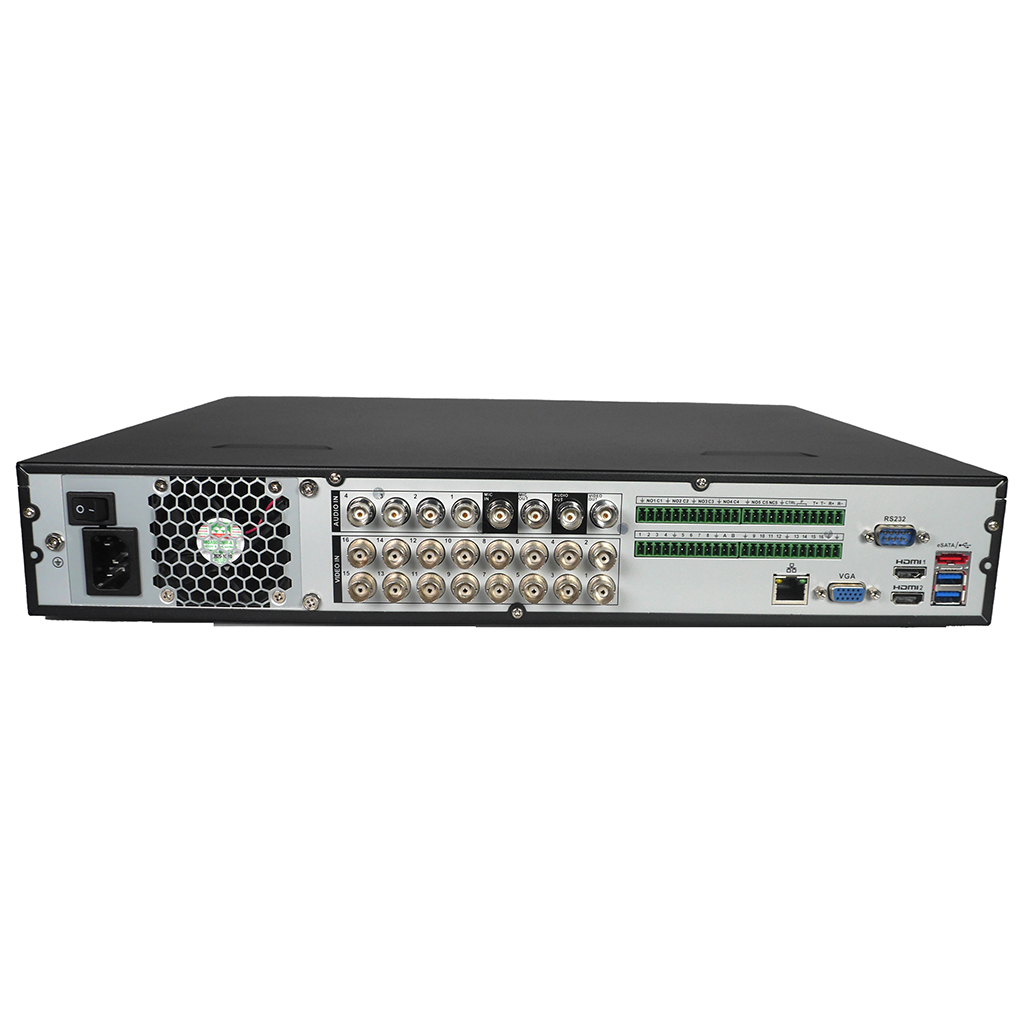

This unit can support 16 BNC connected cameras in addition to 16 IP cameras each up to 12MP in resolution, or you can use this as a 32 channel NVR using all IP cameras. You can even hook up external accessories such as a siren, strobe light or alarm function with the built in alarm inputs and outputs. This even has a connection for a microphone and audio in and out if you wanted to set up bidirectional talk via an external speaker.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16 BNC+16 IP
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: HDMI 1: 3840×2160, 1920×1080, 1280×1024, 1280×720 | HDMI 2 & VGA: 1920×1080, 1280×1024, 1280×720
Size 1.5U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Max Bandwidth 128 Mbps
Display Screen Split BNC Only: 1/4/8/9/16 | With IP Extension: 1/4/8/9/16/25/36
Compression of Video H.265
Connection Apps Elite Viewer Pro
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
