ELITE Series 32 Channel 2U 4K DVR

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: PENDVR-EL32-X Categories: , ,


Number of Cameras
Number Of HDD
Max Recorder Resolution

The AI-revolution is now complete across our entire HD DVR line with the release of the new PENDVR-EL32-X. Our most advanced Pentabrid (HDCVI/AHD/TVI/CVBS/IP) DVR to date, the PENDVR-EL32-X has all the bells and whistles one can ask for.

Supporting 4K/8MP resolutions over coax and up to 12MP resolution over IP (at a maximum total bandwidth of 128Mbps) take your video to the next level at crystalline UHD resolution that actually makes use of that fancy new TV you got for Christmas. With dual-HDMI and VGA out, businesses can use the spot-out functionality to create custom second-screen views for lobbies or front-of-house staff. Dual Gigabit Ethernet ports allow installers to keep all their IP cameras off the main network, reducing cross-network traffic for both cameras and other users while providing a natural layer of security to any IP cameras connected to the DVR.

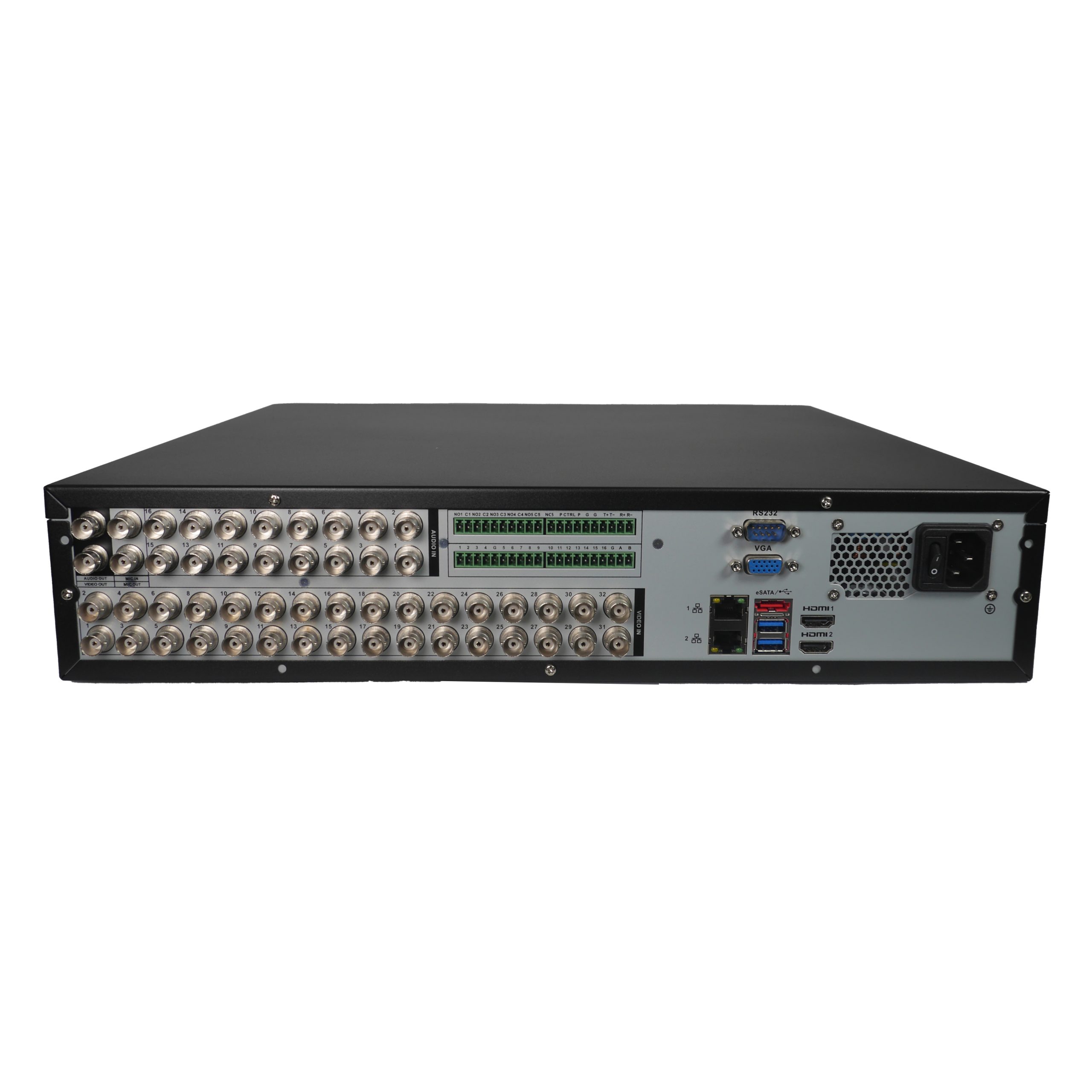

Some of you out there need more, and the PENDVR-EL32-X is here to give it to you. With 16/1 BNC audio in/out, 1/1 BNC Video out, 16 alarm inputs with 6 relay outputs, RS485 PTZ control, RS232, USB 3.0, eSATA, and compatibility for up to 8 SATA HDDs (12TB max/drive) you get massive amounts of storage and connectivity to allow you to continue leveraging your existing infrastructure while enjoying the fruits of all the new features available in modern CCTV systems.

Speaking of modern systems, we haven’t even gotten to the best part: The new PENDVR-EL32-X is our first 32 channel AI DVR. Build a database of faces and get alerts about strangers in unauthorized locations on up to 6 channels with our facial detection system, and use AI search to help find target faces or other features to save time reviewing video clips. Use up to 6 channels of perimeter protection to define strict rules of tripwire crossing, zone entry, and human/vehicle detection to create a precise system of notifications or recording to ensure you are capturing only what you need, and then leverage the powerful AI search functions to make reviewing footage a snap. Enable SMD+ (Smart Motion Detection+) to replace traditional motion detection on all channels of your recorder, reducing false positives by only triggering motion and alerts when your system detects a human or a vehicle.  Record what you need and find it faster with our latest AI powered systems and leave history in the dust bin.

*Face Detection, Perimeter Detection, and SMD+ require tremendous resources from the recorder and therefore cannot be used simultaneously.  Choose the feature that best suits your needs: 6-Channel Face Detection, 6-Channel Perimeter Detection or All-Channel SMD+*

If you intend to mix analog cameras (960h and below, including all TVL resolutions) with HD cameras (1MP+) please consult a sales representative before purchasing at (561) 288-5258 ext 2

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 32
Number Of SATA Connections 8
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Size 2U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Max Bandwidth 128 Mbps
Display Screen Split 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps Smart PSS, iDMSS, gDMSS, Elite Viewer Pro
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
