Sibell 16 Channel 4K DVR

(1 customer review)


In stock

Hard Drive – Optional

Hard Drive 2

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

The PENDVR-SB16M-4K is our NDAA-approved 4K capable 16-channel DVR from our Sibell series. This 1U unit can use TVI, CVI & AHD coaxial cameras up to 8 megapixels @15FPS, 5MP@20FPS, or 4MP@30FPS as well as up to eight Onvif IP cameras up to 8 megapixels for a total of 24 channels, and is able to output up to 4K from the HDMI port to your TV or monitor.

The PENDVR-SB16M-4K is able to house two hard drives up to 10 terabytes each, for a 20 terabyte total capacity, while using H.265 encoding to minimize the space needed for storing footage by compressing data more efficiently as well as pulling a higher quality image from the stream using a lower bitrate. When paired with the different types of recording modes such as motion, timed, or smart event, the PENDVR-SB16M-4K will only record when these rules are triggered, saving you hard drive space and extending the amount of footage you can store.

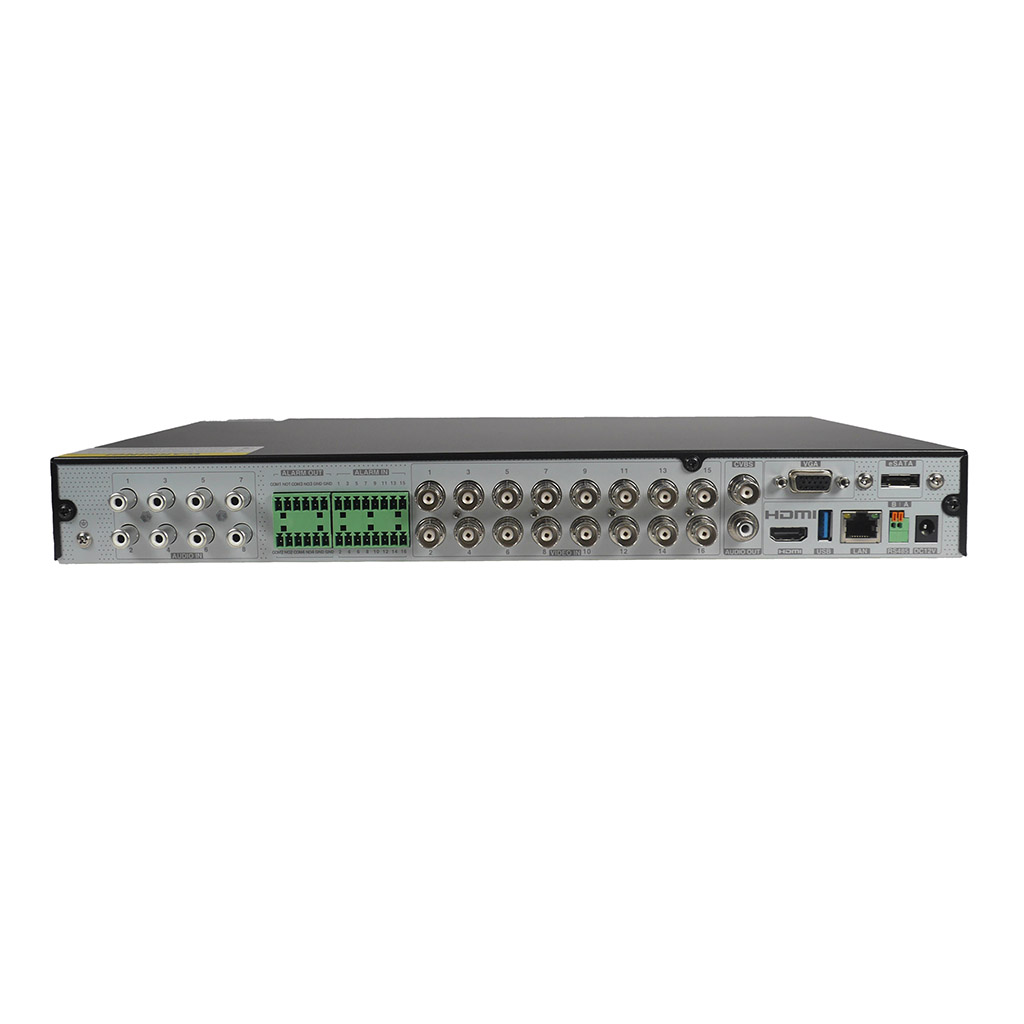

This system has a single 1000Mbps RJ45 connection and an incoming bandwidth of 32Mbps and outgoing bandwidth of 96Mbps allowing ten different users to access the PENDVR-SB16M-4K. This unit also has two USB connections and a VGA for connecting a spot monitor.

Like all of our Sibell DVRs the PENDVR-SB16M-4K  can be remotely monitored from anywhere on your Smartphone using the free Sibell Mobile application available on both IOS and Android, or using the NVMS PC program which is available on our site for free.

This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

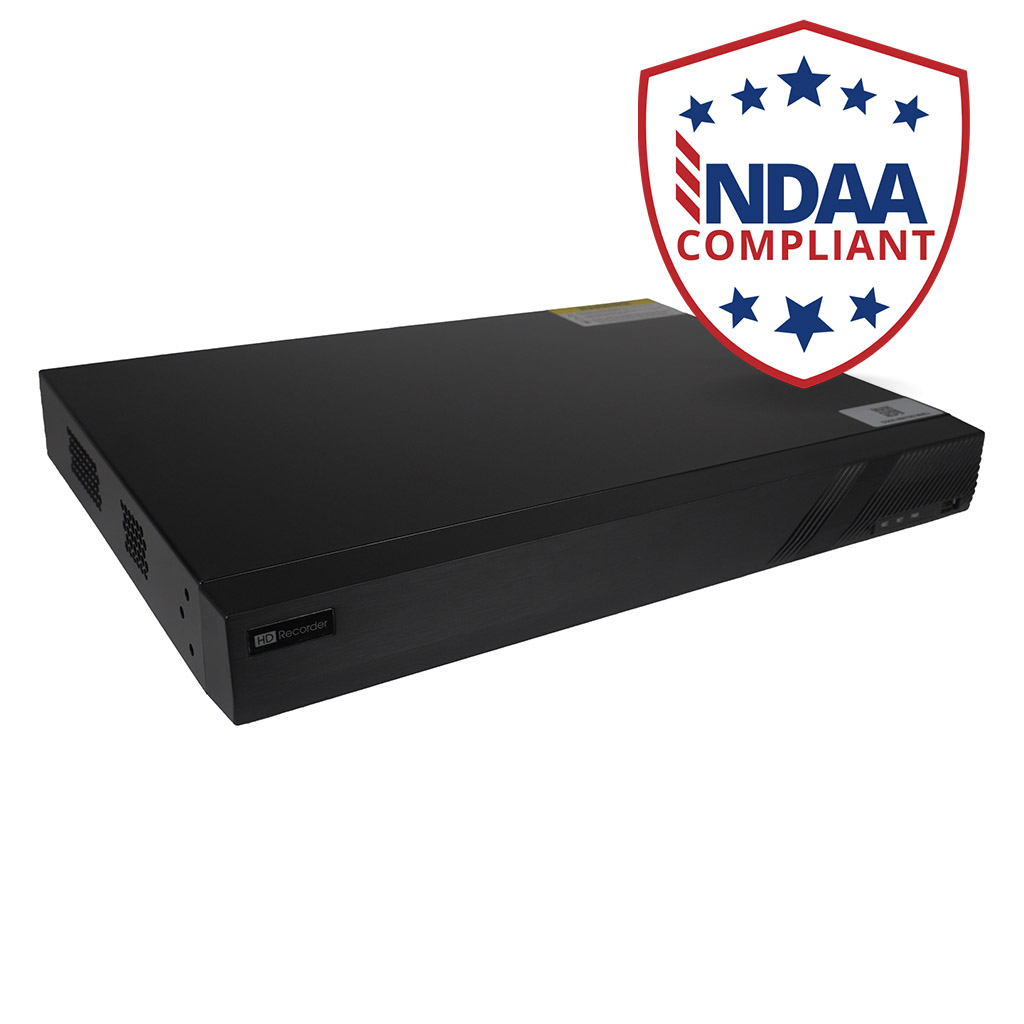

NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 2
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA/BNC
Video Output Resolutions: 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1
Size 1U
Resolutions Capable 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps
Max Bandwidth 96 Mbps
Display Screen Split 1/4/6/8/9/13/16/25
Compression of Video H.265
Connection Apps NVMS Lite | Sibell Mobile | Super Live Plus
Perimeter Protection No
Object Detection No
Face Detection No
Face Recognition No
Smart Motion Detection No
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
