Sibell 32 Channel Pentabrid Coaxial DVR 8 SATA 8MP (NDAA)

Original price was: $999.00.Current price is: $899.10.

Save 10%

In stock

Hard Drive – Optional

Hard Drive 2

Hard Drive 3

Hard Drive 4

Hard Drive 5

Hard Drive 6

Hard Drive 7

Hard Drive 8

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

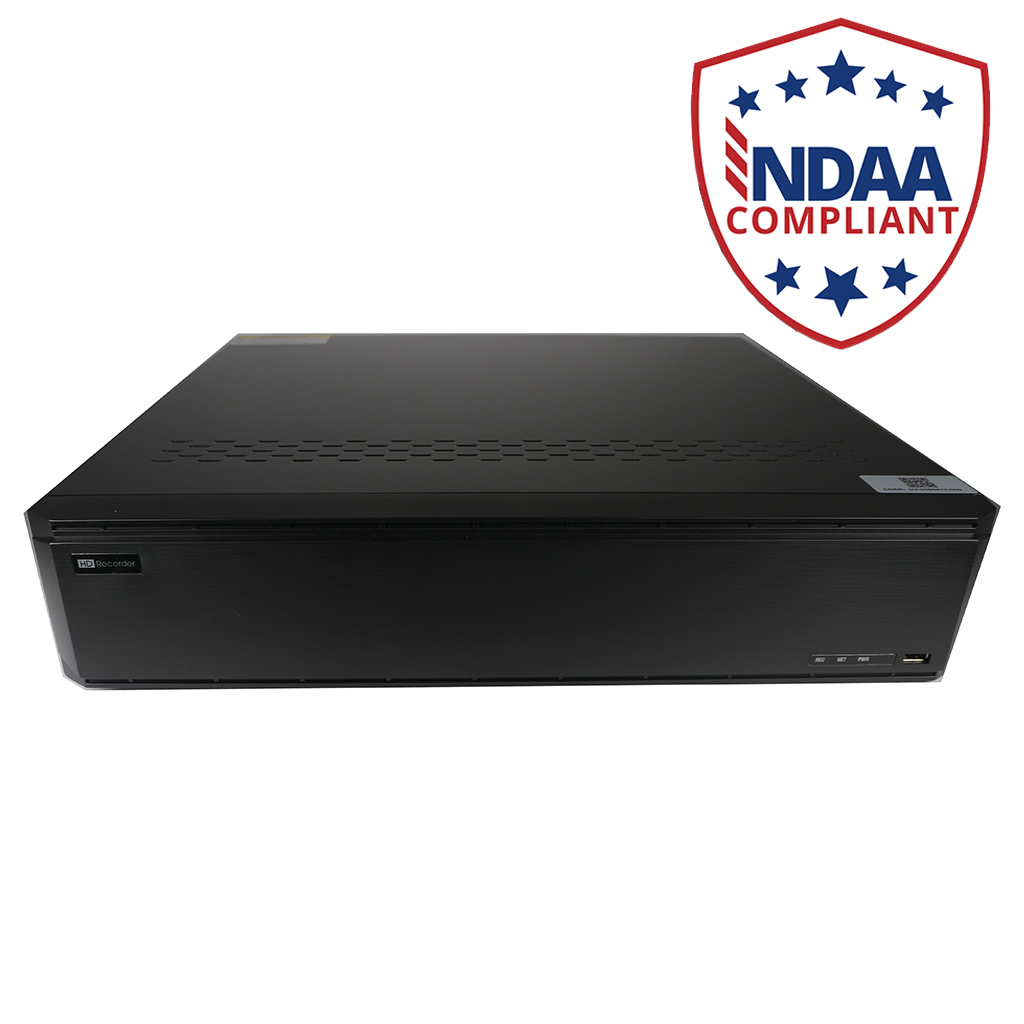

The newest addition to our NDAA Compliant Sibell line of professional surveillance equipment is our TVI/AHD/CVI 4K/8MP capable PENDVR-SB324K coaxial DVR. A great choice when you are wanting to upgrade your existing legacy DVR while being able to utilize the existing coaxial infrastructure.


This unit supports up to 32 BNC coaxial connections and being a hybrid unit, you can also add on up to 8 IP cameras, all up to 4K/8MP resolution, for a maximum capability of 40 cameras.


On the coaxial side, the PENDVR-SB324K supports TVI/AHD/CVI up to 4K/8MP at 15fps video and will record up to 8fps in 4K, or if using it in 4K Lite mode it will support up to 15fps for recording in H.265 high profile compression.

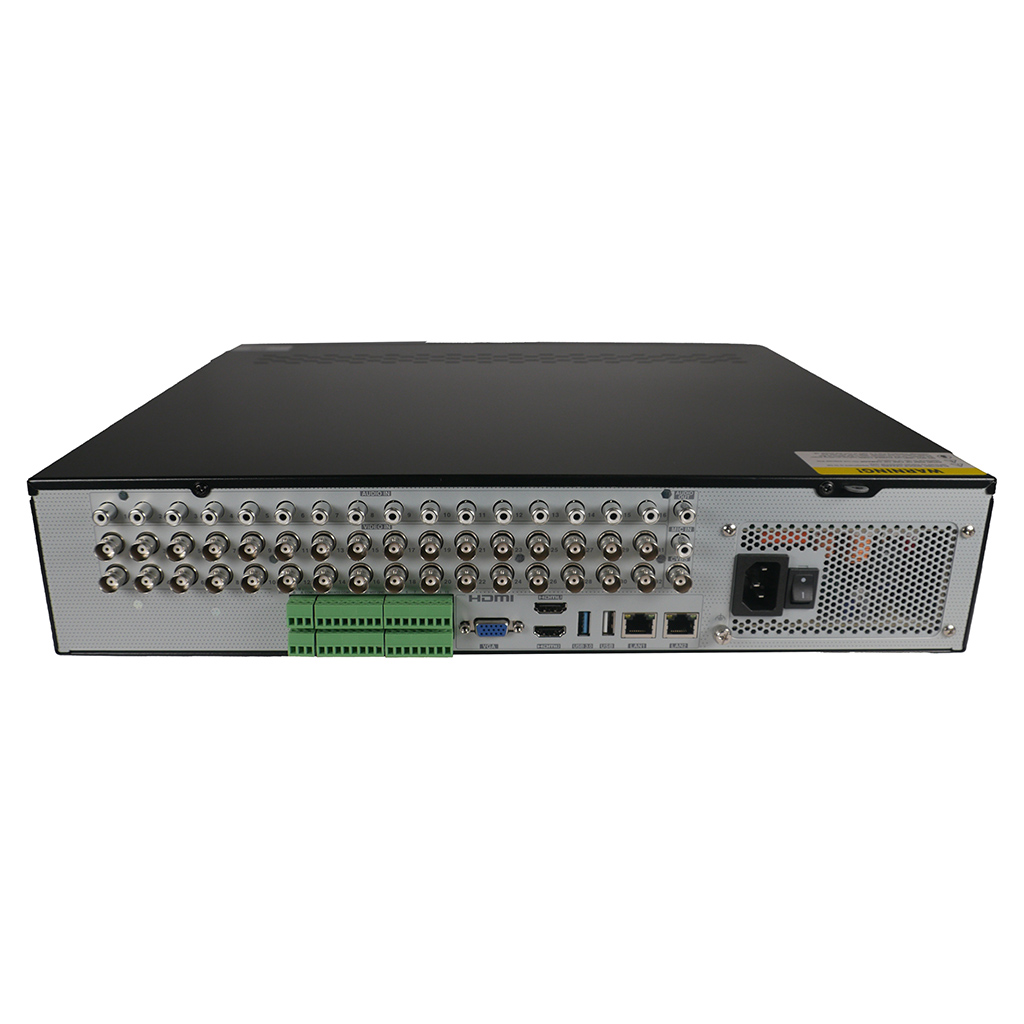

There are 16 RCA connections for external Audio, 16ch of alarm inputs and 8ch of alarm outputs. This unit has 2 RJ45 network ports and supports up to 8 internal hard drives and even supports RAID 0, 1, 5, 6, 10.


The PENDVR-SB324K supports Smart Search in playback up to 16ch at a time, enabling you to search via time slice, time, event, tag and smart search and you can play, pause, fast forward, fast backwards, digital zoom and more.


A display BNC output can be used as a main or spot display output which comes in handy if you want to display a particular camera channel on a monitor for everyone to see. This unit also has dual HDMI outputs that will display different video sources so that you can have up to 16 channels on one display and a different set of 16 channels on a second display.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.


NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 32
Number Of SATA Connections 8
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 3840 x 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size 2U
Resolutions Capable 4K, 5MP, 4MP, 3MP, 1080P, 720P
Max Bandwidth 128 Mbps
Display Screen Split 1/4/8/9/16/25/36
Compression of Video H.265 / H.264
Perimeter Protection No
Object Detection No
Face Detection No
Face Recognition No
Smart Motion Detection No
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
