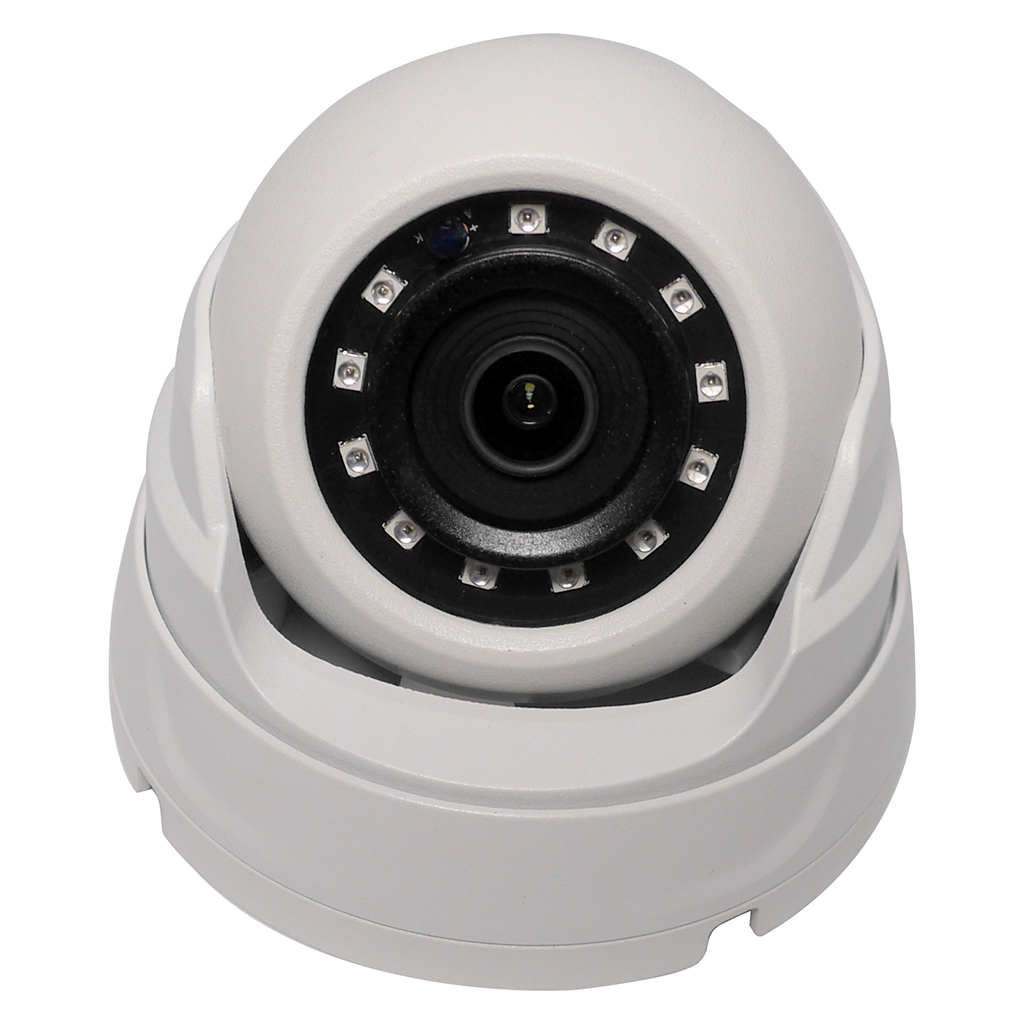

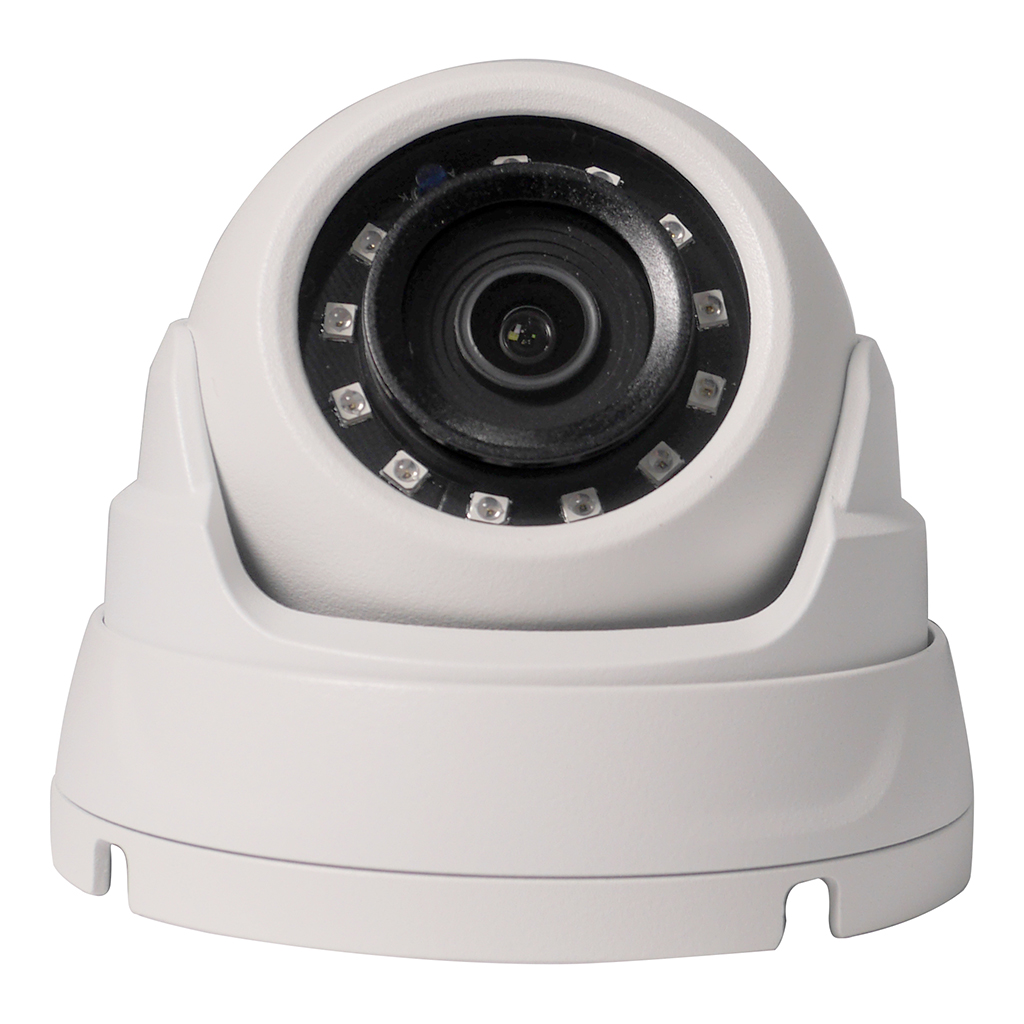

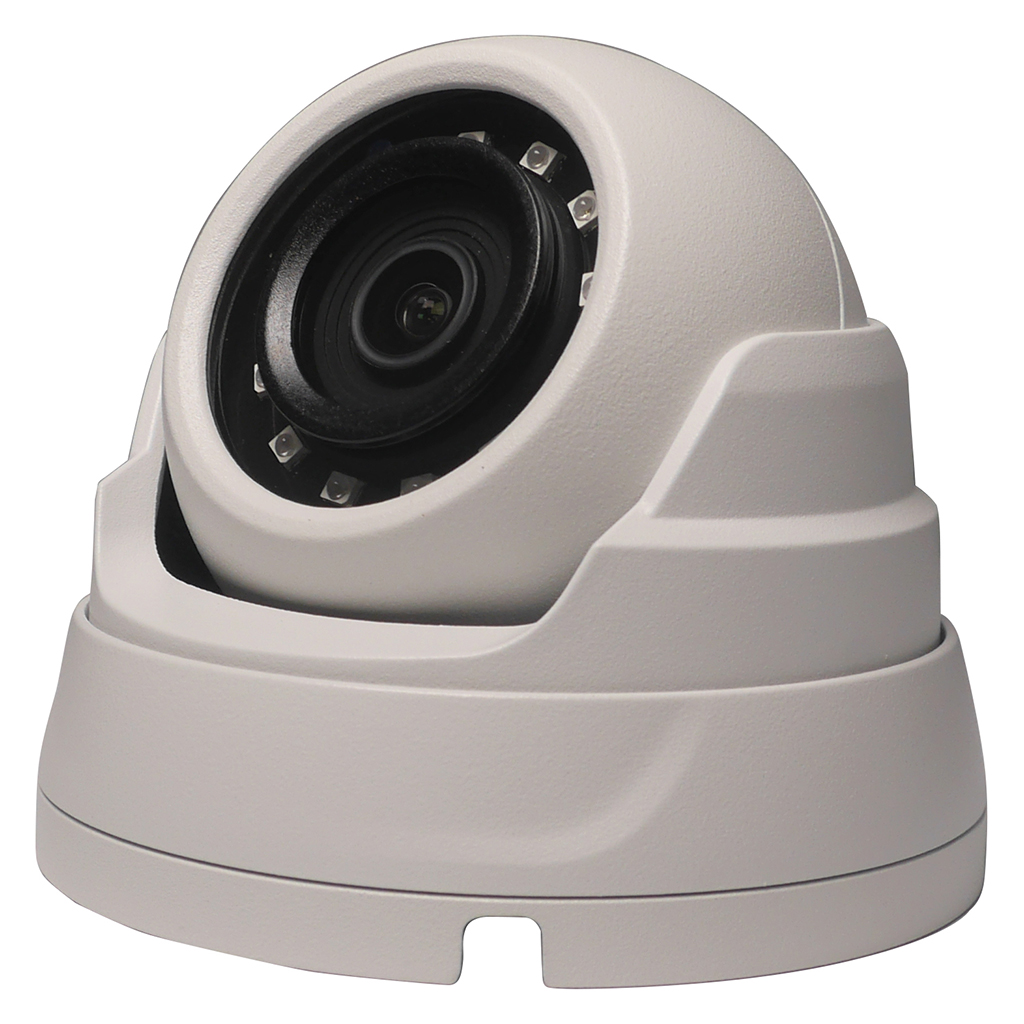

The HDOD-ELE2IR28 is a coaxial-based camera from our Elite series of products. It can produce 1080p (1920×1080 or 2 megapixels) resolution video at 30 frames per second. This is what we refer to as a QUAD camera because it works with HD-CVI, HD-TVI, AHD, and analog systems. This camera can be a part of upgrading a low-resolution surveillance camera system while still using the older infrastructure.
There is a wide variety of installation locations for this camera because of its rugged structure and design. It’s IP67 intrusion protection and 4 kV lightning rating means that it can handle outdoor environments almost as well as indoors.
This camera’s user-friendly on-screen display (OSD) allows for easy access to settings that help this camera to compensate for different lighting conditions such as Head Light Compensation (HLC) and Back Light Compensation (BLC).
The wide-angle 2.8 mm lens that this camera uses will allow you to detect objects at approximately 122 feet, observe objects at approximately 49 feet, recognize people at approximately 25 feet, and identify people at approximately 12 feet.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Weather Resistant
Your camera can take anything Mother Nature will throw at it and continue to provide you with reliable performance.
Features
High Definition Resolution
High Definition resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
Weather Resistant
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Features | 4-in-1 (CVI, TVI, AHD, Analog) | DWDR | Smart IR | Long Distance Transmission |
| Lens | 2.8mm Fixed Lens |
| Megapixel | 2MP |
| Image Resolutions | 1080P (1920×1080) |
| Sensor Size | 1/2.7in Progressive CMOS |
| IR Distance | 98 FT |
| Weather Protection | IP67 |
| Temp Range | (-40°F ~ +140°F) / Less than 95% RH |
| Dimensions | 3.68in × 3.13in |
| Weight | 0.60 lb |
| Audio | None |
| SD Card Compatible | No |
Video
Downloads
Document Downloads
 |
Product Specifications | Detailed Feature List and Product Specifications |
|
Product Manual | Original Product Manuals |
