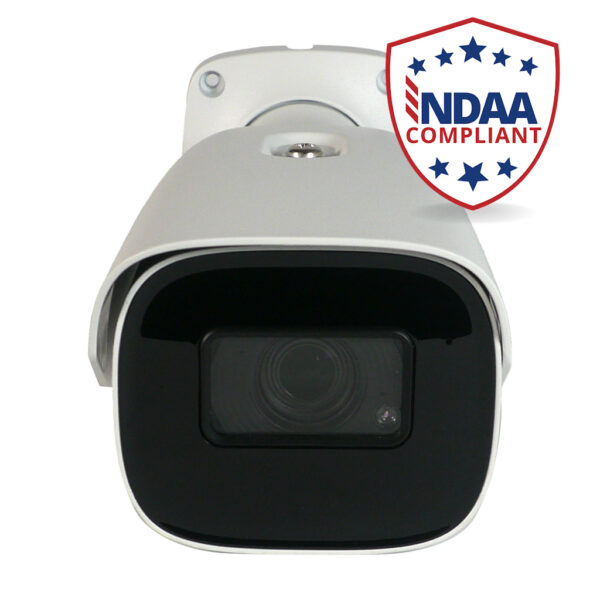

Sibell 4MP 8-32mm License Plate Recognition IP Bullet Motorized Lens Camera Original price was: $539.00.Current price is: $431.20.

64 Channel Elite Hot-Swappable AI NVR

(1 customer review)


In stock

Hard Drive – Optional

Hard Drive 2

Hard Drive 3

Hard Drive 4

Hard Drive 5

Hard Drive 6

Hard Drive 7

Hard Drive 8

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
32 MP
Max Recorder Resolution
Smart H.265+

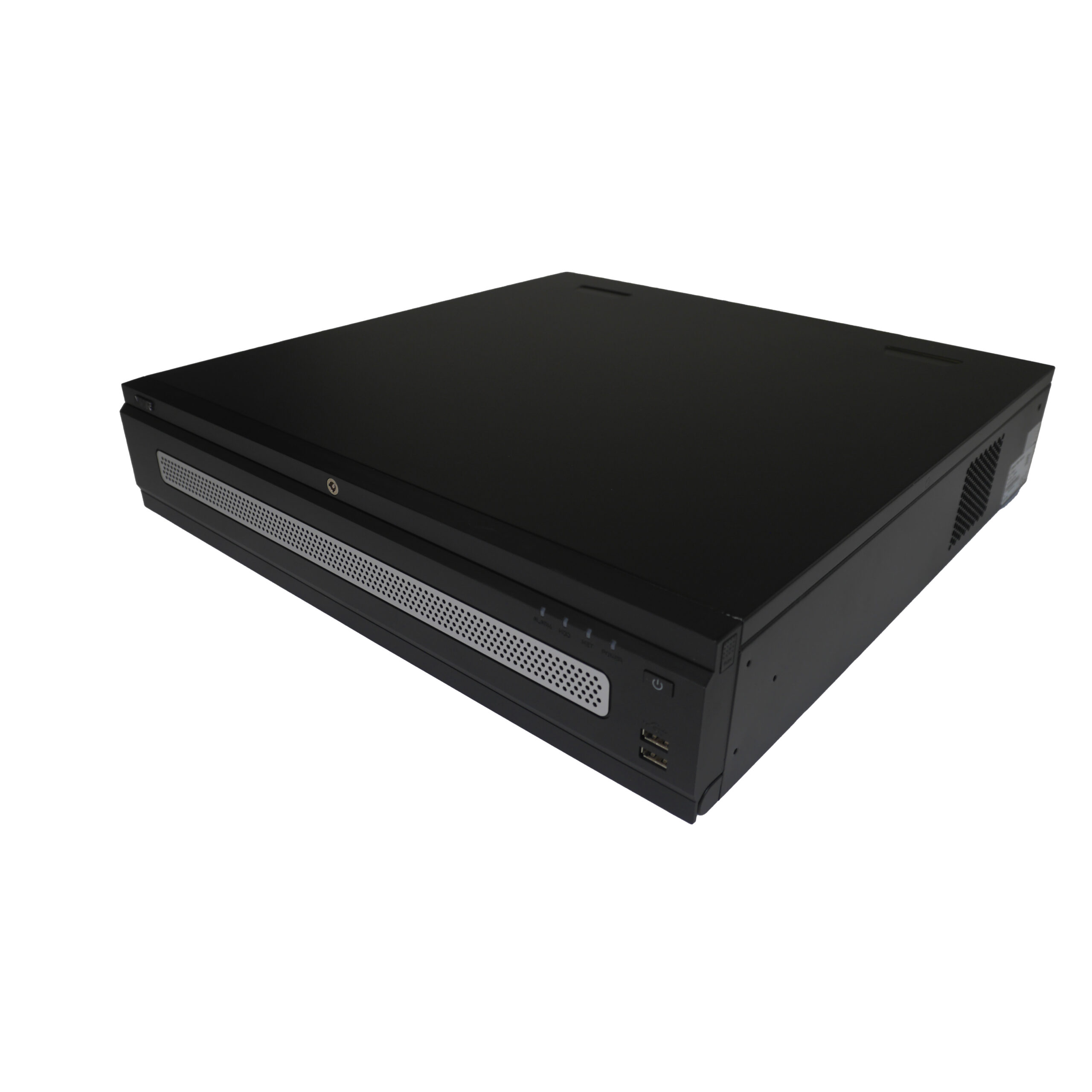

As part of our Elite Series of Professional Network IP Video Recorders, the NVR-ELHS-64-12K-DH offers outstanding features and performance to provide unsurpassed surveillance. This 64-channel NVR provides exceptional surveillance features with unmatched surveillance performance.

With 32-channel 1080p decoding and a maximum bandwidth of 1024/1024/800Mbps, this NVR ensures smooth video playback. Furthermore, its N+M cluster, RAID0/1/5/6/10 storage capacities, and hot-swappable hard drive bays ensure scalability and data security.

AI by DVR capabilities offers advanced analytics, including 4-channel face detection and recognition, 8-channel metadata collection, 24-channel perimeter protection, and 32-channel SMD Plus protection. Meanwhile, AI by camera offers face recognition, perimeter protection, SMD Plus monitoring as well as metadata collection for face recognition ANPR counting people counting features.

Take advantage of its flexibility by supporting quad-HDMI, dual-VGA, and ONVIF. Store up to 12TB per drive (8 drives capacity; total maximum storage up to 96TB supported).

With two network ports supporting 10/100/1000/2500Mbps for rapid connectivity, trust the NVR-ELHS-64-12K-DH for reliable and high-performance surveillance.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.


Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 64
Number Of SATA Connections 8
Has Alarm Inputs / Outputs 16 Inputs | 8 Outputs

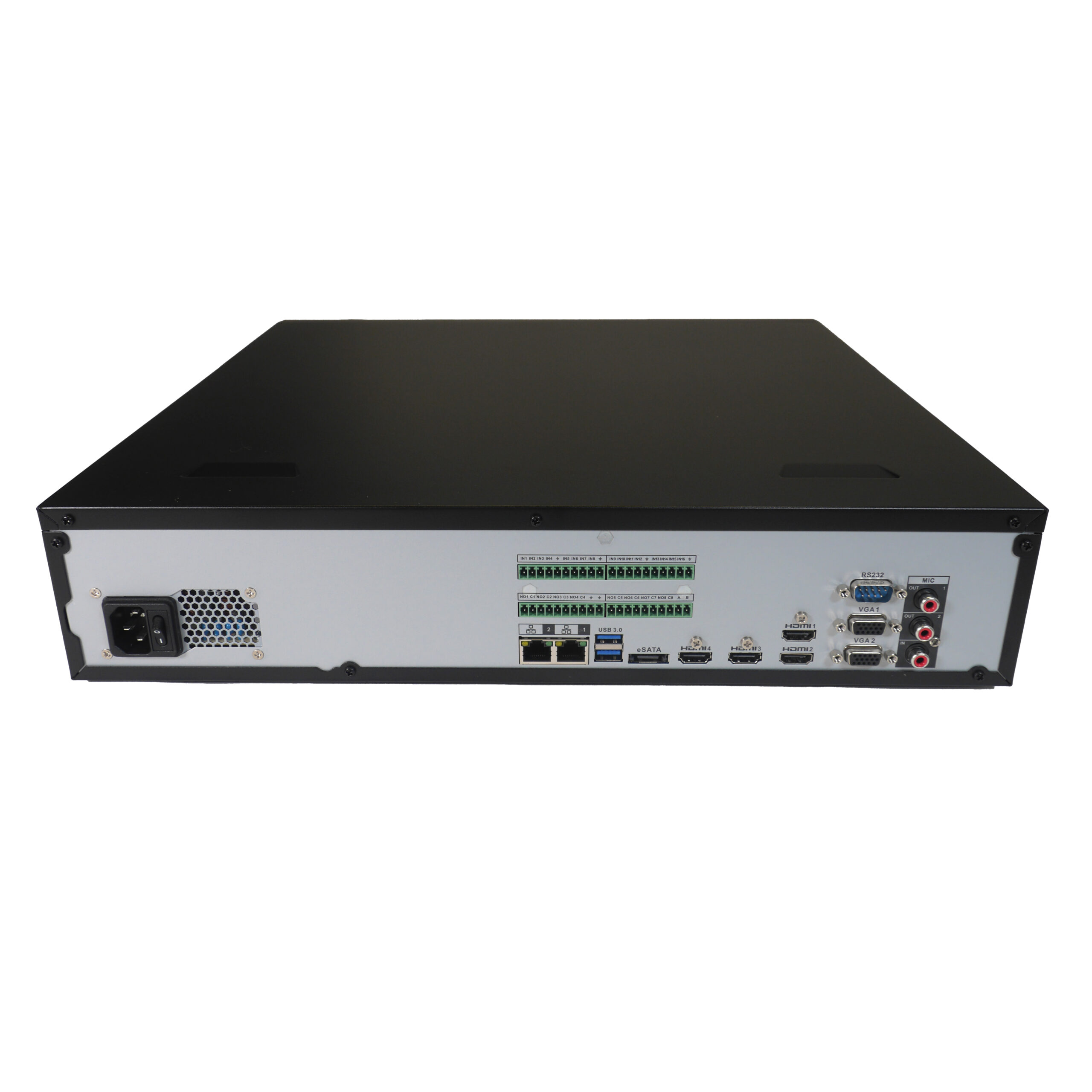

Video Output Types HDMI 4X, VGA 2X
Video Output Resolutions: 4K, 2MP, 1.3MP, 1MP, 960H
Size 2U
Resolutions Capable 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1
Max Bandwidth AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing
Display Screen Split Main 1/4/8/9/16/25/36/64 | Sub 1/4/8/9/16/25/36
Compression of Video Smart H.265+
Connection Apps Smart PSS, Elite Viewer Pro, DMSS, DSS Express/Pro
Recorder Features AI
Perimeter Protection Yes
Object Detection Yes
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
