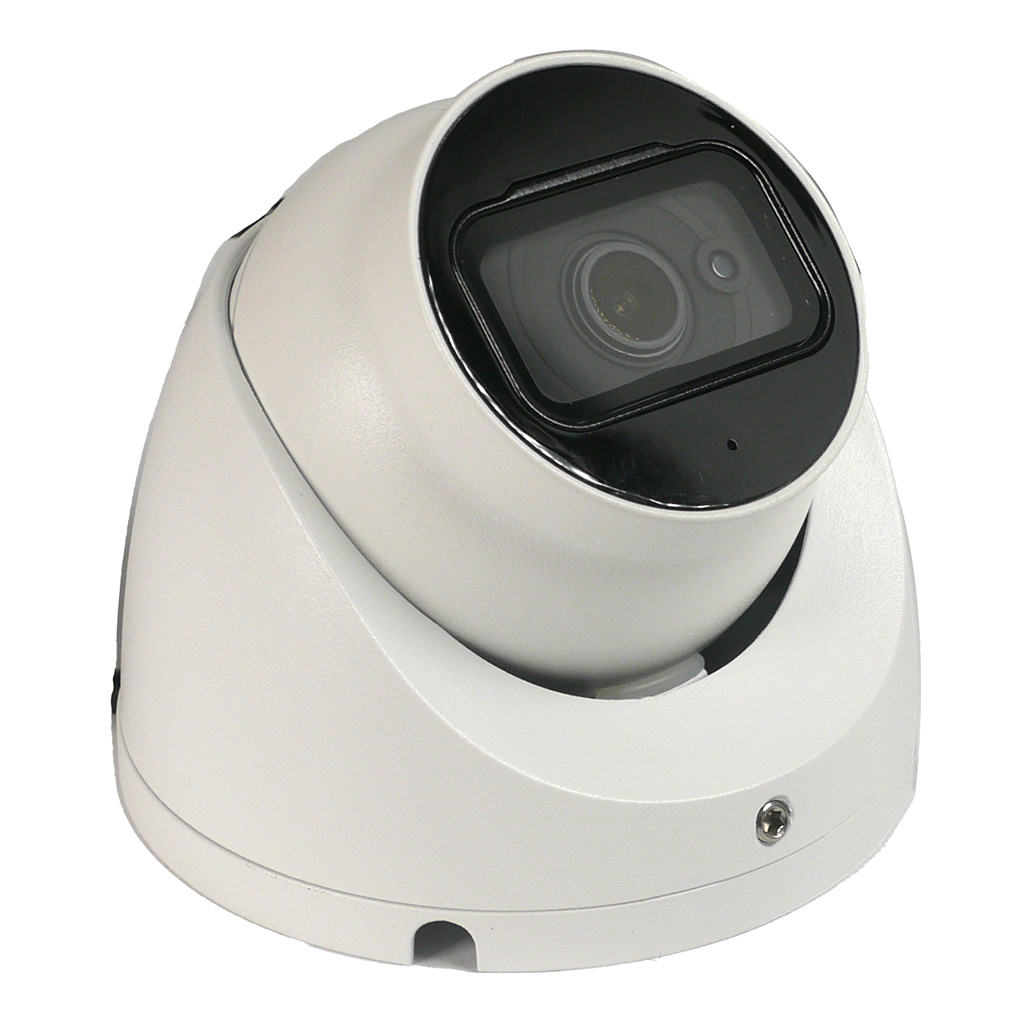

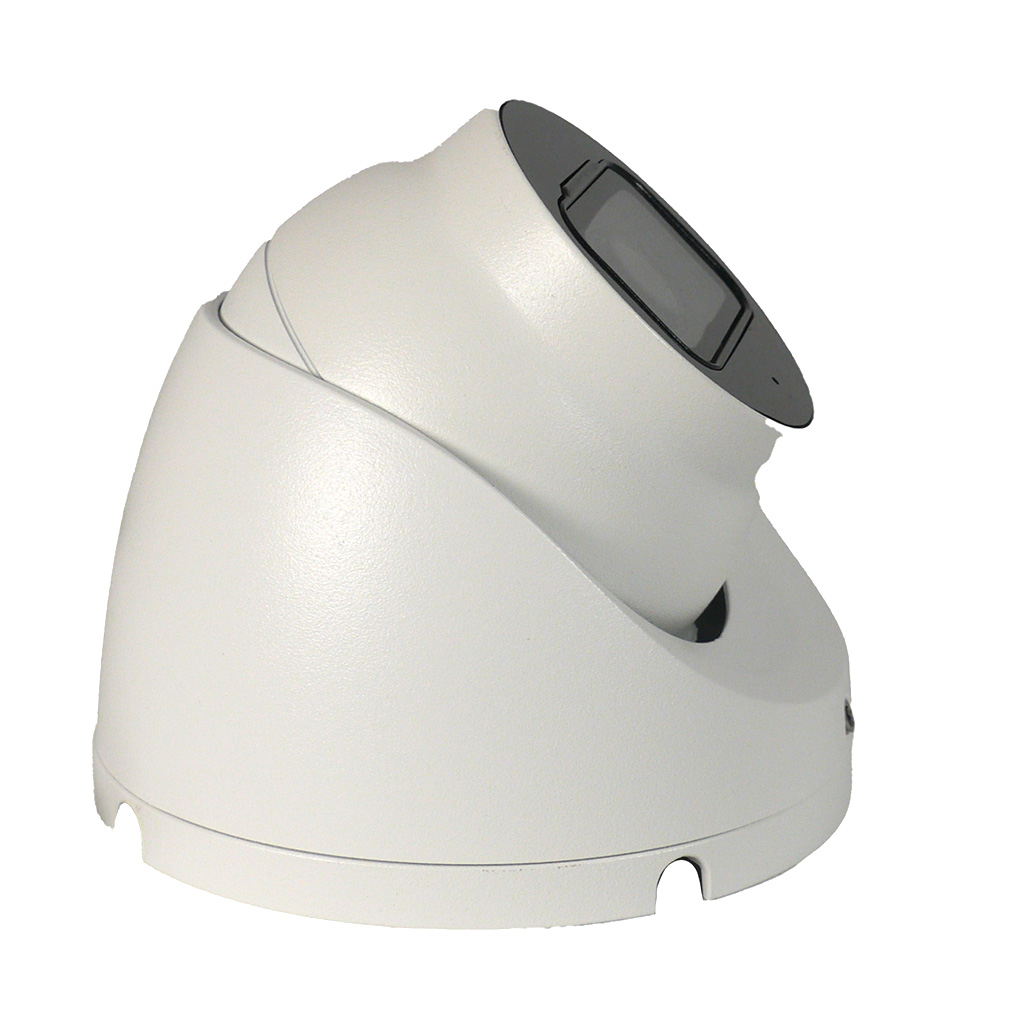

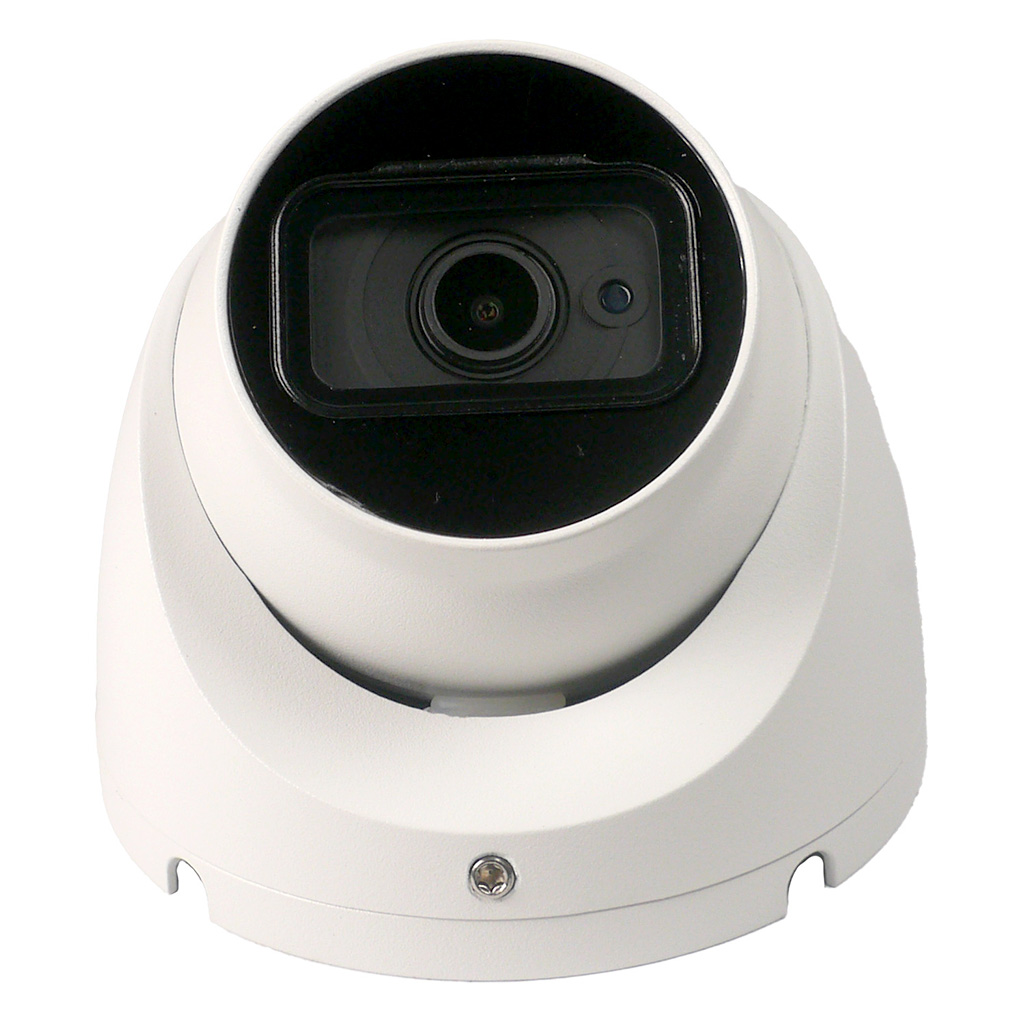

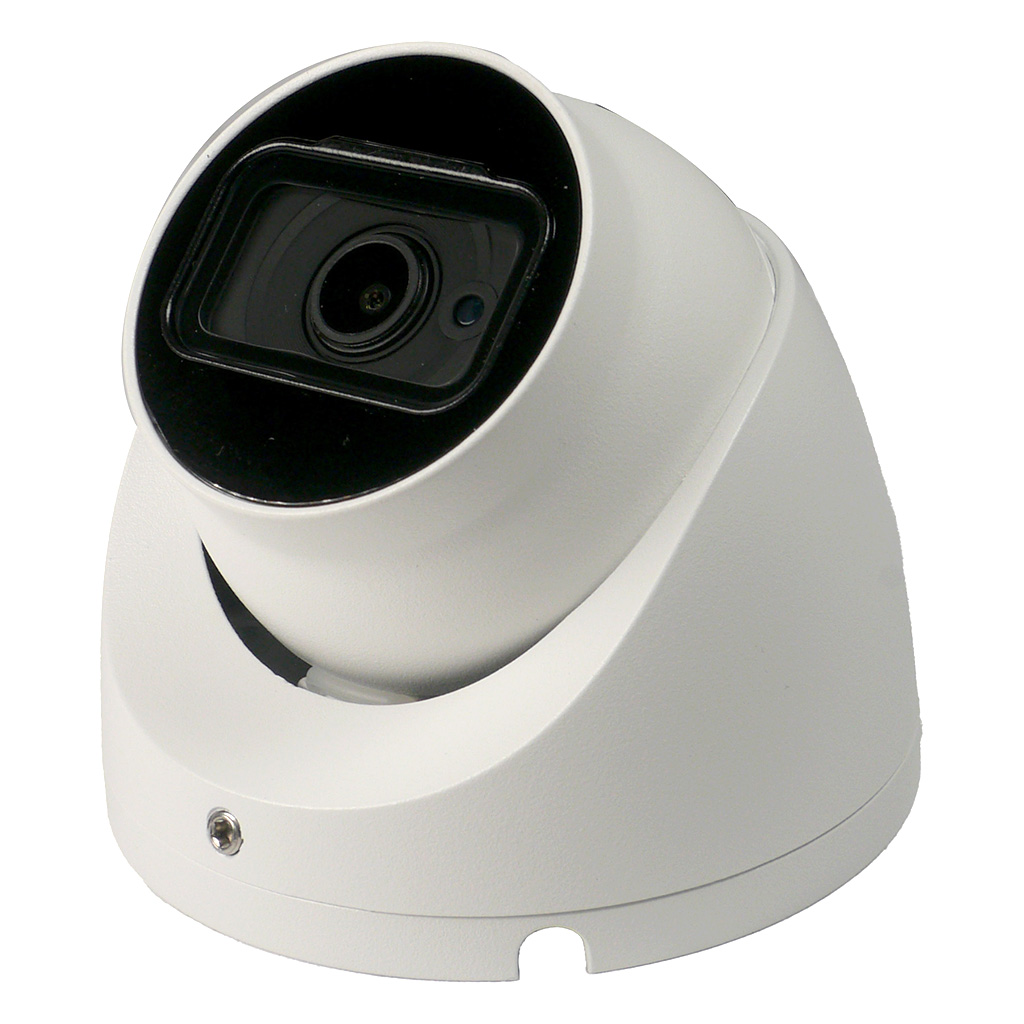

The HDOD-EL8IR28A is an Elite series camera which gives you 8 Megapixels or 4K (3840×2160) High Definition video. You can have this impressive video quality without the challenges of networking. This versatile camera can work with HD-CVI, CVBS, AHD and HD-TVI system.
This camera gives you 8 MP video @ 15fps, 5 MP video @ 20fps, or 4 MP video @ 30fps and it has some features to handle difficult lighting condition. It has 120dB True WDR (Wide Dynamic Range), which helps compensate for drastically contrasting lighting conditions in the same camera view. This camera also has Smart Infrared, which adjusts the intensity of the illumination to best suit the distance of the target area. The microphone that is built into this camera provides broadcast-quality audio if enabled.
It has an IP67 IP rating, which means this camera works very well indoors and out. It’s important to remember that you will need to protect the connection from the elements when mount this camera outside. It also has 4KV lightning rating to reduce the chance of this camera taking electrical damage.
The wide angle 2.8mm lens that this camera uses will allow you to detect objects at approximately 246 feet, observe objects at approximately 98 feet, recognize people at approximately 49 feet, and identify people at approximately 26 feet. Because it has an Ingress Protection rating of IP67 and a 4KV lightning rating, there is a wide range of locations where this camera can be installed.
This camera comes with free US-based tech support for the lifetime of the product and free remote viewing software.
|Features||Works with TVI, CVI, Analog, AHD, True WDR, Built-in Microphone|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||3840 × 2160, 4K|
|Sensor Size||1/2.7inch Progressive Scan CMOS|
|IR Distance||98 feet|
|Voltage||12V DC ±30%|
|Temp Range||-40° F to +140° F, Less than 95% RH|
|Dimensions||3.82in × 3.38in × 3.38in|
HDOD-EL8IR28A Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
