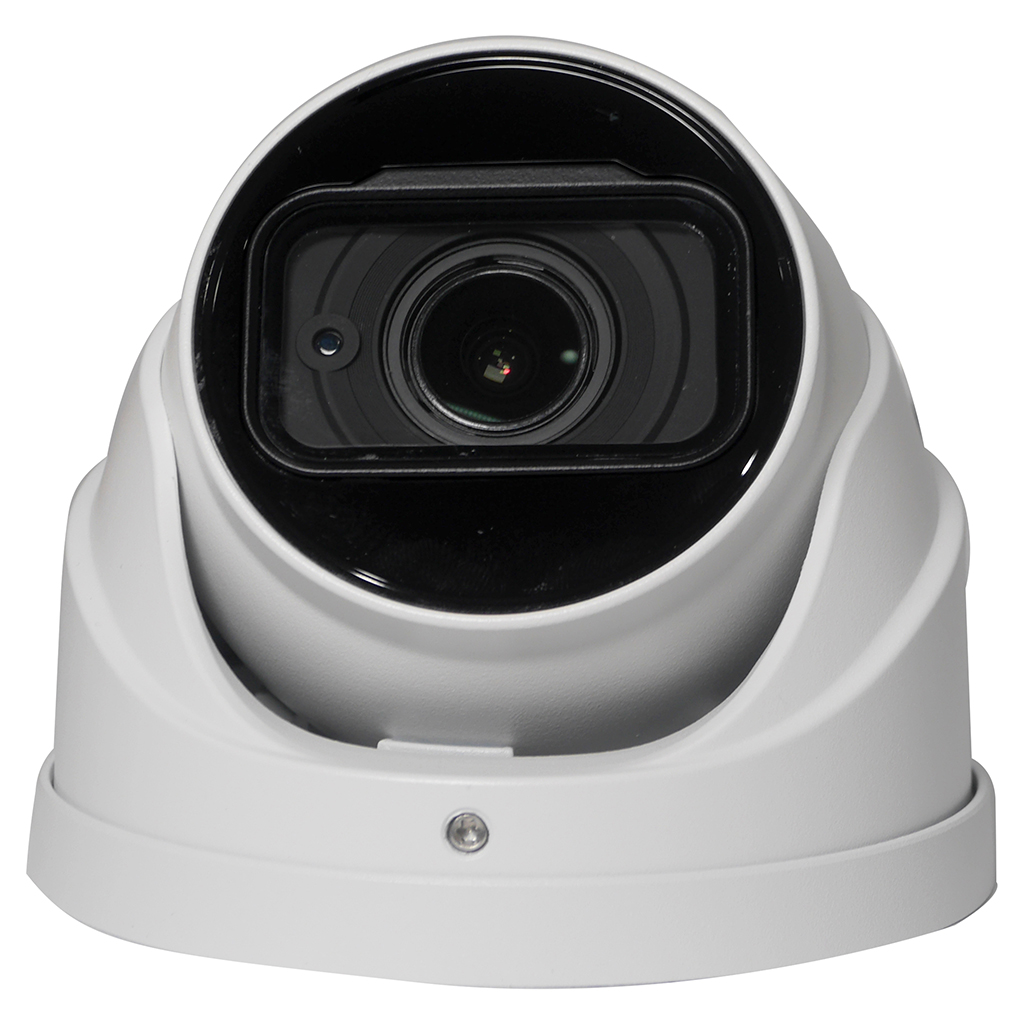

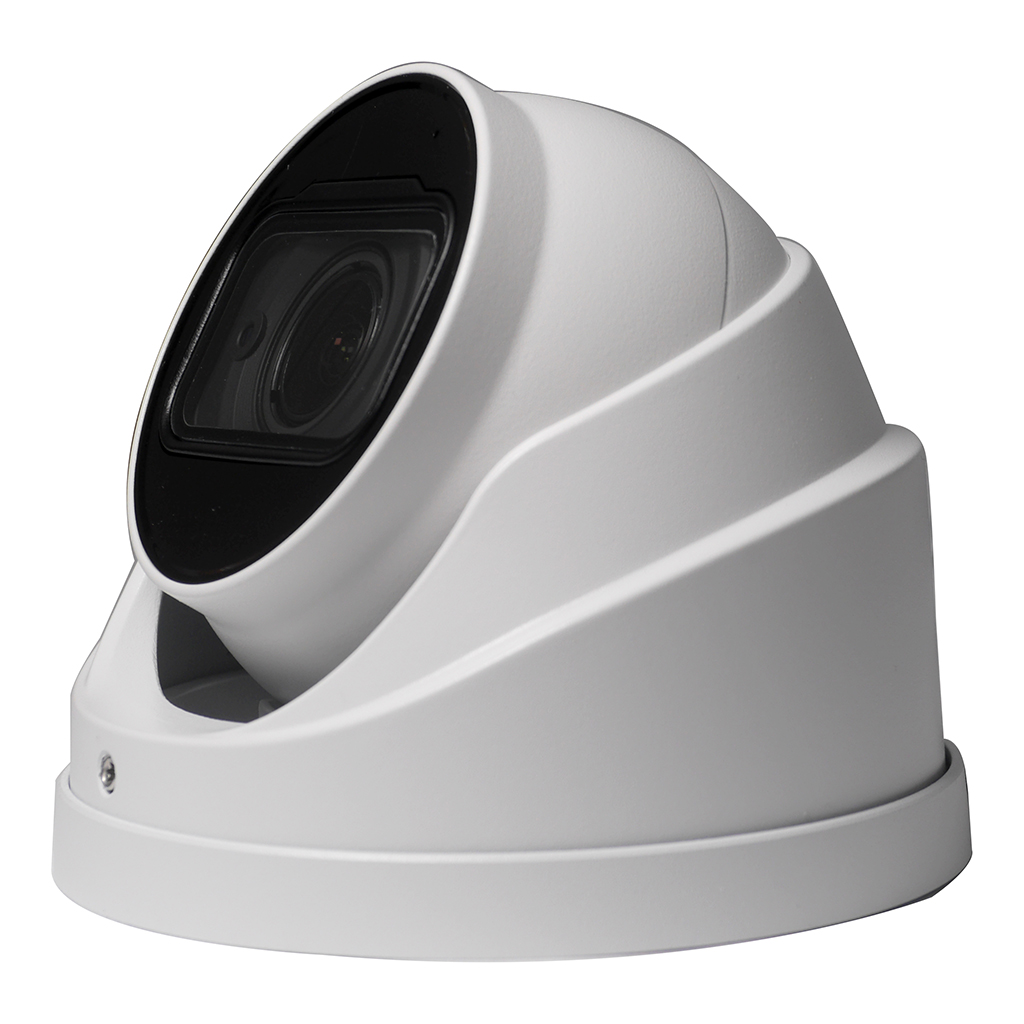

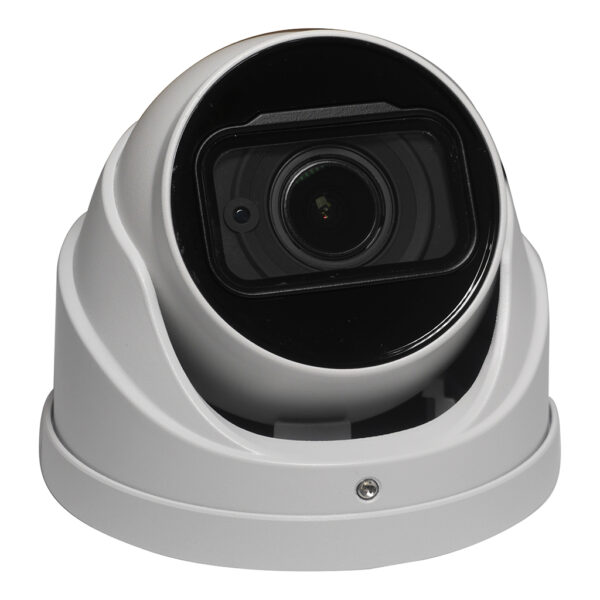

The latest introduction from our Elite Series is this 8MP motorized zoom turret dome security camera with audio. The 2.7 inch progressive scan CMOS image sensor delivers high resolution, excellent color and provides a cost-effective solution. This camera is capable of working with various technologies like HD-CVI, HD-TVI, AHD and Analog (CVBS). Having such different capabilities makes this camera a great choice when working with any of our Hybrid DVRs that support 4, 5, or 8MP resolution.
This camera can be used with various technologies including CVI, TVI, AHD, and CVBS. 8MP/4K is available @15fps when using CVI and 5MP@20fps and 4MP@30fps when using CVI, TVI, and AHD. The motorized zoom lens lets you change your view from a wider 2.7mm down to a more narrow 13.5mm zoom conveniently through the DVR, CMS software or remote viewing app.
Thanks to features like the low 0.03Lux rating and True WDR @120dB, you’ll be able to capture clear, vivid video in different environments with varying lighting conditions. This 4K or 8MP dome allows you to see up to 196 feet in the dark thanks to the built-in IR (infrared) and this makes placement easier since you don’t have to supply additional lighting. The camera also has a 4K lightning protection rating protecting the camera and housing from the effects of lightning and that makes it perfect for areas that are prone to storms and lightning.

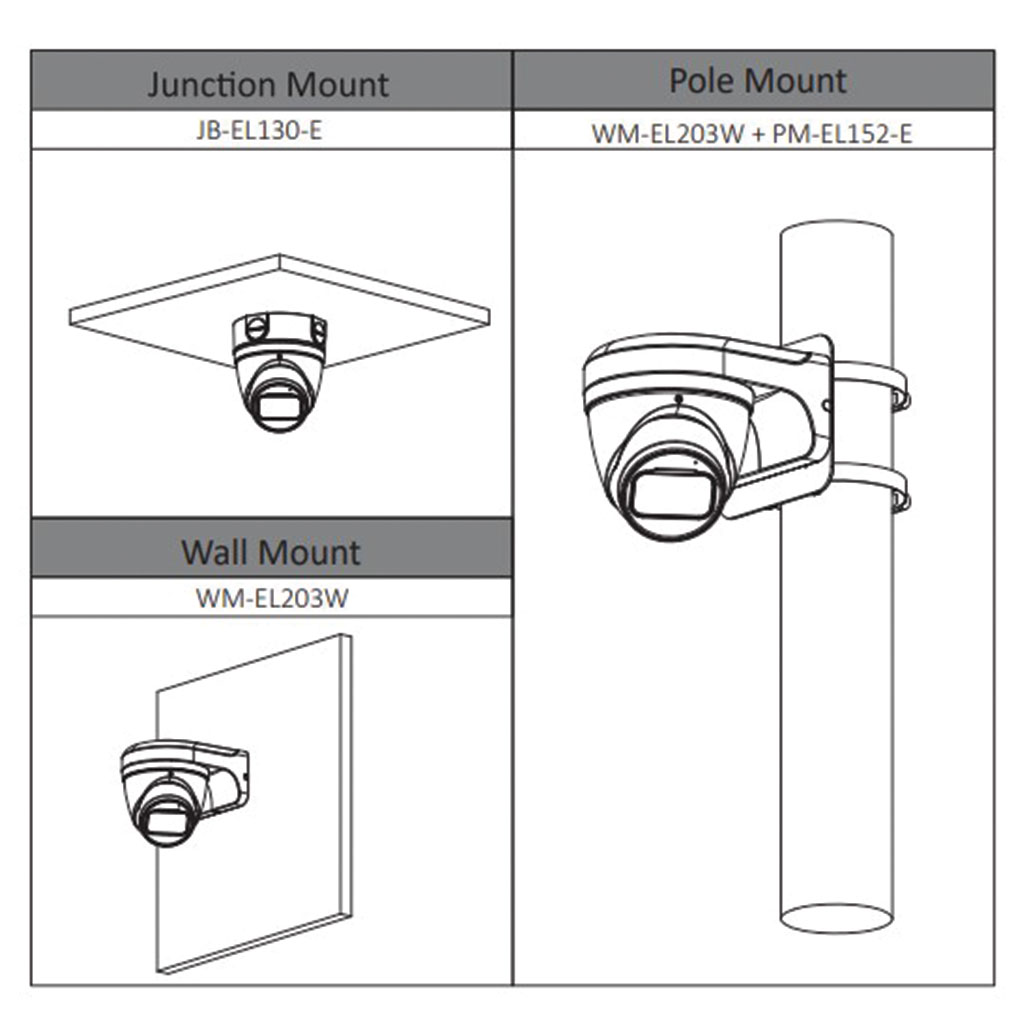

This is a versatile camera that can be used most anywhere indoors or outdoors. With an IP67 rating, you can be sure that it has been tested to withstand water and dust intrusion as per the criteria required to receive that rating. Additionally, with optional mounts, you can mount this with a JB-EL130-E Junction Box, WM-EL203W Wall Mount or a PM-EL152-E Pole mount.
The built-in microphone offers the best in class audio that allows you to have secondary evidence beyond just video so now you can see and hear what’s going on. Thanks to the latest technology, you can now transmit broadcast-quality audio over HD-CVI with no need to replace existing coaxial cables.
We provide FREE US based tech support for the life of the product and FREE remote viewing apps for iOS & Android devices when paired with one of our recorders.
|Features||Works with CVI, TVI, AHD, Analog, True WDR, Built-in Microphone|
|Lens||2.7mm~13.5mm Motorized Zoom Lens|
|Image Resolutions||3840 × 2160, 4K|
|Sensor Size||1/2.7 inch Progressive Scan CMOS|
|IR Distance||196 feet|
|Voltage||12V DC ±30%|
|Temp Range||-22° F to +140° F, Less than 95% RH|
|Dimensions||4.80in × 4.13in x 4.13in|
