Number of Cameras
Number Of HDD
Max Recorder Resolution

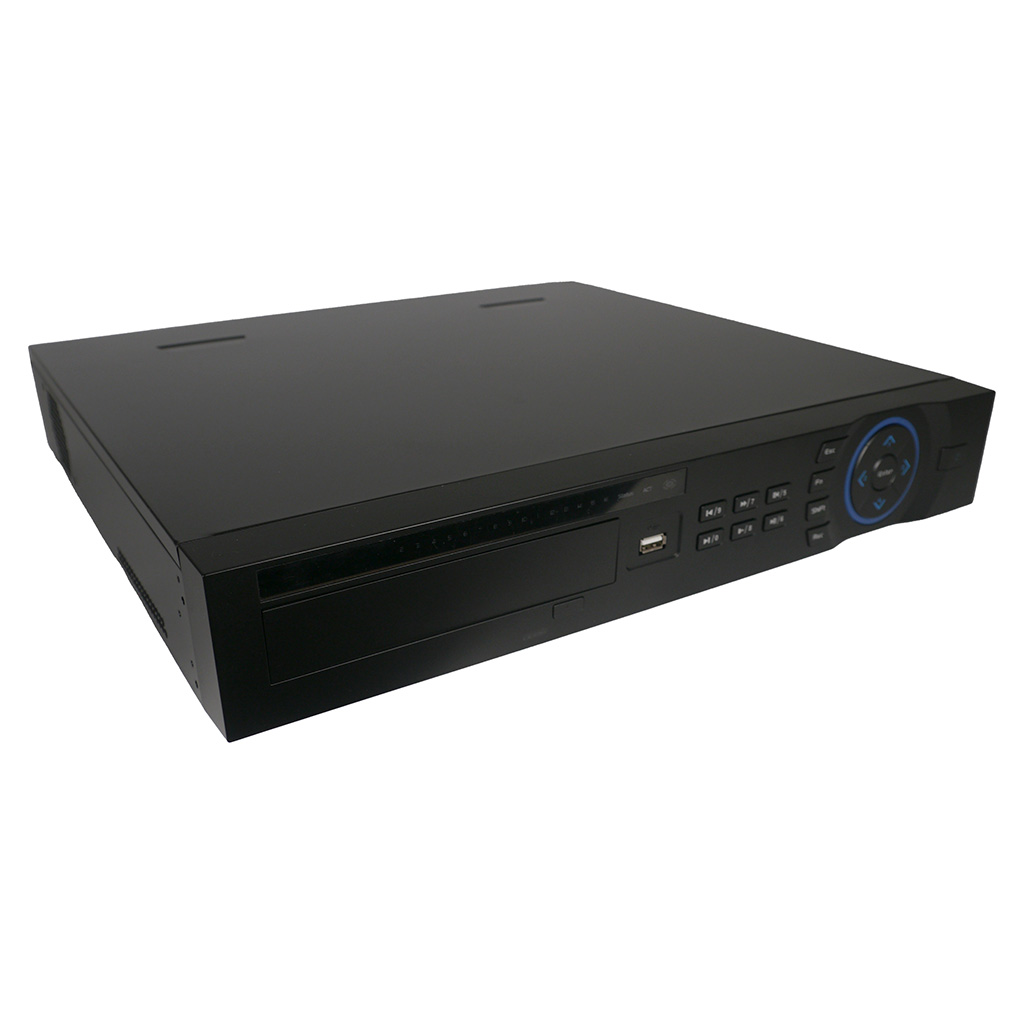

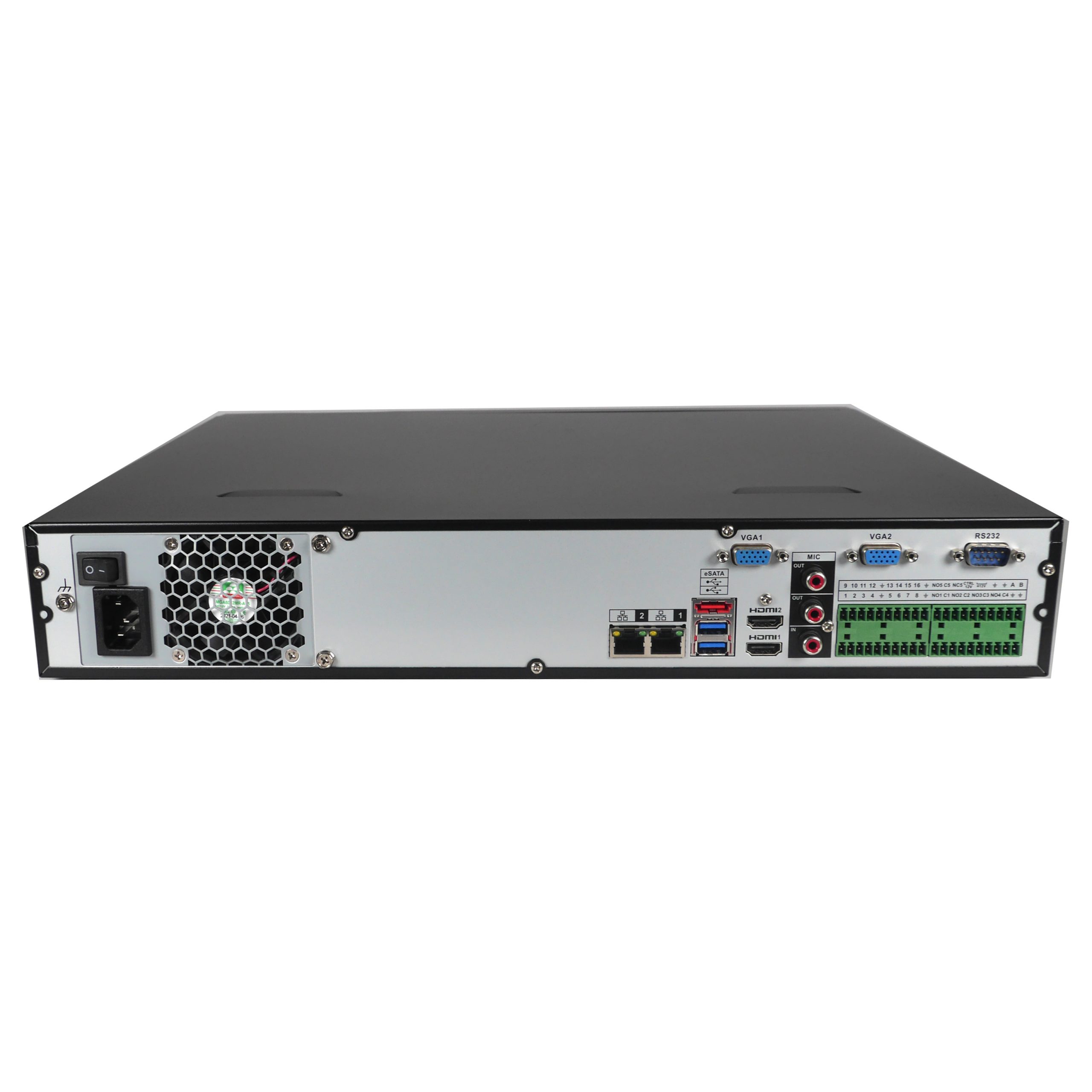

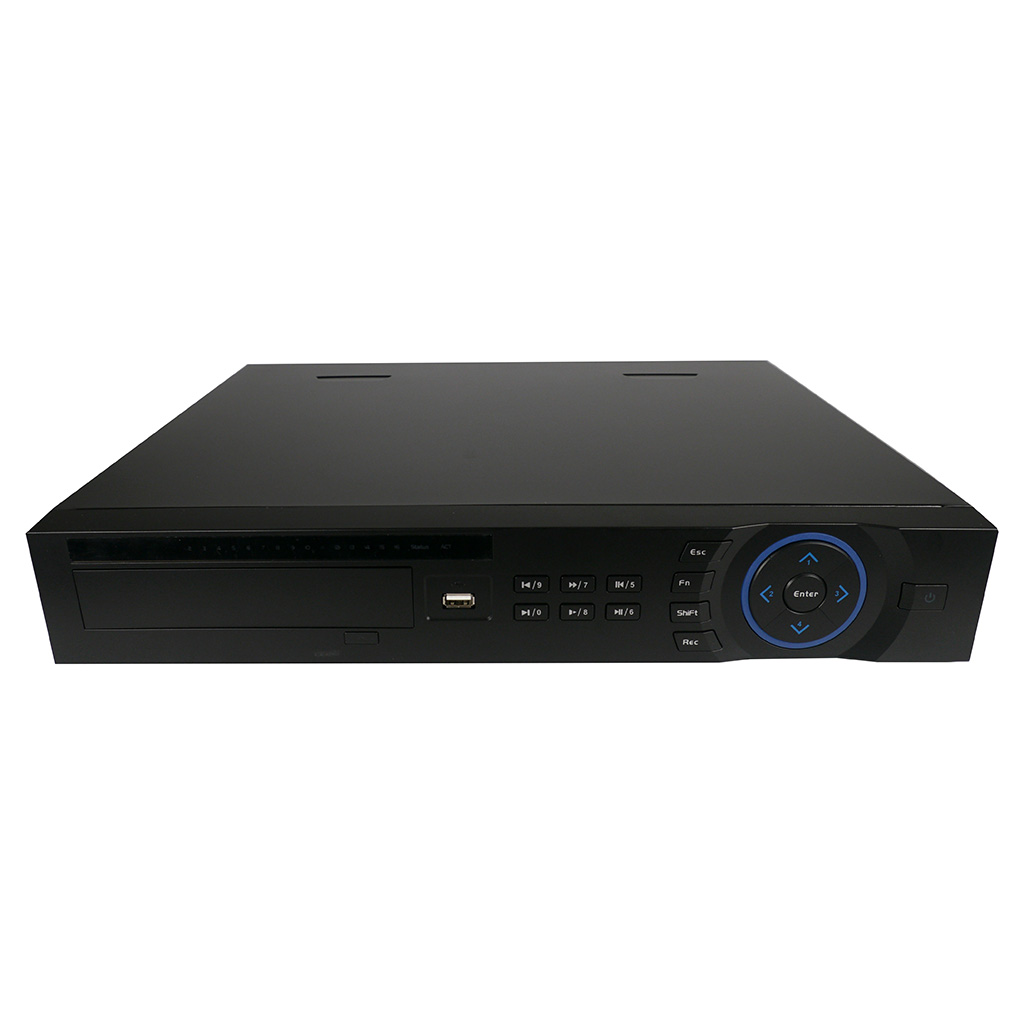

Introducing our new and improved NVR-EL16C-4KS2 16 Channel 1.5 U NVR! This device has 2x Ethernet Ports so you have options when connecting to cameras, and/or to a primary network. Utilize a single port for single network setups, or connect your Primary network to 1 port while your cameras exist on a privatized network for port 2!

We mentioned new and improved- This unit is a big jump from its predecessor in terms of its raw capabilities. Before, you were able to add up to 16x 8-MegaPixel IP cameras – but this unit can actually handle all the way up to an astonishing 16x 12-MegaPixels. Additionally, the amount of bandwidth available for incoming camera data has increased by over 50%, from 200 MBPS to 320 MBPS. The unit also features more output options than before, allowing for two HDMI and two VGA ports.

Never run out of room with 4x Available SATA ports which can handle up to 10TB each for a combined total of 40Tb available storage!

Equipped with great features, this unit comes with ANPR for working with Licence plate cameras for recognition. Additionally, this Recorder features ANR, or automatic network replenishment. That means any connected cameras can be automatically set to capture footage to backup SD cards, and then send that data to the recorder if there’s ever a connection gap to the camera in question.

Another highly requested feature, FishEye Dewarping, is available from this unit’s onboard systems- allowing you a full view of the different angles of your fisheye cameras!

Don’t forget that all our recorders feature remote viewing from a smartphone using Elite Viewer Pro or PC using the SmartPSS program! Backed by our 3 year warranty.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI / VGA
Video Output Resolutions: 3840×2160 , 1920×1080 , 1280×1024, 1280×720 , 1024×768
Size 1.5U
Resolutions Capable 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
Max Bandwidth 320Mbps
Display Screen Split 1/4/8/9/16
Compression of Video H.265
Connection Apps Smart PSS, iDMSS, gDMSS
Perimeter Protection No
Object Detection Yes
Face Detection Yes
Face Recognition No
Smart Motion Detection No
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
