Elite Four Door TCP-IP Webserver Controller

(2 customer reviews)


In stock

Recommended Accessories

12V DC 10amp Power Supply, UL, 5 Outputs, w/Fire Alarm Interface

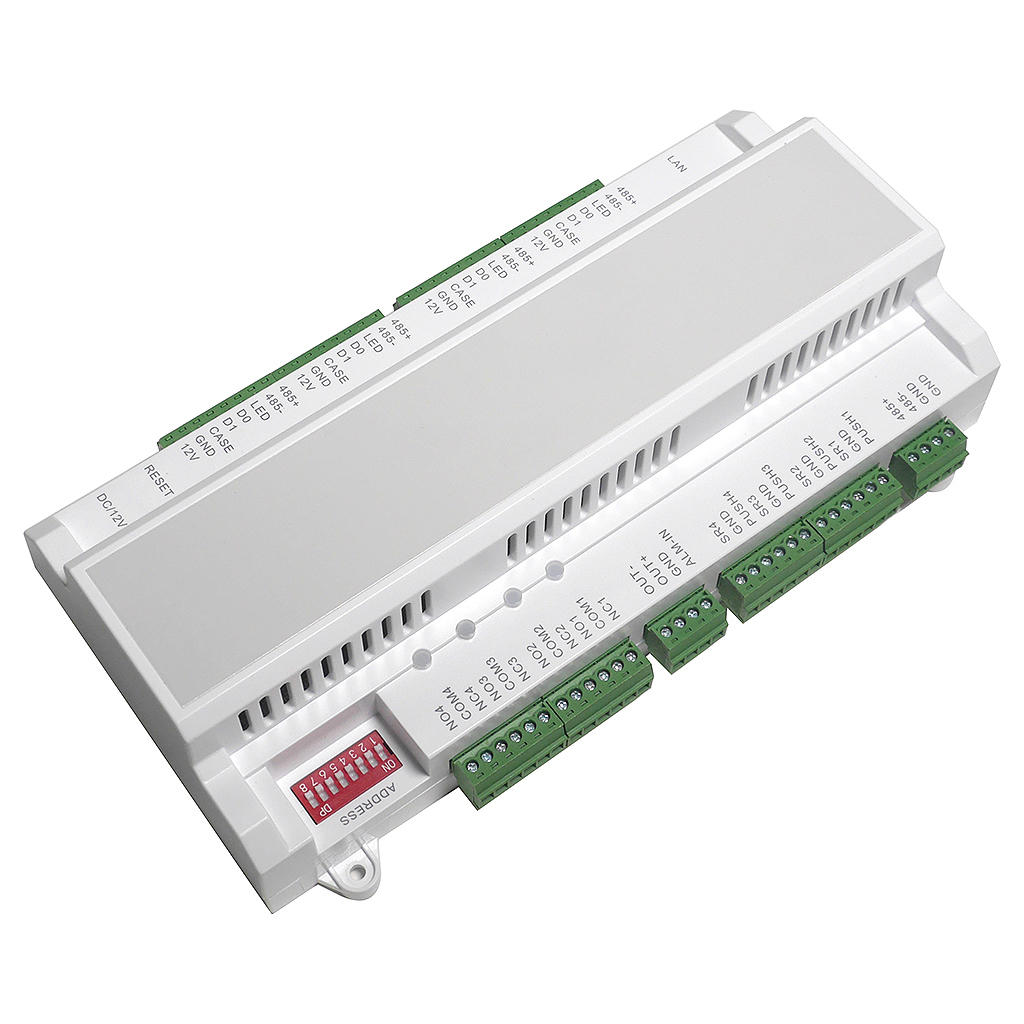

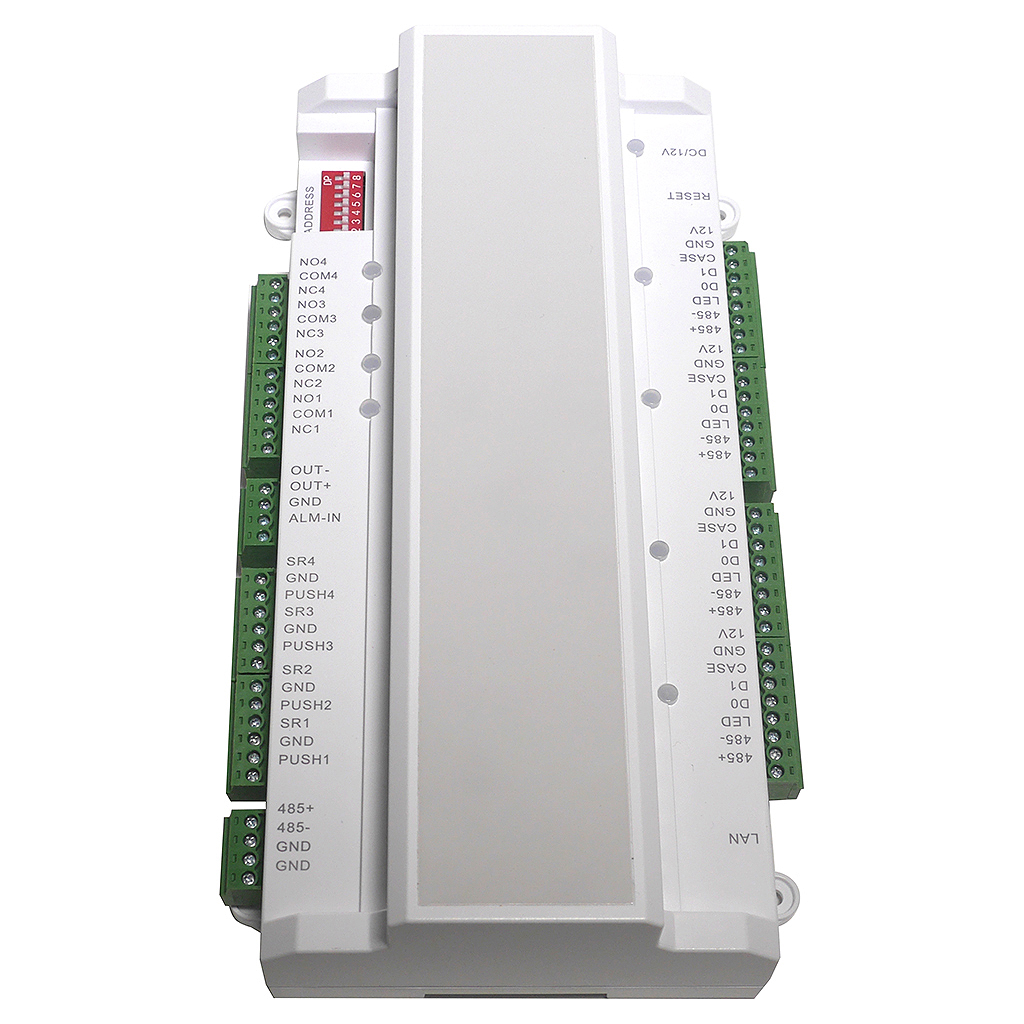

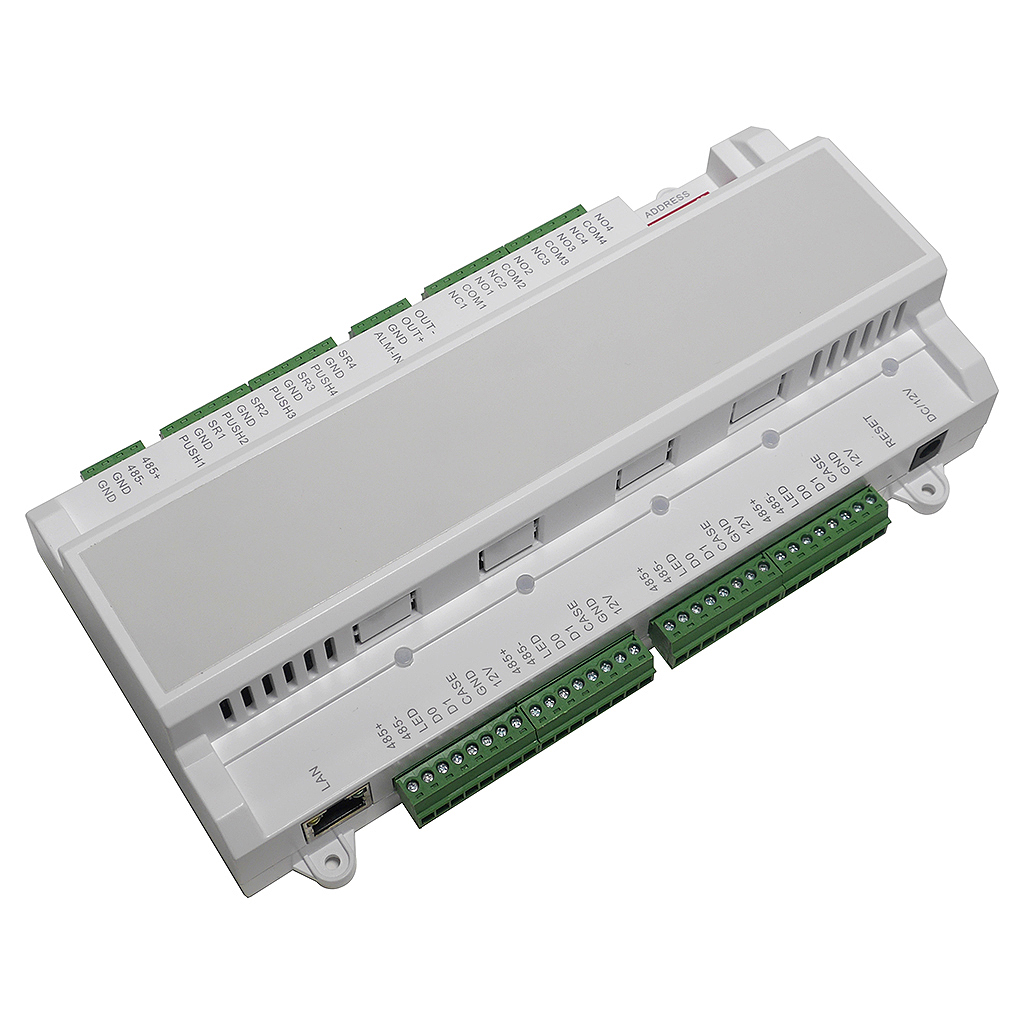

The new ACP-EL4 from our Elite series is a surface-mounted, Four-Door Access Controller that lets you set up a complete access control system. With this controller, you can combine up to four card/fingerprint readers, four electronic locks, four exit buttons, four door sensors, and a number of different alarm functions into a fully integrated computer-managed system (all readers, locks, sensors, exit buttons, and alarm devices available separately). It efficiently communicates with your readers using the RS-485 and Wiegand interfaces and via TCP/IP RJ45 with your computer. There’s a 16MB storage capacity that gives you room to store a massive number of 150,000 event records and the ability to recognize up to 100,000 unique cardholders.

You can configure the controller to grant access to your property using a card, password, fingerprint, or a combination of those forms of identification. The alarm interface allows for integration with door time-out, intrusion, duress, and tamper alarms. Some of the other capabilities include anti-passback which prevents a card holder from passing the card to another user, a multi-door interlock that keeps card holders from passing from one area to another, and multi-card opening for special situations where the door will open only after consecutive verifications by a combination of several card holders. The controller is capable of supporting 128 groups of schedules to allow access to sets of employees at only certain times of the day, and 128 groups of holiday schedules for temporary schedules.

This 4-door access control board requires a 12V DC power supply and we have those available for you to add to your cart using the drop-down at the top of the page. It is compatible with all of the DX Series Readers, Locks, Cards, Fobs, etc. It comes to you backed by a 3-year warranty, FREE US-based tech support, and FREE PSS software.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
Reviews (2)

2 reviews for Elite Four Door TCP-IP Webserver Controller

  1. daniel beaupre

    hello i purchased this device to replace a honeywell security system that had failed at our office bldg.we only had 4 doors on system so i gave it a perfectly,we reused all our HID readers,door strikes,door mags.the free pss software was easily setup and were happy with our purchase.

  2. Matthew Britcher

    The equipment was good quality as was the final appearance of installation. And the price is very reasonable priced.But for my computer skills, it was a breeze. The support team (Brian) was most helpful and kept me from losing my mind. I will be using this company for all my access control needs!
