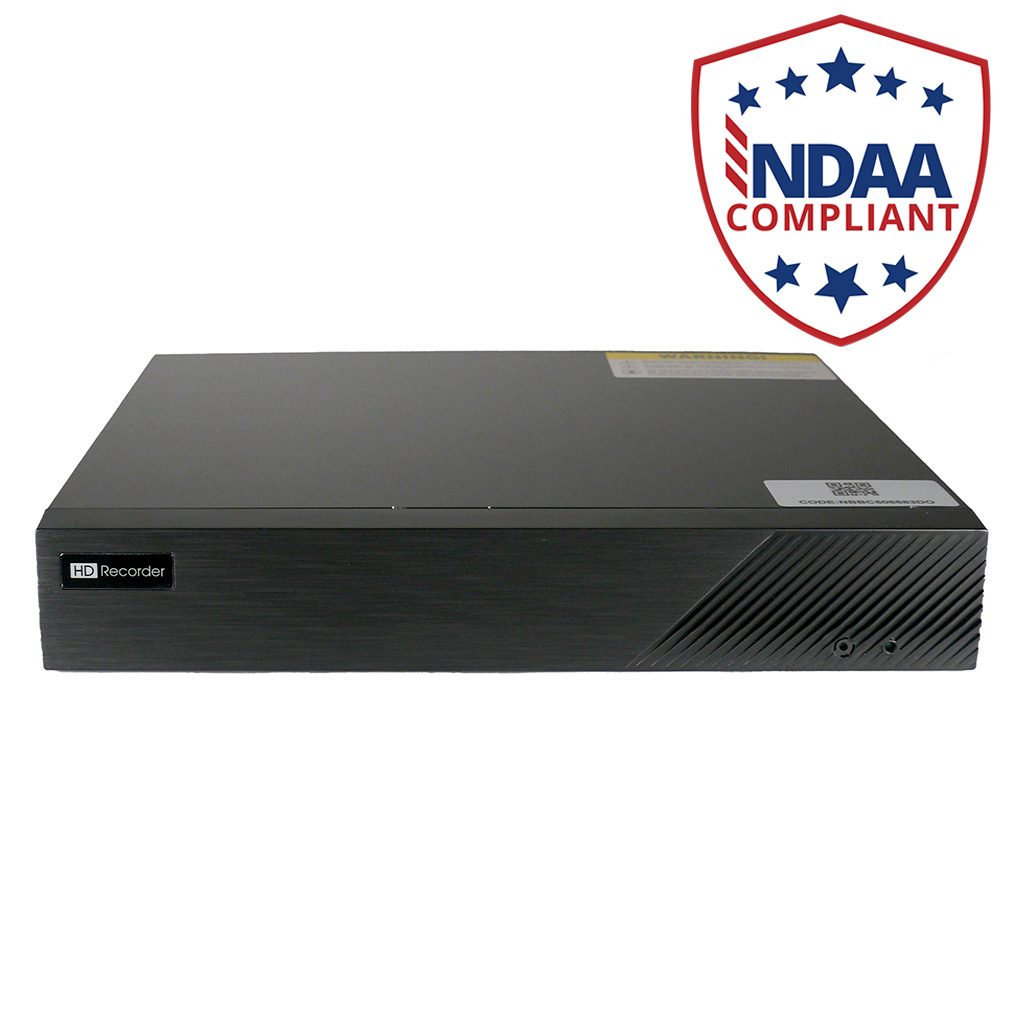

Sibell 8 Channel Mini 1U Penta-Brid

(1 customer review)


In stock

Hard Drive – Optional

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs


8 BNC | 8 IP
Number of Cameras
Number Of HDD
Max Recorder Resolution

The PENDVR-SBE8ME is a Digital Video Recorder from our Sibell series of security camera products. It can work with up to 8 BNC-connected cameras which use HD-CVI, HD-TVI, AHD, and analog camera signal types. You can also use up to 4 cameras in addition to the BNC cameras, for a possible total of 12 cameras.

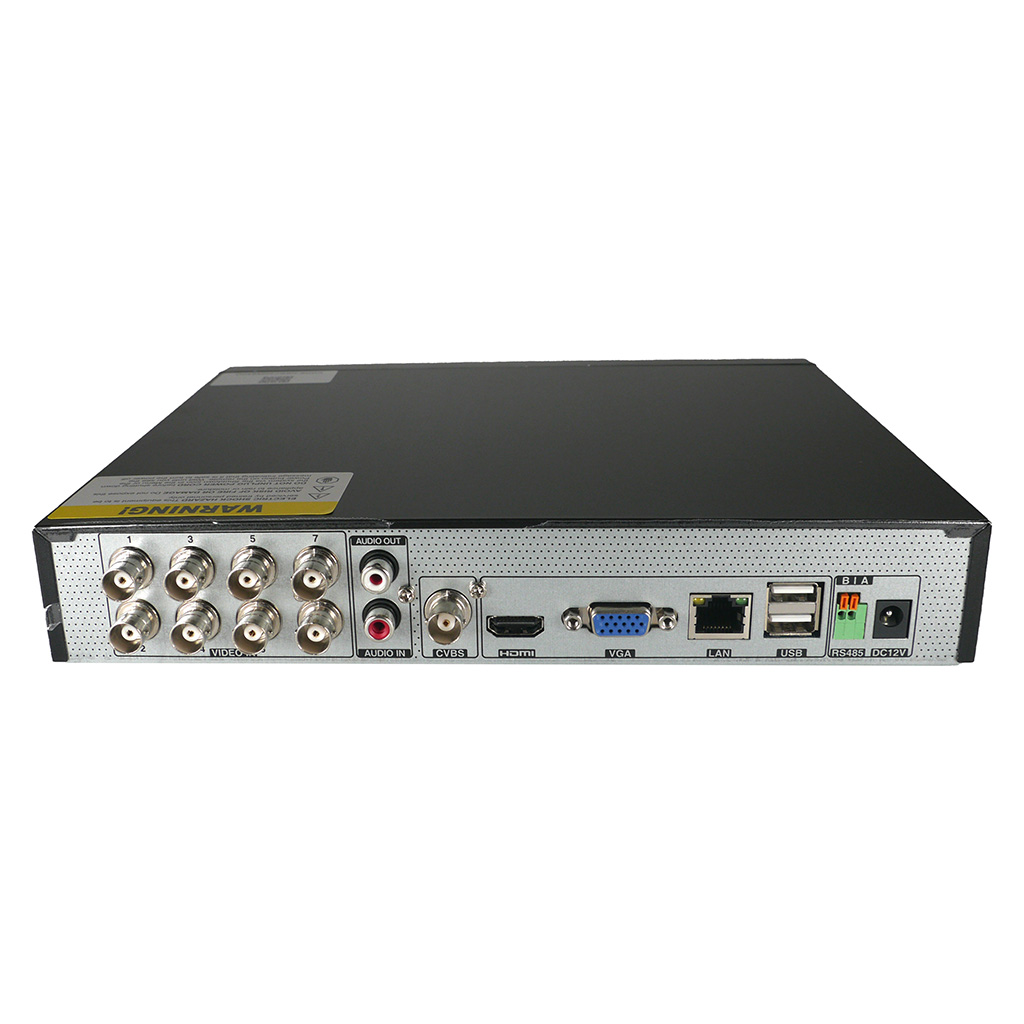

You can record video up to 1080p resolution with this DVR. It has three video outputs that are as follows: HDMI × 1 (max output 1080p), VGA × 1 (Max out 1080p), and a BNC × 1 (CVBS. which can be used as the main or spot output).

This product complies with the National Defense Authorization Act (NDAA).

This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.


NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.

High Definition Resolution

High Definition resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 8 BNC | 8 IP
Number Of SATA Connections 1
Has Alarm Inputs / Outputs No
Video Output Types HDMI/VGA/BNC
Video Output Resolutions: (1920x1080)/(1280x1024)/(1024x768)
Size Mini 1U
Resolutions Capable 5M-N/4M-N/1080P/1080P-N/720P/WD1
Max Bandwidth 40 Mbps
Display Screen Split 1/4/6/8/9/13/16
Compression of Video H.265
Connection Apps NVMS Lite | Sibell Mobile | Super Live Plus
Perimeter Protection No
Object Detection No
Face Detection No
Face Recognition No
Smart Motion Detection No
