Sibell 4 Channel 1U Penta-Brid

(1 customer review)

Original price was: $73.17.Current price is: $65.86.

Save 10%

In stock

Hard Drive – Optional

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


4 BNC | 2 IP
Number of Cameras
Number Of HDD
Max Recorder Resolution

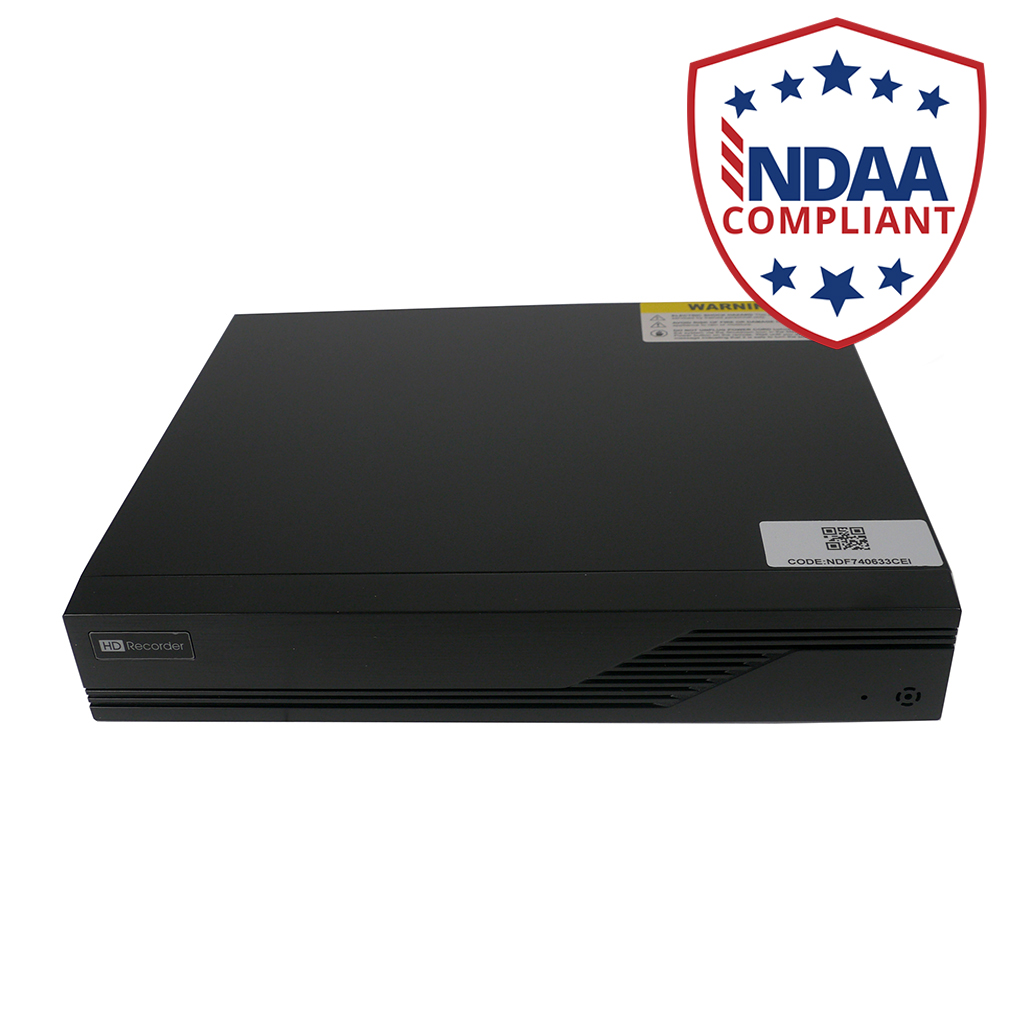

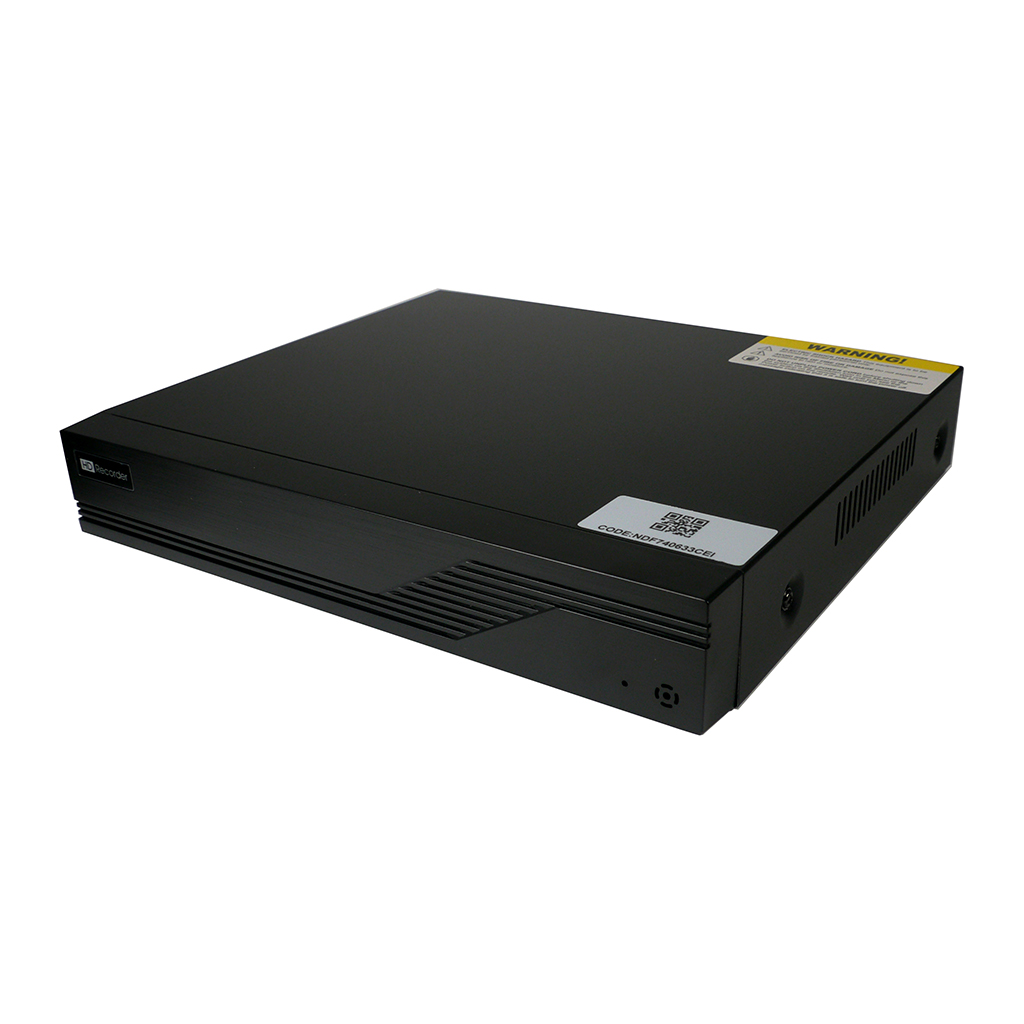

The PENDVR-SBE4ME recorder is a 1080P 4-Channel system featuring a compact design 1U (10.04×8.74×1.65 inches). This device is capable of supporting a maximum storage capacity of 10TB through a single SATA port. Its versatile video output capabilities include HDMI and VGA, each offering up to 1920×1080 resolution, alongside a BNC port for CVBS output (analog). The PENDVR-SBE4ME is highly energy-efficient, consuming less than 5W without a hard disk drive (HDD).

The recorder is designed to accommodate video input from both analog and IP sources. It can handle up to 4 channels of analog video input with resolutions ranging from 5MP to WD1. As for IP video input, the PENDVR-SBE4ME can manage 2 to 6 channels at similar resolutions, making it a suitable choice for various security applications.

With up to 5MP resolution at 25 frames per second, this device offers several recording modes, including manual, timer, motion, and smart event. It enables simultaneous playback on up to 4 channels and includes features such as pause, fast-forward, and digital zoom. Users can perform search functions based on time slice, time, event, or tag.

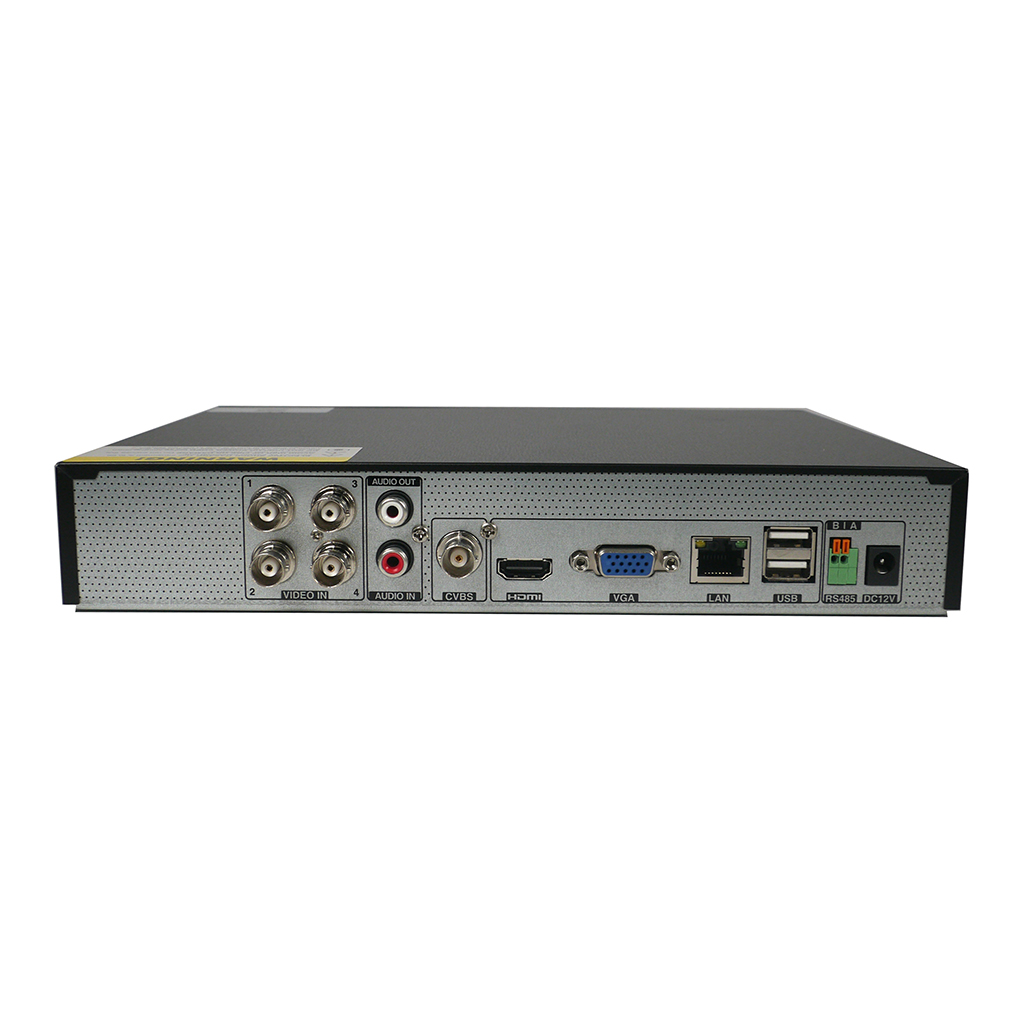

The PENDVR-SBE4ME offers robust connectivity options, including RS485, USB 2.0 ports, and an RJ 45 100Mbps ethernet port. Backups can be performed manually or based on motion, exceptions, or smart events, with storage options that include USB devices. The device also supports iOS and Android for mobile surveillance and remote control.

The system employs H.264/H.265 compression for delivering high-quality video at a lower bit rate, and it supports dual-stream technology for high-definition local storage, remote network transmission, and remote surveillance with mobile devices. The PENDVR-SBE4ME also features an intuitive GUI for easy operation, along with PTZ preset and auto cruise capabilities.

Environmentally conscious, the PENDVR-SBE4ME is compliant with EU RoHS, WEEE, and REACH directives. Lastly, this DVR boasts robust authorization management and log review capabilities, and it supports 1080P output for a true high-resolution display.

This product complies with the National Defense Authorization Act (NDAA)

This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.


NDAA Compliant

Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.

This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.

High Definition Resolution

High Definition resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 4 BNC | 2 IP
Number Of SATA Connections 1
Has Alarm Inputs / Outputs No
Video Output Types HDMI/VGA/BNC
Video Output Resolutions: (1920x1080)/(1280x1024)/(1024x768)
Size 1U
Resolutions Capable 5M-N/4M-N/1080P/1080P-N/720P/WD1
Max Bandwidth 40 Mbps
Display Screen Split 1/4/6/9
Compression of Video H.265
Connection Apps NVMS Lite | Sibell Mobile | Super Live Plus
Perimeter Protection No
Object Detection No
Face Detection No
Face Recognition No
Smart Motion Detection No
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
