Elite Two Door TCP-IP Webserver Controller with Remote Access


In stock

Recommended Accessories

12V DC 10amp Power Supply, UL, 5 Outputs, w/Fire Alarm Interface

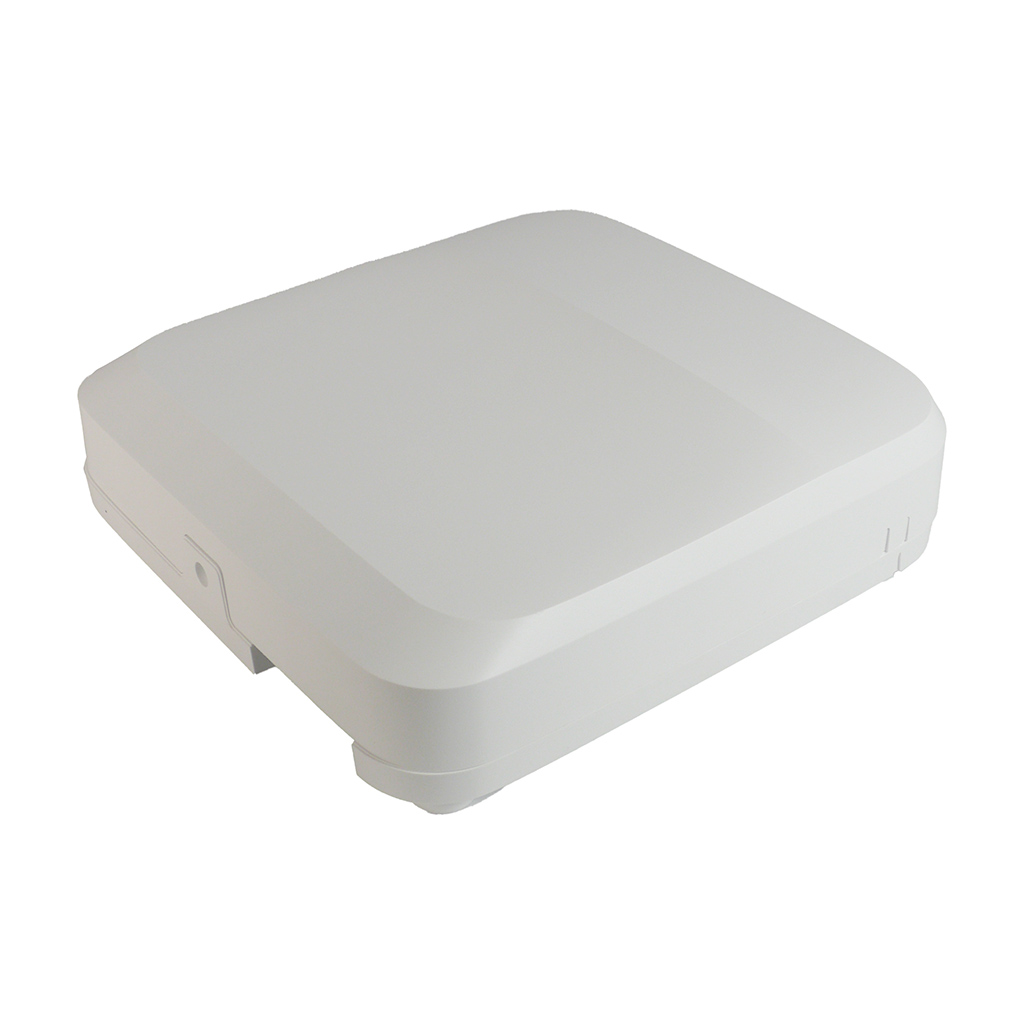

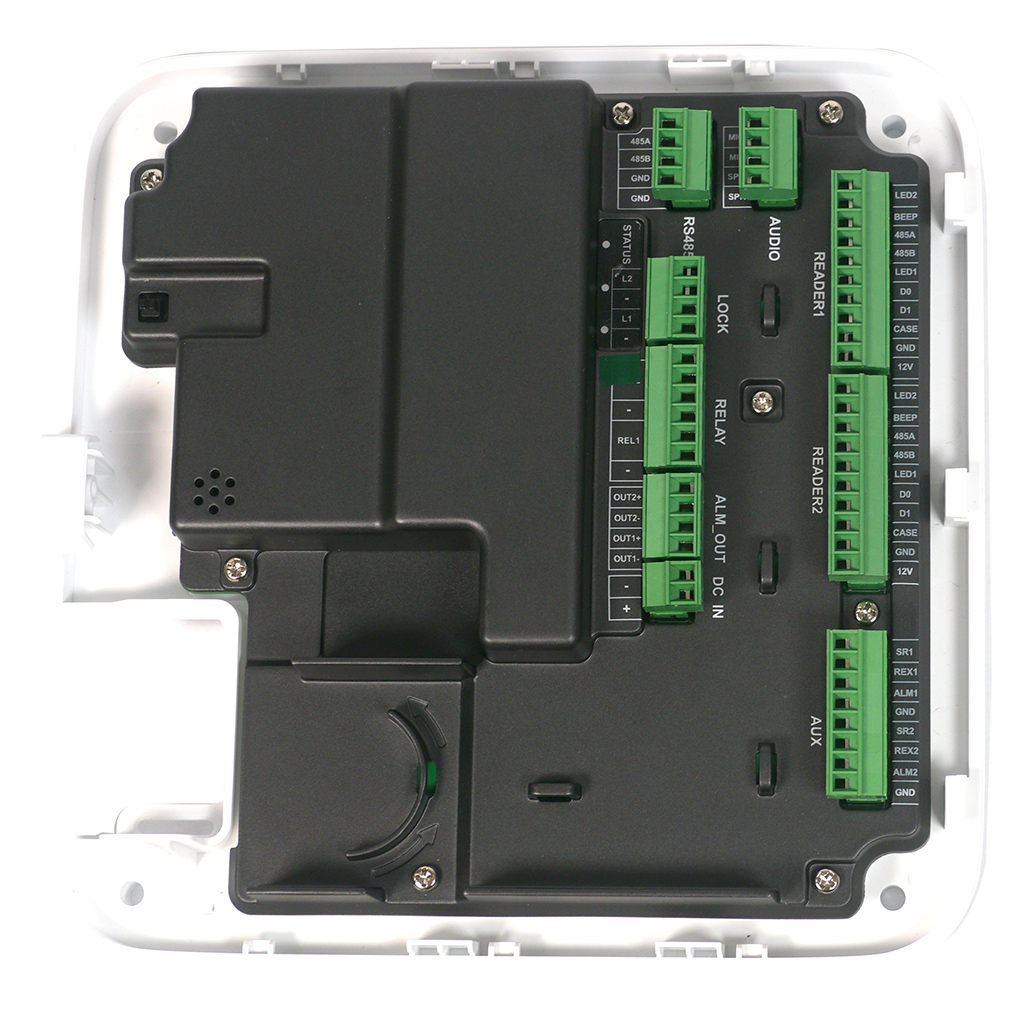

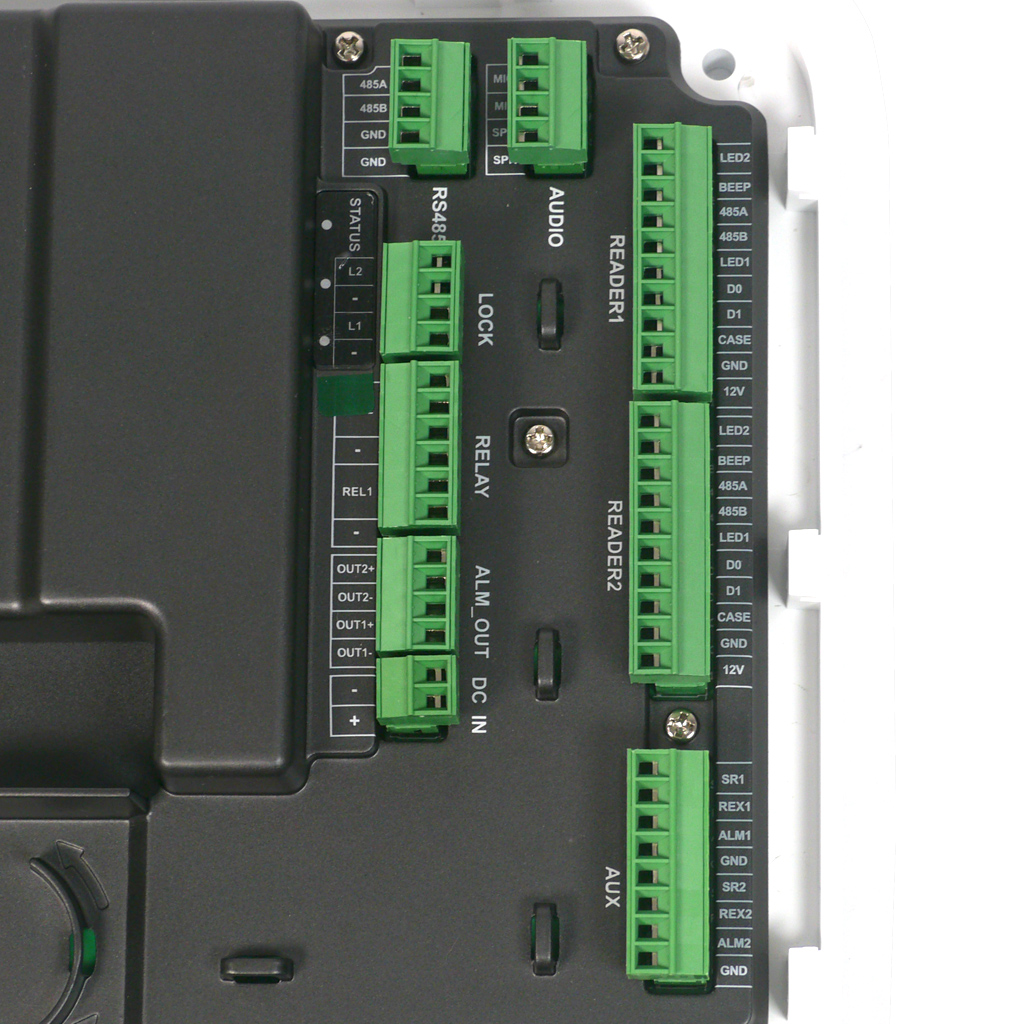

This is a 2 door access controller from our Elite series of security products. It has a built-in web server which controls up to 2 RS-485 card readers, 2 Wiegand card readers and 2 locks for either. The main control model can connect with and manage up to 19 sub controllers with 2 doors each or a maximum of 40 doors.

Up to 1000 users, 3000 fingerprints, 5,000 cards and 300,000 permissions are supported. It will work with access card readers through Wiegand and RS-485 protocols. It uses both TCP and IP connections for data transmission and is powered through standard PoE.

It supplies power to the locks through its 12 VDC output power supply which provides a maximum output of 1000 mA. All of the data is safely stored even when it is powered off. You can use the Smart PSS lite and/or DSS for interaction with this system.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don’t forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
