16 Channel Elite Penta-brid 4K

(2 customer reviews)


In stock

Hard Drive – Optional

Hard Drive 2



16 BNC+16 IP
Number of Cameras
Number Of HDD
Max Recorder Resolution

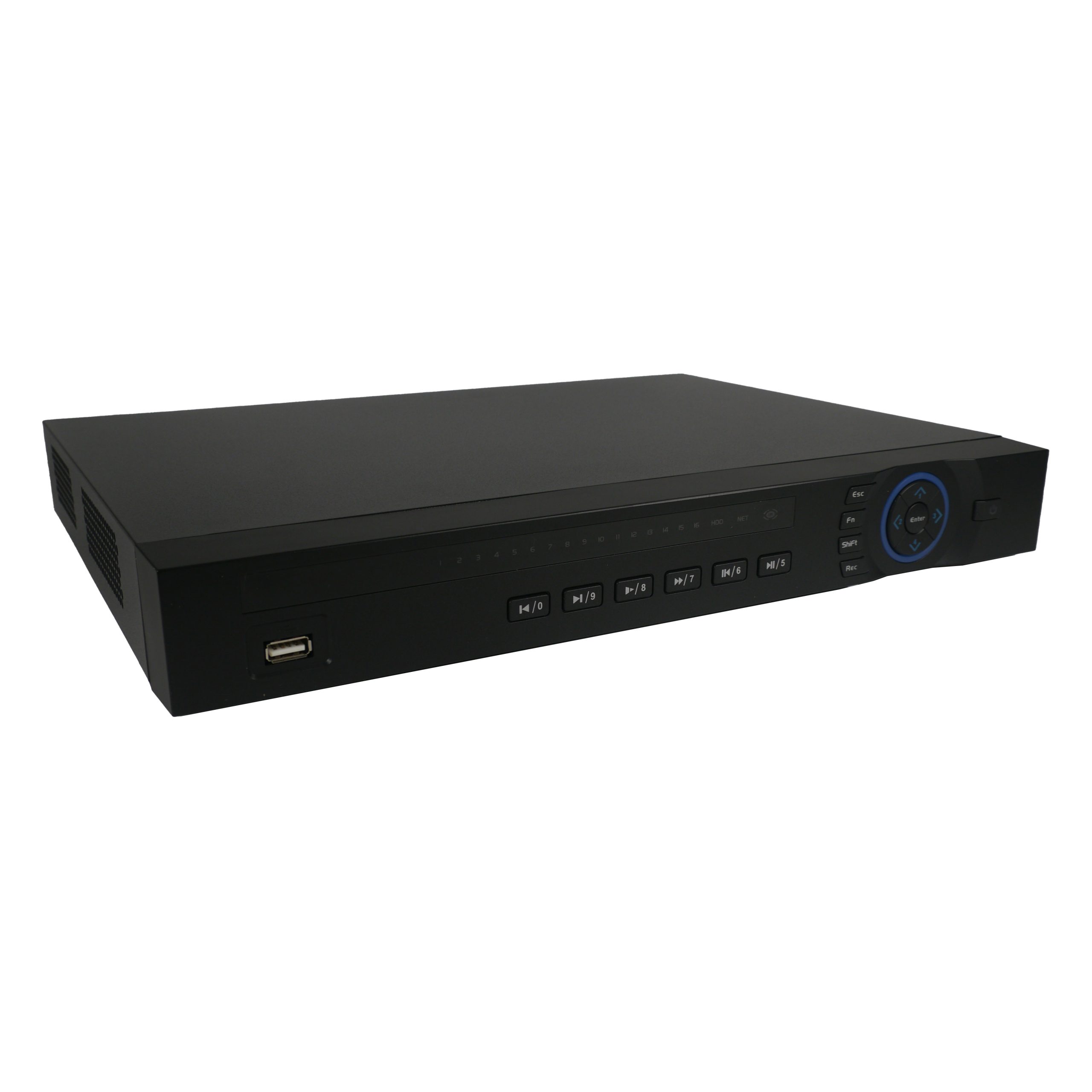

Introducing the PENDVR-EL16M4K-AI3, a 1U sized 4K capable Hybrid DVR with 16 BNC channels, which are convertible over to IP channels. The unit also has 16 native IP channels for a total of 32 Camera Channels. It has 2 Slots for Hard Disks as well for all the storage you need.

This unit can accept COAX inputs from any of the four video signal types commonly used today, CVI, TVI, AHD, and CVBS, and is able to detect which signal is incoming and automatically adjust accordingly.

While able to do true 4k at 7 FPS via COAX, this unit also features the 4KN resolution standard. This means it can accept a full incoming 4k signal over COAX, but it is able to encode at a slightly reduced horizontal resolution in order to reach 15 FPS for far smoother images than ever before, with little to no perceived loss in image quality.

Alongside its high-resolution capabilities, the PENDVR-EL16M4K-AI3 also features AI-aided h265 encoding. This means that the unit can push compression capabilities beyond that of h264, or non-AI aided h265 at very little to no image loss. The result is a better picture with a smaller hard drive footprint.

Equipped with SMD Plus, also known as “Smart Motion Detection”, the PENDVR-EL16M4K-AI3 utilizes intelligent algorithm-based motion detection software to filter out unwanted information leaving you with far fewer false alerts. This is usable across all 16 COAX channels.

Additionally, this Recorder can perform onboard IVS perimeter protection via intrusion box and tripwire on two COAX channels with up to 10 rules per channel.

Another AI feature, face detection, can be performed on 2 channels with up to 12 images each and can be compared to up to 10 different databases for a total of 20,000 face images across these databases.
This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don’t forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

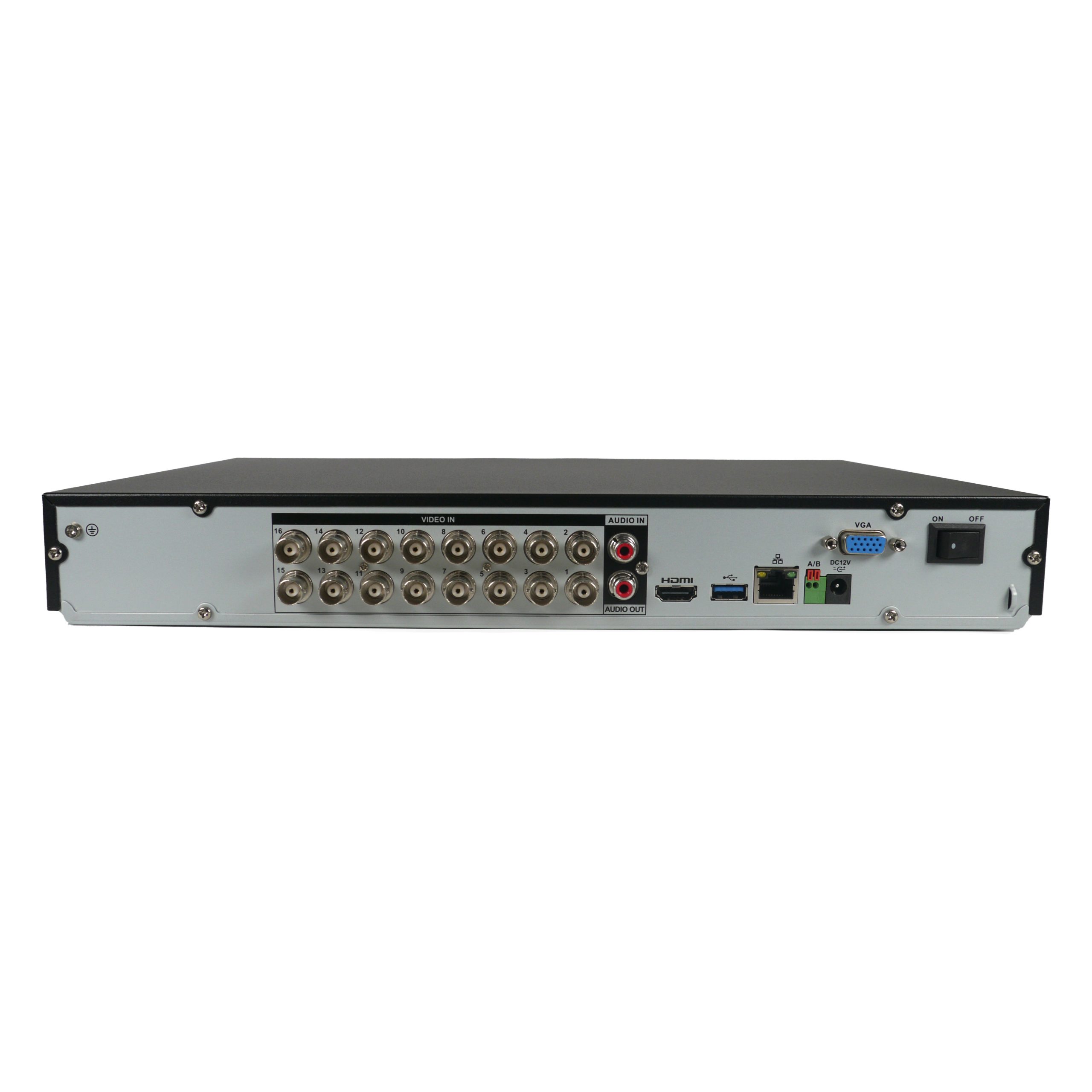

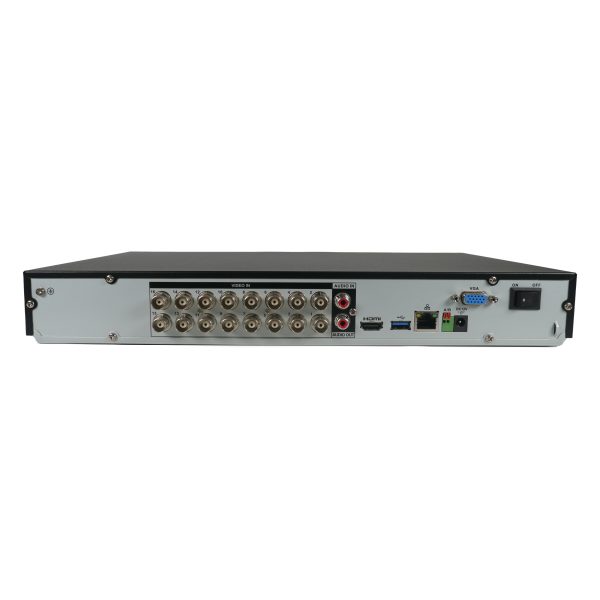

Number Of Cameras 16 BNC+16 IP
Number Of SATA Connections 2
Has Alarm Inputs / Outputs No
Video Output Types HDMI/VGA
Video Output Resolutions: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Size 1U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1
Max Bandwidth 128 Mbps
Display Screen Split When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps ELITE Viewer Pro | DMSS | Smart PSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
