Sold out

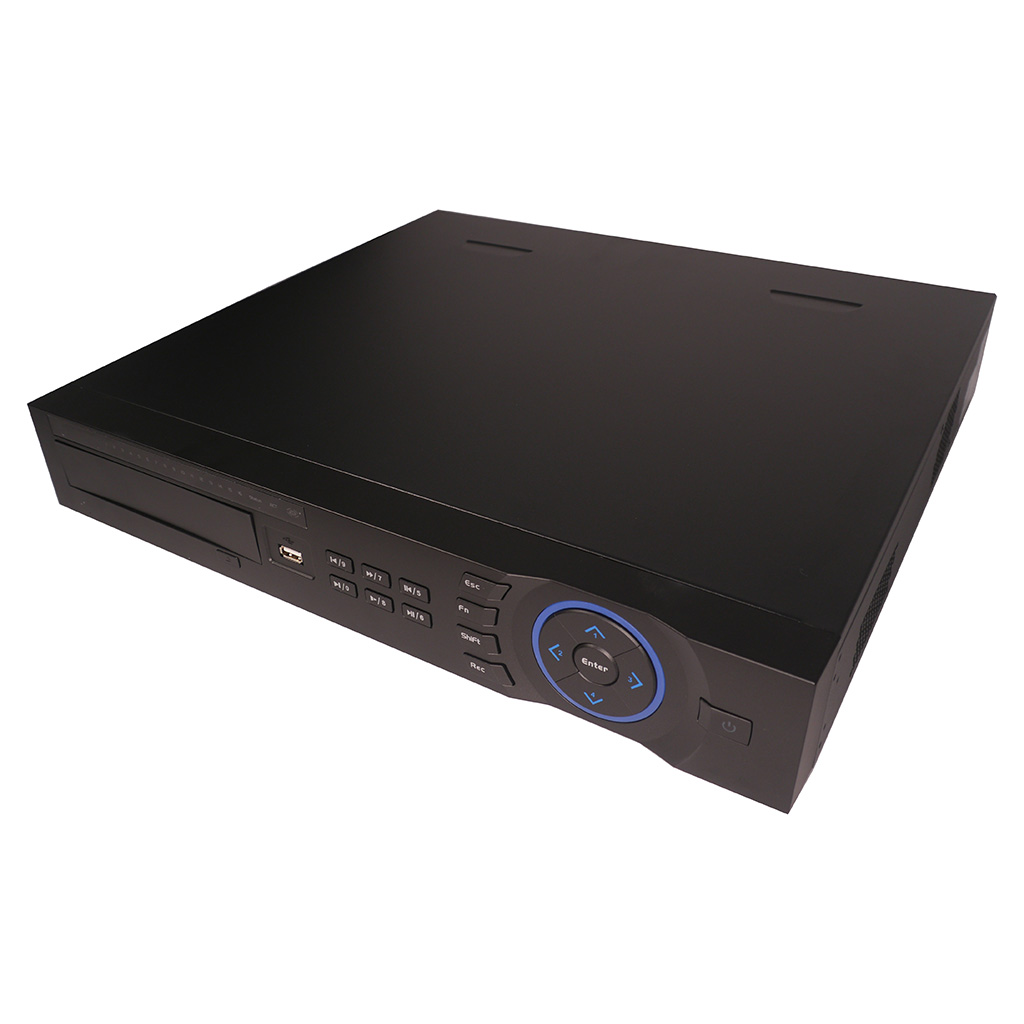

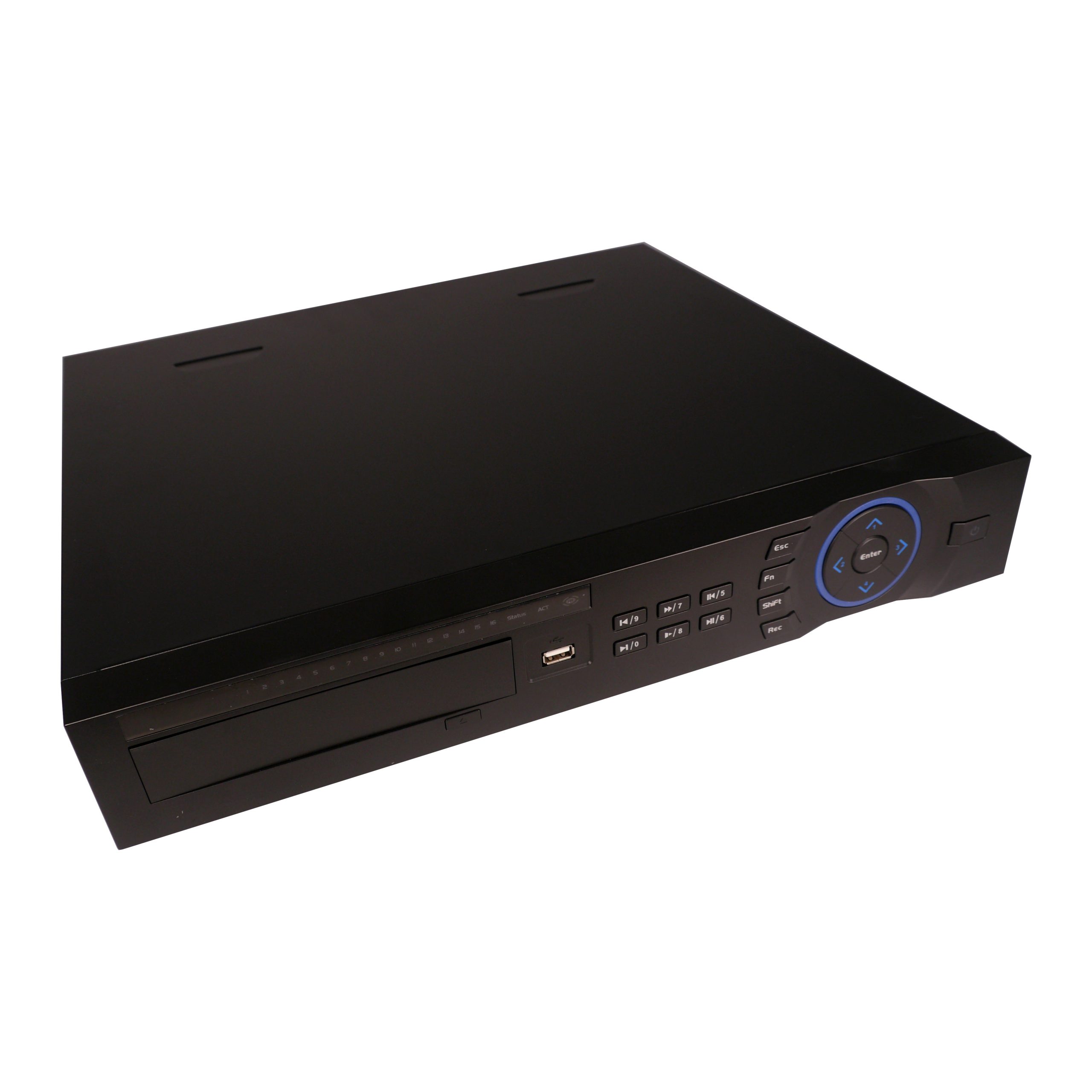

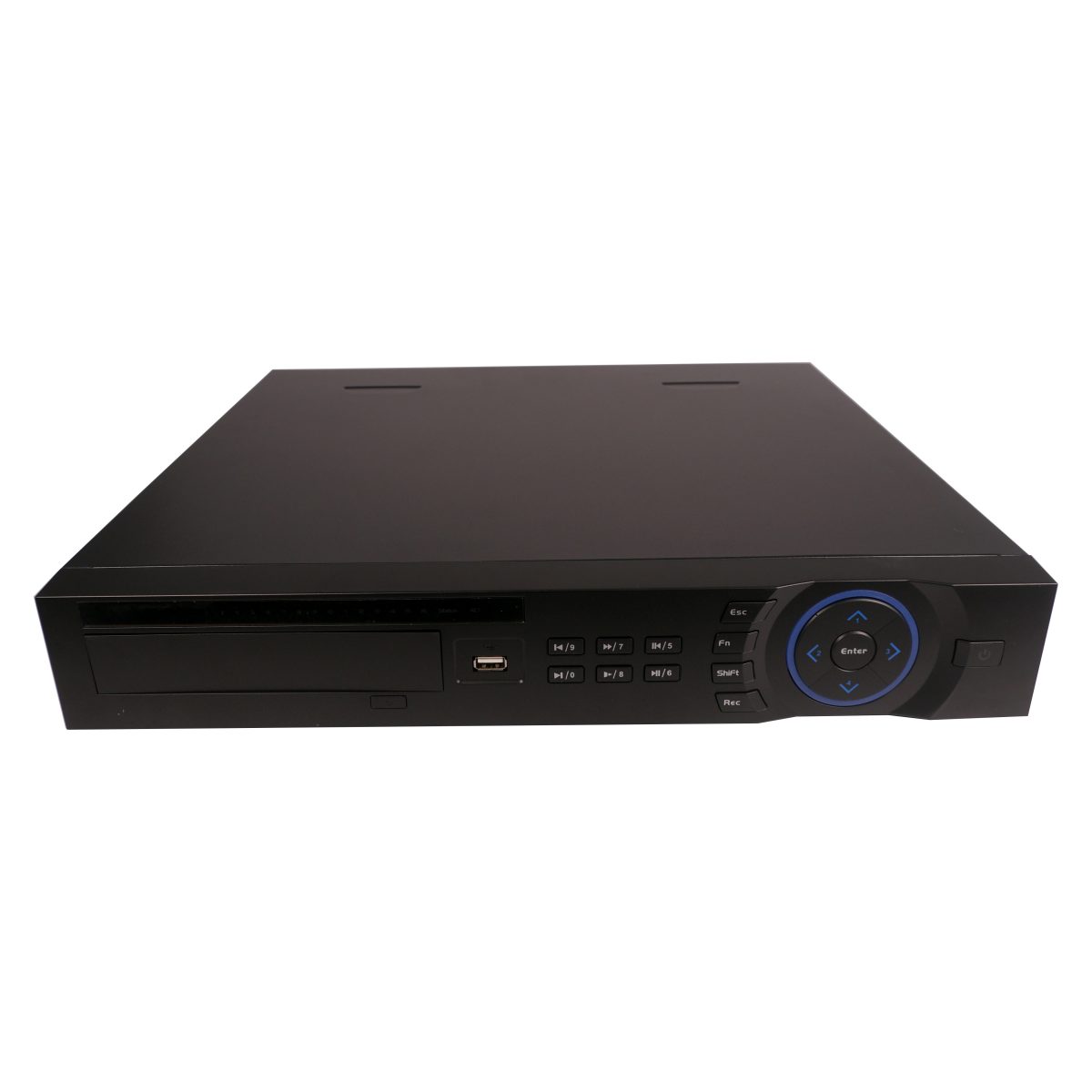

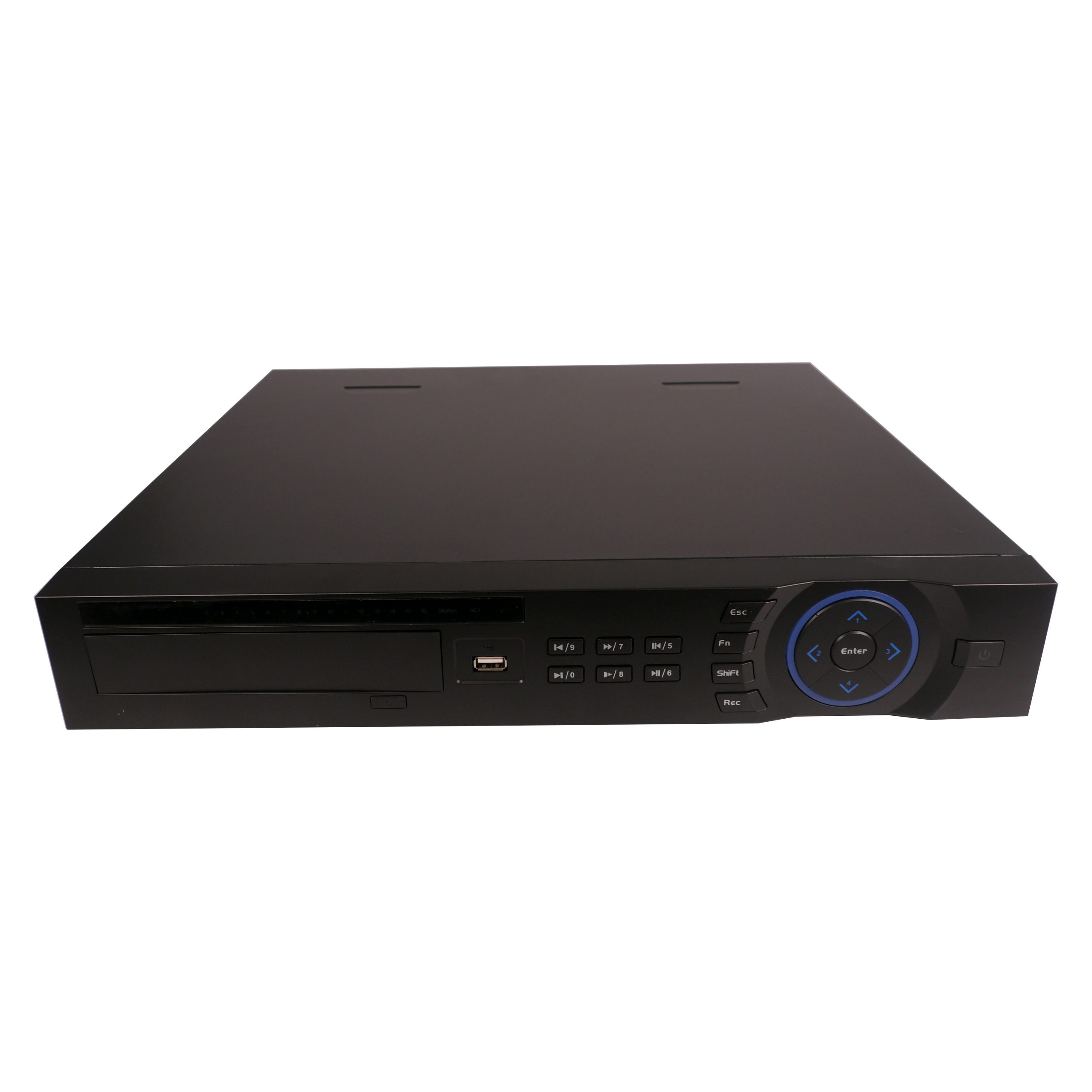

16 Channel ELITE Series 4 HDD 4K NVR

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: NVR-ELE16-16P-AI Category:

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

The lastest of our network video recorders for use with IP cameras up to 12MP resolution is this 16CH Elite 1.5U AI NVR that has 16 ports of built-in PoE (power over ethernet) with 200Mbps bandwidth when AI function is not enabled, otherwise 80Mbps when AI function is enabled. Ports 1-8 can support ePoE technology which enables you to go beyond the standard PoE distance limitation of 328 feet. ePoE technology can go up to 2,600 feet on a single cable run without the need for adding additional PoE switches in between.

This Elite AI NVR offers more than ever before. Now supporting facial recognition thanks to its internal database, it can process up to 12 face pictures per second on 2 channels of video stream facial recognition at a time, or it can support up to 8 channels of picture stream facial recognition when paired with our Elite IP cameras that offer Face Detection as part of their IVS (intelligent video system) features. You can have up to 10 face databases storing a total of 20,000 facial images in total. Each of these databases can be applied to video channels independently.

The facial database allows for assigning the following to the images, a person’s name, gender, birthday, address and more and has a common and stranger mode whereas when you are in stranger mode if the NVR detects a strange face that is not in the database, it can trigger a buzzer, alarm, start recording or take a snapshot and you can set thresholds for similarity which can be very beneficial in such use cases where access control is imperative.

Perimeter protection is a function that helps to filter out false alarms that are caused by animals or bright lights, leaves, and other reasons we have always received false motion-activated alarms. This feature is available on up to 4 channels each having up to 10 IVS rules.

This unit supports up to 4 hard drives internally with each drive up to 10TB of storage for a maximum capacity of 40TB. You can determine how much storage space you will need by using our handy hard drive calculator above. Having support for smart H.265+/H.265 video compression means that you will require less drive space as compared to previous compression standards such as H.264 or MJPEG.



ePoE, or enhanced Power over Ethernet, is an innovative solution that utilizes specialized algorithms capable of extending how far both IP and analog security cameras can reach. ePoE devices are now standard on ONVIF devices and can even be incorporated into traditional PoE systems. What makes ePoE devices different is that they have the capability of converting coaxial infrastructures with the latest IP devices. This capability makes it possible to increase transmission distances through both coaxial and ethernet cables.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Resolutions: 4K
Size 1.5U
Resolutions Capable 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Max Bandwidth 200 Mbps
Display Screen Split 1/4/8/9/16
Compression of Video H.265+
Connection Apps Elite Viewer Pro
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
