Introducing our 64 Channel High Definition NVR, a powerhouse of a security recorder. It can record up to 64 ONVIF IP Megapixel Cameras at the same time up to 12MP each. Wow! This is one of the most powerful NVRs on the market today. It also utilizes the new 4K display technology so that you can view your cameras on your Super High Resolution 4K Monitors. Of course the detail is amazing on a 1080p monitor as well.
This 64ch NVR is a self-contained security recording device, meaning it does not have to be connected to an external PC in order to work. It comes pre-built with a Linux Operating System and a simple GUI Interface. With a click of the included mouse, you will be able to create scheduled recordings, set motion detect, create email alerts and more. The menus are very easy to navigate and at any point you need help, we provide free tech support for the life of the NVR. At times, we can even remotely log in and do the work for you. Its that easy!
When you receive the NVR, it will be ready to go right out of the box. Just plug it in and connect it to a monitor to go through the initial setup settings. You can connect your monitor via HDMI or VGA. There is no software to install. Once you have gone through the initial setup and connect the NVR to your network, you will be ready to view your cameras anywhere you have access to the Internet. You can even view your security cameras on your Android, iPhone, tablet and other Smart Devices. Remember, at anytime you need help with any or all of the settings, we provide tech support absolutely for free.
The hard drives are completely Hot Swappable and are easy to install. Just click open the front panel and put the hard drive in. When you want to swap it out, there is no need to shut down your NVR. That is the great thing about a Hot Swappable Hard Drive capable security recorder. You can install up to 8 Hard Drives at one time. We currently sell hard drives from 1TB to 8TB, so there is a potential of 64TB total hard drive storage. To figure out how much disc space you require for your needs, we have an Online Hard Drive Calculator to help you figure that out.

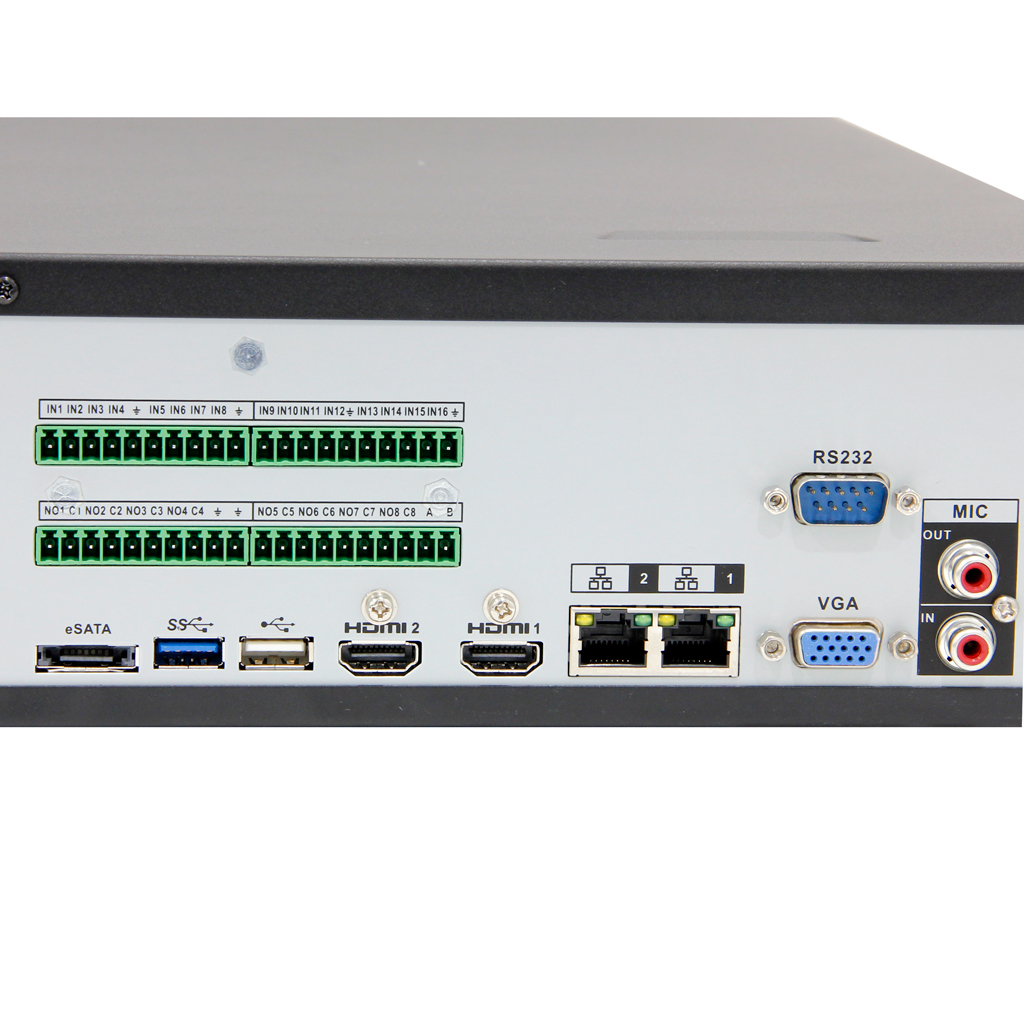

You can use this High Definition Security System to trigger almost anything that has power. You can trigger a siren, a strobe, a PTZ etc based on motion events. You can even use this device to unlock doors, open garages, turn on lights and more. In fact there are so many things you can trigger that the list goes on and on. This device comes equipped with 16 Alarm Inputs and 8 Relay Outputs. You most likely will not need all of them, but its good to know they are available.
Backing up your recordings is easy. You can connect an eSATA drive and backup to that. Or you can connect an external hard drive, a flash drive or a DVD Burner to one of the 4 USB ports. You can even back up via FTP if you have a site that handles that.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Free Remote Viewing Capability
All of our DVR's & NVR's have remote viewing capabilities. Free Apps & Software are for PC, Mac, iPhone, iPad, Android and Tablets
|Number Of Cameras||64|
|Number Of SATA Connections||8|
|Has Alarm Inputs / Outputs||Yes|
|Video Output Types||HDMix2, VGA|
|Video Output Resolutions:||12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P|
|Resolutions Capable||4K, 2MP, 1.3MP, 1MP, 960H|
|ONVIF Version||ONVIF 2.4|
|Display Screen Split||1/4/8/9/16/25/36|
|Compression of Video||H.265/H.264/MJPEG|
|Connection Apps||Smart PSS, iDMSS, gDMSS|
NVR-ELHS-64-4K-DH Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool Downloads: Software & Manual||Windows|
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
