DX Series Small Stainless Steel Infrared Luminous Exit Button

(1 customer review)
SKU : ACRE-EB70IRL

$31.16

Out of stock

SKU : ACRE-EB70IRL Categories : ,

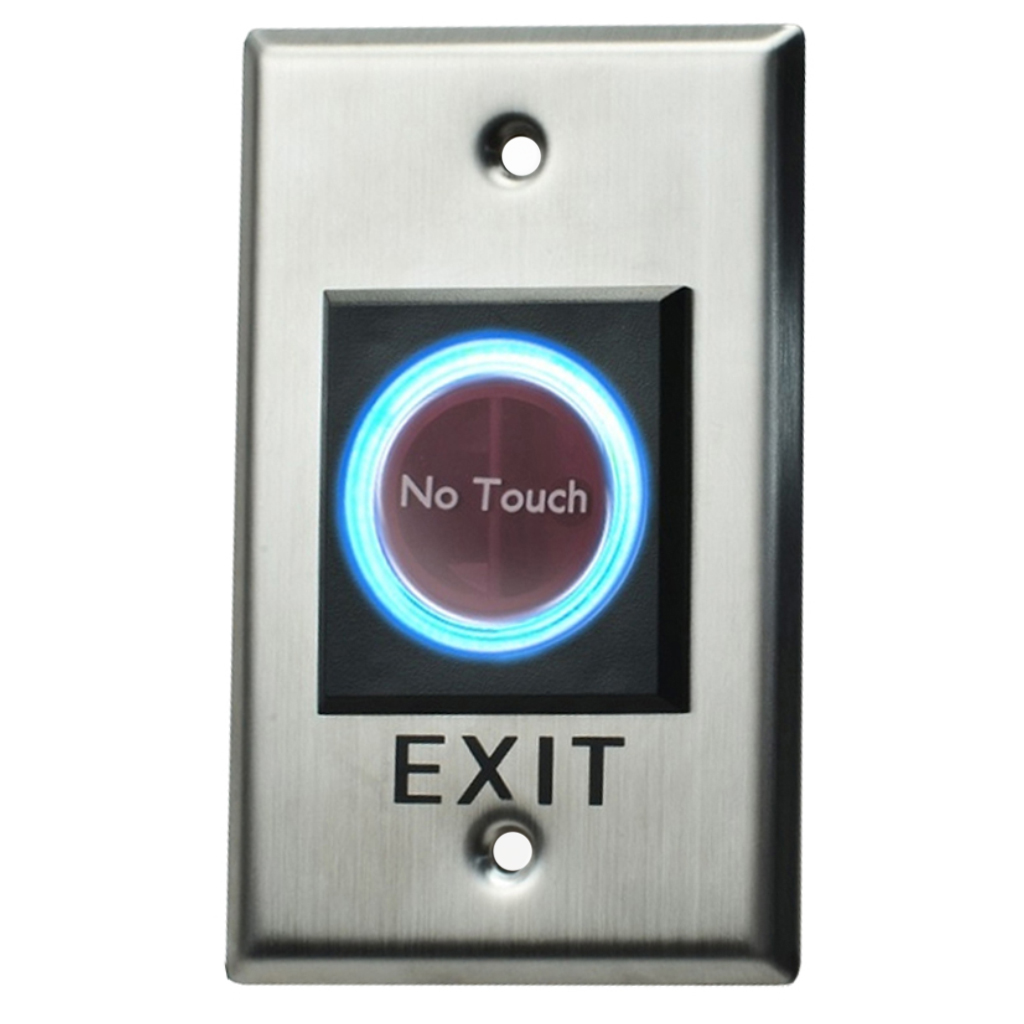

The EB70IRL is an infrared flush mount “push to exit” button that works in tandem with your access control board. This allows employees or visitors to leave an access controlled area with the wave of a hand (No Touch Required) that triggers the release of the door strike or mag lock. You’ll know when it’s working because the LED will indicate different colors for different modes like white for Power OFF, blue for Power ON (standby) and green for Power ON! Scaled down to be able to use in some small places . . . this only weighs 0.15kg (a little more than 1/3 of a pound) and is only 4 ½ inches at the longest (115 x 70 x 25mm).

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model ACRE-EB70IRL

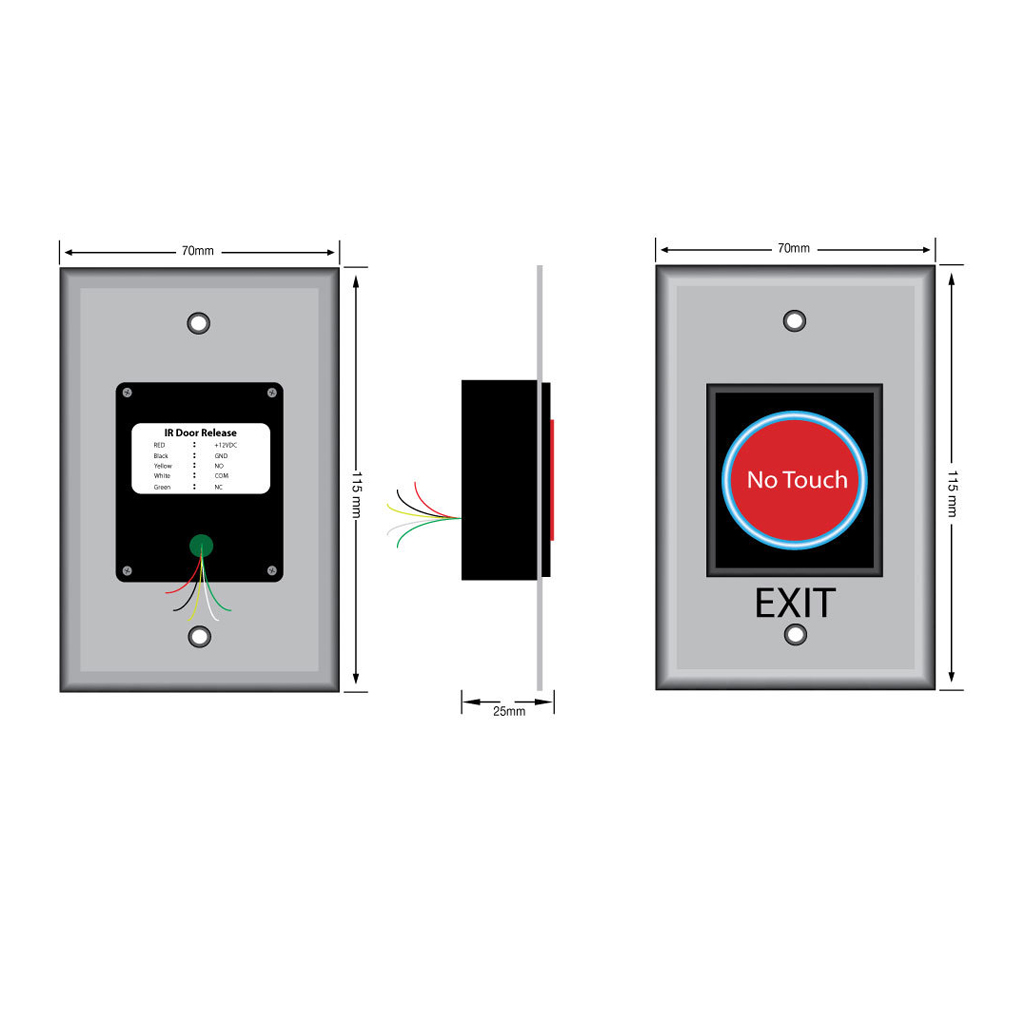

Dimensions 115 x 70 x 25 (mm)
Color Black/Silver
Rating 3A@12-24VDC
Mechanical Life 500000 tested
Mounting Flush Mounting

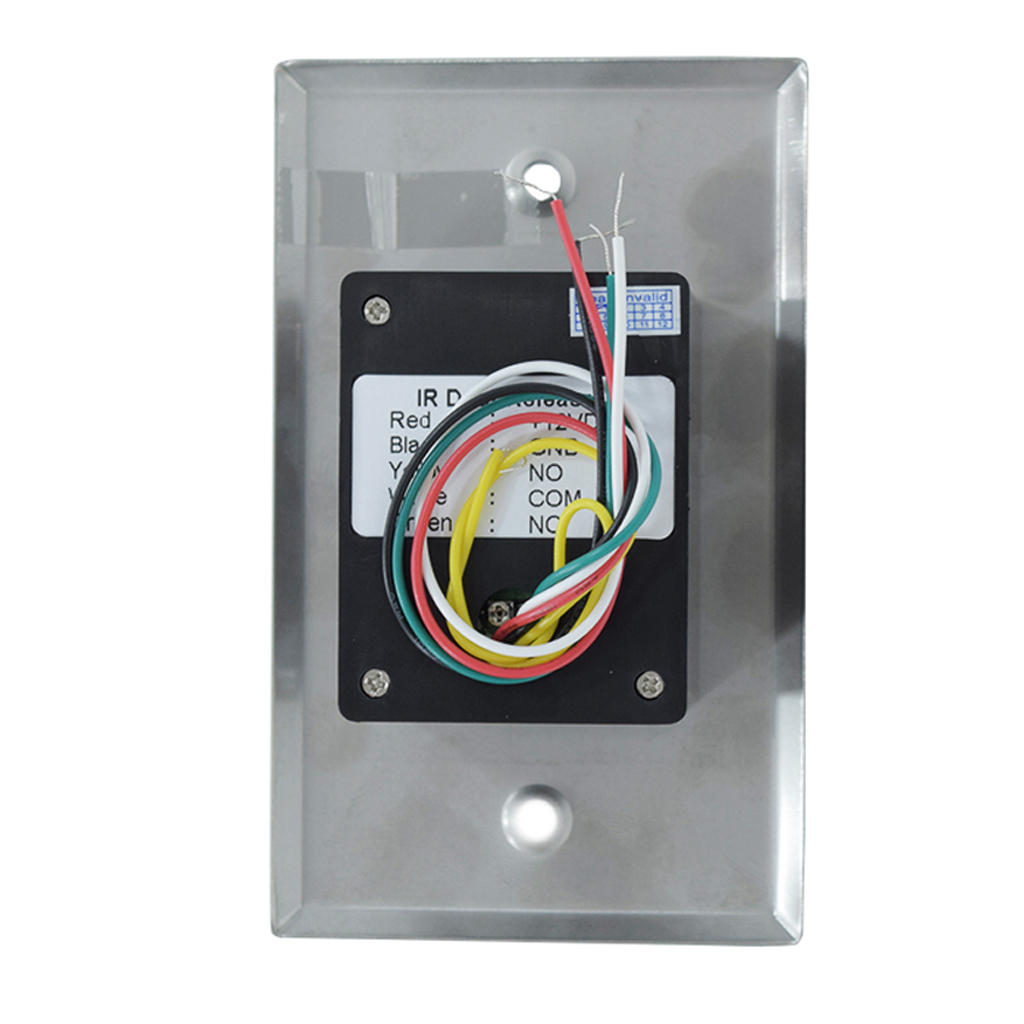

Output Contact NO/NC/COM

Description

The EB70IRL is an infrared flush mount “push to exit” button that works in tandem with your access control board. This allows employees or visitors to leave an access controlled area with the wave of a hand (No Touch Required) that triggers the release of the door strike or mag lock. You’ll know when it’s working because the LED will indicate different colors for different modes like white for Power OFF, blue for Power ON (standby) and green for Power ON! Scaled down to be able to use in some small places . . . this only weighs 0.15kg (a little more than 1/3 of a pound) and is only 4 ½ inches at the longest (115 x 70 x 25mm).

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model ACRE-EB70IRL
Dimensions 115 x 70 x 25 (mm)
Color Black/Silver
Rating 3A@12-24VDC
Mechanical Life 500000 tested
Mounting Flush Mounting
Output Contact NO/NC/COM

Additional information

Weight 1 lbs
Dimensions 6 × 4 × 2 in
