DX Series Two Door Access Control Package

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: ACP-DXEL2-Pack Categories: ,

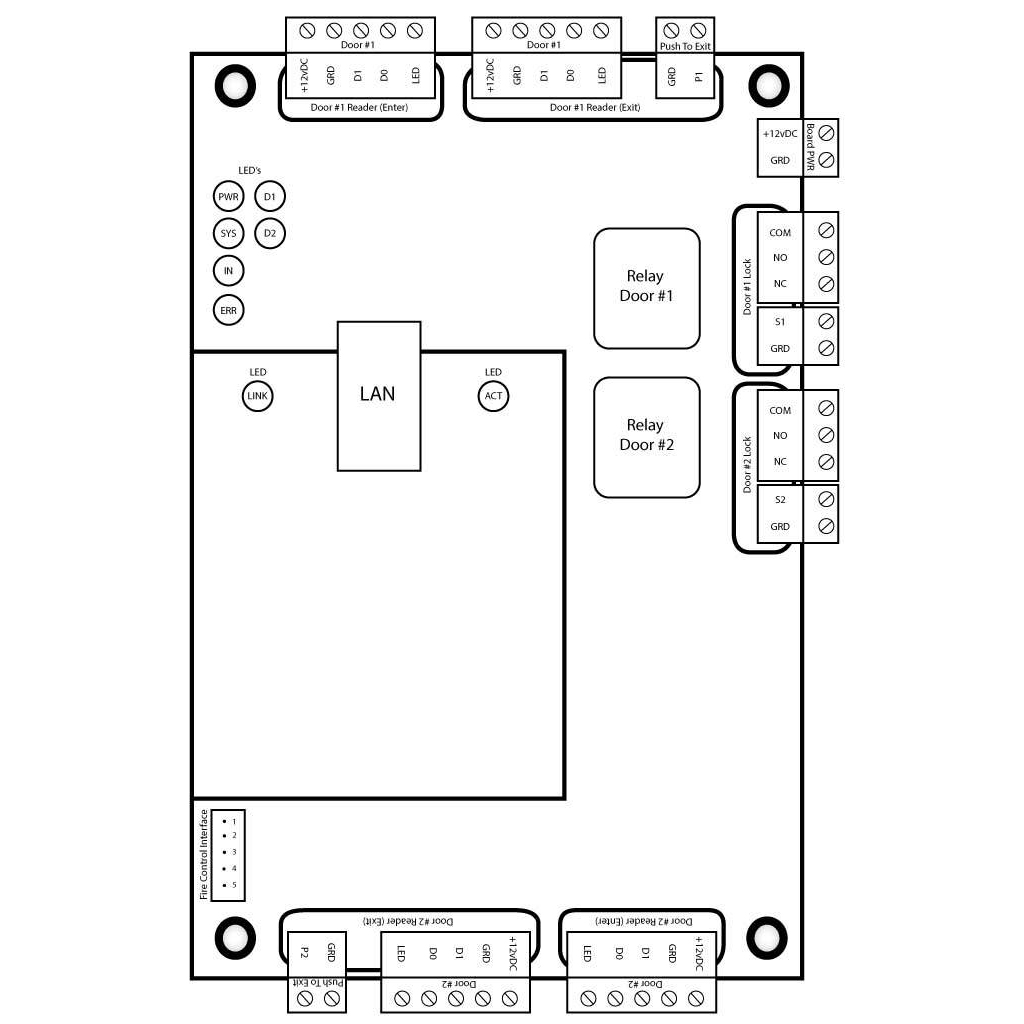

The ACP-DXEL2-Pack is a cost-effective solution for a 2 Door Access Control System. This two door access control panel can connect up 4 Proximity card readers (one on each side of those 2 doors). If you do not require knowing when someone exits your building, you will only need a reader on the entrance side of the door and an exit button on the exiting side. You can wire this system up to your electronic door locks, such as magnetic locks and electronic door strikes. You will also be able to integrate with an alarm and sirens or strobes.

Accessing this 2 door access control panel is super easy. The control panel has an RJ45 port for you to attach an Ethernet Cable such as Cat5E or Cat6. The other end of the cable plugs into your network. Yes, it’s that easy. Then, any PC that is on that network can access that control panel using our DX Access Control Software. You can specify and register users, configure access control proximity cards, create times that the door can be accessed and so much more.

If at a later time you want to add more doors into your access control, we have made it easy for you to do that. With our DX Series of Access Control Boards, you can connect several of the boards to your network and our DX Access Control Software will see them all. For example, if you buy this 2 door access control package and later on want to add a third door, all you need to do is get a 1 door access control board, connect that to the network and you will be able to control all three doors with the same software.

This Package Includes

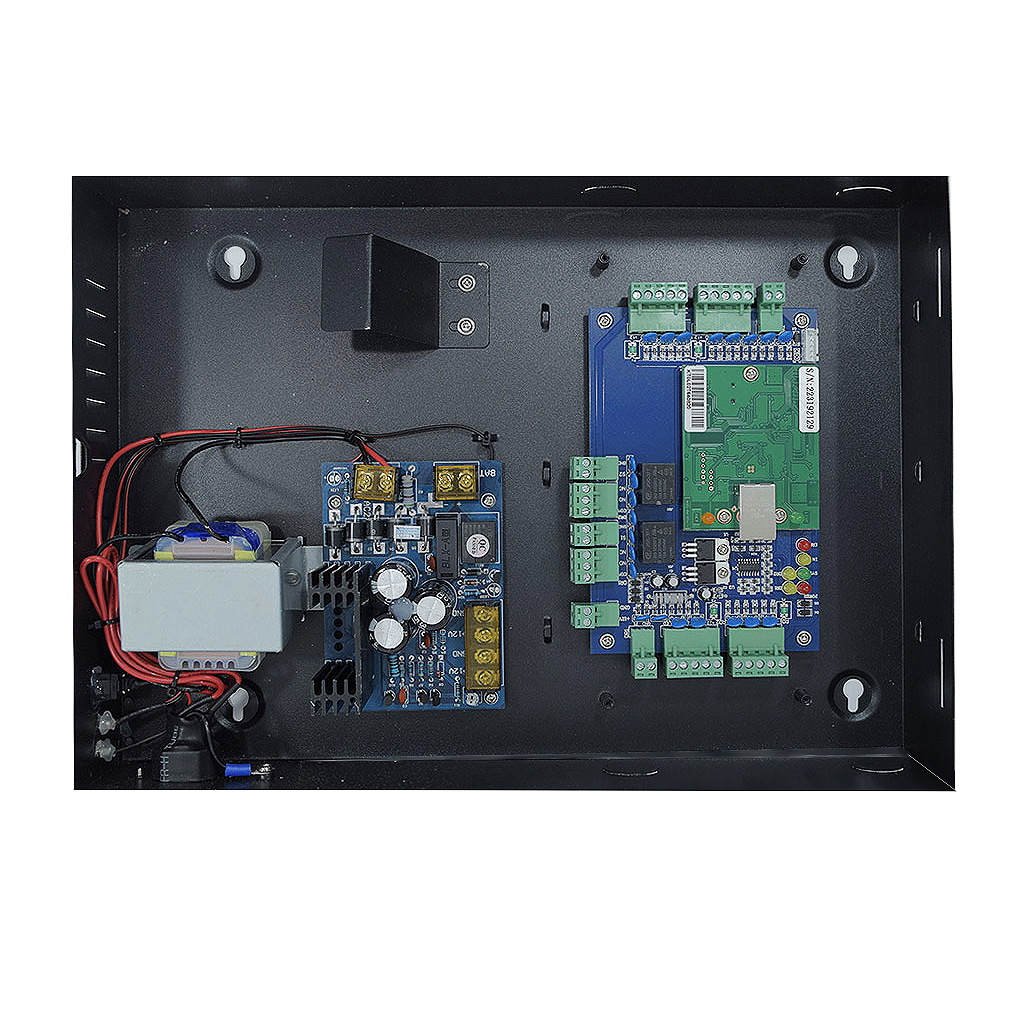

DX Series Two Door TCP/IP Webserver Controller – (ACP-DXEL2)

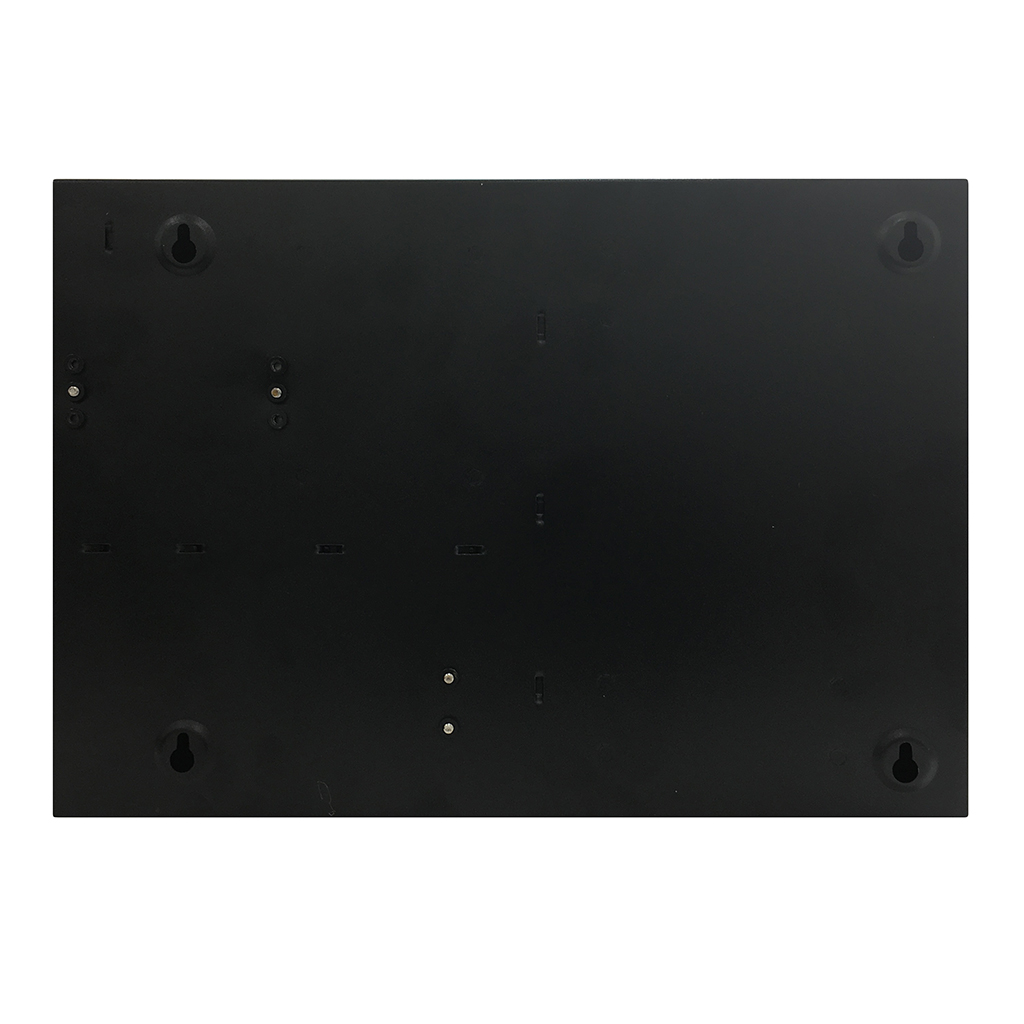

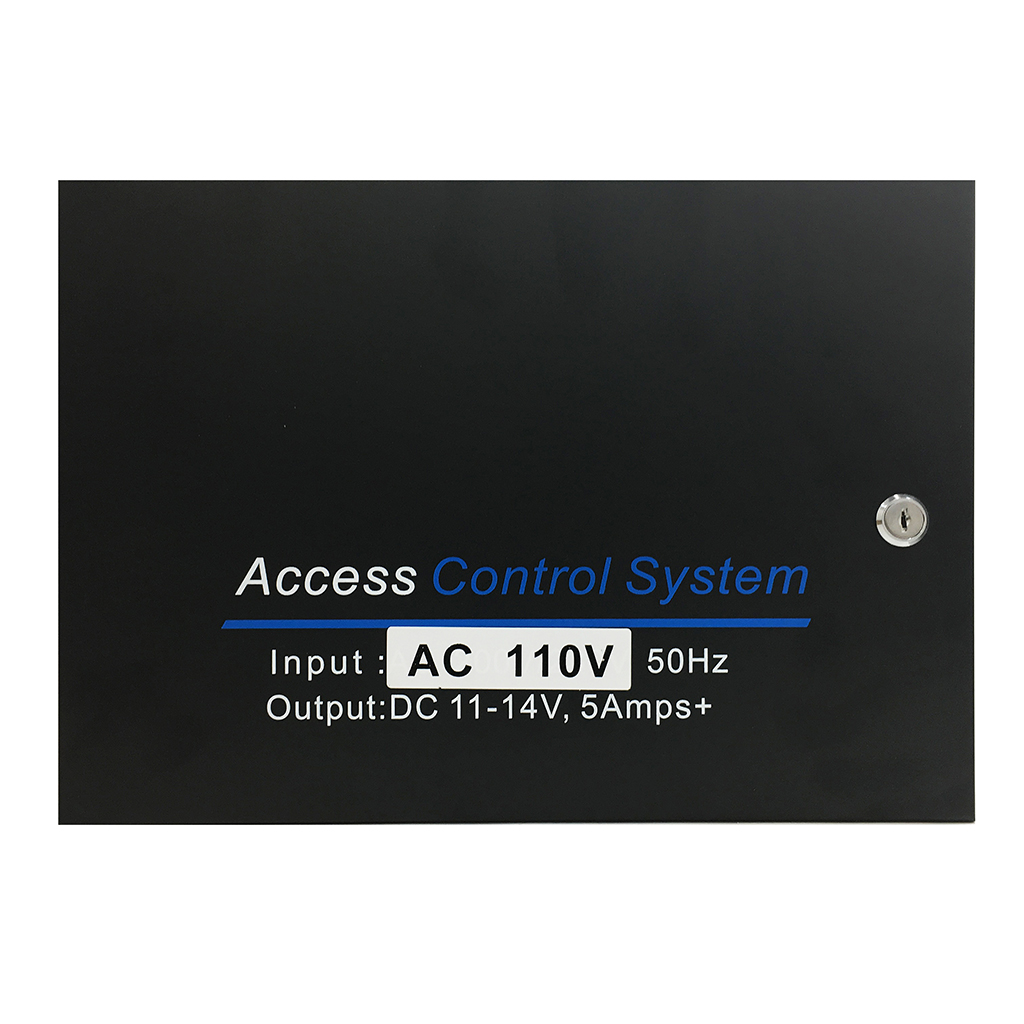

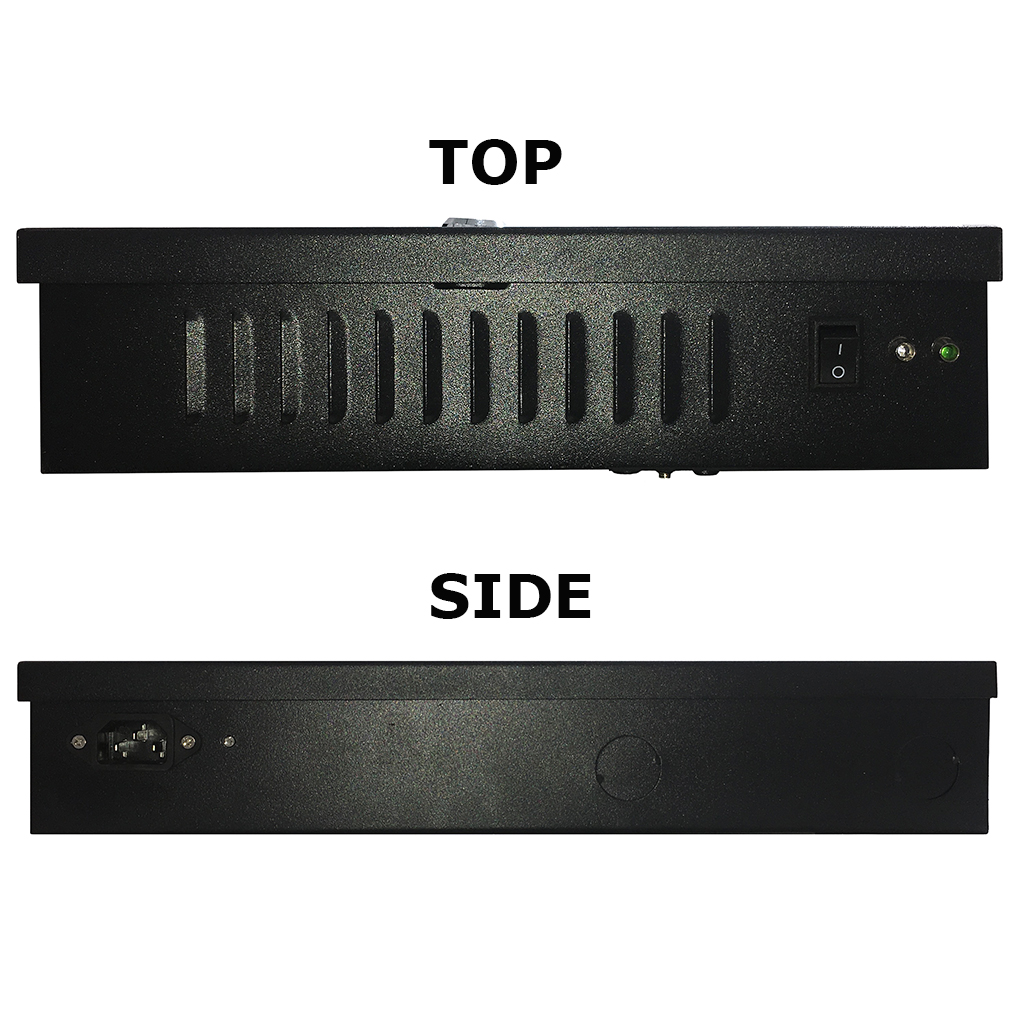

 DX Series Control Board Power Supply Box 12V 5A – (ACPWR-DXCASE12V5A)

Optional Accessories

An optional backup battery is highly recommended in case of a power outage

Battery Backup – (ACPWR-BBU 1-7)

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model ACP-DXEL2-Pack
Unit Size 160mm x 106mm
Unit Packing Standard
Unit Packing Size 21 x 13.8 x 137.5 px
Accessories User Manual, Warranty Card
Conventional Function Off line operation; Real time supervision; Photo display; Mass storage; Flexible user privilege setup; Remote unlocking; Multi-user supervision; Quick setting; Convenient checking and query; Revisable and printable report form; Report form; Report can be exported to excel file; Card+password unlocking; Alarm for long time enclosing;alarm for invalid card swiping; First card unlocking; Alarm for illegal break in; Unlocking at a defined time; E-map etc.
Professional Function For professional users such as banks, cash houses, telecom stations, power supply stations, prisons and police stations: Interface locking; Intimidation alarm; Integrated fire control; Anti-passback and anti-tail; Interlocking; Multi-card unlocking; Emergency double locking; In door population checking; Unlocking based on internal and external validation.
All-in-one-card Management System Normal shift and multi-shifts time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software Supportable Database Access and SQL
Description Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 2
Door Opening Time Extending Setting 1-600 seconds (adjustable)
Max Quantity of Controller No limit
Remark N denotes quantity of computer serial port or quantity of 485hub port, support 256pcs ports
Operation Temperature -40°C ~ 70°C
Operation Humidity 10-90 % RH , No Condensation
Quantity of Users 20,000 Users
Quantity of Event Buffers (off-line) 100,000 event buffers
Power Interruption Protection Measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance Between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

Collocations PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for Long Time Door Open, Illegal Break In, Intimidate Yes
Compulsive Open and Close Door at Long Time Yes
Open Door in Remote Distance Yes
Inter Block Yes
Anti Pass Back and Tail Yes
Multi-card Open Door Yes
Open Long Time at Specified Time Yes
Electronic Map Yes
Urgency locking Yes
First Card Unlocking Yes
Unlock Based on Internal and External Validation Yes
Keypad (card+password, supper password) Yes
Remote Administration No

Reviews (1)

1 review for DX Series Two Door Access Control Package

  1. Ron Nichols

    I have had this DX door controller installed in my 24 hour access gym for over a year now. I have been very satisfied with it performance. I installed it myself I have a lot of electrical experience. I found it pretty easy to install. The only complaint I have is that the software is not great as far as interface goes but, it does work without a hitch once you figure it out. I would recommend this system to anyone who wants to control access and keep track of who is coming and going and does not want to pay a monthly subscription to somebody like ADT.
