DX Series Two Door TCP/IP Web Server Controller

(1 customer review)


In stock

SKU: ACP-DXEL2 Categories: ,

Recommended Accessories

DX Series Expansion Alarm & Fire Control Board for AC Boards
DX Series Expansion Alarm & Fire Control Board for AC Boards
12V DC 10amp Power Supply, UL, 5 Outputs, w/Fire Alarm Interface

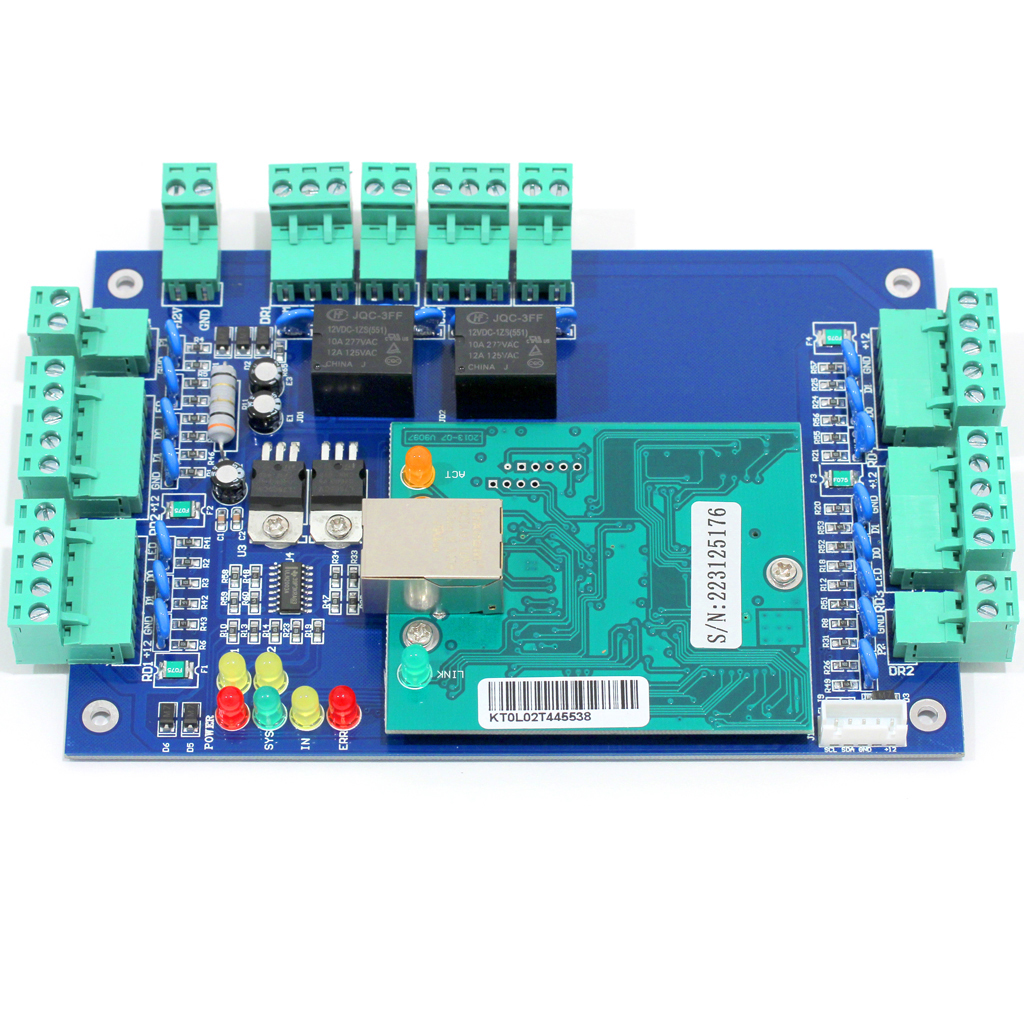

The ACP-DXEL2 is a 2-Door Access Control Board. You can connect up to 4 proximity readers (2 for each door) from our DX line. If you want to have anti-passback or to know who is coming and going, you will need a reader on the entrance side of the door, and one on the exit side of that same door. Otherwise, you will only need a reader on the entrance side and an exit button on the exiting side.

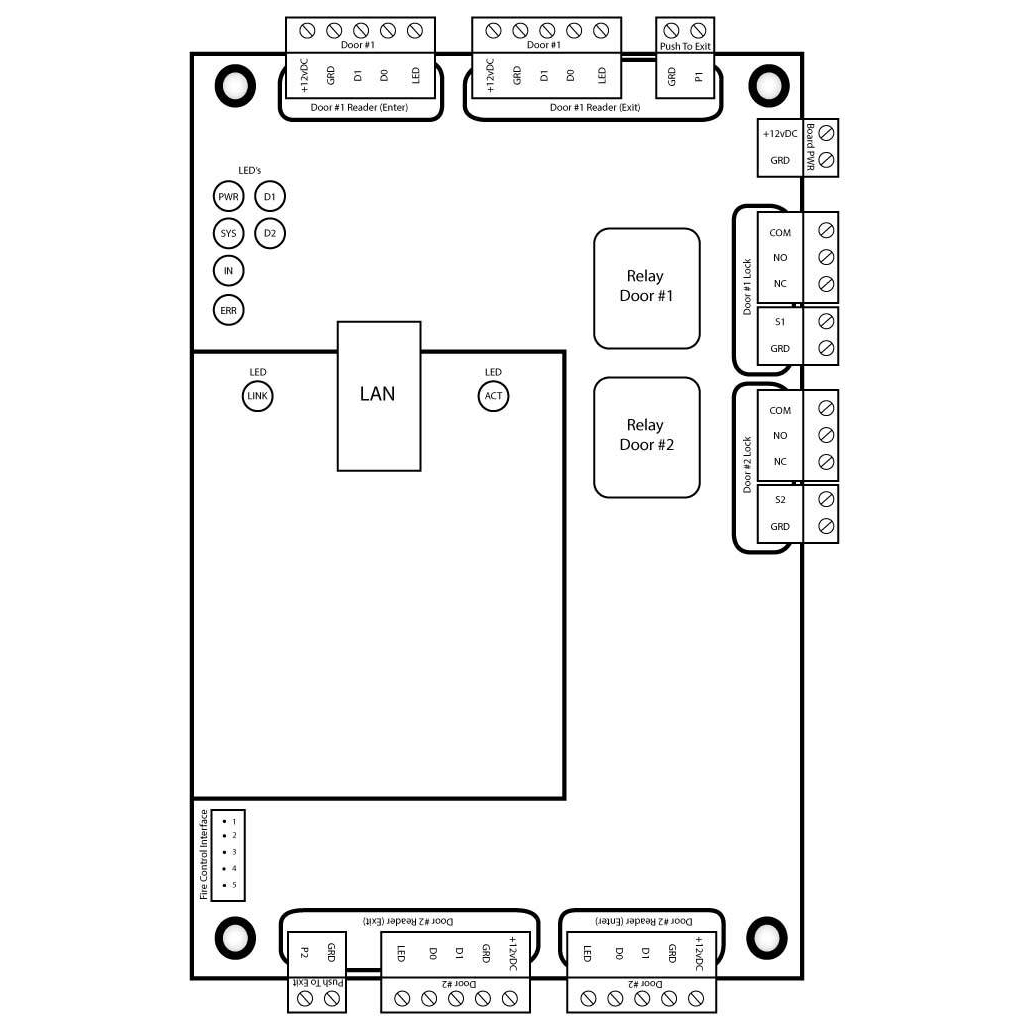

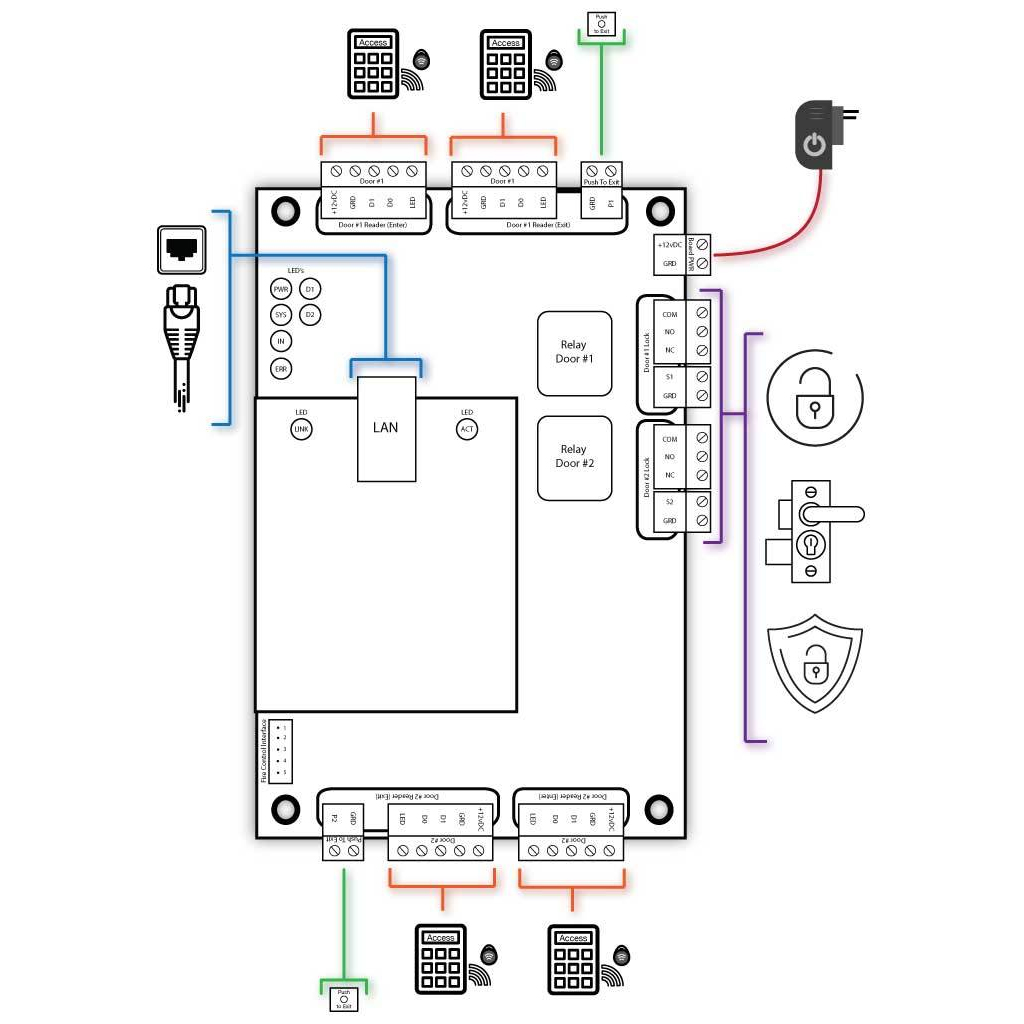

There are enough connections on this 2 door access control board to wire up your electronic locks, sensors, exit button and alarms.

This is by far the simplest Access Control Board available to use. You will connect the board to your network using standard Ethernet cable. There is an RJ45 port right on the board to plug into. Once you are connected to your network, any PC that is on that network can access that control board. We provide our exclusive DX Access Control Software for free, so you can manage your control board, users, readers etc.

One amazing feature about our DX Series of access control boards is the ability to add more boards as you want to create access control for more doors. For example, you buy this 2-door access control board to control access for 2 doors. Later, you might want to add another door. No problem, just buy a 1-door access control board, connect that board to your existing network and now the DX Access Control Software will be able to access and control all 3 doors. Will you want to add 4 more doors later? Same scenario. Just buy an additional 4-door controller, connect it to your network and now your software will see all 6 doors. As you can see, the expansion possibilities are endless.

This 2-door access control board needs power to run and requires 12v DC. If you want to get this board already wired to a power supply inside of a power supply box then check out our 2 Door DX Series Access Control package.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Unit Size 160mm *106mm
Unit Packing Standard
Unit Packing Size 21×13.8×137.5px
Accessories User Manual, warranty card
Function Introduction
Conventional Function off line operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time enclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and police station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
all-in-one-card management system normal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software supportable database: Access and SQL
Description Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 2
Door opening time extending setting 1-600 seconds(adjustable)
Max qty of controller No limit
Remark: N denotes ty of computer serial prot or ty of 485hub port, support 256pcs ports
Operation Temperature minus 40°C-70°C
Operation Humidity 10-90 % RH , No Condensation
ty of users 20,000 Users
ty of Event Buffers(off-line) 100,000 event buffers
Power interruption protection measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less
RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
TCP/IP: Depends on net coverage area

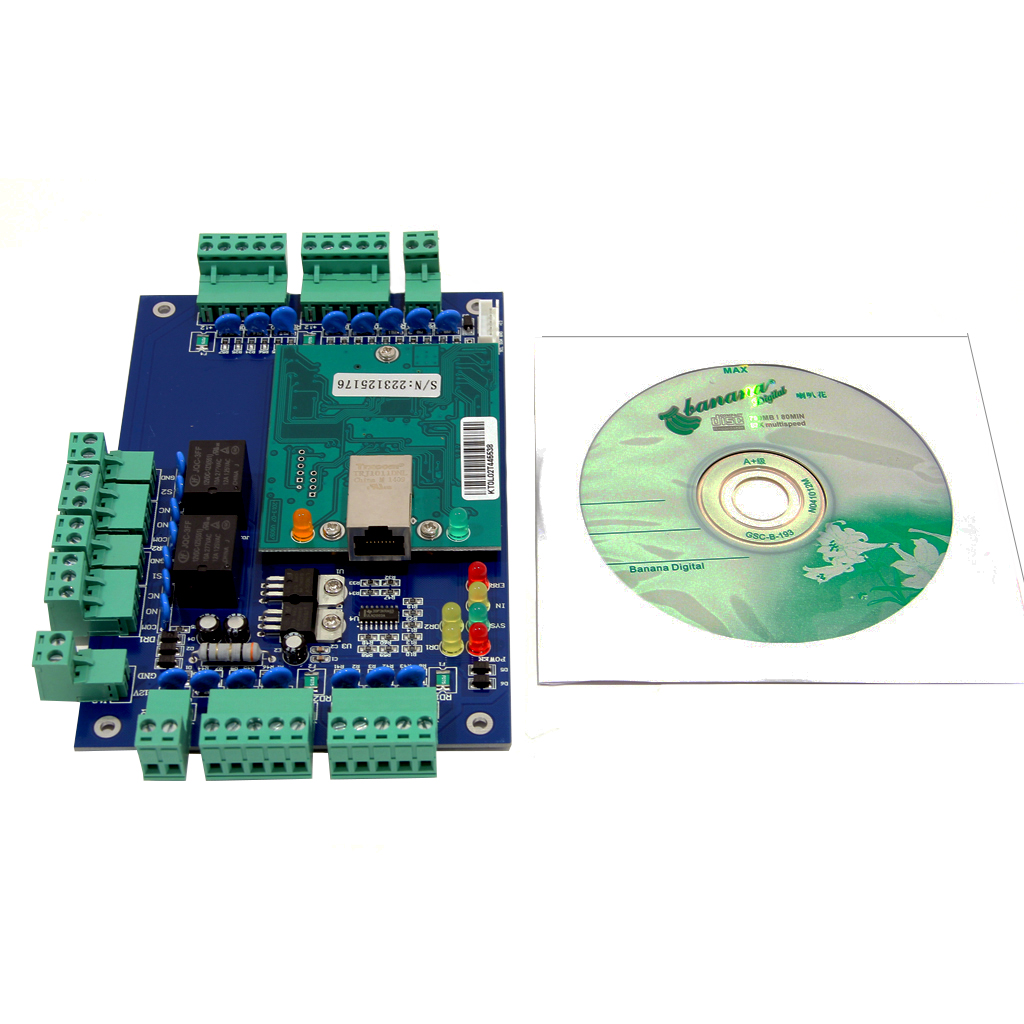

Collocations PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for long time door open, illegal break in, intimidate Yes
Compulsive open and close door at long time Yes
Open door in remote distance Yes
Inter block Yes
Anti pass back and tail Yes
Multi-card open door Yes
Open long time at specified time Yes
Electronic map Yes
Urgency locking Yes
First card unlocking Yes
Unlock based on internal and external validation Yes
Keypad (card+password, supper password) Yes
Remote Administration No
