$2,189.95
In stock

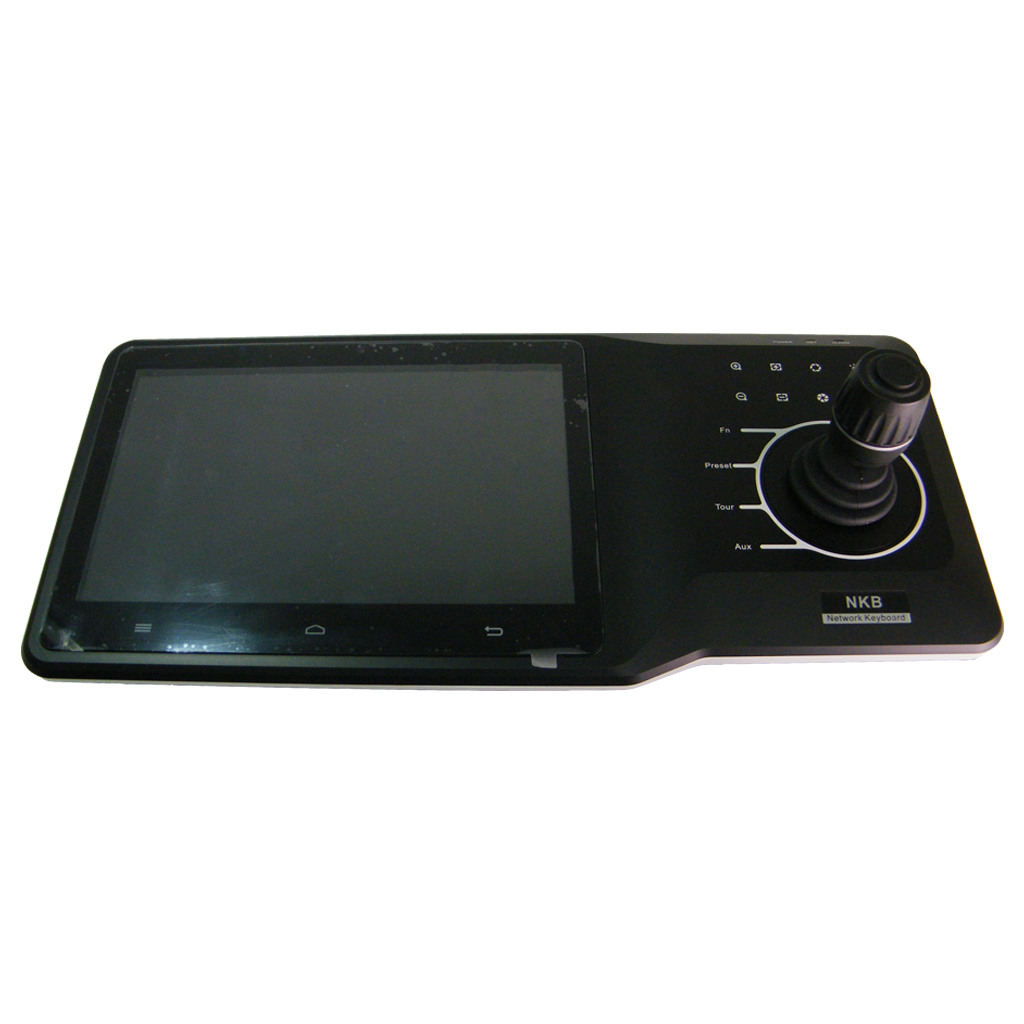

Our Brand New Elite Series Keyboard to Control our PTZ Cameras has arrived.
Using our Elite branded Keyboard control board will allow ease of use when Controlling a standalone DVR or Our Newer High Speed PTZ domes enabling features like Pattern Control, Zoom Control, bidirectional talk , auto scan, auto pan and much more. The Board provides a clear 10.1” TFT LCD touch screen (1280 * 800) display and built in linux based operating system with a dual core Braswell Processor with 2x RJ-45 Ports (10/100/1000m), and Wifi Capability at 2.4GHz.
This Board is a perfect fit for any one of our PTZ Elite PTZ cameras in any environment such as loss prevention, home or business protection or to support a video wall display control.
For assistance with setting up or purchasing this Control Keyboard Please feel free to Contact our Support team at 866-573-8878 during our hours of operation.
Specifications
| IP-ELKEY-5000 Specifications | |
|---|---|
| Main Processor: | Dual-core Braswell Processor |
| Video Output: | 4x HDMI |
| Decoding Capabilities: | 4CH@12MP(20fps)/4CH@4K(30fps)/6CH@5MP(30fps)/8CH@ 4MP(30fps)/10CH@3MP(30fps)/16CH@2MP(30fps) |

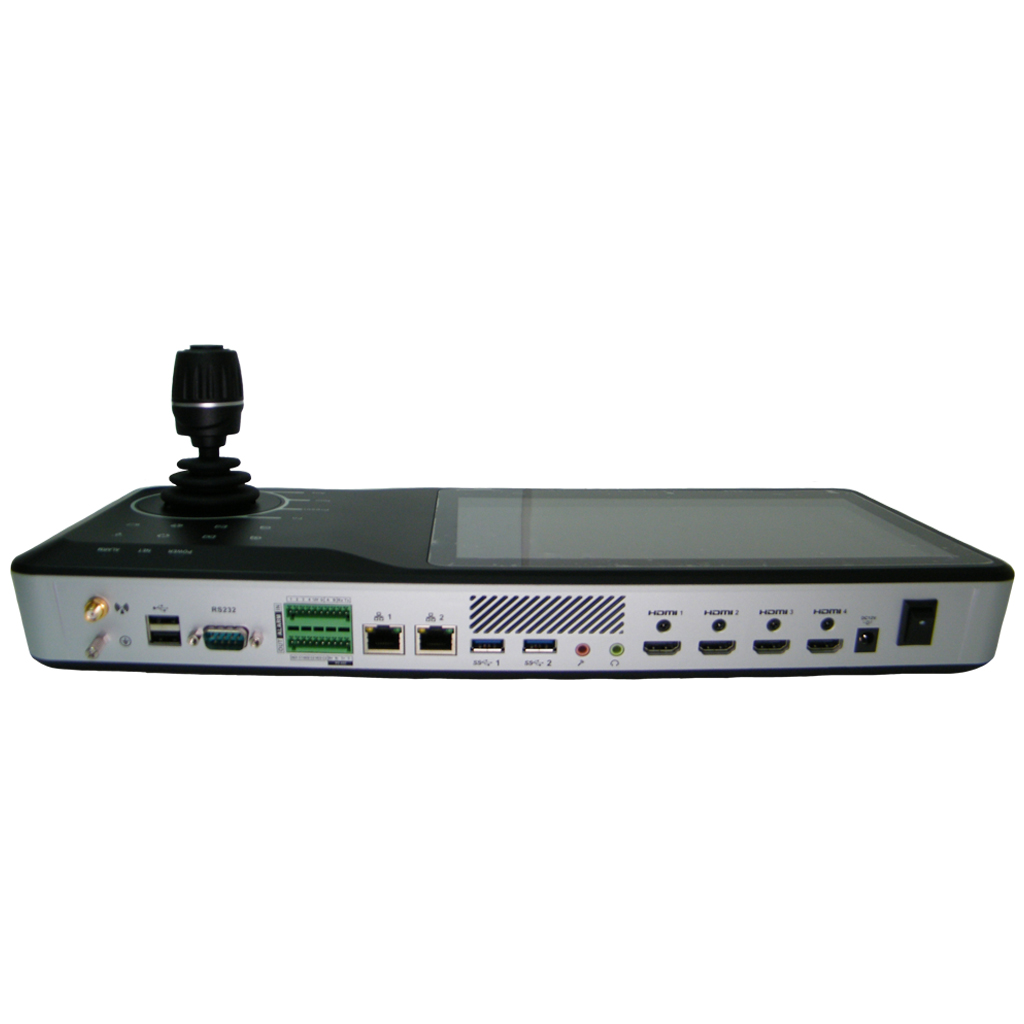

| Keyboard Connector: | 2x RJ-45, 2x RS232, RS485, RS422, 4x USB |
| Display: | 10.1″ TFT LCD touch screen (1280×800) |
| Power Supply: | DC12V, 4A |
| Power Consumption: | 25W(max), 18W(standby) |
| Working Temperature: | -10°C ~+55°C |
| Working Humidity: | 10%~95% |
| Dimension: | 16.73in x 7.63in x 2.32in (WxDxL)(excludes joystick) |
| Weight: | 8.2 pounds |
Our Brand New Elite Series Keyboard to Control our PTZ Cameras has arrived.
Using our Elite branded Keyboard control board will allow ease of use when Controlling a standalone DVR or Our Newer High Speed PTZ domes enabling features like Pattern Control, Zoom Control, bidirectional talk , auto scan, auto pan and much more. The Board provides a clear 10.1” TFT LCD touch screen (1280 * 800) display and built in linux based operating system with a dual core Braswell Processor with 2x RJ-45 Ports (10/100/1000m), and Wifi Capability at 2.4GHz.
This Board is a perfect fit for any one of our PTZ Elite PTZ cameras in any environment such as loss prevention, home or business protection or to support a video wall display control.
For assistance with setting up or purchasing this Control Keyboard Please feel free to Contact our Support team at 866-573-8878 during our hours of operation.
Specifications
| IP-ELKEY-5000 Specifications | |
|---|---|
| Main Processor: | Dual-core Braswell Processor |
| Video Output: | 4x HDMI |
| Decoding Capabilities: | 4CH@12MP(20fps)/4CH@4K(30fps)/6CH@5MP(30fps)/8CH@ 4MP(30fps)/10CH@3MP(30fps)/16CH@2MP(30fps) |
| Keyboard Connector: | 2x RJ-45, 2x RS232, RS485, RS422, 4x USB |
| Display: | 10.1″ TFT LCD touch screen (1280×800) |
| Power Supply: | DC12V, 4A |
| Power Consumption: | 25W(max), 18W(standby) |
| Working Temperature: | -10°C ~+55°C |
| Working Humidity: | 10%~95% |
| Dimension: | 16.73in x 7.63in x 2.32in (WxDxL)(excludes joystick) |
| Weight: | 8.2 pounds |
| Weight | 13 lbs |
|---|---|
| Dimensions | 20 × 12.5 × 8 in |
| Compatibility | Elite Series |
| Product Line | Elite Series |
