ELITE Series 32 Channel 2U 4K DVR

(1 customer review)


In stock

Hard Drive – Optional

Hard Drive 2

Hard Drive 3

Hard Drive 4

Hard Drive 5

Hard Drive 6

Hard Drive 7

Hard Drive 8

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

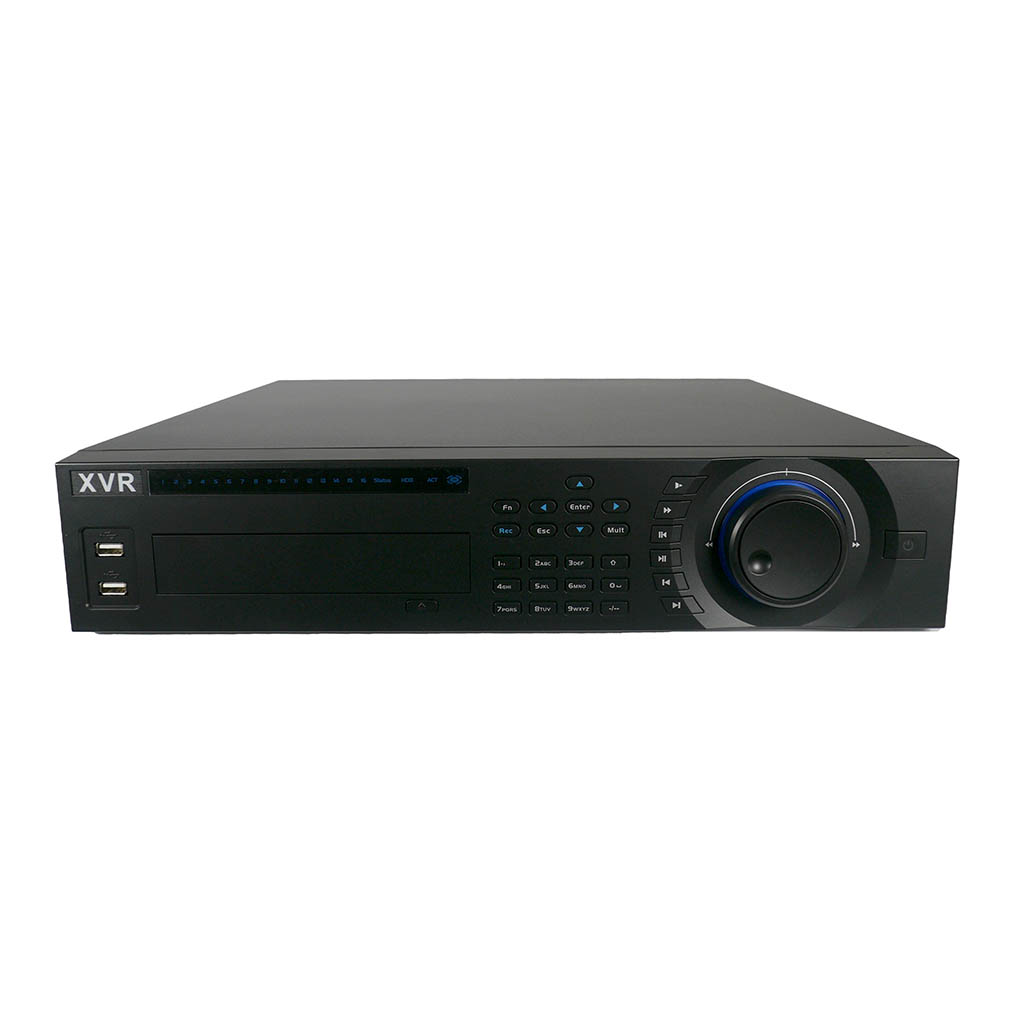

The PENDVR-EL324K-AI3 is a versatile DVR (digital Video Recorder) from our Elite series of security camera equipment. It can handle a total of 32 cameras of different types. It can use IP cameras as well as most of the coaxial based types of cameras (HD-CVI, HD-TVI, AHD and analog).


This recorder can record continuously or based on motion detection. Its Artificial Intelligence focuses on vehicular and human targets, which reduces false motion detection events. This feature works with the Smart Motion Detection (SMD) Plus feature to deliver a surprising level of accuracy. This combination of features works to categorize motion alarms and filter out unwanted targets.


You can also use the IVS feature to further increase accuracy. This allows you to draw virtual lines in the camera’s view and use them to detect motion in specific areas.


The facial recognition feature of this recorder is also upgraded. It is possible to build a database of up to 200,000 pictures of faces. The DVR will then be able perform a few actions when a person is identified. It can trigger an alarm output, push notification and even trigger a PTZ (Pan, Tilt, Zoom) camera to look at a preset point.


The AI in this DVR also allows you to schedule these features for different parts of the day. This allows you to improve the application of these features on key cameras.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 32
Number Of SATA Connections 8
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 2 HDMI, 1 VGA, 1 TV VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size 2U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Max Bandwidth 128 Mbps
Display Screen Split 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps Smart PSS,DMSS, Elite Viewer Pro
Perimeter Protection Yes
Object Detection No
Face Detection No
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
