Sold out

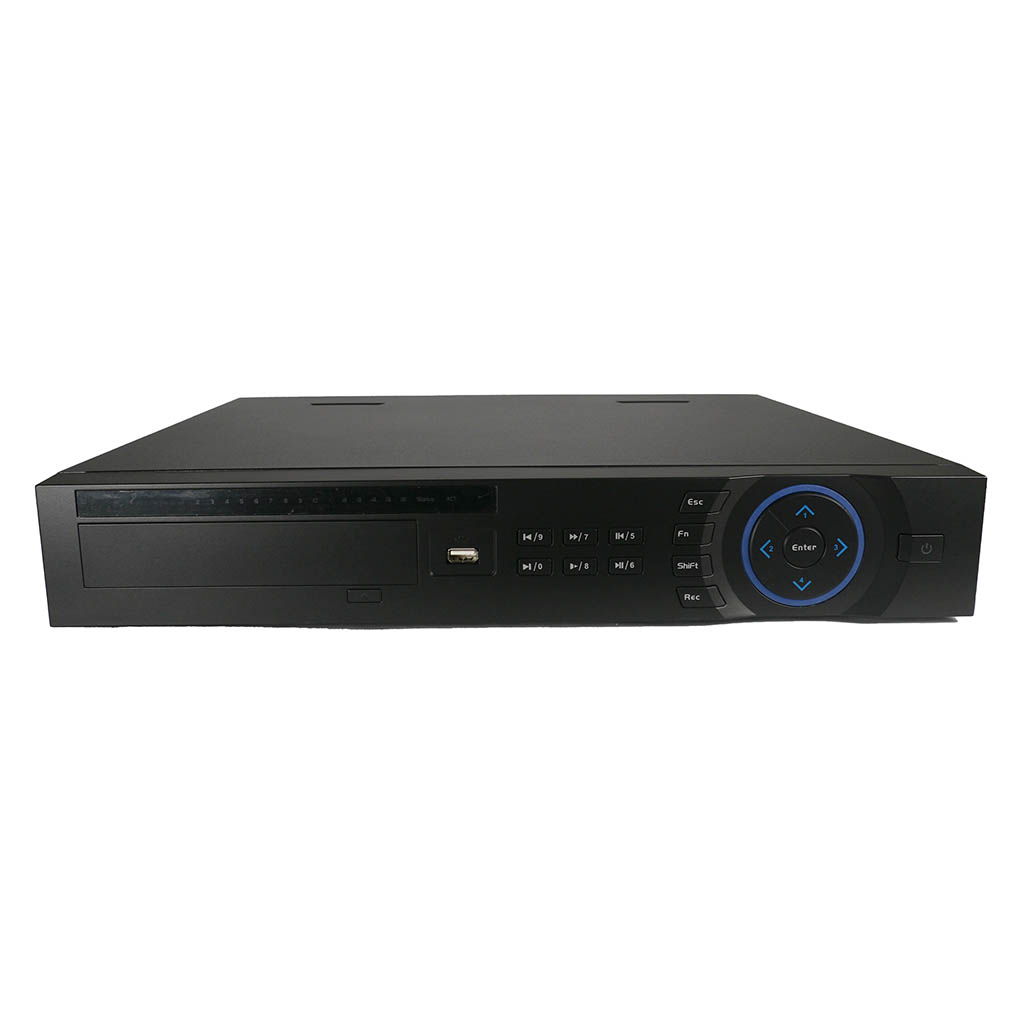

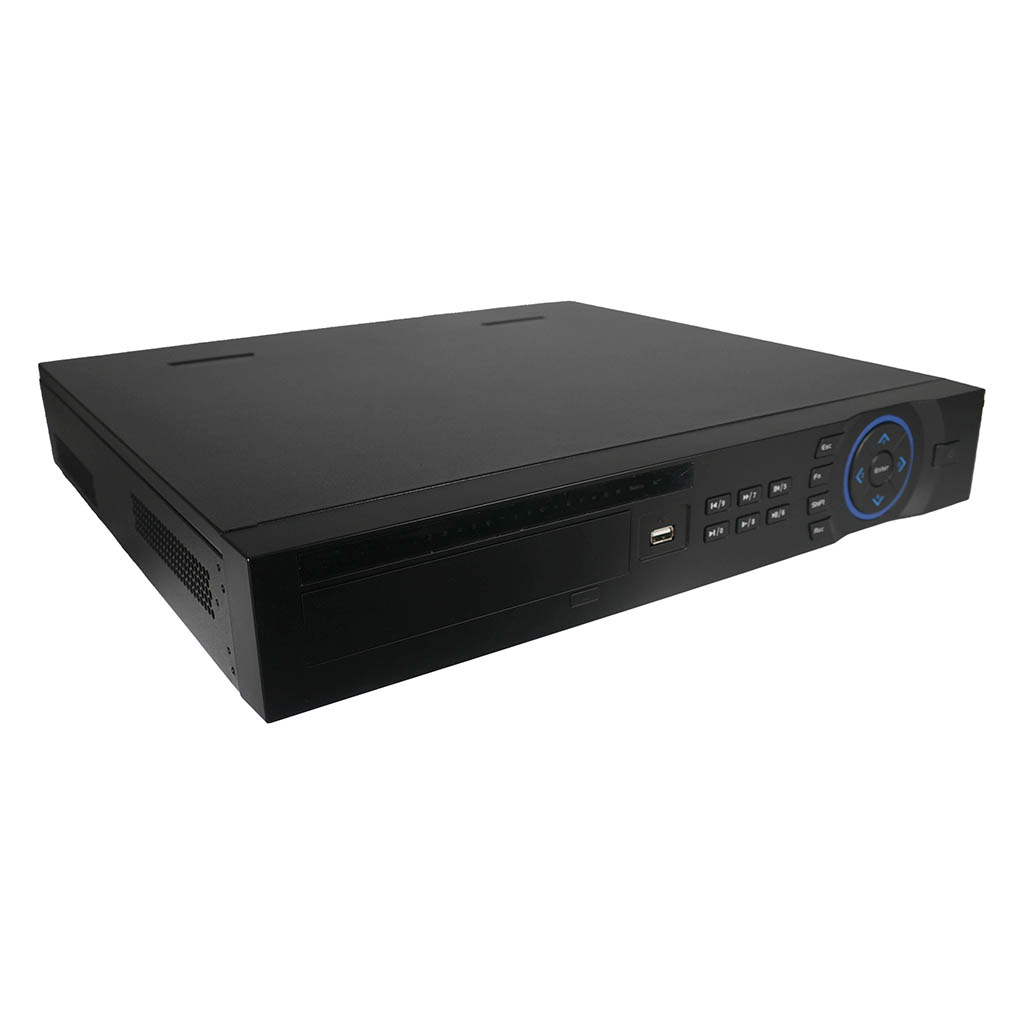

ELITE Series 32 Channel 1.5U 4K DVR

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: PENDVR-ELC324K-AI3 Categories: ,

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

Here is the newest addition to our Elite series line of professional surveillance equipment. This is a 32-channel 4K/8MP high-resolution DVR that works with both coaxial cameras and also network IP cameras, up to a whopping 4K resolution. For the coaxial cameras, this is up to 8MP resolution, and for the IP cameras, it can support up to 12MP resolution.


This DVR has many great features that the previous versions simply did not offer. These new features include but are not limited to, SMD plus, which stands for smart motion detection which involves an intelligent algorithm that can categorize targets that trigger motion detection and then filter those triggers between vehicles and human beings to deliver only the push notifications via the smartphone App to only alert you whenever there is a person or vehicle, or both, within the camera’s view, thus greatly reducing the number of false alerts. The SMD plus is available on up to all 32 channels.


The PENDVR-ELC324K-AI3 supports facial recognition on up to 6 channels at one time and has support for up to 10 databases with a maximum of 20,000 face images in total. This AI function of the DVR can be scheduled on a maximum of only one channel, however, this function can greatly enhance the use of this function and the different scenarios in which you can use it.


Then you have Perimeter protection, which improves alarm accuracy and filters out false alerts caused by leaves, animals, lights, and more. There are 4 internal hard drive bays that support up to a whopping 16TB of storage per hard drive bay, giving you the capacity to have up to 64TB of internal hard drive storage to suit various data retention requirements.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 32
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 2 HDMI, 1 VGA, 1 TV VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size 1.5U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Max Bandwidth 128 Mbps
Display Screen Split 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps Smart PSS,DMSS, Elite Viewer Pro
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
