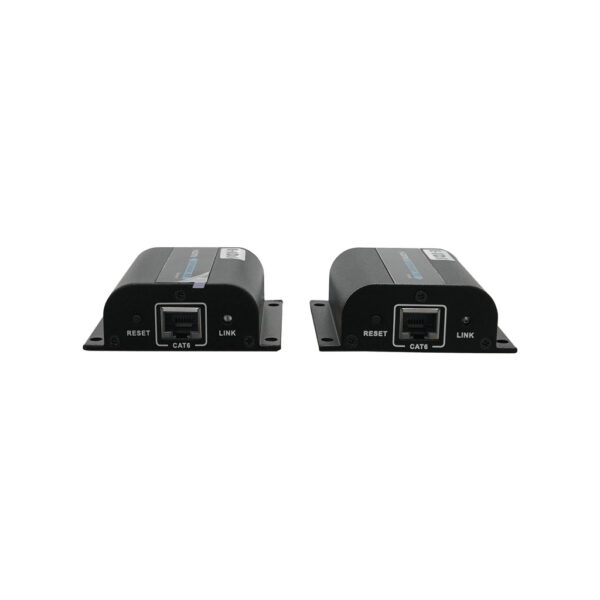

This E-SDS HDMI Network Extender converts HDMI signals to standard TCP/IP and transmits as long as 60 meters on a single cable connection over single CAT6/6a/7 Ethernet Cable. Supports 1080P, 3D, HD Audio, Deep Color and supports 20~60KHz wide frequency IR remote control.

PLEASE NOTE: This device does NOT WORK with CAT5e and must be used with CAT6/6a/7.

Cable length auto adjustment: Automatically adjusts for different cable lengths from 1-60 meters to deliver the best quality display. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
Pure Hardware Transmission: It is pure hardware design. With the IR Extension Function, you can use the signal source remote to control the source device at the receiver. Use standard HDMI Cable and Ethernet Cable.

• 1. Sender and receiver must work at the same time. Use only high quality CAT6, CAT6a or CAT7 cable with this HDMI extender.
• 2. Make sure that HDMI to RJ45 sender and RJ45 to HDMI receiver are not mixed up before installation.
• 3. Do not connect devices while they are working.
• 4. If not using factory power adapters, ensure that you are using DC5V power supply only.
