16 Channel Elite Series 4K NVR


In stock

Hard Drive – Optional

Hard Drive 2

Hard Drive 3

Hard Drive 4

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

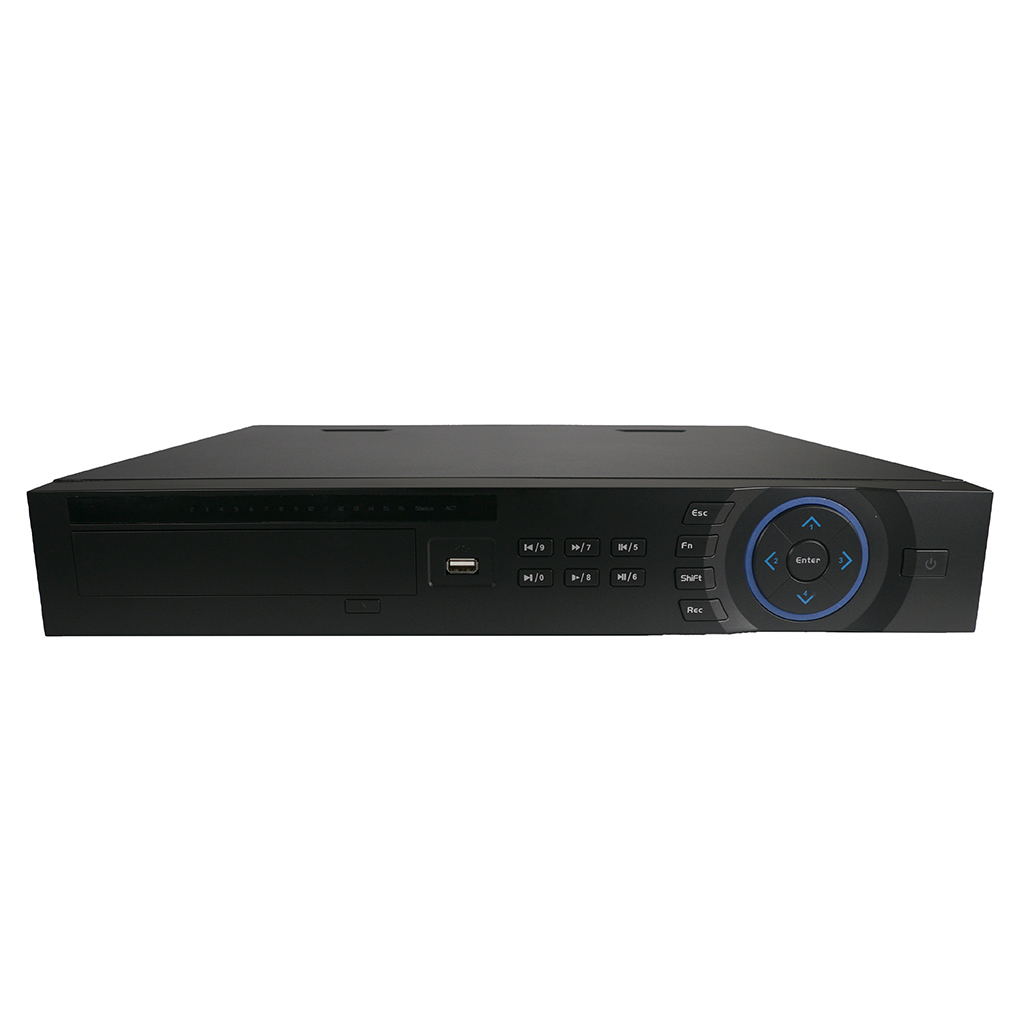

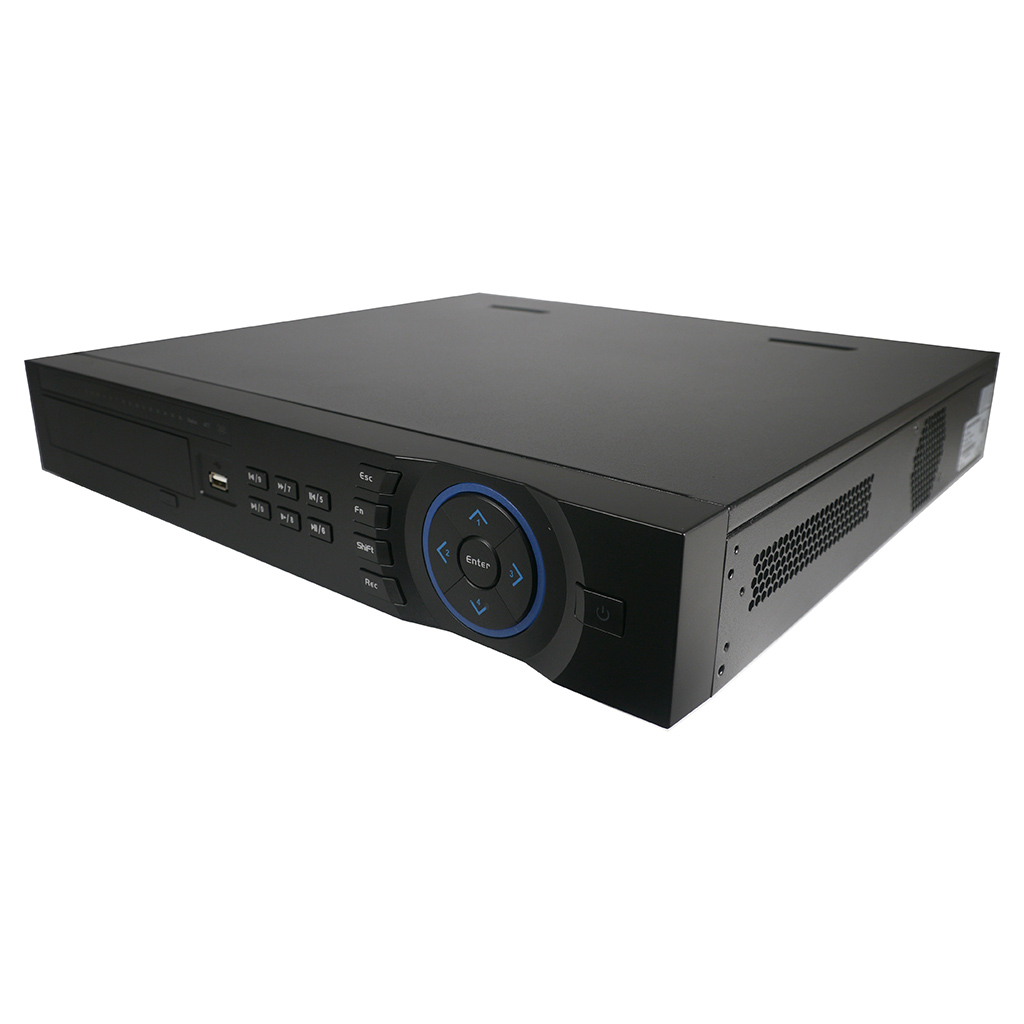

The NVR-EL16C-16W is an advanced Network Video Recorder from our Elite series of security products which can handle up to 16 cameras. Its 1.5 U case allows for up to 4 hard drives to be installed internally. It uses Artificial Intelligence (AI) to help with analysing the environment where the cameras are installed and support some advanced features fully.

Perimeter Protection uses AI to significantly improve motion detection accuracy of unwanted motion events caused by animals, rustling leaves, moving lights, etc.

The AI also allows for Automatic Number Plate Recognition (ANPR). This feature means that this NVR can work with True License Plate Recognition cameras. This drastically improves the chances of capturing a readable plate number and then it will make the plate number a searchable field in the recorded footage. The plate numbers then can be added to an allow list or block list.

The AI Search allows you to search for videos by characteristics of targets and event types. This helps to swiftly and easily investigate where and when targets appeared and events took place.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI / VGA
Video Output Resolutions: 3840×2160 , 1920×1080 , 1280×1024, 1280×720 , 1024×768
Size 1.5U
Resolutions Capable 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
Max Bandwidth 256Mbps
Display Screen Split 1/4/8/9/16
Compression of Video H.265+
Connection Apps Smart PSS, iDMSS, gDMSS
Perimeter Protection Yes
Object Detection Yes
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
