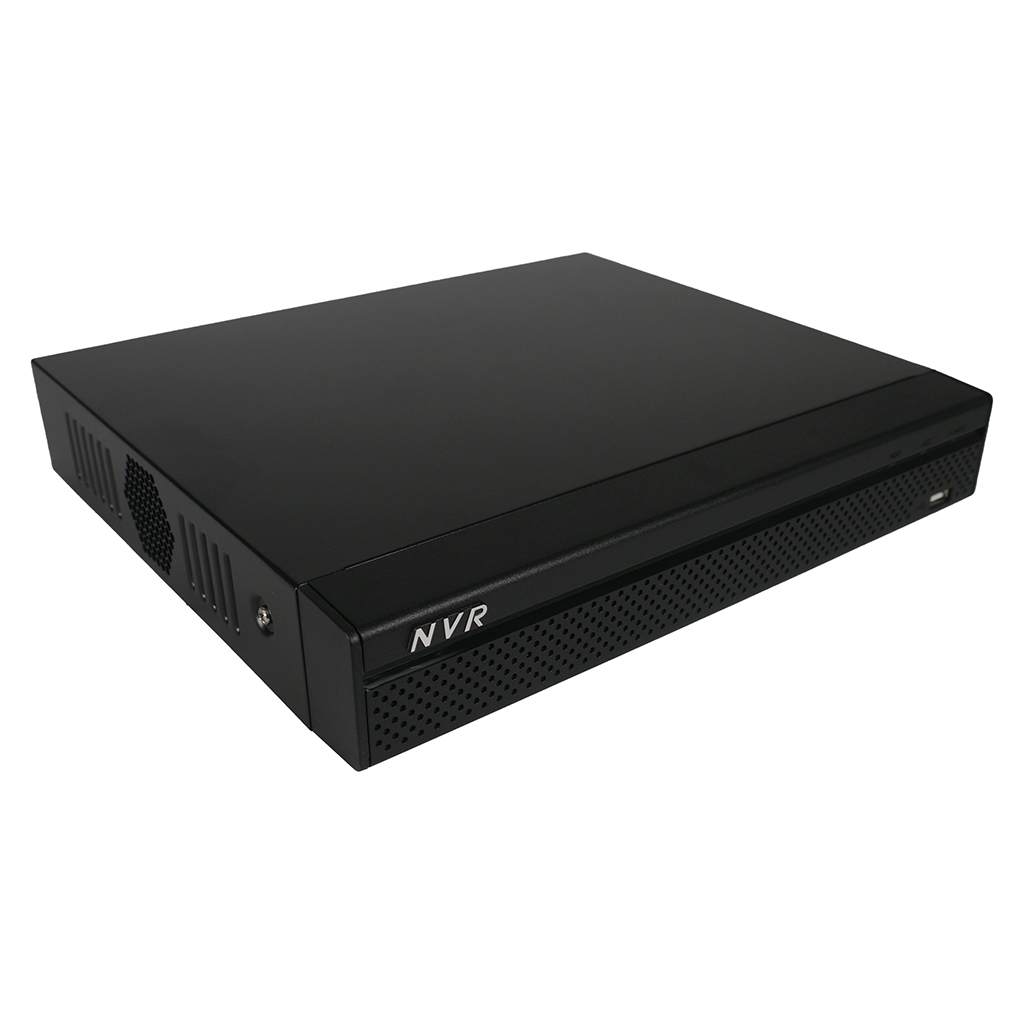

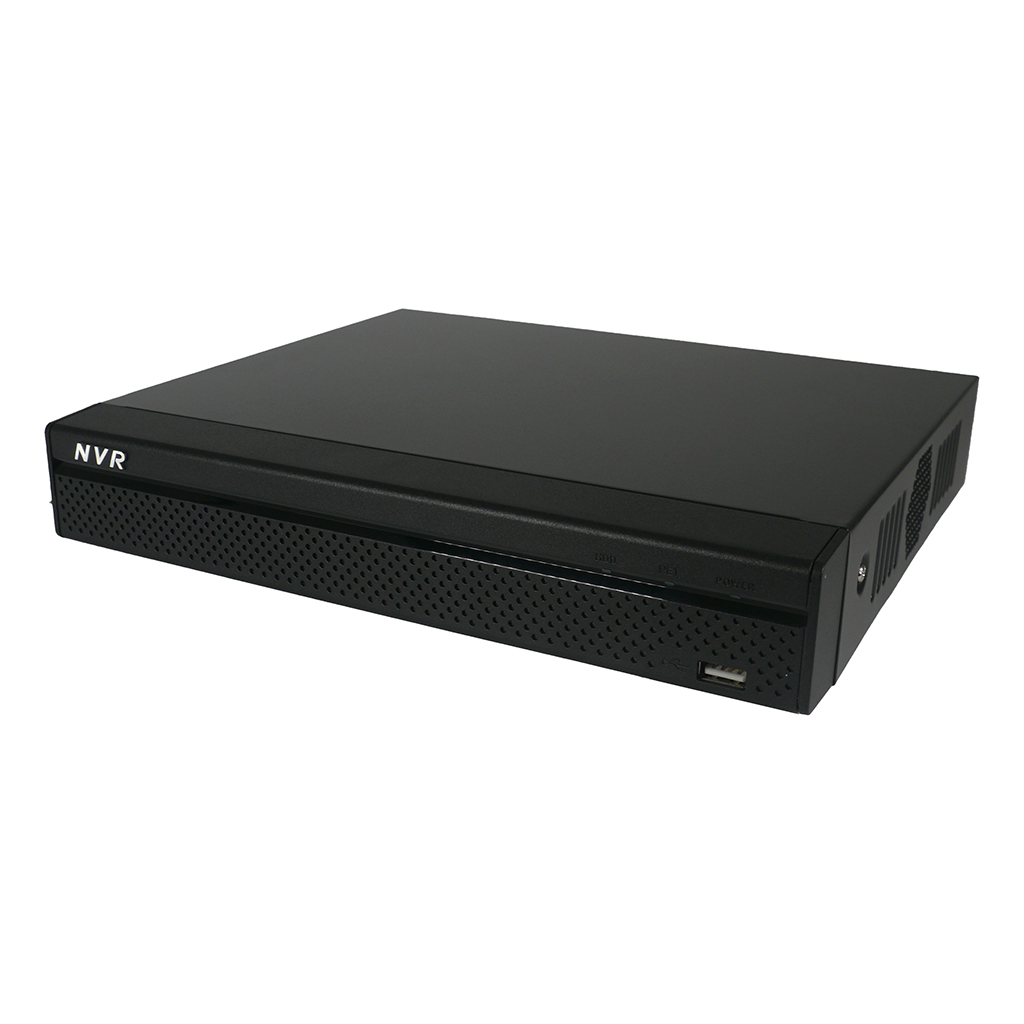

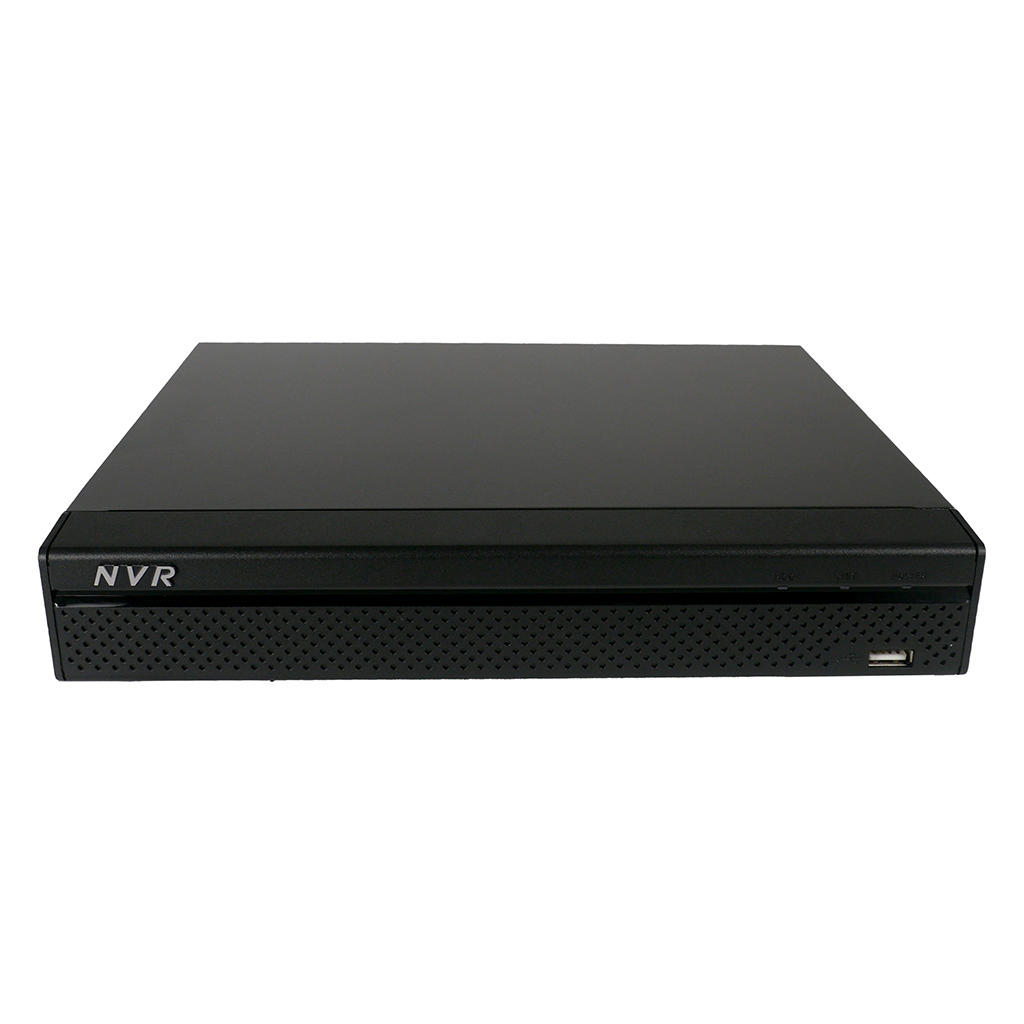

4CH Elite Series Compact 1U 4K H.265+ NVR W/ 4 Ports POE

(1 customer review)


In stock

Hard Drive – Optional

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

The NVR-ELE4ME-P4KS2 is the most recent 4-channel NVR from our Elite line of surveillance equipment. It has 4 ports of POE built into it and this simplifies the installation of this system and reduces the networking involved. You will be able to simply mount your cameras and then run a cat 5 or cat 6 from the camera directly into the back of the NVR.

This Network Video Recorder’s advanced operating system supports some of the most state-of-the-art video compression technologies available (H.264, H.265, H.265 auto switch, Smart H.264+, and Smart H.265+). This cutting-edge compression can be important with this recorder because it can use cameras with up to 8 megapixel (4K!) resolution.

SMD+ (Smart Motion Detection+) can also be utilized to reduce the amount of storage space required and the amount of data being handled. It also has a potent processor that can handle 80 Mbps. You can select up to a 10 TB drive for this NVR, which is a substantial amount of storage space.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.



PoE, or Power-over-Ethernet makes it possible to install security cameras and video surveillance equipment without traditional AC power. It permits devices to have electrical power to more places without having to install an additional electrical infrastructure or outlet at every point they are placed. The main benefit is that surveillance devices can be installed without needing a professional electrician, saving people money and simplifying the process, making security cameras more cost-effective.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 4
Number Of SATA Connections 1
Has Alarm Inputs / Outputs No

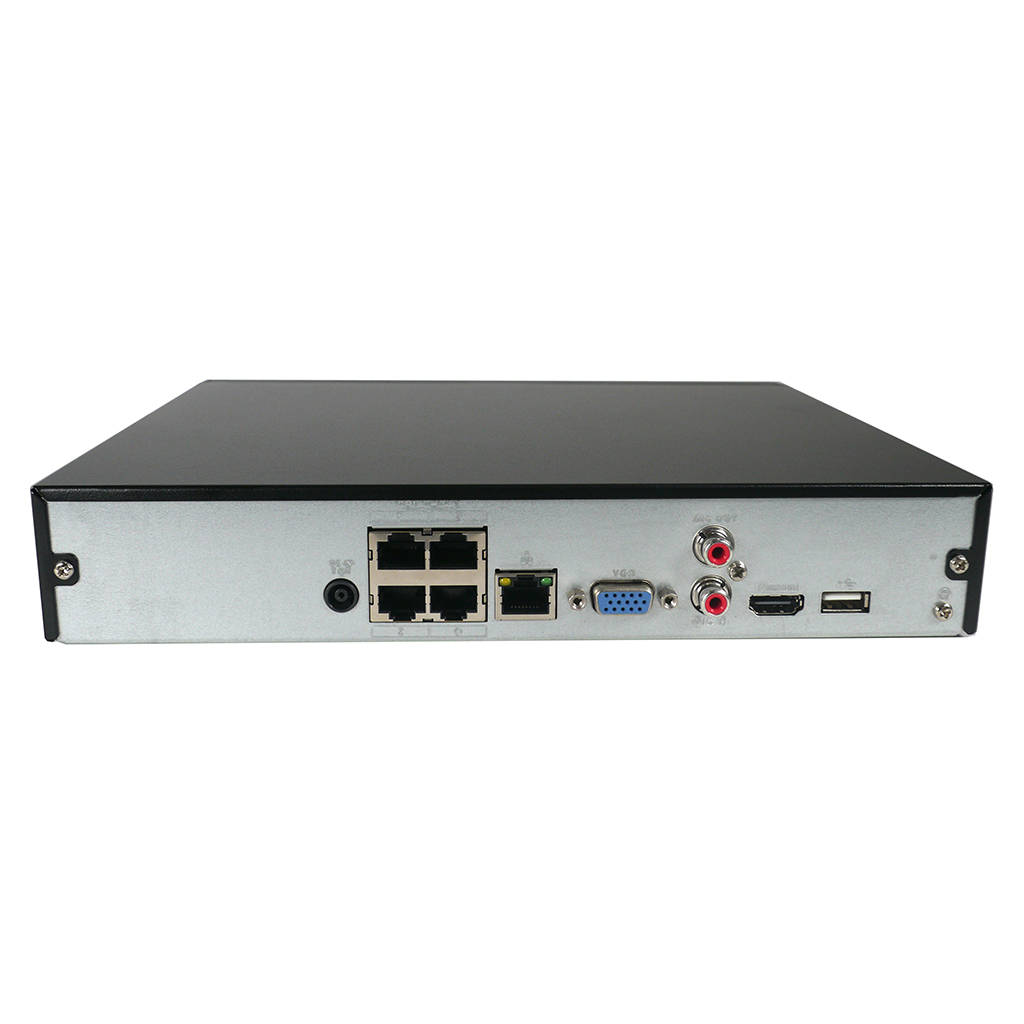

Video Output Types HDMI, VGA
Video Output Resolutions: 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Size 1U
Resolutions Capable 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 & etc.
Max Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbp
Display Screen Split 1 , 4 views
Compression of Video H.265+
Connection Apps Smart PSS, ELITE Viewer Pro , DMSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition No
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
