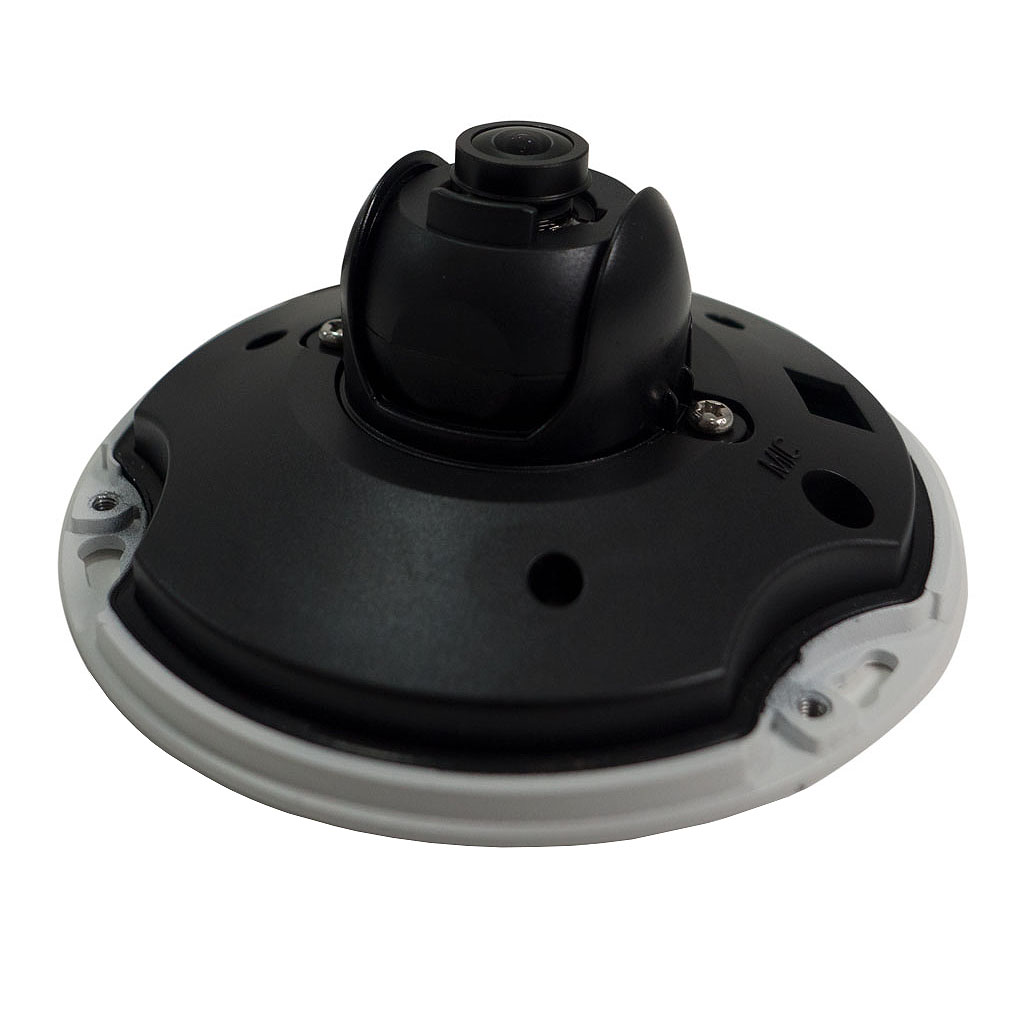

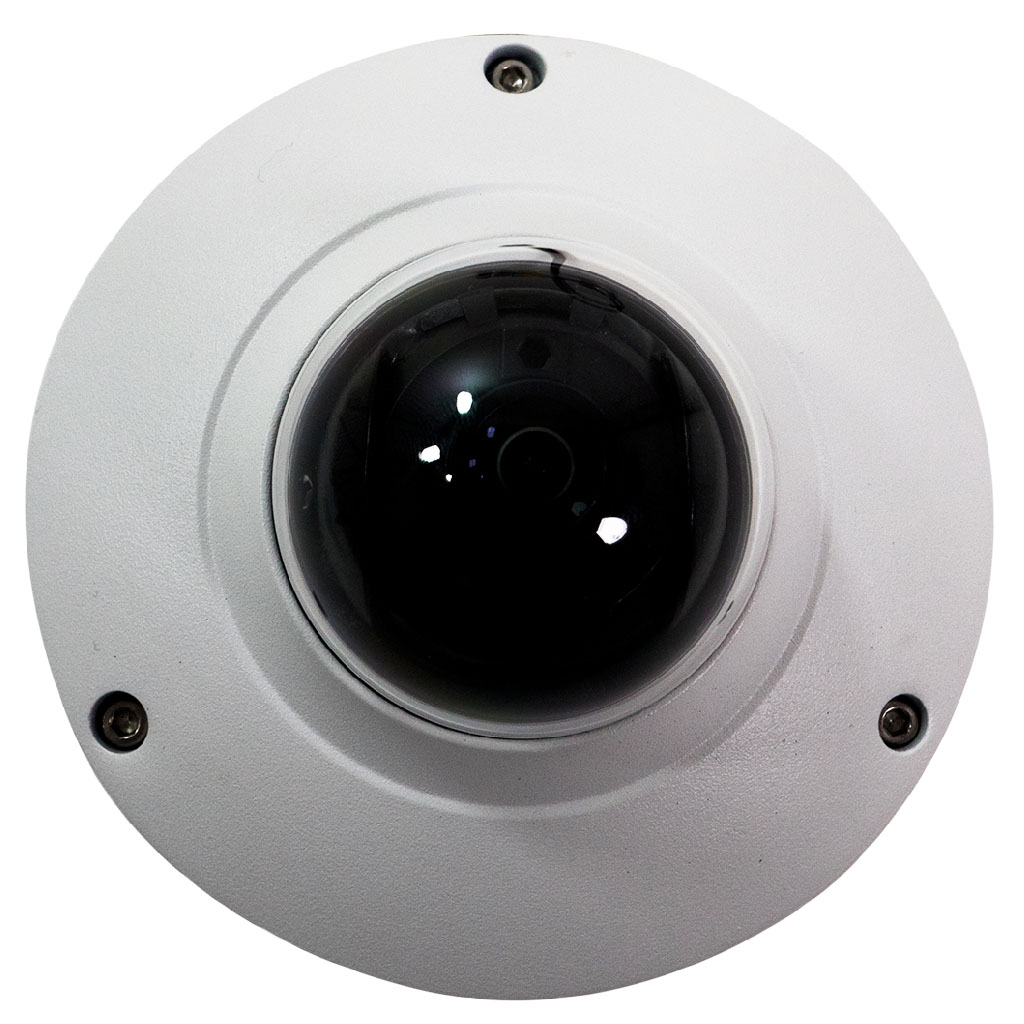

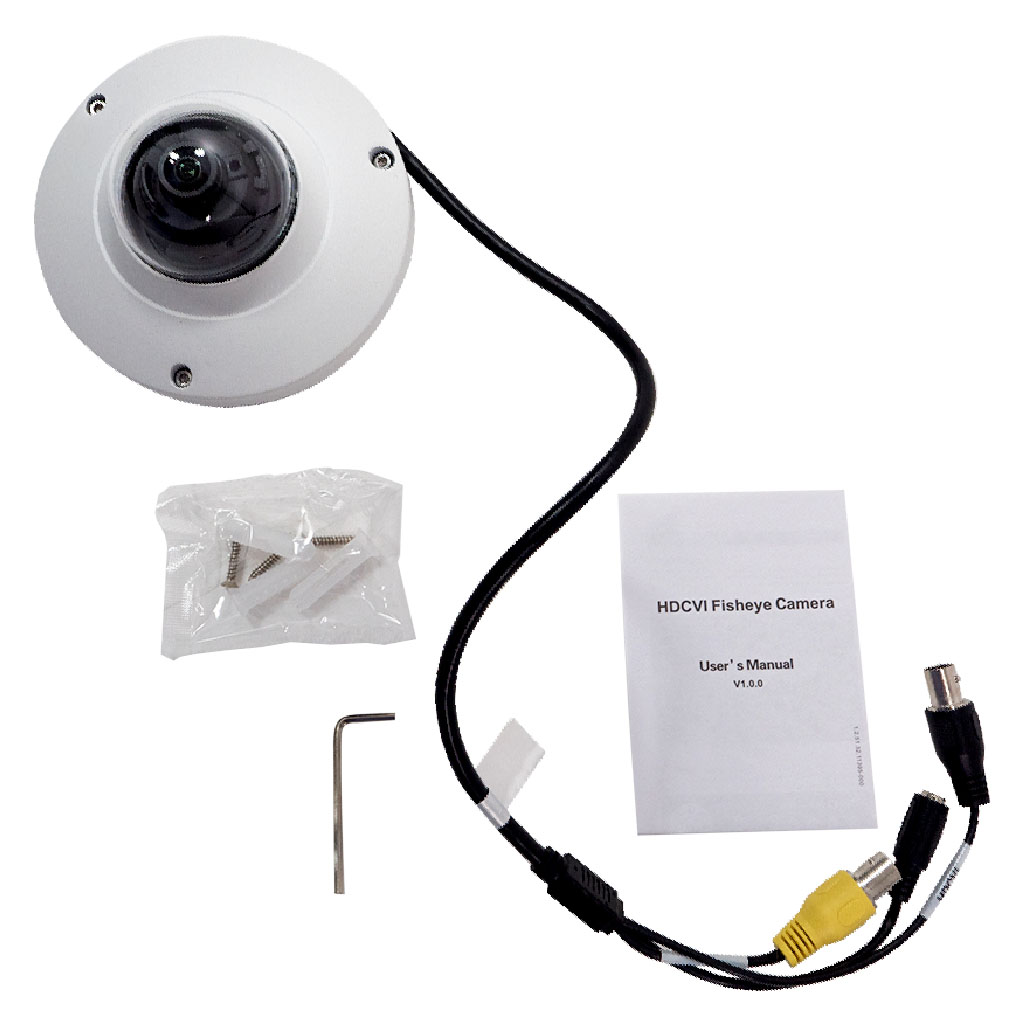

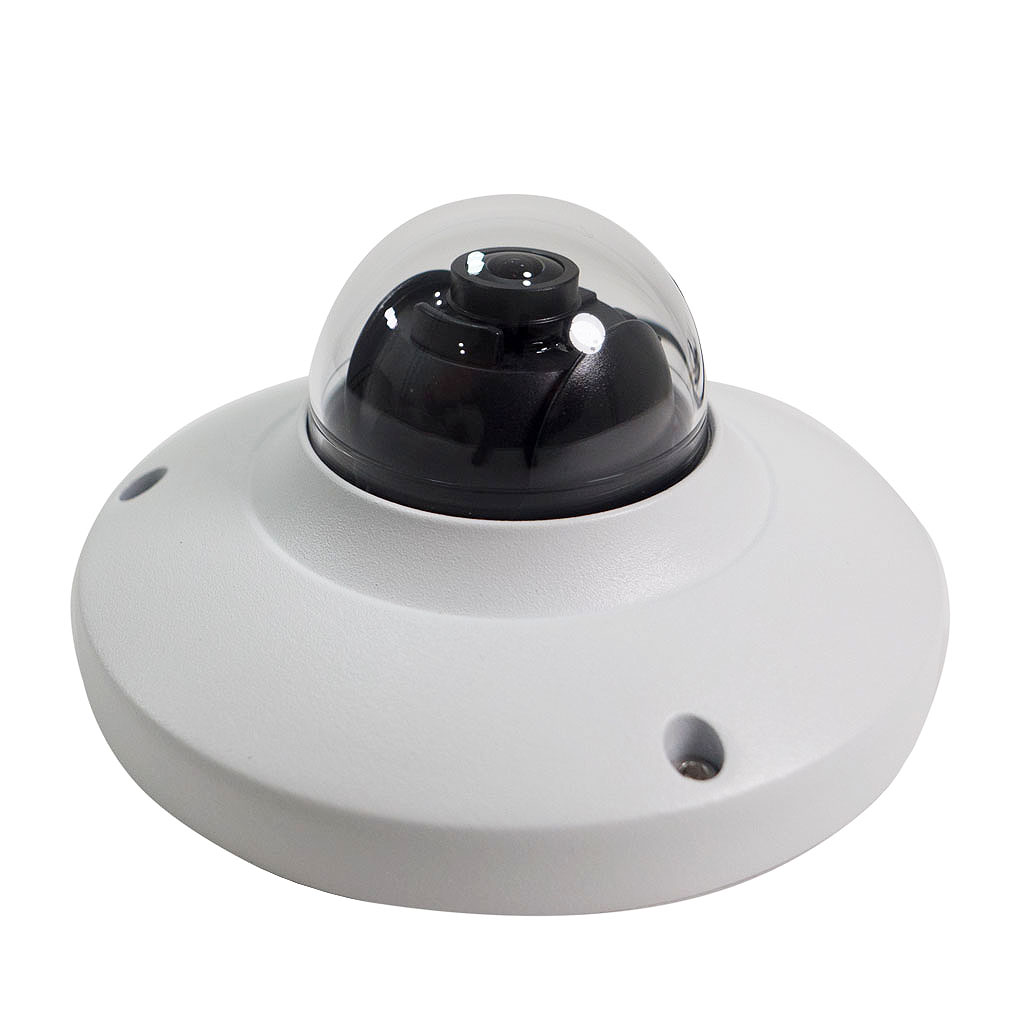

We’re constantly getting in new products and we continue to enjoy being able to make them available to you! This new Elite series Fisheye security camera operates using HD-CVI so there’s a very good chance you’ll have existing coaxial cable around from a previous installation that you can use to connect these. This camera uses the latest technology to deliver 4MP video and working together with the 1.18mm fisheye lens to give you 360° surround view (ceiling/floor mount) or 180° panoramic view (wall mount) to give you crisp, clear video coverage in large, open areas. Airports, casinos, warehouses, and anywhere that you want to see everything!

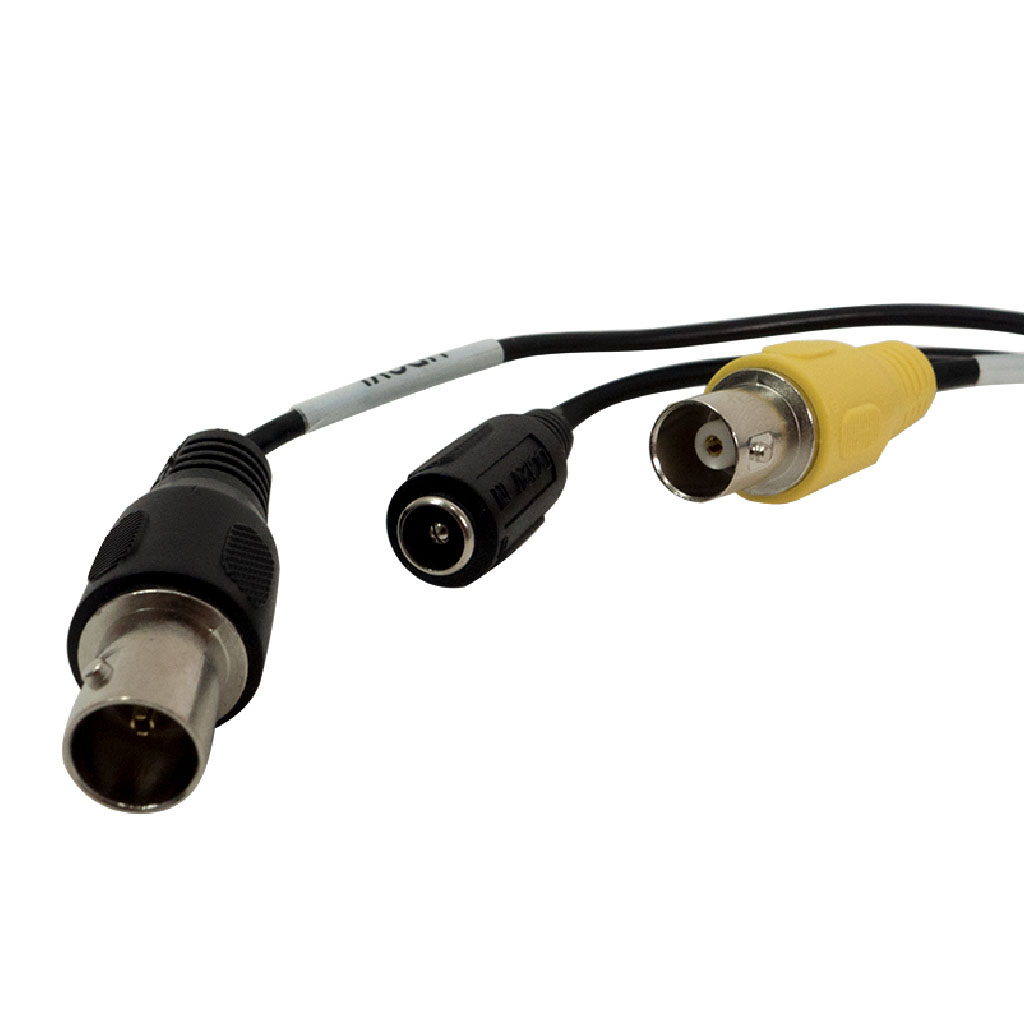

This camera can be used with any HD-CVI recorder but we know it works seamlessly with our Elite series 4MP DVRs. If ordering to use with non-4MP cameras, we will need to set these cameras to a lower megapixel before shipping these to you. The TRIDVR-EL4ME4, TRIDVR-EL8ME4 and the TRIDVR-EL16M4 will give you the best quality that you’ve come to expect from Security Camera King. For convenience sake, there’s the 1-channel BNC HD-CVI high definition video output & 1-channel BNC CVBS video output that can be used for testing and/or using it with multiple monitors.
This HDCVI 4MP vandal dome fisheye security camera is perfect for indoor and outdoor use and it’s rated IK10 vandal-proof thanks to rigorous testing. You can do everything in your power to keep the bad guys out and sometimes you need a little extra security to help that happen. This camera is literally built to take a beating! This even has a 4KV lightning rating that provides protection for the camera and its housing from the effects of lightning.
The True WDR technology ensures that bright and dark areas are equalized to give you the most vivid of video images. Thanks to the OSD (On Screen Display), you’ll have a choice of many adjustments and settings available to improve and personalize your video quality.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Free Remote Viewing Capability
All of our DVR's & NVR's have remote viewing capabilities. Free Apps & Software are for PC, Mac, iPhone, iPad, Android and Tablets
|Features||CVI Output, Fisheye Lens, True WDR, IK10 Vandal Rating|
|Lens||1.18mm Panoramic Lens|
|Image Resolutions||4MP (2560×1440)|
|Sensor Size||1/3 inch CMOS|
|Voltage||12V DC ±25%|
|Temp Range||-22°F to +140°F, Less than 90% RH|
|Dimensions||4.3in x 4.3in x 2.2in|
CVIVD-EL4F Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool Downloads: Software & Manual||Windows|
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
