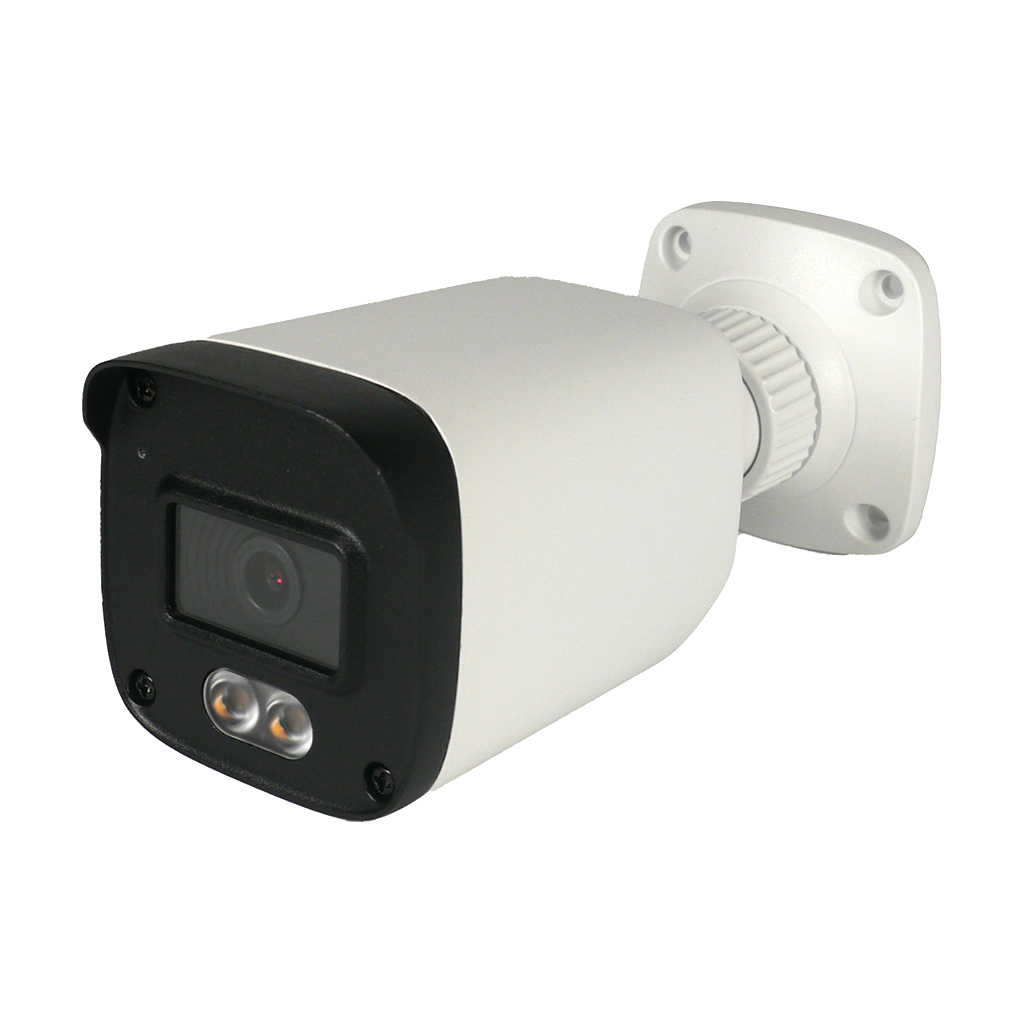

The newest addition to our coaxial lineup is a 5MP fixed-lens HD over coax bullet camera featuring high resolution and full-color technology for night and day illumination.
This camera supports AHD, HD-TVI, and HD-CVI technology, making it compatible with various DVRs that support up to 4MP or 5MP resolution. Our HDOB-SBE5IR36FA features a ½.5” CMOS progressive scan image sensor with a pixel size of up to 2560×1936, and you can achieve up to 20fps when set to 5MP or up to 30fps when set to 4MP.
This camera supports COC which is a control-over-coax feature that allows you to get into the camera’s OSD (on-screen display) to fine-tune the image for various conditions.

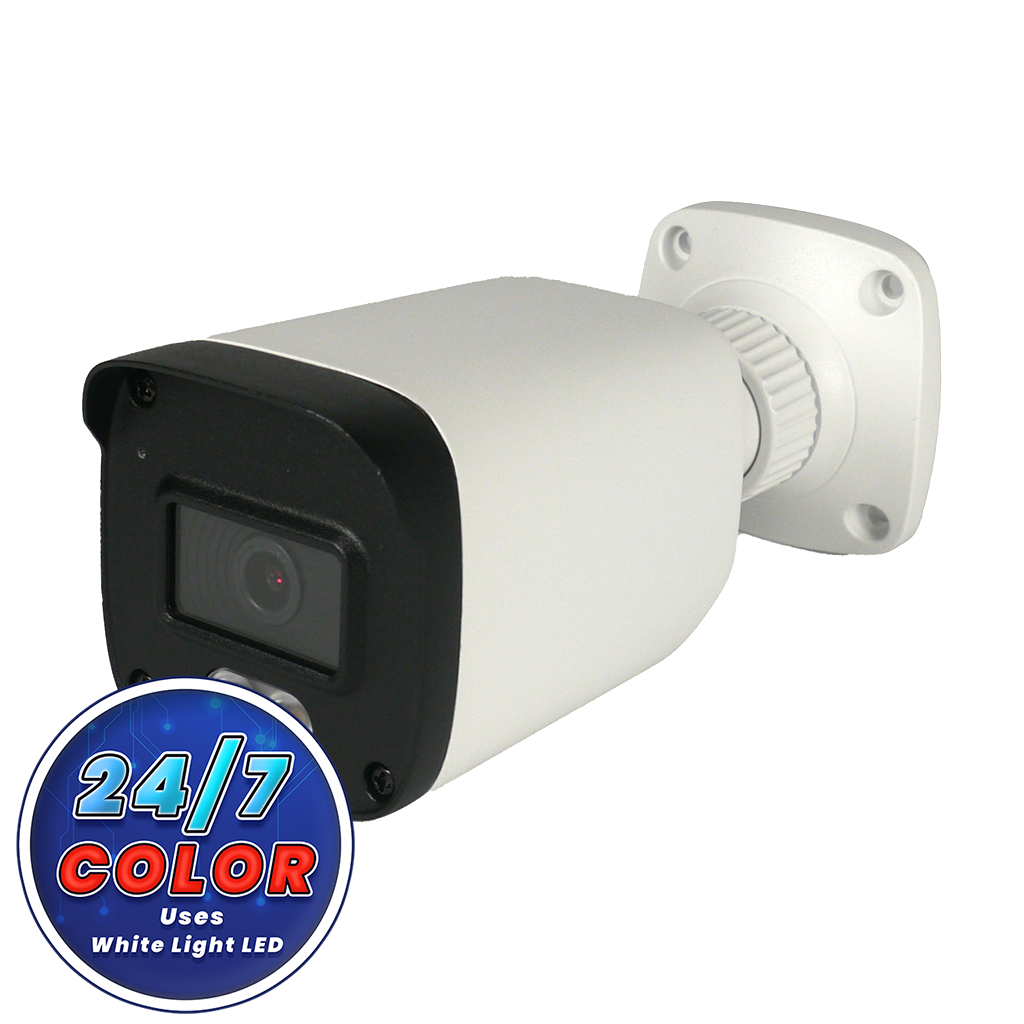

Having an ingress protection rating of IP67, you can rest assured that this bullet camera can be used indoors or outside in various environmental conditions, and thanks to the built-in LED light, this camera can see in complete darkness between 65 to 98 feet. Please note that the camera does not have IR/infrared, it is a white LED light that enables the camera to see in color at night.
Being a 12vdc camera, it consumes very little power coming in at up to 3.5 watts when the LED light is on and less than 1 watts without the LED light on. This camera is best used in environments down to -22° F and up to 122° F with relative humidity.
This product complies with the National Defense Authorization Act (NDAA)
This product comes with a 3-year warranty! FREE US-based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
NDAA Compliant
Our line of NDAA-compliant products is our newest series, designed to meet the requirements outlined by the National Defense Authorization Act (NDAA). The NDAA imposes restrictions on the utilization, procurement, or sale of specific components or brands of equipment for federal agencies. We ensure that our series of NDAA-compliant products fully adhere to these regulations.
This series encompasses a diverse range of advanced technologies and analytics, offering a comprehensive lineup of products to cater to your needs. Whether you are purchasing a new system or expanding your existing setup, we highly recommend considering our NDAA-compliant product series. It not only aligns with the latest federal requirements but also represents the future of our security camera lineup. Additionally, our NDAA-compliant product series is competitively priced, comparable to our other product lines, and often offers even more cost-effective options.
Weather Resistant
Remote Viewing Apps
The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.
| Features | 5MP Resolution | AHD / TVI / CVI | Supports OSD menu | Smart LED | 24/7 Color with White LED |
| Lens | 3.6 MM |
| Megapixel | 5MP |
| Image Resolutions | 5MP (2560 x 1936) |
| Sensor Size | 1 / 2.5 CMOS |
| IR Distance | 98' FT |
| Weather Protection | IP67 |
| Voltage | 12V DC ±10% |
| Temp Range | -22°F ~ +122°F / 10% ~ 90% RH |
| Dimensions | 6.52in×2.71in×2.71in |
| Weight | Approx. 0.81 lb |
| Audio | None |
| SD Card Compatible | No |
| Perimeter Protection | No |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | No |
Downloads
Document Downloads
 | Product Specifications | Detailed Feature List and Product Specifications |
 | Product Manual | Original Product Manuals |
