DX Heavy Duty 2200lbs ANSI Door Strike w/ Signal (FSE & FSA)

(1 customer review)


In stock

SKU: ACDS-DXP2200HD-S Categories: ,

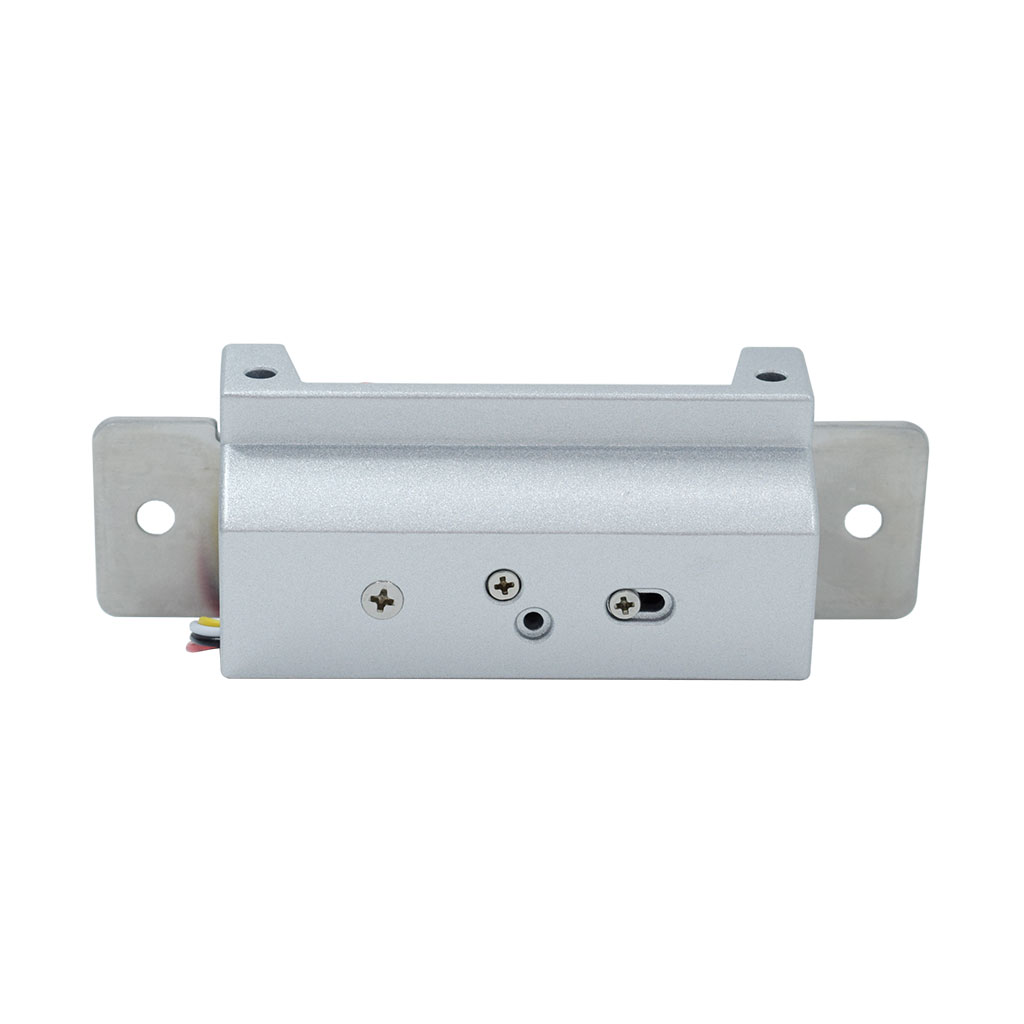

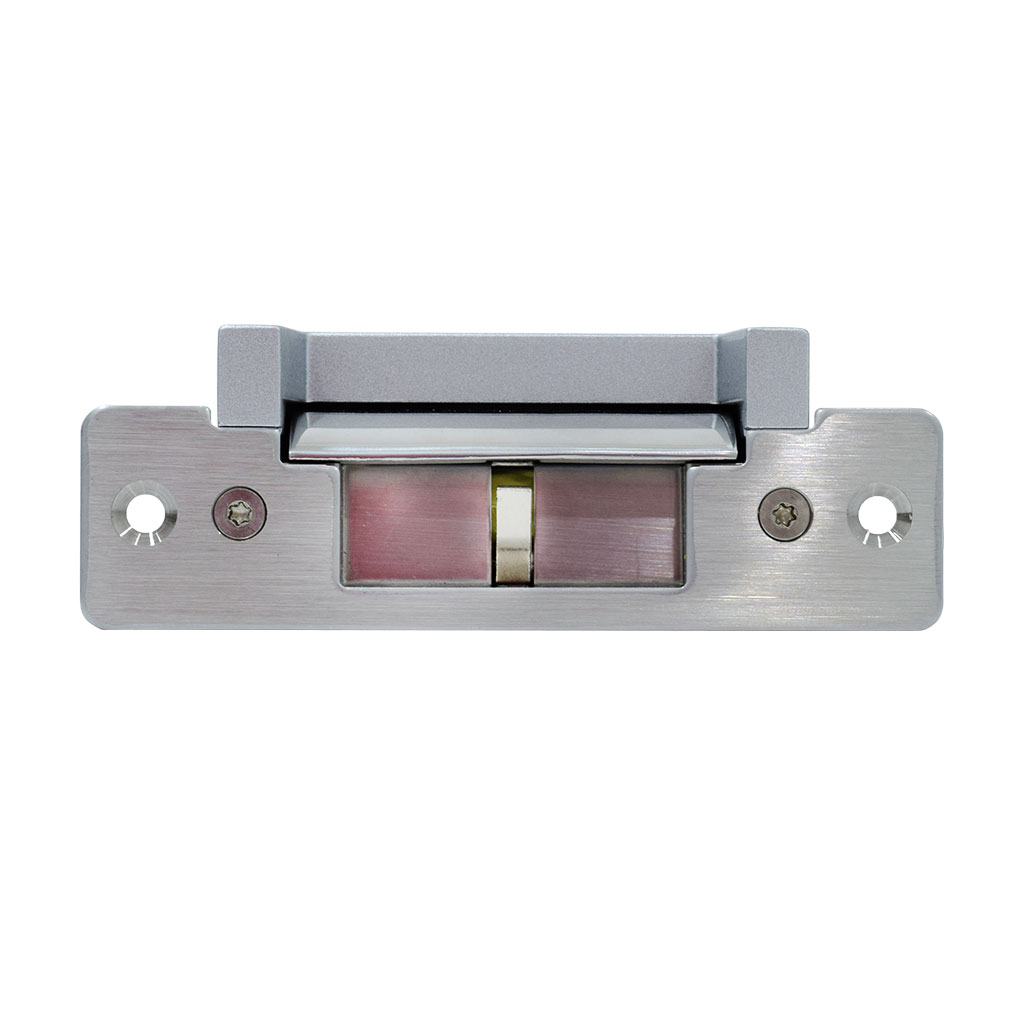

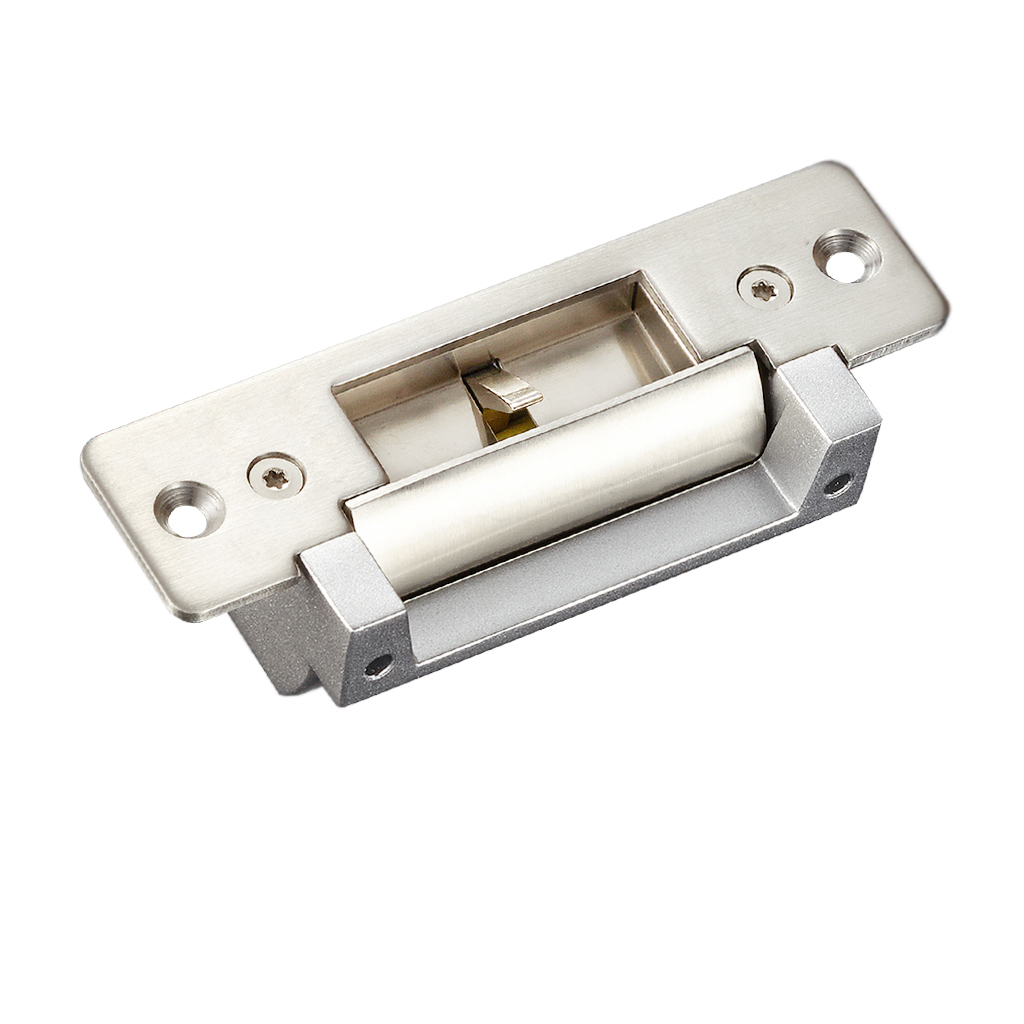

The ACDS-DXP2200HD-S is one of our latest access control electronic door strikes. This is so versatile in part because it can be changed from fail-safe to fail-secure very easily by simply unscrewing a couple of screws. Fail-safe means that the door strike releases when the power is interrupted and fail-secure means that the door is locked when there is no power. This stainless steel strike is ANSI certified and is capable of holding 1000kg. Connects to your access control board or standalone reader and uses a standard 12V DC power supply.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!


Model ACDS-DXP2200HD-S
Lock Size (LxWxH) 124 x 43.7 x 35 (mm)
Holding Strength 1000kg
Strike Structure Stainless Steel
Voltage 12VDC
Current 320mA
Feature Fail-secure / Fail-safe (adjustable)
Face Plate Housing Painted Steel
Function Built-out MOV
Suitable For Wooden Door, Metal Door, PVC Door
Weight 0.455kg

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
