DX Series 1200lb Magnetic Lock With Delay and Door Sensor

(1 customer review)


In stock

SKU: ACML-DX1200ST Categories: ,

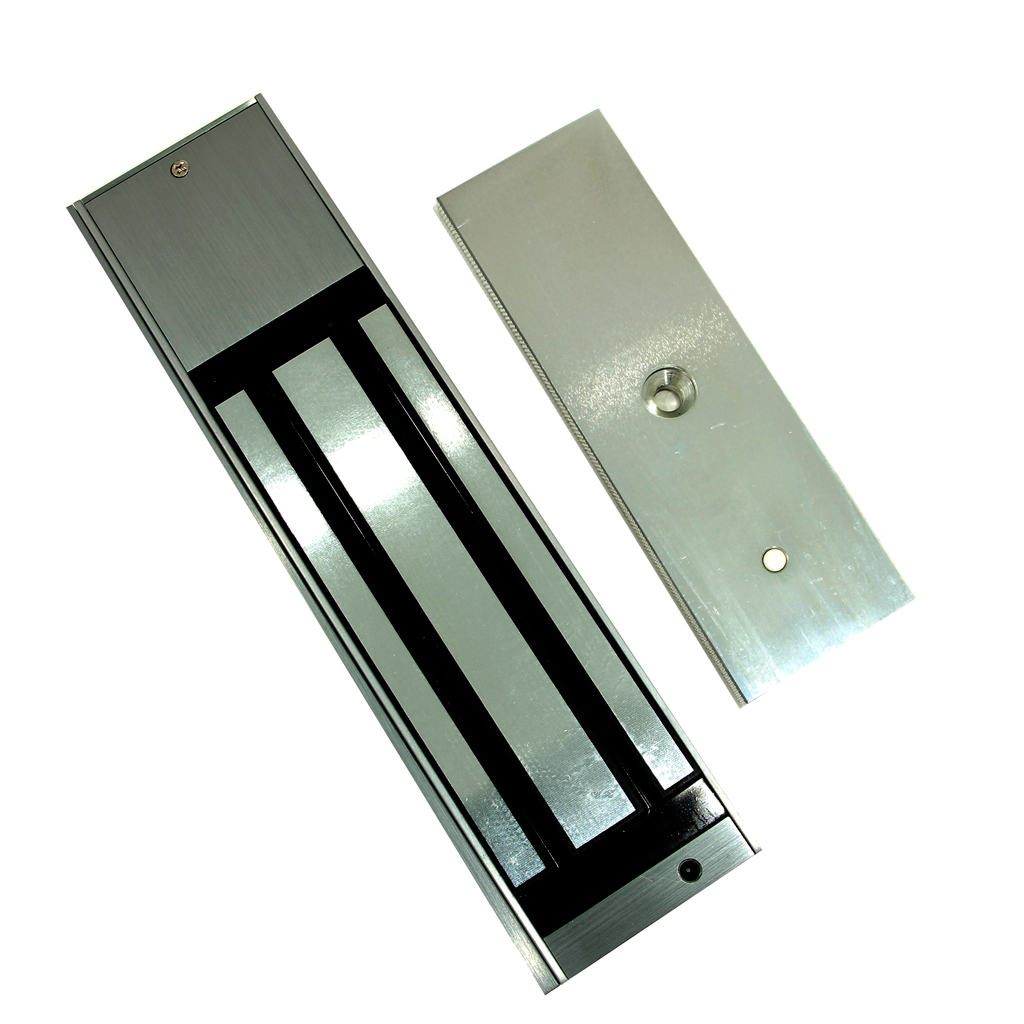

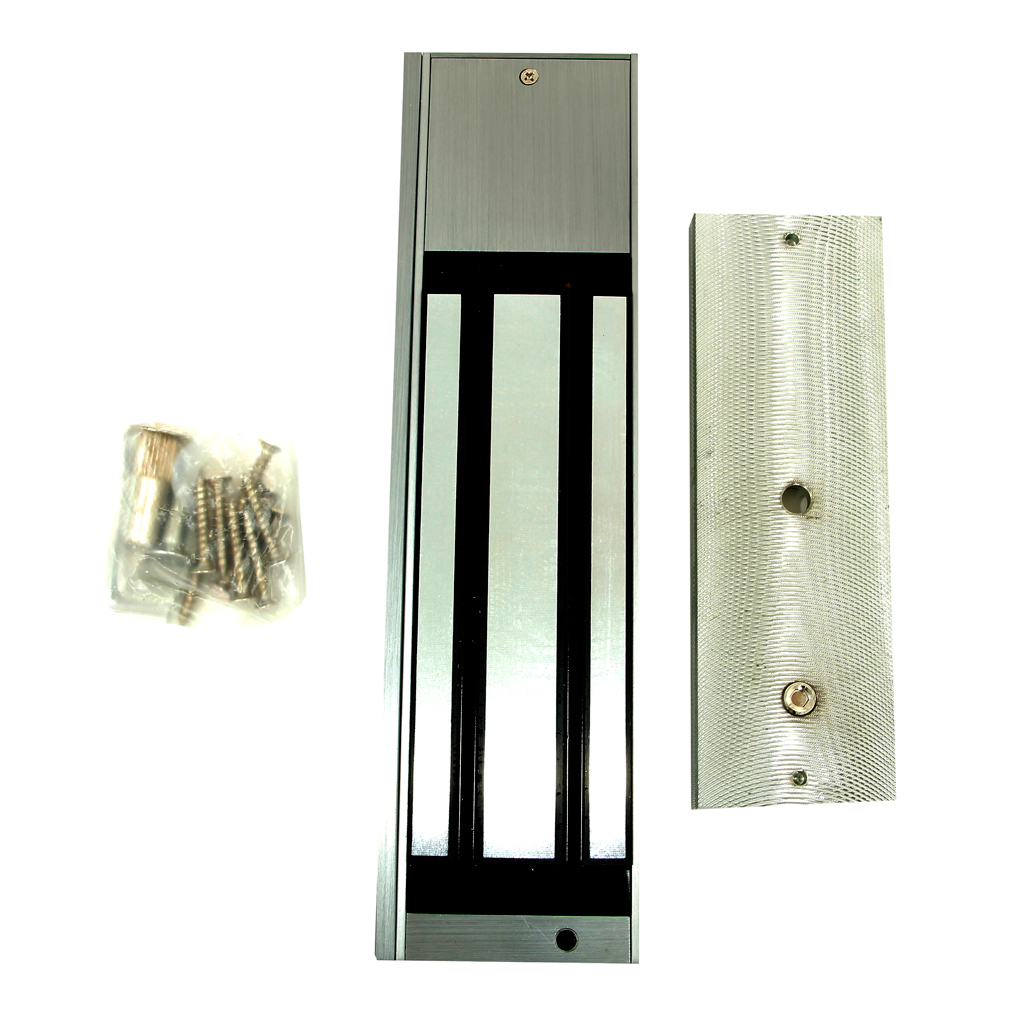

The ACML-DX1200ST is an Electromagnetic Lock with a holding force of 1,200 pounds. Magnetic locks are a great for doors that do not have to stay locked when the power goes out. In some areas, Fire Code mandates that doors need to be Fail-safe. MagLocks are always Fail-safe as they need power in order to stay locked. When the power goes off or when a fire alarm is in effect, then the lock will release. This Electromagnetic Lock comes with a timer delay setting and will signal the access control panel when the door is open and closed. You can power this lock with either 12v DC or 24v AC.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!
Model ACML-DX1200ST
Lock Size (LxWxH) 266 x 67 x 39 (mm)
Armature Plate (LxWxH) 185 x 57 x 13 (mm)
Holding Force 600kg(1200Lbs)
Voltage DC12V or DC24V
Current Draw 12V/500mA 24V/250mA
LED Indicator Green is Locked, Red is Unlocked
Time 0/3/6/9 sec
Weight 4.7kg
