DX Series four Door TCP/IP Web Server Controller

(1 customer review)

$143.00

In stock

SKU: ACP-DXEL4 Categories: ,

Recommended Accessories

DX Series Expansion Alarm & Fire Control Board for AC Boards
SKU: ACE-DXFCBOARD
DX Series Expansion Alarm & Fire Control Board for AC Boards
$46.80
SKU: AC-PWDIST-UL
12V DC 10amp Power Supply, UL, 5 Outputs, w/Fire Alarm Interface
$499.58
Description

Description

Description

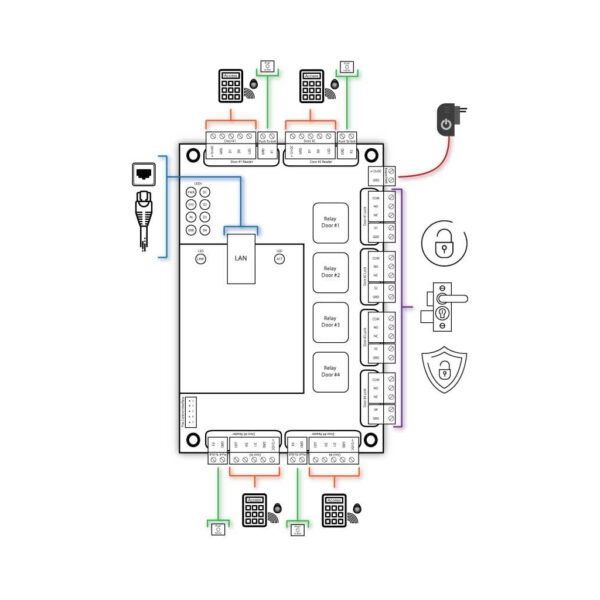

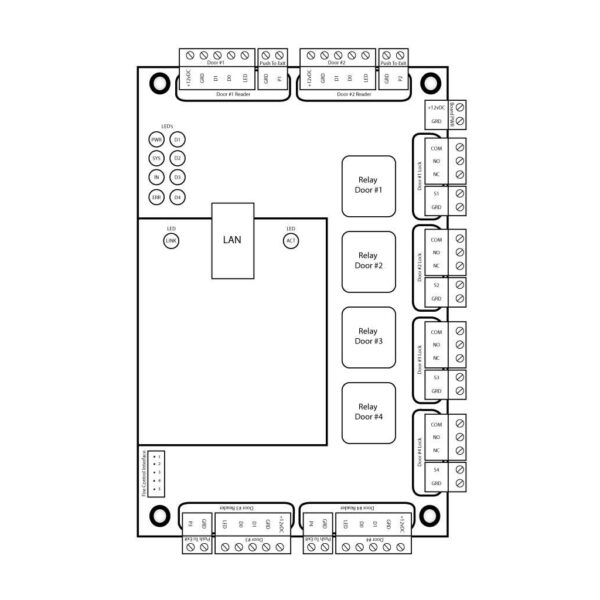

The ACP-DXEL4 is a 4-door Access Control Board. You can now have complete control over four doors at a cost-effective price. With this board, you can hook up 1 reader per door totaling 4 readers.

The access control panel also can connect to your locking mechanisms (Electronic Door Strikes and Electromagnetic Locks) as well as alarms and door sensors.

Accessing this 4-door access control board is a breeze. It has an RJ45 port that you just plug an Ethernet cable into. The other side of the Ethernet cable would plug into your network. Any PC that is on that network can see the board using our free DX Access Control Software. With this software you can register users, control access times, configure settings and more.

The best part of our DX Series of Access Control Boards is the ability to connect several to many boards together. As long as you connect an additional board to the same network as your original board, our DX Access Control Software can control those boards. As an example, if you needed to control 6 doors on the same network, then all you would need to do is get this 4-door DX control board and get an additional 2-door DX control board and make sure they are both on the same network. Now, using the free DX Series Access Control Software you will be able to see all 6 doors. The multi-door access control possibilities are endless.

For this 4-door access control board you will need a 12v DC power supply. To make it easy, if you want one already wired to the board in a control box, then check out our 4 Door DX Series Access Control Package.

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Specifications
Unit Size 218mm *106mm
Unit Packing Way Brown box
Unit Packing Size 24×13.5×137.5px
Accessories User Manual, warranty card
Function Introduction
Conventional Function off-line operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time enclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and police station: interface locking; intimidation alarm; integrated fire control;anti-pass-back and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
all-in-one-card management system normal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; Online patrol management system and security alarm management system.
Parameter
Communication TCP/IP 10M/100M adaptive
English Software supportable database: Access and SQL
Description Control 4 doors, get in the door by swiping card, and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 4
Door opening time extending setting 1-600 seconds(adjustable)
Max qty of controller No limit
Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports
Operation Temperature minus 40°C-70°C
Operation Humidity 10-90 % RH , No Condensation
qty of users 20,000 Users
qty of Event Buffers(off-line) 100,000 event buffers
Power interruption protection measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less
RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
TCP/IP: Depends on net coverage area
Collocations PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for long time door open, legal break in, intimidate Yes
Compulsive open and close door at long time Yes
Open door in remote distance Yes
Inter block Yes
Anti pass back and tail Yes
Multi-card open door Yes
Open long time at specified time Yes
Electronic map Yes
Urgency locking Yes
First card unlocking Yes
Unlock based on internal and external validation Yes
Keypad (card+password, supper password) Yes
Remote Administration No
