Number of Cameras
Number Of HDD
Max Recorder Resolution

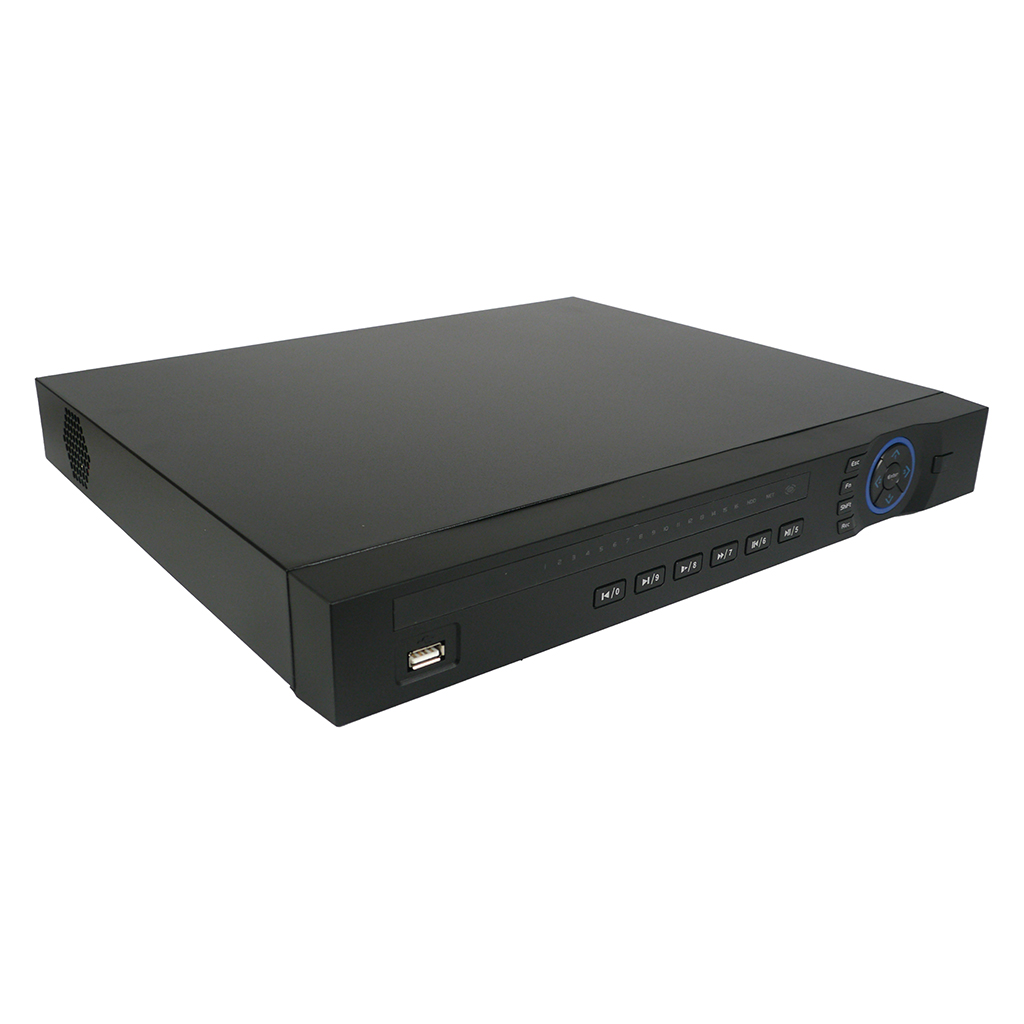

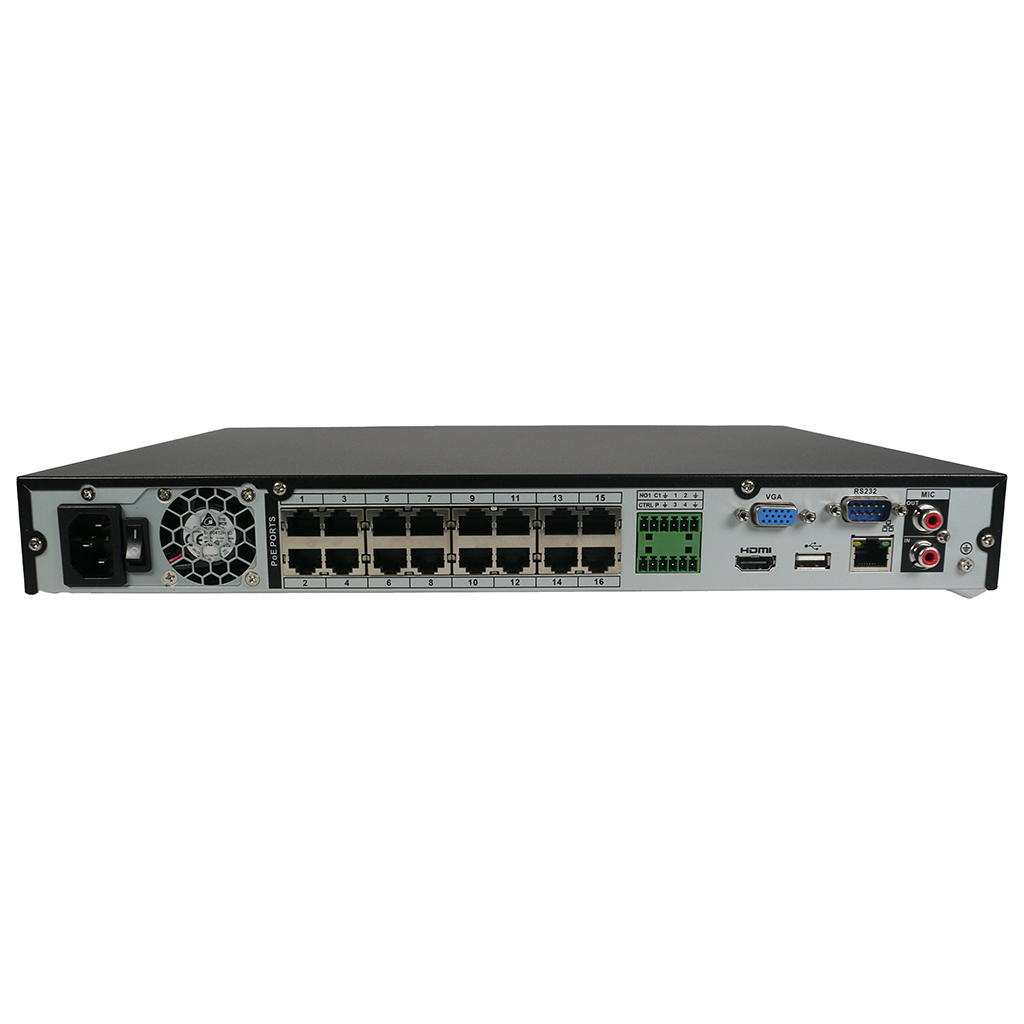

This is our new 16 Channel Ultra HD AI-Powered NVR from our Elite line of products. With this amazing security recorder, you can record 16 IP cameras at up to 8MP per camera. This new NVR has 16 PoE+ ports embedded right into the recorder; you won’t need to worry about separate switches since you can simply plug your IP cameras into the back of your NVR. In business and residential applications, it is essential that you have high definition video in case you are ever the victim of a crime. Whether you’re viewing in 4K or zooming in digitally to your recorded video, details can be the difference in police being able to successfully identify a criminal or prove a crime beyond a reasonable doubt.

This NVR is capable of working with IVS (Intelligent Video System) enabled IP cameras and will recognize and record video that contains IVS data on all channels. Not only does it record standard at-the-edge features but it’s capable of working with advanced features like abandoned or missing object detection, Tripwire violations, and intrusion violations. When paired with IP cameras with built-in Intelligent Business Analytics, the NVR can record business analysis data like Facial Detection, People Counting, and Heat Map.

On top of standard IVS, the NVR-ELE16M-16P4KV2 is also compatible with our AI enabled cameras to manage camera-supported features like face detection and Smart Motion Detection+.  Deep learning algorithms are trained to ensure high quality tracking and optimization to provide clear, accurate and relevant snapshot stills and video clips of facial detection events on supported cameras. SMD+ allows users to drastically reduce false positive motion alarms by setting region detection rules (line cross, region entry/exit etc) on top of AI-powered target analysis using AI to determine whether people or vehicles are in the relevant scene before triggering a recording event. Users afterwards have a set of filters they can use to more efficiently review recordings to find the exact clips they need without relying on hours of footage review.

High efficiency video coding at H.265 is the video compression standard that offers double the standard data compression ratio while delivering the same video quality. This midsize 1U NVR can hold up to 2 hard drives up to 10TB each and when you use the drop down menu up above to purchase them along with your NVR, we will install, configure and test them before we send them off to you. This is just another way that Security Camera King makes things easier for you! With 2 USB ports, you’ll also have the ability to plug in a flash drive and copy and share smaller amounts of footage as needed.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.



PoE, or Power-over-Ethernet makes it possible to install security cameras and video surveillance equipment without traditional AC power. It permits devices to have electrical power to more places without having to install an additional electrical infrastructure or outlet at every point they are placed. The main benefit is that surveillance devices can be installed without needing a professional electrician, saving people money and simplifying the process, making security cameras more cost-effective.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 2
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 8MP(3840×2160), 2MP(1920×1080), 1.3MP(1280×1024), 1MP(1280×720)
Size 1U
Resolutions Capable 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
Max Bandwidth 160 Mbps
Display Screen Split 1/4/8/9/16
Compression of Video H.265
Connection Apps ELITE Viewer Pro | Smart PSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition No
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
