Elite 16CH 4K NVR with 16POE (8 EPOE)


In stock

Hard Drive – Optional

Hard Drive 2

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
32 MP
Max Recorder Resolution

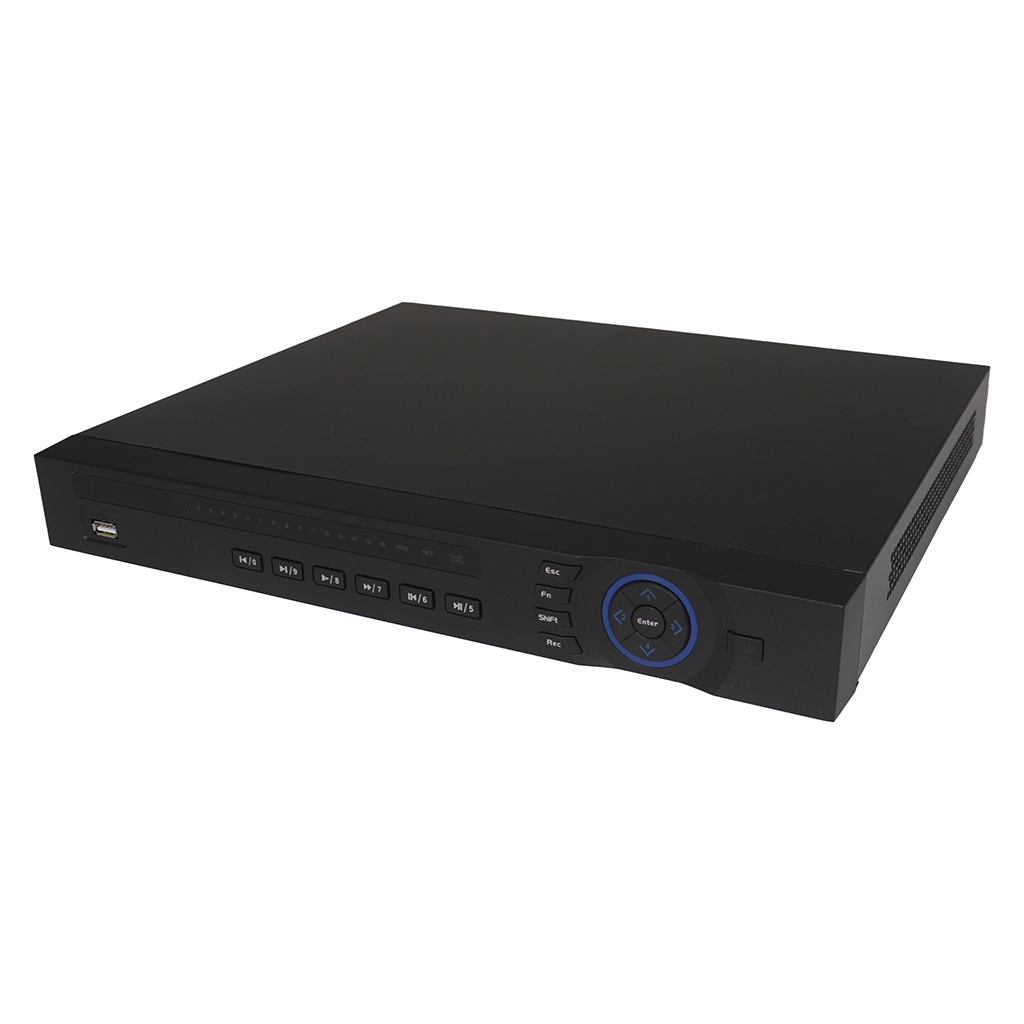

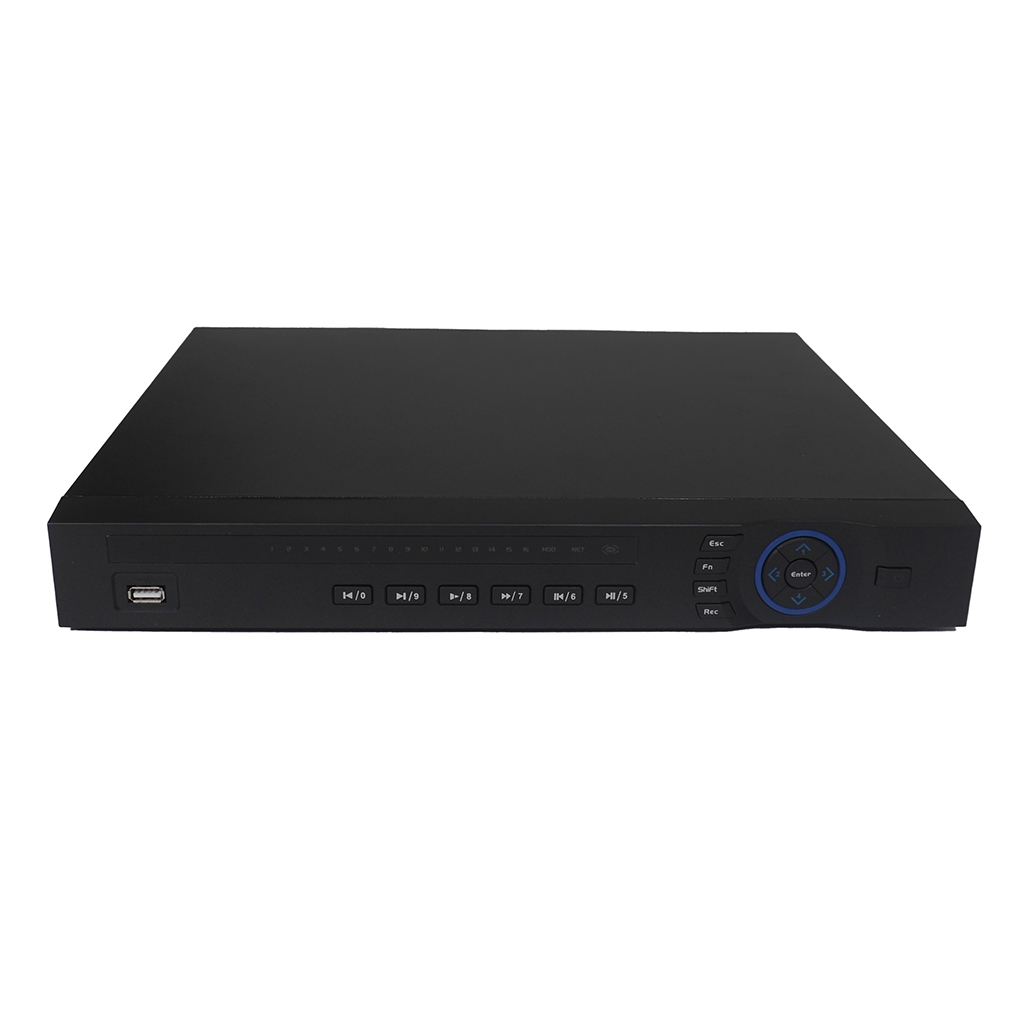

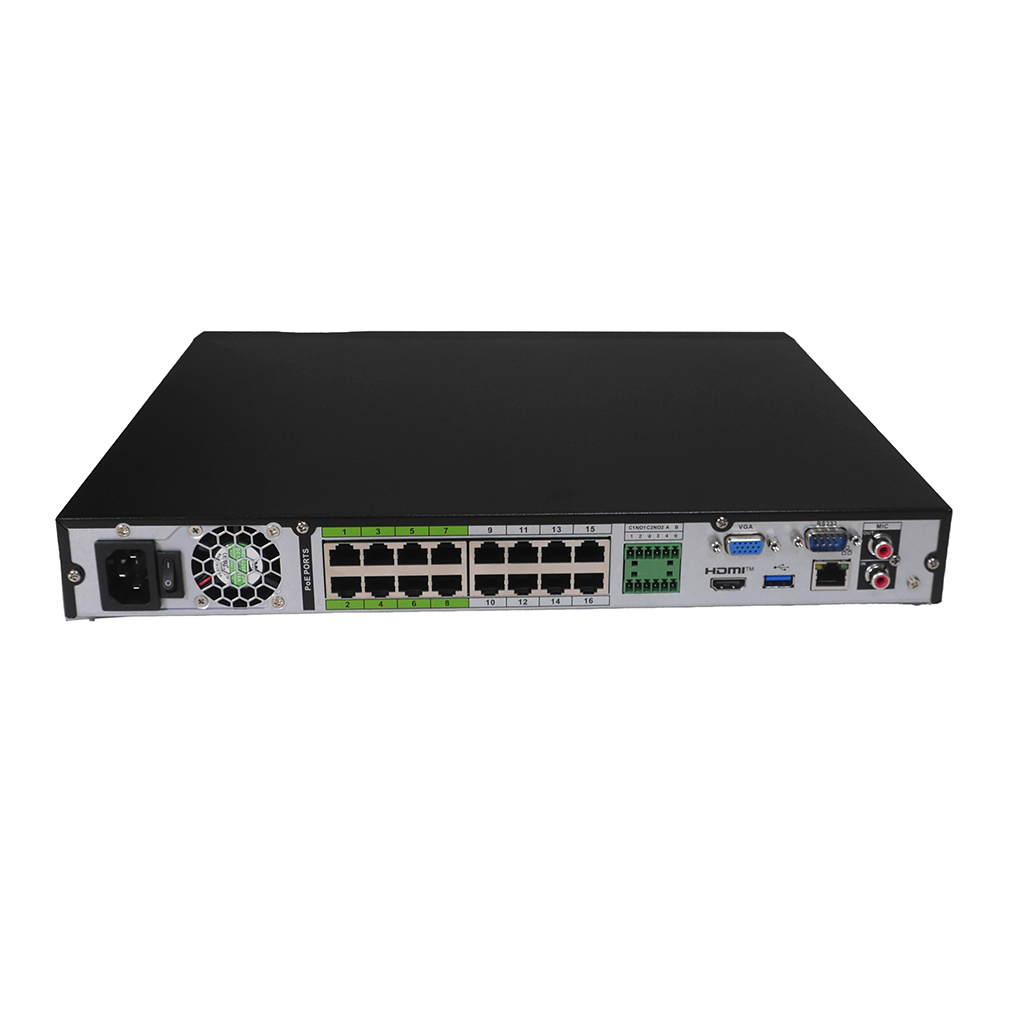

The NVR-EL16M-16EPW is a 4K 16 ch Network Video Recorder from our Elite series of surveillance equipment. It has 16 ports of POE built into it and 8 of these ports support ePOE. With the standard POE, the cable lengths are limited to 328 feet. If you use cameras that support the ePOE then those cables can go up to 2,624 feet.

This NVR has deep learning Artificial Intelligence (AI) which helps to make motion-based recording much more accurate and effective by focusing on people and vehicles. It also has Smart Motion Detection (SMD) Plus will also work to eliminate motion events triggered by things that aren’t valid.

It can use Automatic Number-Plate Recognition (ANPR) technology to comprehend license plate numbers on up to 8 channels. You can take full advantage of this feature by using a License Plate Recognition (LPR) camera. It will be far more successful in capturing plate numbers and the plate numbers will be a searchable field in your recorded footage.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.



ePoE, or enhanced Power over Ethernet, is an innovative solution that utilizes specialized algorithms capable of extending how far both IP and analog security cameras can reach. ePoE devices are now standard on ONVIF devices and can even be incorporated into traditional PoE systems. What makes ePoE devices different is that they have the capability of converting coaxial infrastructures with the latest IP devices. This capability makes it possible to increase transmission distances through both coaxial and ethernet cables.

4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 2
Has Alarm Inputs / Outputs Yes
Video Output Types HDMI/VGA
Video Output Resolutions: 4K, 1080P, 720P
Size 1U
Resolutions Capable 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p; 720p
Max Bandwidth 384 Mbps W/O AI | 200Mbps With AI
Display Screen Split 1/4/8/9/16
Compression of Video H.265+
Connection Apps DSS, Smart PSS Lite,Smart PSS, Elite Viewer Pro,DMSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
