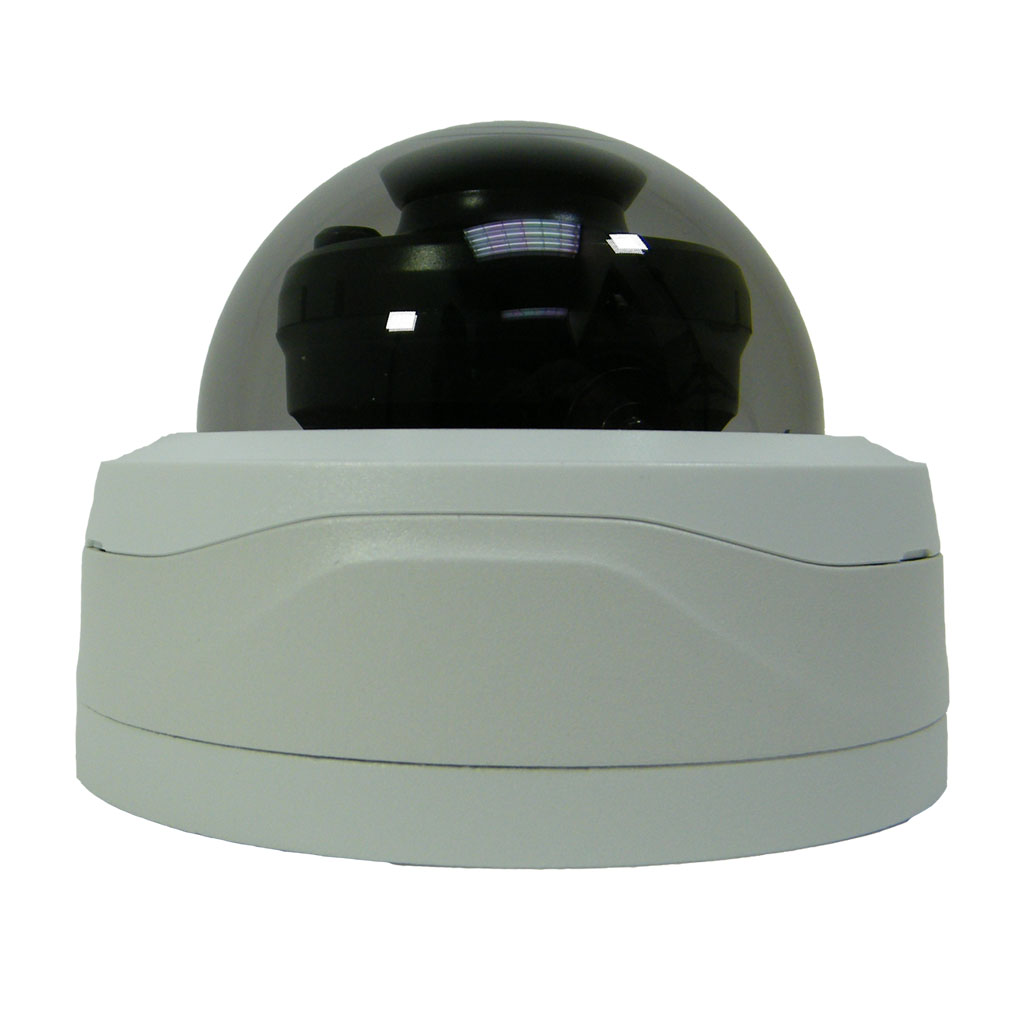

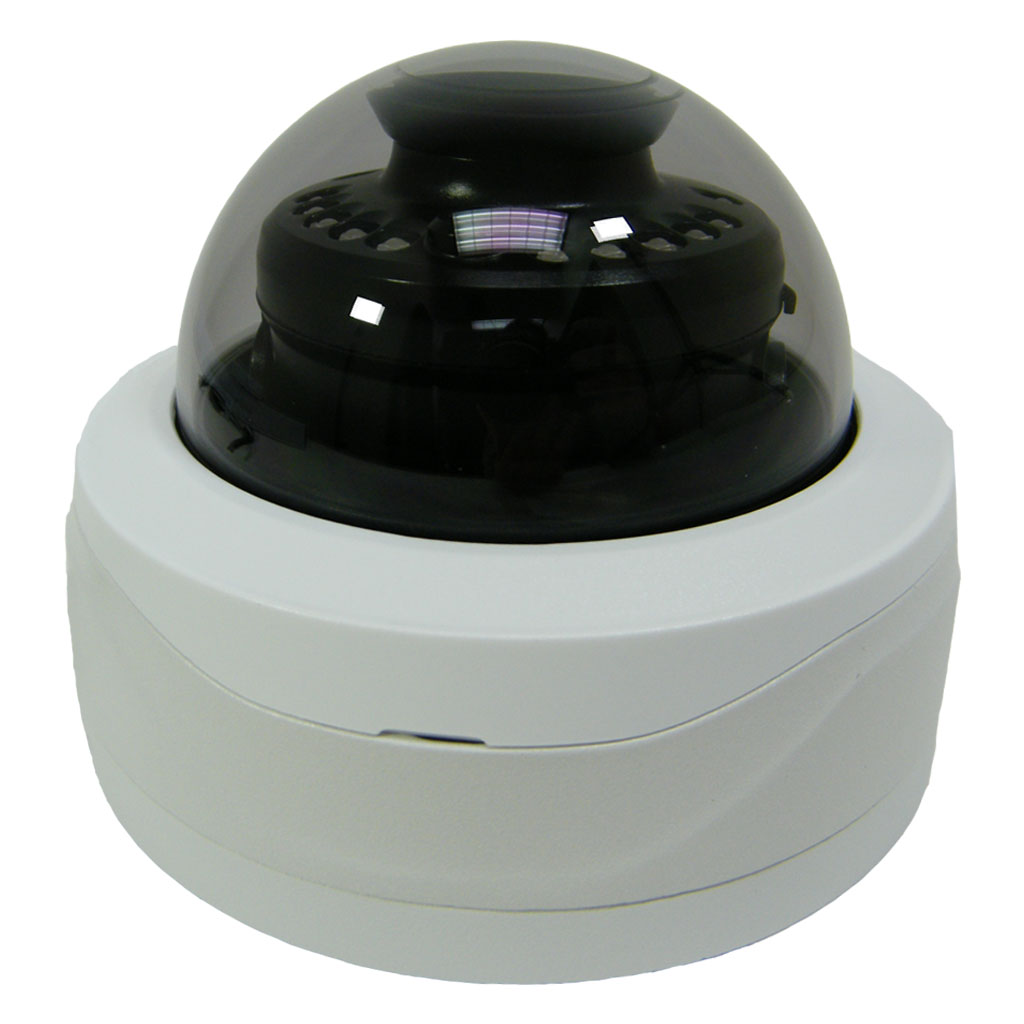

The HDVD-ELE2IR28 is an Elite series vandal dome that provides a 1080P (1920 x 1080) resolution at 30 frames per second. It has a 2.8mm fixed lens, allowing for a clear view over a vast area. These were designed so that you can use your current coaxial cabling with the camera to provide HD video. That means that you could easily upgrade a pre-existing analog camera system without having to replace the cabling. This camera is also a Quad Camera so, it is compatible with HD-CVI, HD-TVI, AHD and Analog video formats that can be easily changed through the On-Screen Display (OSD) menu.
This camera is perfect for either indoor or outdoor use due to its resilient design. It has an IP67 rating that protects it from moisture and dust penetration and an IK10 impact rating to keep it from getting damaged when it is dropped or being hit. Lastly, it has a 4KV lightning rating which helps to protect the camera and its housing from lighting strikes.
Smart IR technology helps this camera to work optimally in situations with little to no visible illumination up to 98 feet. The feature regulates the strength of the IR (Infrared) in order to adjust for the distance of an object in the camera’s view. This prevents the object from being over or under illuminated. The camera also has white balance and motion detection, Digital Wide Dynamic Range, Back-Light Compensation and Head-Light Compensation to balance out the image in challenging lighting conditions.
Another great feature of this camera is the fact that it can transmit in real-time over large distances without any loss in quality. This means you could potentially transmit over 2624 feet in 1080p or 3937 feet in 720p with coaxial cable. If you’d prefer UTP cabling, you can transmit over 984 feet in 1080p or 1476 feet in 720p.
This comes with free US-based tech support and access to free mobile Apps & software.
|Features||Works with CVI, TVI, AHD, Analog, DWDR, IK10 Vandal Rating|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||1080P (1920×1080), 720P (1280x720)|
|Sensor Size||1/2.7 inch CMOS|
|IR Distance||98 feet|
|Voltage||12V DC ±25%|
|Temp Range||-40° F ~ +140° F, Less than 90% RH|
|Dimensions||4.33in x 4.33in x 3.19in|
HDVD-ELE2IR28 Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs)
This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool Downloads: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
