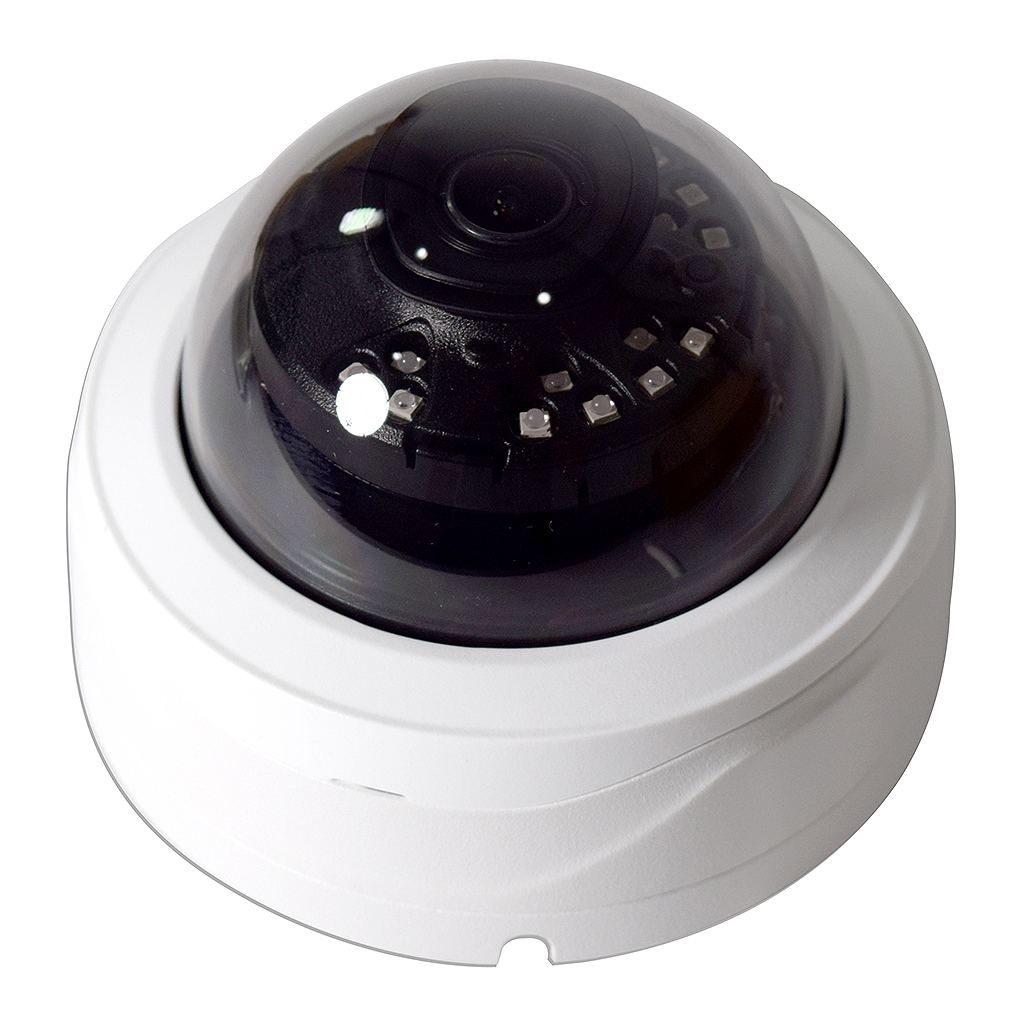

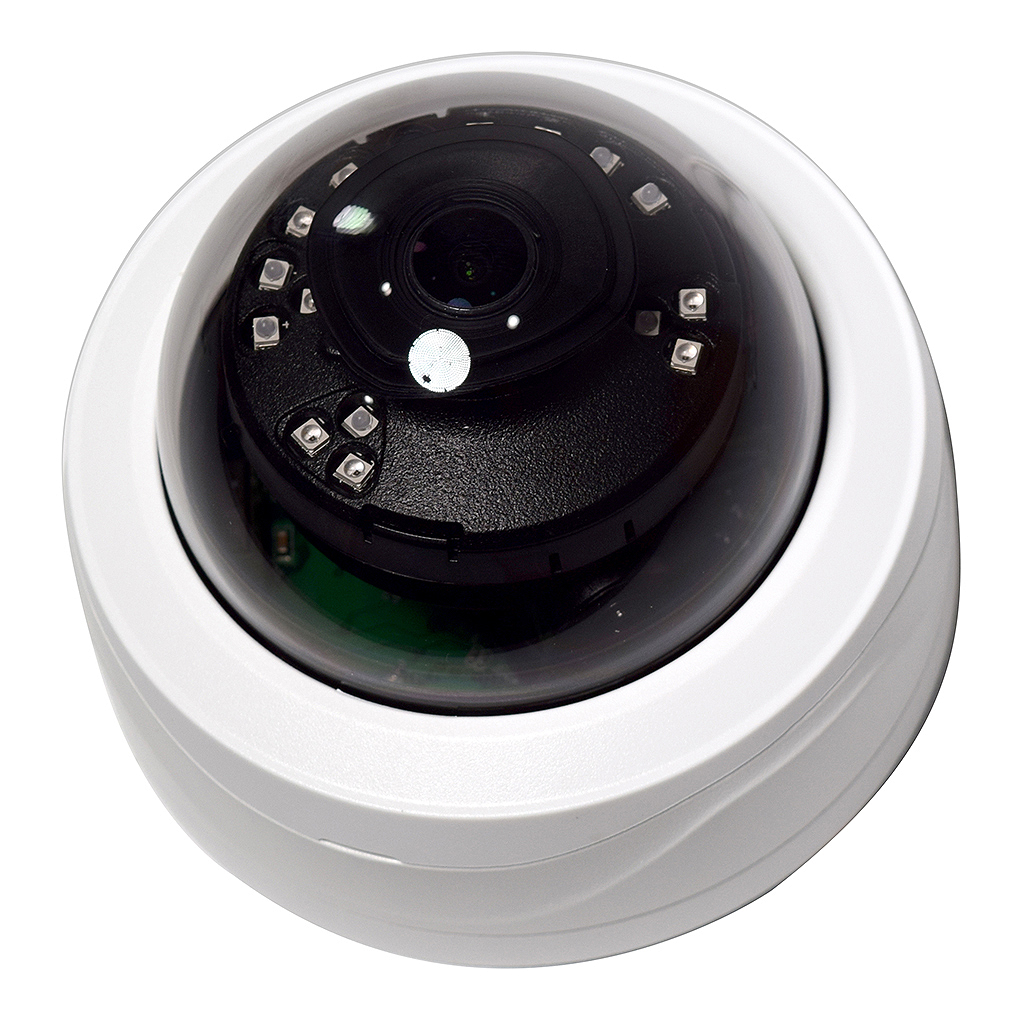

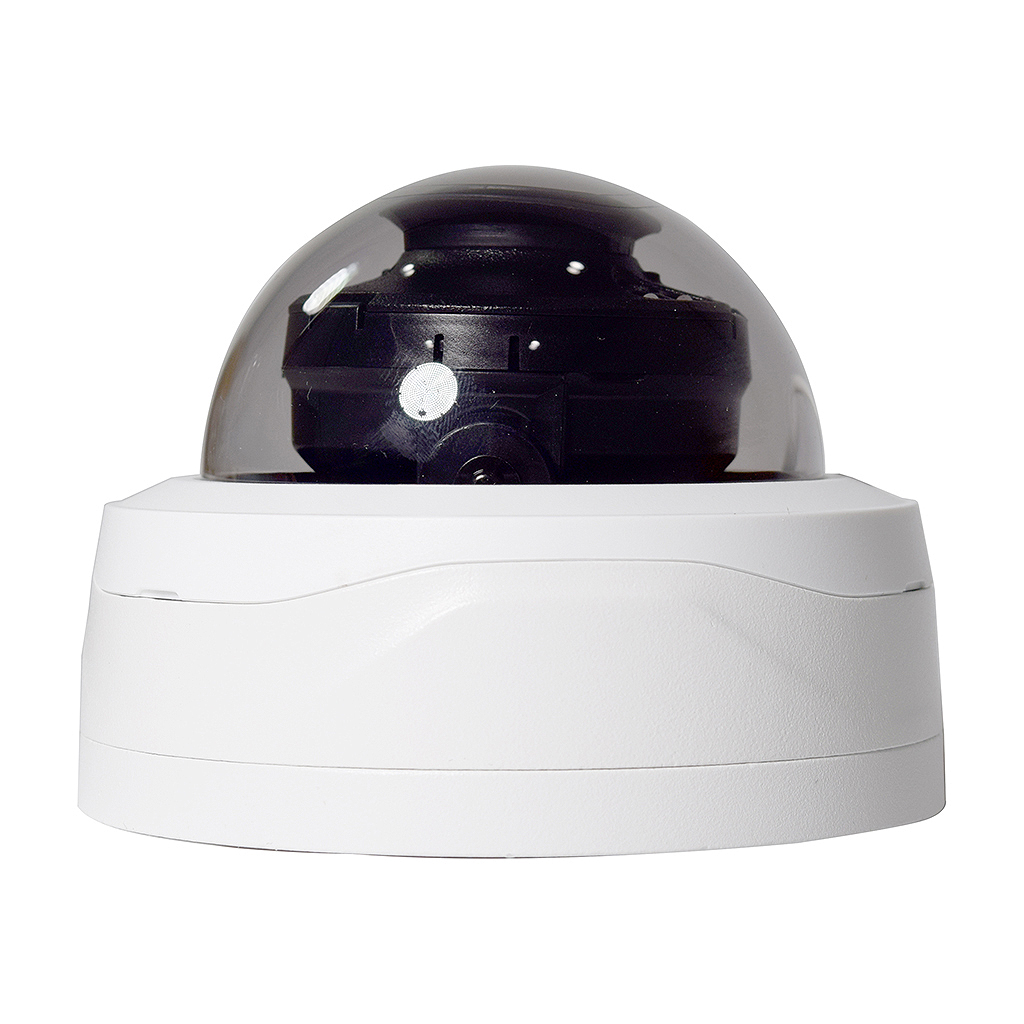

The IPVD-ELS8IR28A-EP is an 8MP (3840×2160) vandal dome camera with a 2.8mm fixed lens from our Elite series of cameras and you can be confident that it will give you an image with enough detail to identify a perpetrator in any situation. With an IP67 weather rating, a vandal resistance rating of IK10, and 6KV lightning rating for protection against lightning standards, this camera will work great for almost any environment indoors or outdoors.
This camera features the new ePoE technology that when paired with an ePoE recorder or our EPOE-4MB1G switch, you will be able to transmit data and supply power to the camera over 2600 feet at the speed of 10Mbps or 980 feet at the speed of 100Mbps using Cat5 or Cat6 Ethernet cable. Compatible recorders will allow you to use the newest H.265+ compression but it’s also backwards compatible with H.265, H.264, and H.264+. Included with this cameras interface are a few IVS (Intelligent Video Surveillance) settings with Tripwire, Intrusion, and Abandoned/Missing objects which are all added security features that can be used to trigger events for recording. The recordings by IVS are much more effective than the standard motion detection recordings, giving you significantly less false records.

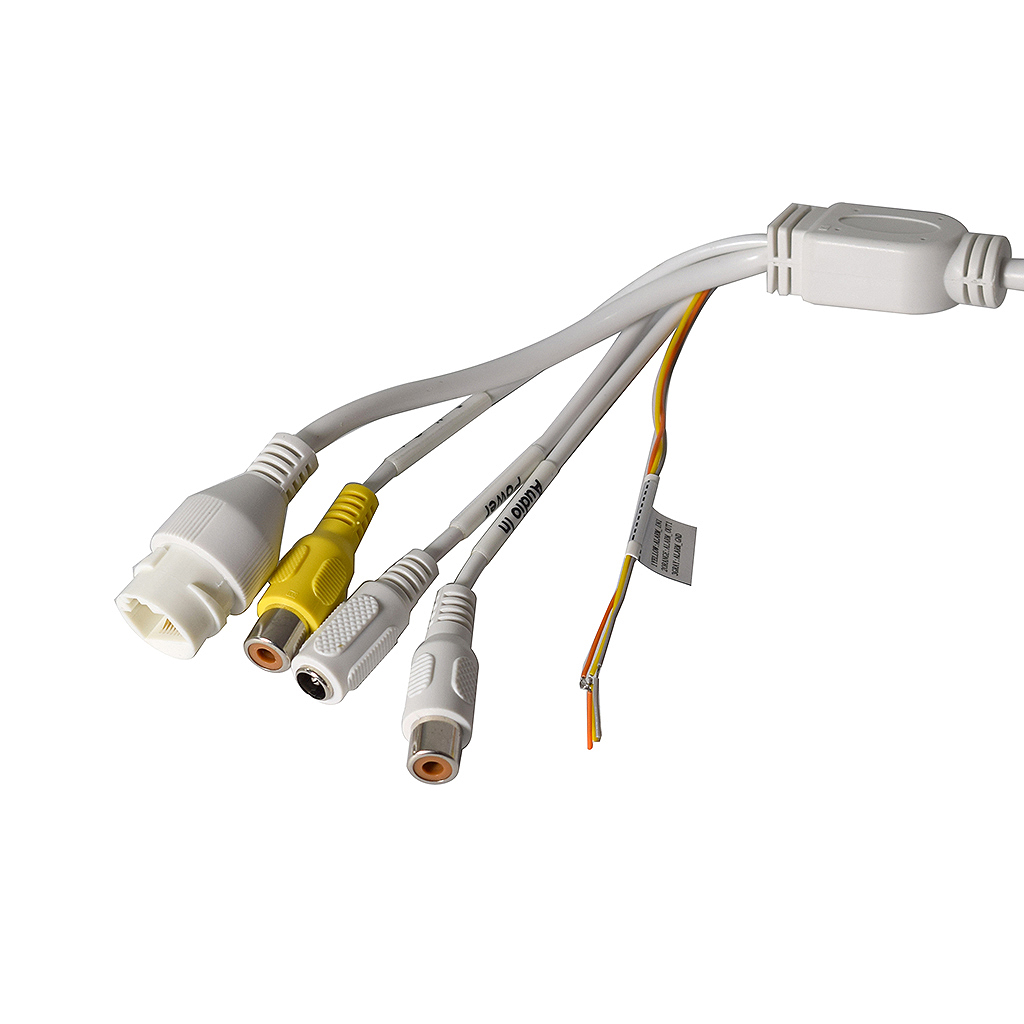

Also included on the camera pigtail are 1 RCA audio input and 1 RCA audio output so you can have 2 way communication and 1 alarm input and 1 alarm output which can be set to trigger an alarm based on an event. Adding value to this camera is the Starlight™, smart IR technology which will allow for sharper images at night and with enough ambient lighting you may be able to see in full color at night. This camera can also record to a Micro SD card up to 128gb.
This camera has some great software features including WDR (120db), Day/Night (ICR), 3DNR, AWB, AGC, and BLC. This camera is ONVIF, CGI, and PSIA compliant and can be used with any of our NVR recorders. With all these great hardware and software features of this camera, you will be very happy with the images you are recording in any situation. Software for this camera is free and can be downloaded from out website. For PC and Mac you can view this camera on Smart PSS and for Android and iOS, you can use the TechproSS application which can be downloaded through the Google play store or Apple store.
When purchased through us, this comes with FREE US based tech support and a 2 year warranty.
|Features||True WDR, IK10 Vandal Rating, Smart H.265+ Video Compression, ePoE Technology|
|Lens||2.8mm Fixed Lens|
|Image Resolutions||4K(3840x2160)/6M(3072x2048)/5M(2560x1920)/ 3M(2048x1536)/3M(2304x1296)/ 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280x720)|
|Sensor Size||1/2.5 inch 8MP progressive scan CMOS|
|IR Distance||98 feet|
|Voltage||DC 12V, PoE (802.3af) (Class 0)|
|Temp Range||-22° F ~ +140° F) / Less than 95% RH|
|Dimensions||4.33in x 4.33in x 3.19in|
IPVD-ELS8IR28A-EP Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Configuration Tool Downloads: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
